Kohler K-45720T User manual

368 201419

Bubble Massage Bath

(Include Electronic Drain and Soft Touch Panel)

()

OWNER S MANUAL'

, 2014

1200098-T01-B

2-T01-B1200098

....................................................2

......................................................................3

....................................................... 4

......................................................................4

...............................................................6

.......................................................... 8

..................................................................... 9

Thank You For Choosing Kohler Company

Important Information ..................................................3

Function Operation..................................................... 4

Operating Your Bath with Airjets..................................6

.................2

Your Kohler Bath with Airjets ...................................... 4

Care and Cleaning Instructions ...................................8

Troubleshooting Procedures .......................................9

TABLE OF CONTENTS

THANK YOU FOR CHOOSING KOHLER COMPANY

Thank you for choosing The Bold Look of Kohler.

Kohler craftsmanship offers you a rare combination of

proven performance and graceful sophistication that

will satisfy you for years to come. The dependability

and beauty of your new bath with airjets will surpass

your highest expectations. We're proud of our bath

with airjets here at Kohler, and we know you will be too.

Please take a few minutes to study this Homeowners

Guide before you use your bath with airjets. Pay

special attention to the "Care and Cleaning"

instructions in this manual.

All information in this manual is based upon the latest

product information available at the time of

publication. At Kohler, we constantly strive to improve

the quality of our products. We reserve the right to

make changes in product characteristics, packaging, or

availability at any time without notice.

This manual is designed to help you troubleshoot any

problems that may develop with the operation of the

bath with airjets.

If a problem occurs, refer to the "Troubleshooting"

section to determine a probable cause.

113864-5-BB

31041246-T01-C-T01-B1200098

(GFCI)

(ELCB) GFCI ELCB

GFCI

ELCB GFCI ELCB

GFCI ELCB GFCI ELCB

GFCI ELCB

Never drop or insert any object into any opening.

The bath with airjets must be connected only to a

supply circuit that is protected by a Ground-Fault

Circuit-Interrupter (GFCI) or Earth-Leakage Circuit-

Breaker (ELCB). Such a GFCI or ELCB should be

provided by the installer and should be tested on a

routine basis. To test the GFCI or ELCB, press the test

button. The GFCI or ELCB should interrupt power.

Press the reset button. Power should be restored. If

the GFCI or ELCB fails to operate in this manner, the

GFCI or ELCB is defective. If the GFCI or ELCB

interrupts power to the bath without the test button

being pressed, a ground current is flowing, indicating

the possibility of an electric shock. Do not use this bath.

Disconnect the bath and have the problem corrected by

a qualified service representative before using.

IMPORTANT INFORMATION

INSTRUCTIONS PERTAINING TO A RISK OF FIRE,

ELECTRICAL SHOCK, OR INJURY TO PERSONS

READ AND FOLLOW ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS

WARNING: When using electrical products,

basic precautions should always be followed,

including the following:

DANGER: Risk of personal injury.

WARNING: Risk of personal injury.

WARNING: The use of alcohol, drugs, or

medication can greatly increase the risk of

fatal hyperthermia.

To reduce

the risk of injury, do not permit children to use

this unit unless they are closely supervised at all

times.

To avoid

injury, exercise care when entering or exiting the

bath with airjets.

Prolonged immersion in hot

water may induce hyperthermia.

NOTE: Please do not use the bath in case of

outage. In this case, the electronic drain

automatically opens and the bath can not be

filled with water.

Use this bath with airjets only for its intended purpose

as described in this manual. Do not use attachments

not recommended by the manufacturer.

Your new bath with airjets is designed to stimulate,

invigorate, and energize your body. You will use the

following components:

Allows the bather to relax in comfort while

enjoying the air massage.

- Function control by touching

relevant buttons on the panel.

Holes through which the air flows.

Provides quiet, variable speed

power to force air through the airjets into the water

and create the soothing bubbling action.

- Controls the drain and overflow

functions electronically.

Bath -

Soft Touch Panel

Airjets -

Blower Motor -

Electronic drain

YOUR KOHLER BATH WITH AIRJETS

4-T01-B1200098

FUNCTION OPERATION

Manual Purge Electronic Drain On/Off

Pump On/Off

Water Temperature

Decrease/Increase Flow

10~30mm

30 (

10~30mm )

Unlock Soft Touch Panel

When the finger is within 10~30mm to the panel,

lights on the sliding slip will flash one by one along

" " direction. Slide along " " direction, the

panel will be unlocked and activated.

If the panel is not operated within 30 seconds (the

finger is not within 10~30mm to the panel or no

drops of water splash into the sensing range of the

panel), it will be automatically locked and enter

energy-saving mode with no light display.

FUNCTION OPERATION (CONT)

-T01-B1200098

Bubble Adjustment

Slide the sliding slip to unlock the panel.

When the blower motor is running, slide in " "

direction to increase the air flow and the light

gradually flashes from white to blue as the finger

moves along " " direction .Slide in " "

direction to decrease the air flow, the light gradually

dies out from white to blue as the finger moves

along " " direction.

Manual Cleaning

Slide the sliding slip to unlock the panel. Start the

blower motor by touching the button " " the

yellow light flashes. It will automatically stop after

running for about 2 minutes.

Automatic Cleaning

When the massage function is off, the blower motor

will automatically start and stop after running for

about 2 minutes if it detects the water level is below

the airjets.

Temperature Display

Display water temperature in the bath and display

air temperature when the bath is empty.

Electronic Drain

Slide the sliding slip to unlock the panel. Start the

drain by touching the button " " once, the green

light flashes. Touch again to stop it, the pink light

flashes. When touching this button, a slight sound

can be heard from the drain at the bottom of the

bath.

Bubble Massage

Slide the sliding slip to unlock the panel. Touch the

button " " to start the blower motor, blue light

flashes. Touch again to stop it, blue light half flashes.

Touch the button " " The blower motor will

automatically stop after running for about 20

minutes.

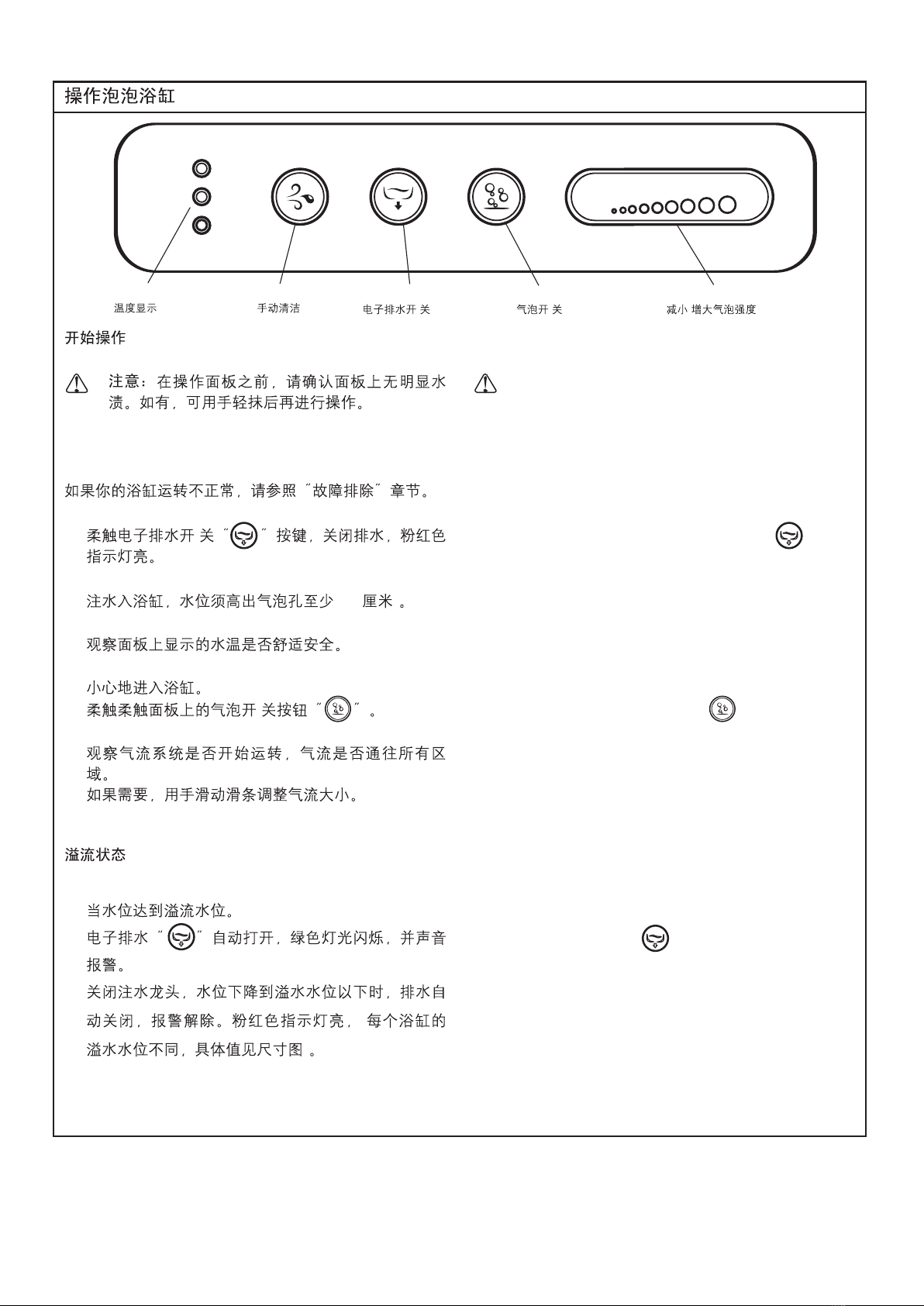

STARTING THE UNIT

If the unit does not function properly, please refer to the

"Troubleshooting" section.

Touch the electronic drain on/off button " " on the

panel to close the drain, and the pink light flashes.

Fill the bath to a level at least 2" (5 cm) above the

bubble hole.

Observe water temperature displayed on the panel

for comfort and safety.

Carefully enter the bath basin.

Touch the pump on/off button " " on the user

keypad.

Observe that the air system starts and air begins to

flow to all zones.

If necessary, slide the sliding panel to adjust the

airflow.

NOTE: Before operating the panel, please

confirm that there is no obvious water stains on

the panel. If there is any, please first wipe it clean.

2"(5 )

OPERATING YOUR BATH WITH AIRJETS

Manual Purge Electronic Drain On/Off

Pump On/Off

Water Temperature

Decrease/Increase Flow

OVERFLOW STATUS

Water level reaches overflow level.

The electronic drain " " automatically opens.

Green light flashes and sound alarm starts.

Turn off the tap. When water level is below overflow

level, the electronic drain automatically closes.

Sound alarm stops and pink light flashes, (Refer to

"Roughing-in" for specific overflow level of each

bath.)

(

)

6-T01-B1200098

OPERATING YOUR BATH WITH AIRJETS(CONT)

-T01-B1200098

STOPPING THE BATH

After taking the bath, touch the pump on/off button

" " a second time to stop the air system.

Carefully exit the bath.

Touch the electronic drain on/off button" ". The

green light flashes.

When water in the bath is almost emptied, the

automatic two-minute purge cycle occurs. The air

system operates at a low speed to blow any residual

water out of the air channels.

INITIATING A MANUAL PURGE CYCLE

After the bath is drained, touch the manual purge

button " " once.

The purge icon flashes green and the mode is

implemented. The air system operates at a low

speed to blow any residual water out of the air

channels.

After about two minutes, the air pump stops

automatically.

NOTE: When the bath reaches overflow level,

water level may rise quickly if you enter the bath

or start the bubble massage function, which may

trigger the compelling drain function. Compelling

drain function will discharge lots of water, so it is

not recommended to use the bath when it

reaches overflow level.

COMPELLING DRAIN FUNCTION

!If the overflow level sensor does not work, you can

use the compelling drain function to prevent water

overflow to your bathroom. Please refer to the

automatic drain water level in the Roughing-in.

POWER OFF STATUS

!The electronic drain automatically starts under

power off status.

Please do not use the bath in case of outage. In

this case, the electronic drain automatically opens and

the bath can not be filled with water.

NOTE:

CARE AND CLEANING INSTRUCTIONS

A. Cleaning Your Acrylic Bath

NOTE:

Do not use powdered cleaners unless the cleaner is

fully dissolved in water. Solid substances could

block the air jets.

Do not use full strength bleach or ammonia cleaning

solutions. Chemically active cleaning solutions can

damage the bath surface.

Do not use abrasive cleansers or solvents on acrylic

surfaces. Abrasive cleaners and solvents can

damage the bath surface.

Wipe out your acrylic bath with a soft cloth after

each use.

Avoid detergents, disinfectants, or cleaning products

in aerosol cans.

To restore dull or scratched units: Apply white

automotive polishing compound with a clean rag.

Rub scratches and dull areas vigorously. Wipe off

residue. Follow with a coat of white automotive paste

wax. Do not wax areas where you walk or stand.

B. Cleaning Your User Keypad

Use a soft cloth to wipe the keypad and remote

control after each use. If the surface becomes dirty,

use a non-abrasive soap and warm water to clean.

C. Maintaining the Airjets

If cleaning the airjets is required due to hard water

deposits, use a small between-the-teeth dental

Brush and white vinegar. Dip the brush in the

vinegar, brush the hole, rinse the brush in clean

water, and then use the wet rinsed brush to rinse the

hole.

8-T01-B1200098

8. A.

3. 20

4. 20

5. /

A.GFCI ELCB

A. / GFCI ELCB

A. GFCI ELCB

C. C.

D. D.

This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified

electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale

distributor.

TROUBLESHOOTING PROCEDURES

Troubleshooting The Bath System

-T01-B1200098

9. A.

SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION

1. Bath with airjets does not

start.

A. Controller is not power on.

2. Blower motor starts, but

there are few or no bubbles.

3. stops

automatically within 20

minutes.

Blower motor

B. User keypad cable loose or damaged.

C. User keypad does not work.

D. Blower motor does not work.

A. Set/reset GFCI or ELCB breaker;

check wiring.

B. Check wire connections. If necessary,

replace user keypad.

C. Replace user keypad.

D. Replace blower motor.

A. Pipeline leaking.

B. Pump inlet is blocked.

A. Apply silicone sealant to the leakage.

B. Clean the area around the blower

motor. Ensure adequate ventilation.

A. GFCI or ELCB trips.

B. Motor overheated and protection

device activated.

A. Correct GFCI or ELCB trips.

B. Check for blockage at motor vents.

Remove blockage and allow motor to

cool.

A. Replace controller.

A. Check wire connections. If necessary,

replace user keypad.

B. Replace user keypad.

C. Replace the controller.

A. Replace blower motor.

B. Check wire connections. If necessary,

replace water level sensor.

C. Operation after water level is below

the airjets.

D. Replace the controller.

4. does not stop

automatically after 20 minutes.

Blower motor

5. Blower motor does not stop

when pump on/off button

on user keypad is touched.

6. Blower motor operates but

speed timing does not work

7. Automatic purge does not

occur.

A. Controller trips.

A. User keypad cable loose or damaged.

B. User keypad does not work. B. Replace user keypad.

A. User keypad cable loose or damaged.

B. User keypad does not work.

C. Controller dose not work.

A. Check wire connections. If necessary,

replace user keypad.

A. Blower motor does not work.

B. Water level sensor trips or circuitry

plough.

C. Over-height of the water level.

D. Controller dose not work.

10. A.

11. A. A.

B. B.

13.

14.

12. A.

C. Kohler

10 -T01-B1200098

This manual suits for next models

Table of contents

Other Kohler Bathtub manuals

Kohler

Kohler K-11344 Assembly instructions

Kohler

Kohler K-18485 Assembly instructions

Kohler

Kohler BIOVE K-8277T-GR User manual

Kohler

Kohler K-156 Assembly instructions

Kohler

Kohler Eternity K-1522-ET User manual

Kohler

Kohler Sunward K-1162-GW User manual

Kohler

Kohler Escale K-11343-G Assembly instructions

Kohler

Kohler K-45600X Assembly instructions

Kohler

Kohler Memoirs K-723 User manual

Kohler

Kohler Memoirs K-724-G0 User manual

Kohler

Kohler K-1800 Assembly instructions

Kohler

Kohler P50202-00 User manual

Kohler

Kohler Underscore K-5716-GCR User manual

Kohler

Kohler K-1124-GLA Quick start guide

Kohler

Kohler Lakewood K-1649 Assembly instructions

Kohler

Kohler K-941 Assembly instructions

Kohler

Kohler K-1145 Assembly instructions

Kohler

Kohler Birthday Bath K-100 Assembly instructions

Kohler

Kohler K-856-CT Assembly instructions

Kohler

Kohler Greek K-1492-H2 Assembly instructions

Kohler

Kohler 1835-GW-0 Assembly instructions

Kohler

Kohler Archer K-1125-LA Quick start guide

Kohler

Kohler Englefield Valencia 1500 FS User manual

Kohler

Kohler K-710 Assembly instructions

Popular Bathtub manuals by other brands

Agua

Agua BARTOLI-66 quick start guide

PAA

PAA PRELUDE owner's manual

BETTE

BETTE SILHOUETTE installation guide

American Standard

American Standard Whirlpool/Bathing Pool 2748.XXXW installation instructions

Oliveri

Oliveri Naples installation instructions

Lyons

Lyons Elite ETLxx663219 Series manual

Woodbridge

Woodbridge BJ500 Installation and care guide

Whirlpool

Whirlpool Ariel ARL-702 installation manual

TEIKO

TEIKO EXCELLENT DUO user manual

American Standard

American Standard Colony 5-1/2' x 32" Specification sheet

American Standard

American Standard 3052OD.X0X Installation instructions and owner's manual

agape

agape MARSIGLIA AVAS1075 Assembly instructions

Kallista

Kallista P50045-G5 Homeowner's guide

Ariel

Ariel AM Series user manual

Agua

Agua BAHLI-60 quick start guide

DURAVIT

DURAVIT XViu 700443 Mounting instructions

American Standard

American Standard Colony 2740 Series installation instructions

Rapsel

Rapsel OFURO Fixing instructions
