Kohler Sunward K-1162-GW User manual

Features

•End drain.

•Bask®heated surface creates spa-like relaxation with soothing

warmth on your back, shoulders, and neck.

•Integral lumbar support and armrests for comfort.

•60" (1524 mm) x 42" (1067 mm) x 21" (533 mm)

Material

•Acrylic

Hydrotherapy

•120 BubbleMassage™airjets.

•Zones of Control feature allows you to target massage to back,

midsection, or feet.

•Automatic purge cycles remove residual water from air channels

after use.

•Built-in 300 W heater.

•Lighted keypad control. Codes/Standards

Installation ASME A112.19.7/CSA B45.10

•Drop-in CSA B45.5/IAPMO Z124

Recommended Accessories

K-11677 Bath Drain

ASTM E162

ASTM E662

UL 1795

K-576 Under-mount Install Kit Greenguard UL 2818 - Gold

K-24916 Wireless Music Kit CARB P2

K-37382 45" Rough-in Cable Bath Drain

KOHLER®One-Year Limited Warranty

See website for detailed warranty information.

Available Color/Finishes

Color tiles intended for reference only.

DescriptionCodeColor

White0

Biscuit96

Almond47

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-7-2017 04:58

Sunward®

5' BubbleMassage™Bath

K-1162-GW

Lumbar

Notes

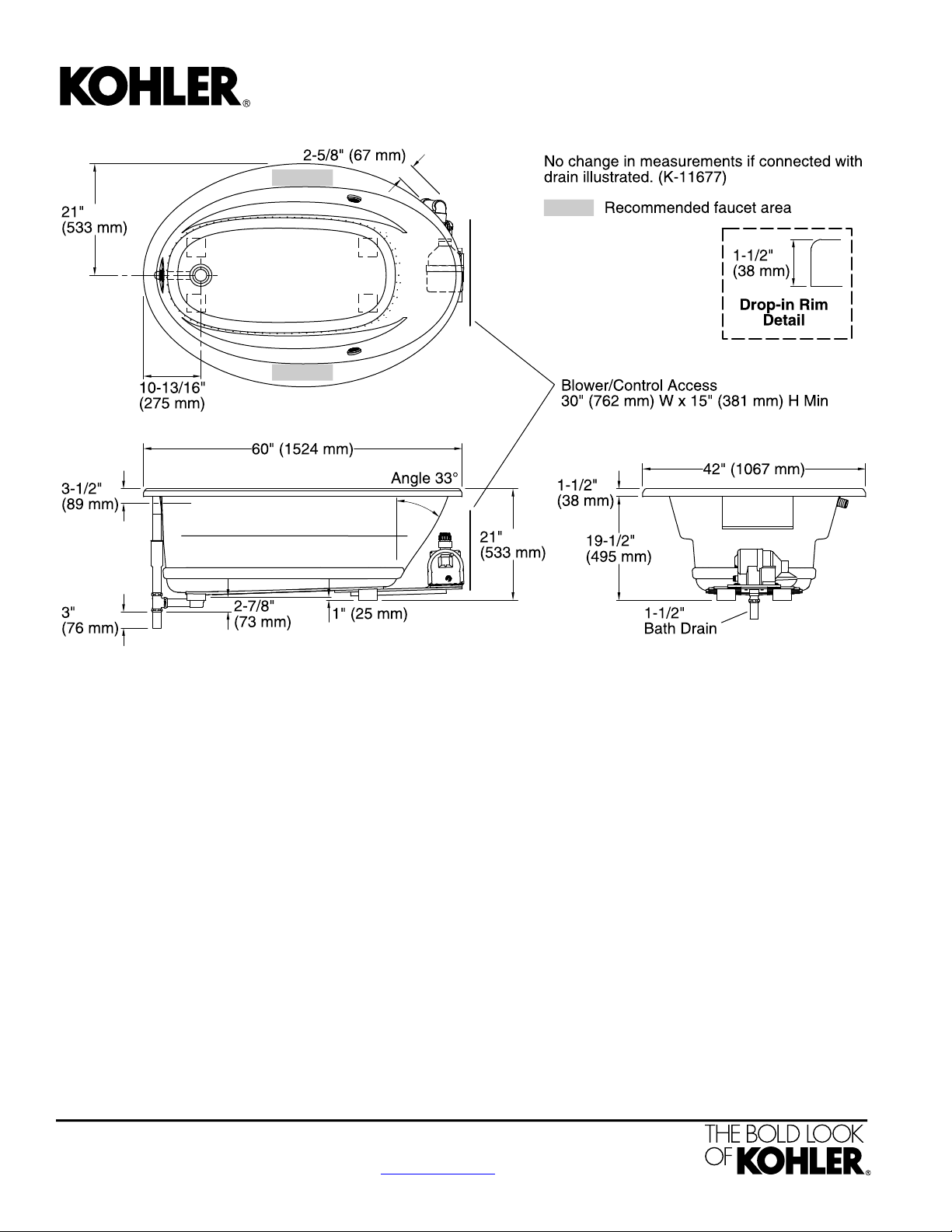

Required Electrical Service Measure your actual product for rough-in details.

One dedicated circuit required, protected with Class A

Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device

(RCD).

Install this product according to the installation

instructions.

The hot water supply should be 70% of the

capacity of the bath or greater. Installations will

vary.

120 V, 15 A, 60 HzBlower, Heated

Surface:

Technical Information Provide one grounded electrical outlet within 24"

(610 mm) of each component.

All product dimensions are nominal.

Drop-inInstallation:

Remote blower installation kit is available for

relocating the blower. Provide access for servicing

the blower.

EndDrain location:

43" x 21-9/16" (1092 mm x 548 mm)Basin area, bottom:

53-1/2" x 32-1/8" (1359 mm x 816 mm)Basin area, top: Do not relocate or alter the PVC tee or coiled

flexible tubing connected to the blower. Follow

the blower relocation instructions exactly.

116 lbs (52.6 kg)Weight:

35 lbs/ft²(170.9 kg/m²)Minimum floor load:

15" (381 mm)Water depth:

57 gal (215.8 L)Water capacity:

Drop-in, 1042556-7, required, includedTemplate:

Blower: 120 V, 10 A, 60 Hz, 300 W

Heated Surface: 120 V, 60 A, 60 Hz, 65

Electrical component

rating:

USA/Canada: 1-800-4KOHLER (1-800-456-4537)

Kohler Co. reserves the right to make revisions without notice to product specifications.

For the most current Specification Sheet, go to www.kohler.com.

3-7-2017 04:58

Sunward®

5' BubbleMassage™Bath

K-1162-GW
