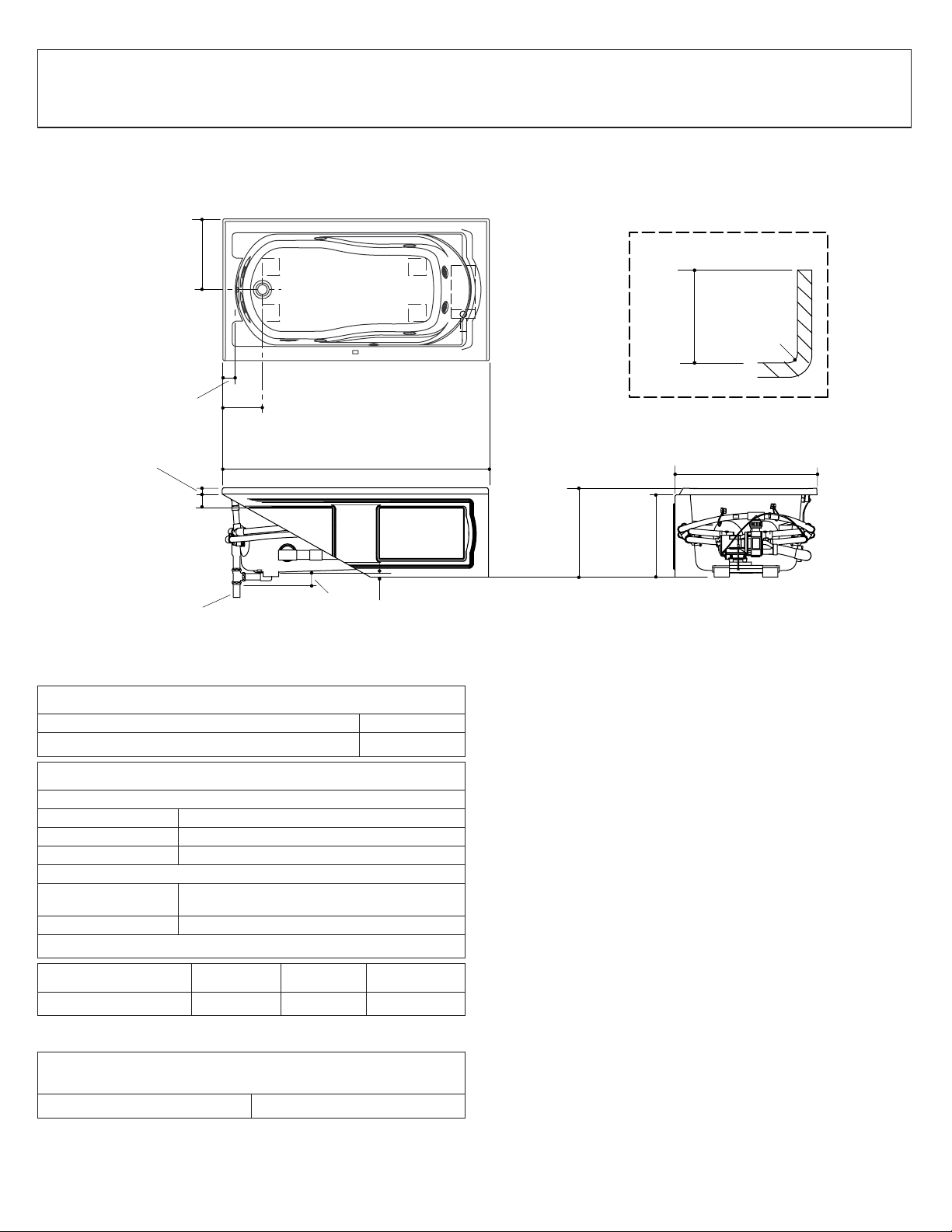

Kohler K-1357P-LA Quick start guide

Roughing-In Guide

Bath Whirlpool

Canada

Mproduct numbers are for Mexico (i.e. K-12345M)

Los números de productos seguidos de Mcorresponden a México (Ej.

K-12345M)

Français, page 3

Español, página 4

USA/Canada: 1-800-4KOHLER

México: 001-877-680-1310

kohler.com

K-1357P-LA, K-1357P-RA

Product Information

Applicable product:

Integral apron, left drain K-1357P-LA

Integral apron, right drain K-1357P-RA

Fixture*:

Bathing well:

Basin area, bottom 42″(106.7 cm) x 20″(50.8 cm)

Basin area, top 51″(129.5 cm) x 24″(61 cm)

Weight 135 lbs (61.2 kg)

To overﬂow:

Water depth 14″(35.6 cm)

Capacity 60 gal (227.1 L)

* Approximate measurements for comparison only.

Pump: V Hz A

1-speed 120 60 7

Required Electrical Service

Dedicated circuit required, protected with a Class A

Ground-Fault Circuit-Interrupter (GFCI):

Pump/control 120 V, 15 A, 60 Hz

Notes

Install this product according to the installation guide.

Floor support under this product must provide for a minimum of

50 lbs/square foot (242 kg/square meter) loading.

This ﬁxture conforms to CSA B45 and ANSI Standard Z124.1.2. All

dimensions are nominal.

No change in measurements if connected with drain

illustrated. (K-7161-AF or K-7161M-AF)

Integral Flange Detail

32" (81.3 cm)

20"

(50.8 cm)

21-1/4"

(54 cm)

1/2"

(1.3 cm) R.

1-1/4"

(3.2 cm)

60" (152.4 cm)

1" (2.5 cm)

2-1/2"

(6.4 cm)

1-1/2" OD

3" (7.6 cm)

1-1/4"

(3.2 cm)

(22.9 cm)

2-1/4"

(5.7 cm)

16"

(40.6 cm)

1012847-1-B 2 Kohler Co.

Guide de raccordement

Baignoire à hydromassage - Canada

Information sur le produit

Produit applicable:

Bandeau intégré, drain à gauche K-1357P-LA

Bandeau intégré, drain à droite K-1357P-RA

Appareil sanitaire*:

Bassin de baignoire:

Espace du bassin,

base 42″(106,7 cm) x 20″(50,8 cm)

Espace du bassin,

dessus 51″(129,5 cm) x 24″(61 cm)

Poids 135 lbs (61,2 kg)

Au trop-plein:

Profondeur d’eau 14″(35,6 cm)

Capacité 60 gal (227,1 L)

* Mesures approximatives pour comparaison uniquement.

Pompe: V Hz A

1-vitesse 120 60 7

Branchement électrique requis

Circuit dédié requis, protégé par un Disjoncteur Différentiel de

Classe A (GFCI):

Pompe/commande 120 V, 15 A, 60 Hz

Remarques

Installer ce produit selon le guide d’installation.

Le support du sol sous ce produit doit pouvoir soutenir une charge

minimale de 50 lbs/pied carré (242 kg/mètre carré).

Ce meuble est conforme aux standards CSA B45 et ANSI Z124.1.2.

Toutes les dimensions sont nominales.

Aucun changement des mesures n'est nécessaire si

connecté au drain illustré. (K-7161-AF ou K-7161M-AF)

Détail de bride de carrelage

32" (81,3 cm)

20"

(50,8 cm)

21-1/4"

(54 cm)

1/2"

(1,3 cm) R.

1-1/4"

(3,2 cm)

60" (152,4 cm)

1" (2,5 cm)

2-1/2"

(6,4 cm)

Ø Ext. 1-1/2"

3" (7,6 cm)

1-1/4"

(3,2 cm)

(22,9 cm)

2-1/4"

(5,7 cm)

16"

(40,6 cm)

Kohler Co. 3 1012847-1-B

Diagrama de instalación

Bañera de hidromasaje - Canadá

Información sobre el producto

Producto correspondiente:

Faldón integral, desagüe a la izquierda K-1357P-LA

Faldón integral, desagüe a la derecha K-1357P-RA

Producto*:

Área de la bañera:

Área del fondo 42″(106,7 cm) x 20″(50,8 cm)

Área superior 51″(129,5 cm) x 24″(61 cm)

Peso 135 lbs (61,2 kg)

Al rebosadero:

Profundidad del

agua 14″(35,6 cm)

Capacidad 60 gal (227,1 L)

* Dimensiones aproximadas sólo para ﬁnes de comparación.

Bomba: V Hz A

1-velocidad 120 60 7

Requisitos eléctricos

Requiere un circuito dedicado, protegido con un interruptor de

circuito con pérdida a tierra (GFCI) de Clase A:

Bomba/control 120 V, 15 A, 60 Hz

Notas

Instale este producto conforme a la guía de instalación.

El soporte del piso debajo de este producto debe poder soportar

una carga mínima de 50 lbs/pie cuadrado (242 kg/metro

cuadrado).

Este producto cumple con la norma CSA B45 y Z124.1.2 de ANSI.

Todas las dimensiones son nominales.

No es necesario cambiar las medidas si se conecta

con el desagüe ilustrado. (K-7161-AF o K-7161M-AF)

Detalle del reborde integral

32" (81,3 cm)

20"

(50,8 cm)

21-1/4"

(54 cm)

1/2"

(1,3 cm) R.

1-1/4"

(3,2 cm)

60" (152,4 cm)

1" (2,5 cm)

2-1/2"

(6,4 cm)

1-1/2" D.E.

3" (7,6 cm)

1-1/4"

(3,2 cm)

(22,9 cm)

2-1/4"

(5,7 cm)

16"

(40,6 cm)

Kohler Co. 4 1012847-1-B
