Kohler K-707105 Assembly instructions
Installation and Care Guide
Bath Screen
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-707105 K-707205
1284425-2-B
Tools and Materials
Before You Begin
WARNING: Risk of serious injury. Damage prior to installation can result in glass shattering.
Inspect the glass and all parts for damage before installation.
WARNING: Risk of serious injury. Improper installation can result in glass shattering. Follow all
installation instructions.
WARNING: Risk of serious injury. Do not cut tempered glass. Tempered glass will shatter if cut.
WARNING: Risk of serious injury. Shower door and side panels can shatter. Regularly inspect the
glass and all parts for damage, missing or loose parts.
WARNING: Risk of serious injury. Always wear safety glasses while cutting and drilling.
CAUTION: Risk of personal injury. Tempered glass should not contact hard surfaces or it may
shatter. Do not touch the edge of the tempered glass panel with tools or any hard objects.
IMPORTANT! Leave this manual for the end user. Read these instruction before installing or using this
product.
IMPORTANT! This door is designed to accommodate walls that are less than 3/8″(10 mm) out of plumb.
Verify the area the door will be attached to is within 3/8″(10 mm) of plumb. The door may not function
properly if the wall is more than 3/8″(10 mm) out of plumb.
The bath or shower base should be installed/prepared, including finished wall materials, before
continuing.
Before starting the installation, lay out and identify all of the parts. Inspect for damage.
100% Silicone SealantCaulk Gun
6 mm 3 mm
1284425-2-B 2 Kohler Co.
1. Install the Wall Jamb
IMPORTANT! Install the wall jamb on the same side wall as the showerhead.
Position the wall jamb against the wall, on the highest point on the bath or shower base ledge. Refer
to the illustration above for correct placement.
Using a level, ensure the wall jamb is plumb.
Temporarily secure the wall jamb with masking tape.
Make a pencil mark at each of the three hole locations in the wall jamb.
Remove the masking tape and move the wall jamb to a safe area.
IMPORTANT! The supplied 6 mm drill bit is not suitable for drilling through tile. For tile installations,
usea6mmtile bit.
Slowly drilla6mmhole at each of the three marked hole locations, using the provided 6 mm drill
bit for non-tiled walls.
Insert an anchor in each hole. Make sure the anchors are flush with the finished wall.
Secure the wall jamb in place using three provided #8 x 1-1/2″screws.
Apply silicone sealant to the bottom inside of the wall jamb.
Ledge
Ledge
Ledge
Wall Jamb
6 mm
Wall Jamb
Wall Jamb
Kohler Co. 3 1284425-2-B
2. Secure the Bottom of the Screen
Carefully position the bath screen on the bath ledge and slide the into the wall jamb.
Verify the seal is compressed as shown.
Drill the bottom two 3 mm holes through the wall jamb channel and into the screen frame.
Secure the bottom of the bath screen frame to the wall jamb using the supplied screws.
Wall Jamb
Channel
1284425-2-B 4 Kohler Co.
3. Secure the Top of the Screens
Push the top of the screen into the wall jamb.
NOTE: Have a partner hold the door or shim the front edge of the door for this step.
While supporting the panel, drill the top two 3 mm holes through the wall jamb channel and into
the screen frame.
Secure the top of the bath screen frame to the wall jamb using the remaining screws.
Wall Jamb
Channel
Kohler Co. 5 1284425-2-B
4. Install the Covers and Caps
Install cover clips over each screw.
Install a cap on each screw.
Remove the rod from inside the seal.
Cap
Cover Clip
1284425-2-B 6 Kohler Co.
5. Complete the Installation
NOTE: Thoroughly clean all dust, dirt, or grease from the bottom track and shower ledge surfaces where
sealant will be applied. Make sure the surfaces are dry.
IMPORTANT! Carefully follow the silicone sealant manufacturer’s instructions for application and curing
time.
NOTE: When applying silicone sealant, tape the area and use alcohol pads or denatured alcohol for
cleanup.
Apply 100% silicone sealant to the seam as shown.

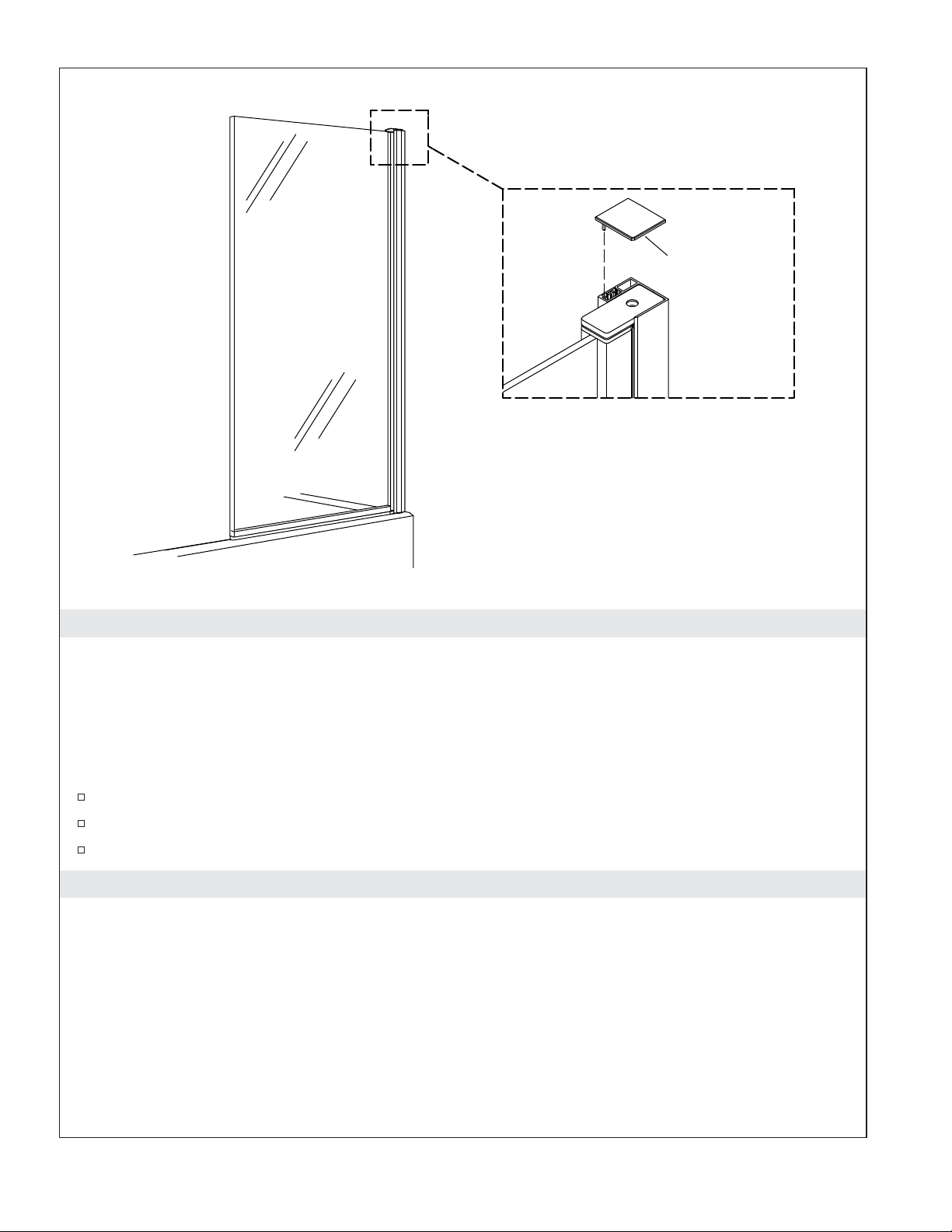

Apply a small amount of silicone sealant to the top of the wall jamb.
Install the cover to the top of the wall jamb.
Care and Cleaning
For best results, keep the following in mind when caring for your KOHLER product:
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Wipe surfaces clean and rinse completely with water immediately after applying cleaner. Rinse and
dry any overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
•The ideal cleaning technique is to rinse thoroughly and wipe the product dry after each use.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Apply silicone
sealant.
Kohler Co. 7 1284425-2-B
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler, WI
53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from within the USA and Canada, and
001-800-456-4537 from within Mexico, or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. KOHLER CO. AND/OR SELLER DISCLAIM ANY LIABILITY FOR SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states/provinces do not allow limitations on how
long an implied warranty lasts, or the exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights. You
may also have other rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
1284425-2-B 8 Kohler Co.
Guide d’installation et d’entretien
Écran de baignoire Portes de douche
Outils et matériel
Avant de commencer
AVERTISSEMENT: Risque de blessures graves. Des dommages avant l’installation peuvent
entraîner des éclatements de verre. Inspecter le verre et toutes les pièces pour y rechercher des
dommages avant l’installation.
AVERTISSEMENT: Risque de blessures graves. Une installation incorrecte peut entraîner des
éclatements de verre. Suivre toutes les instructions d’installation.
AVERTISSEMENT: Risque de blessures graves. Ne pas couper le verre trempé. Le verre trempé
éclate lorsqu’il est coupé.
AVERTISSEMENT: Risque de blessures graves. La porte de la douche et les panneaux latéraux
peuvent éclater. Inspecter régulièrement le verre et toutes les pièces pour y rechercher des
dommages, ou des pièces manquantes ou desserrées.
AVERTISSEMENT: Risque de blessures graves. Toujours porter des lunettes de sécurité pendant
la découpe et le perçage.
ATTENTION: Risque de blessures. Le verre trempé ne doit pas entrer en contact avec des surfaces
dures, car il risquerait de se briser. Ne pas toucher le bord du panneau de verre trempé avec des
outils ou d’autres objets durs.
IMPORTANT! Laisser ce manuel pour l’utilisateur final. Lire ces instructions avant d’installer ou d’utiliser
ce produit.
IMPORTANT! Cette porte est conçue pour s’adapter à des murs qui ont un faux aplomb de moins de
3/8″(10 mm). Vérifier que la zone sur laquelle la porte sera fixée est comprise dans un rayon de 3/8″(10
mm) de l’aplomb. La porte risque de ne pas fonctionner correctement si le faux aplomb du mur est
supérieur à 3/8″(10 mm).
La baignoire ou la base de la douche doivent être installées/préparées, y compris le matériel du
mur fini avant de continuer.
Pistolet à mastic Mastic à la silicone à 100%
6 mm 3 mm
Kohler Co. Français-1 1284425-2-B
Avant de commencer (cont.)
Avant de commencer l’installation, étaler et identifier toutes les pièces. Vérifier qu’elles sont en bon
état.
1284425-2-B Français-2 Kohler Co.
