Installation Instructions
Cleansing Seat

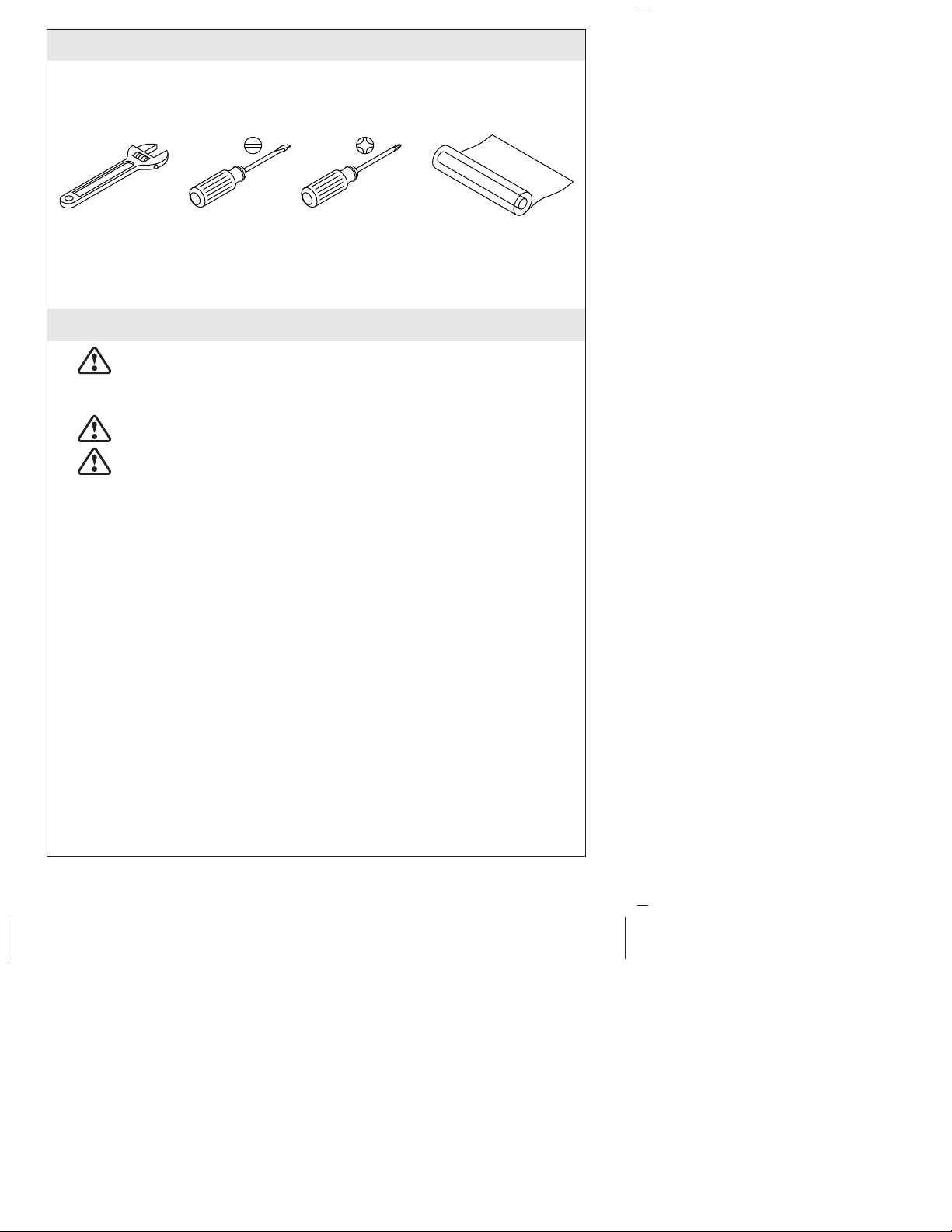

Tools and Materials
Before You Begin
WARNING: Risk of electric shock. Connect only to a circuit
protected by a Class A Ground-Fault Circuit-Interrupter
(GFCI)*, which protects against line-to-ground shock hazard.
Use 120 V, 15 A, 60 Hz service.
WARNING: Risk of electric shock. Do not immerse or flush
the product with water.
CAUTION: Risk of property damage. A single extension cord
may be used provided that the cord type begins with “SJ”, is
12-gauge, grounded (12/3), not longer than 25 feet (7.6
meters), and plugged into a GFCI* electrical outlet. Promptly
replace any extension cord that exhibits any sign of damage.
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface. Provide adequate ventilation
when bathing to avoid damage to the electronic components due to
high humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water supply connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed, as it may cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
Plastic Wrap
1341257-2-C2 Kohler Co.
Before You Begin (cont.)
Kohler Co. 3 1341257-2-C
Observe all local plumbing, electrical, and building codes.
Only connect the seat to a cold water supply of drinking quality
with a pressure of 20 (139 kPa) - 80 psi (551 kPa).
*Outside North America, this device may be known as a Residual
Current Device (RCD).
Grounding Instructions
WARNING: Risk of electric shock. Connect only to a circuit
protected by a Class A Ground-Fault Circuit-Interrupter
(GFCI)*, which protects against line-to-ground shock hazard.
Use 120 V, 15 A, 60 Hz service.
*Outside North America, this device may be known as a Residual
Current Device (RCD).
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or without
yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in doubt
whether the product is properly grounded.

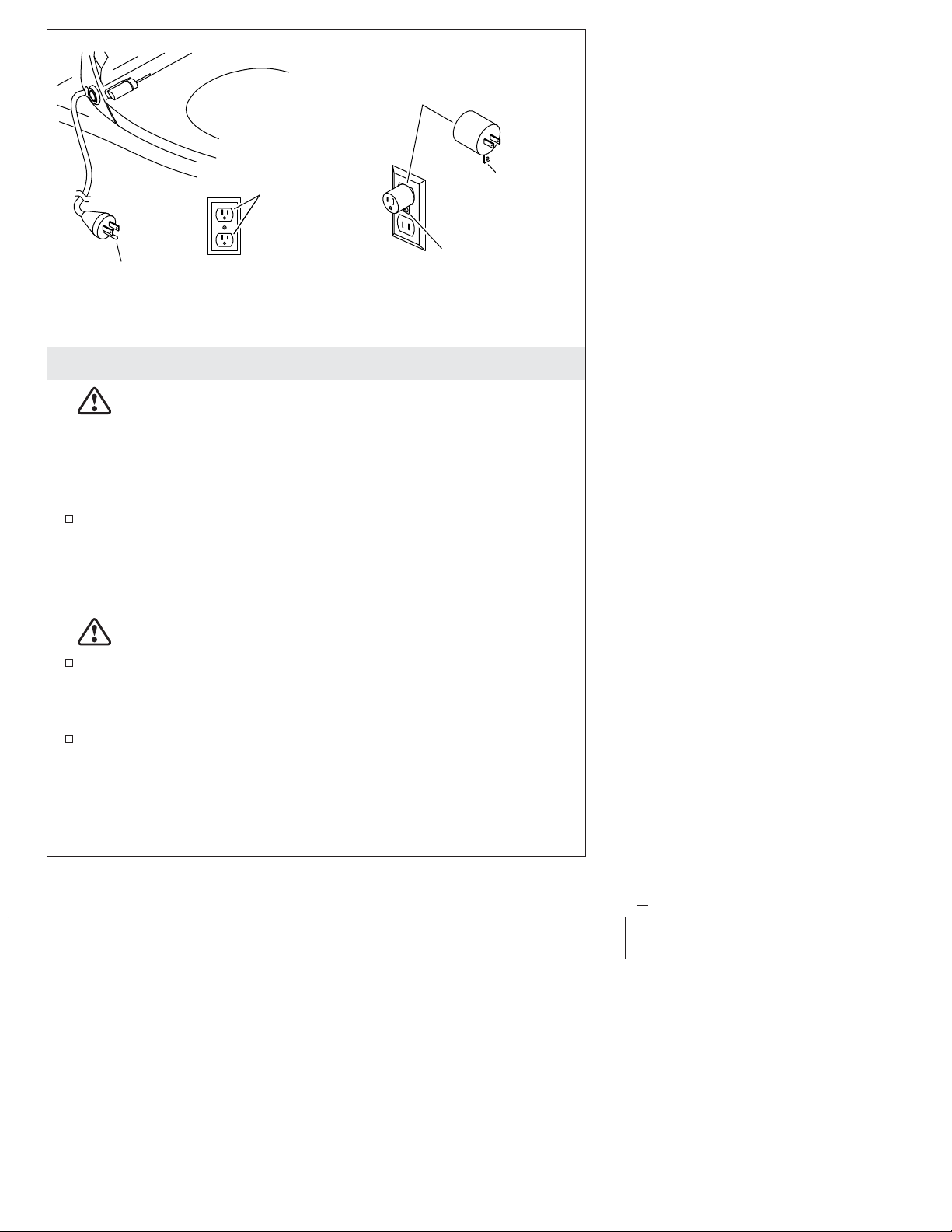

Grounded
Outlet
Cover
Screw
Adapter
Grounding
Plug
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
1341257-2-C4 Kohler Co.
Grounding Instructions (cont.)
NOTICE: Follow local codes when determining the connection type.
The temporary connection may not be permitted by local electrical
codes.
NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.
Preferred Connection
Connect the grounding plug into a grounded outlet that has the
same configuration as the plug.
Temporary Connection
NOTICE: Unless the outlet cover screw is grounded through the
house wiring, attaching the adapter grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.
A temporary connection with a two-prong adapter may be used if
a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green colored rigid ear, lug, and the like extending from the
adapter must be connect to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by the screw.
Kohler Co. 5 1341257-2-C
CAUTION: Risk of property damage. A single extension cord
may be used provided that the cord type begins with “SJ”, is
12-gauge, grounded (12/3), not longer than 25 feet (7.6
meters), and plugged into a GFCI* electrical outlet. Promptly
replace any extension cord that exhibits any sign of damage.

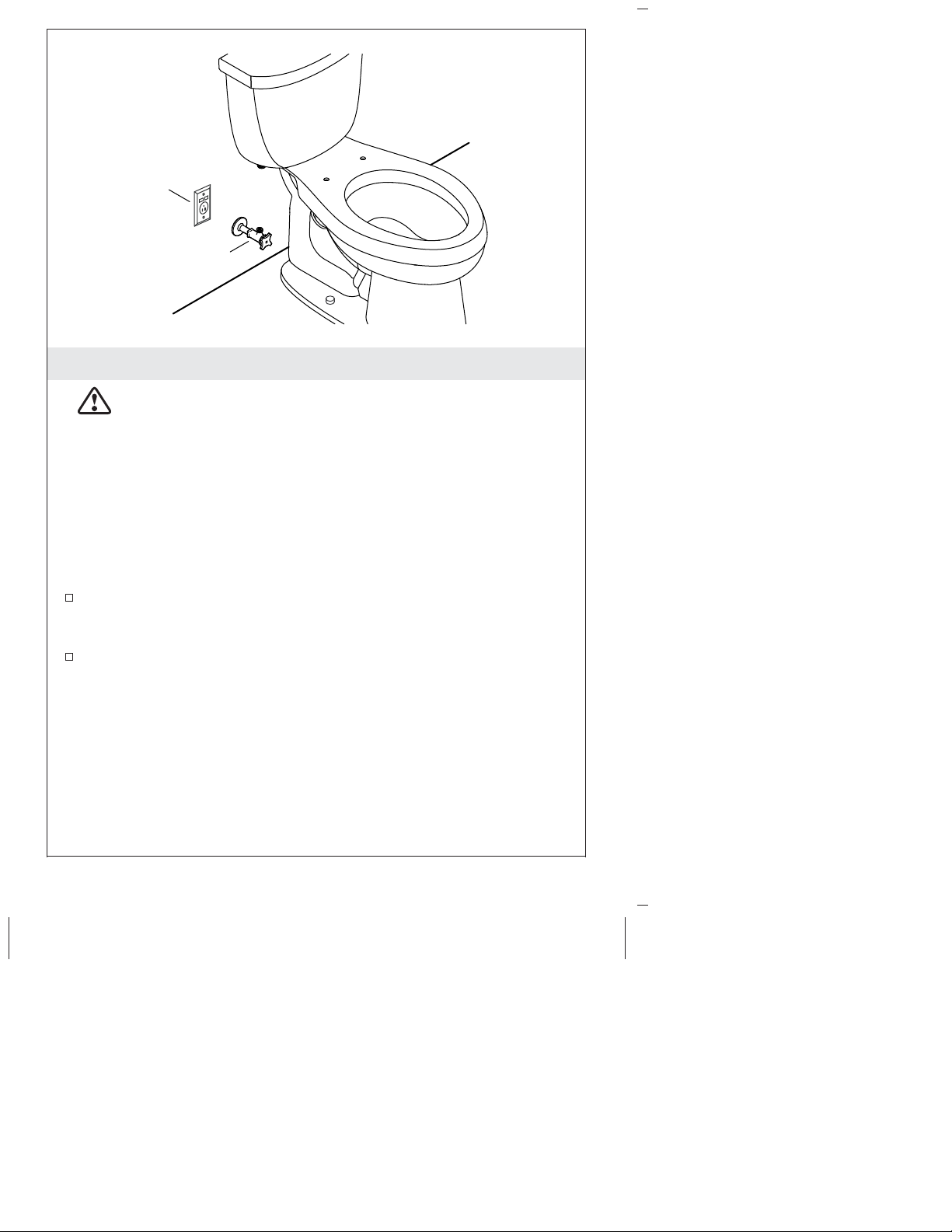

1. Preparation
If applicable, remove the existing toilet seat.
Turn off the water supply to the toilet.
Flush the toilet to relieve any pressure from the water supply
hose.
Disconnect the water supply hose from the toilet fill valve.

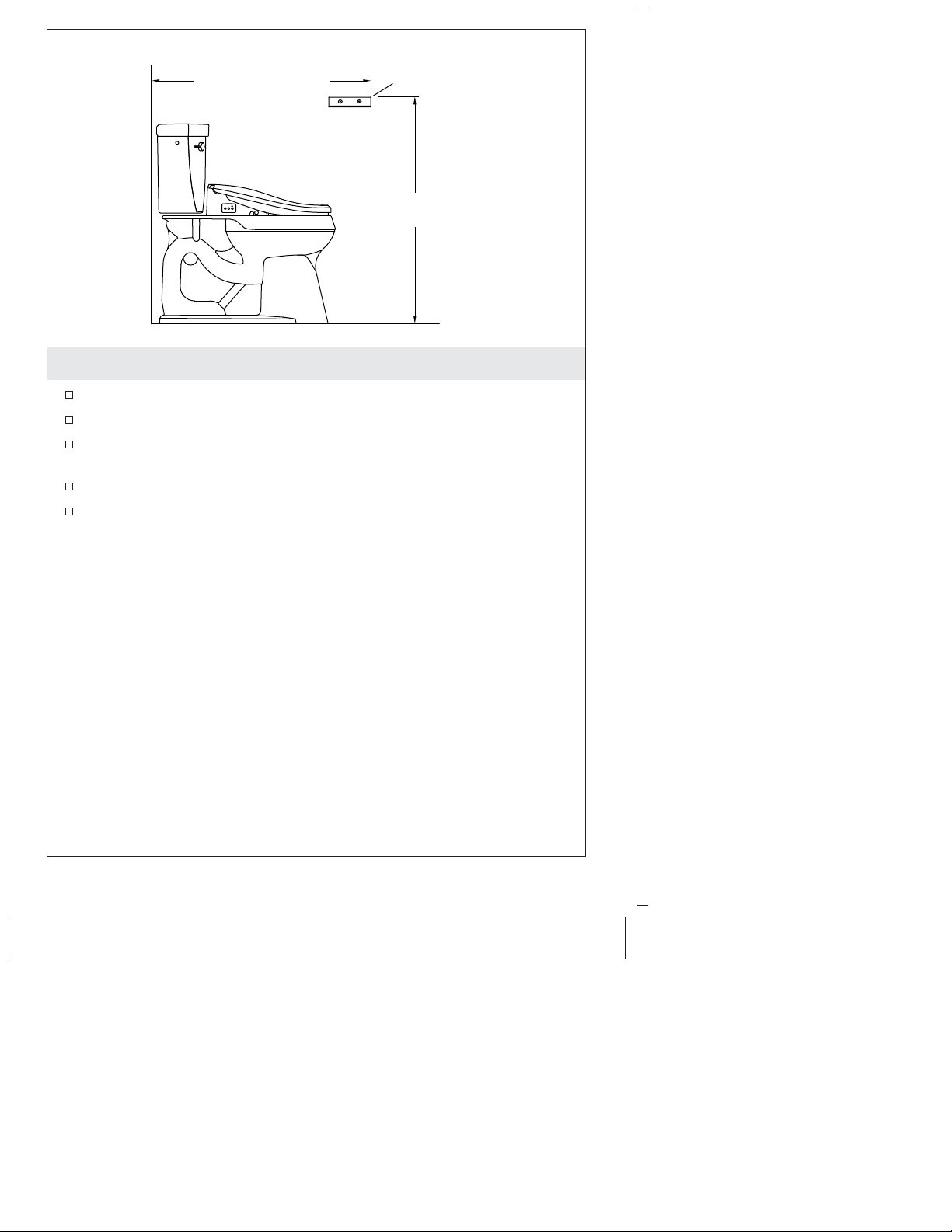

Determine the installation location for the remote control docking
station on the wall.
Remote Dock
36"
(914 mm)
38" (965 mm) Min
66" (1676 mm) Max
1341257-2-C6 Kohler Co.

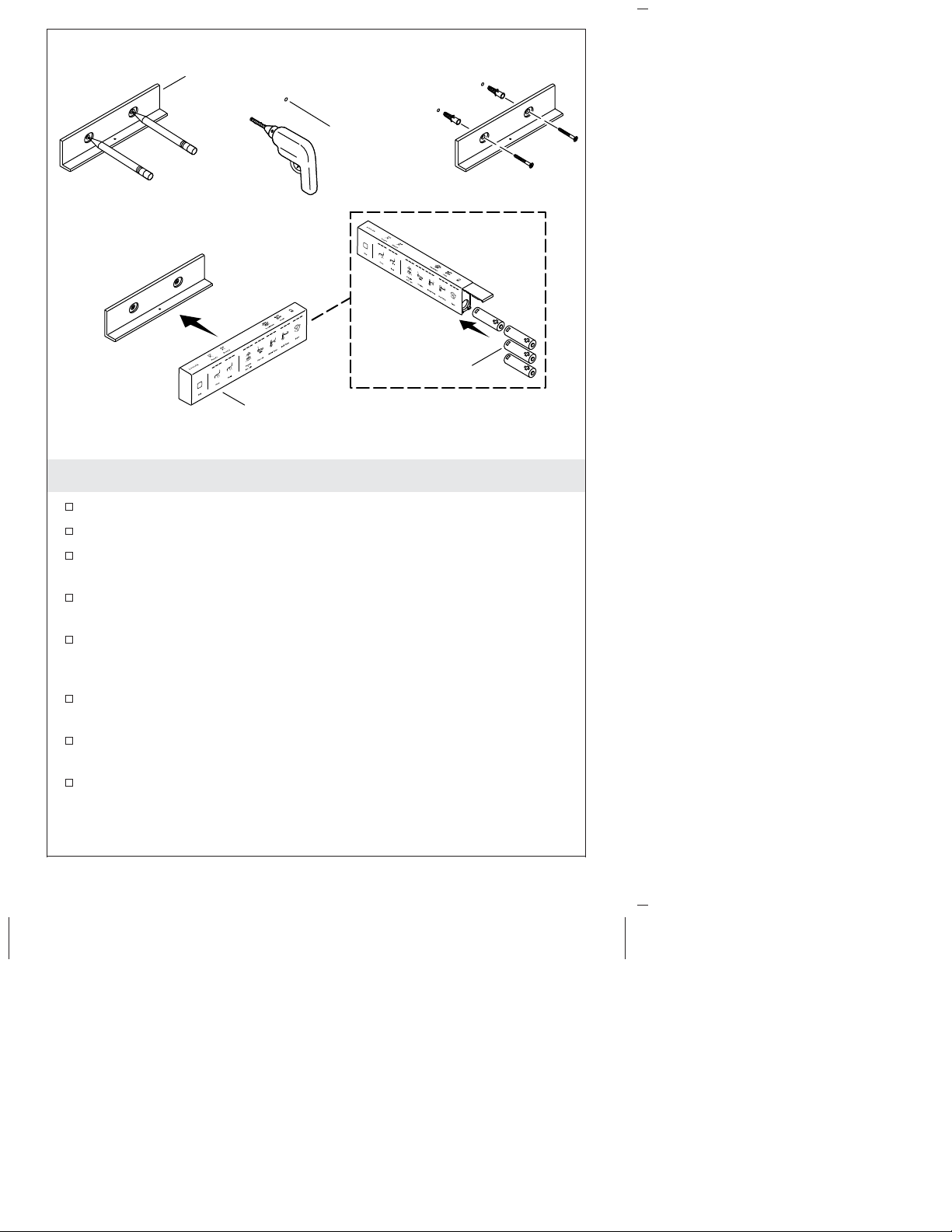

2. Install the Remote Dock
Position the remote dock at the desired mounting location.
Confirm that the remote dock is level.
Using a pencil, mark the two mounting-hole locations. Set the
remote dock aside.
For installation into a stud or other wood surface: Drill a 1/16″
hole at each of the marked locations.
For installation using wall anchors: Drill a 1/4″hole at each of
the marked locations. Install the provided wall anchors into the
holes.
Position the remote dock over the anchors or marks. Secure the
remote dock with the provided screws.
Open the battery compartment on the remote control. Install the
four provided AA batteries in the orientation shown.
Position the remote control on the remote dock.
1/16"
or 1/4"
Holes
Remote Dock
Remote Control
Batteries
Kohler Co. 7 1341257-2-C
3. Install an Electrical Outlet
WARNING: Risk of electric shock. Connect only to a circuit
protected by a Class A Ground-Fault Circuit-Interrupter
(GFCI)*, which protects against line-to-ground shock hazard.
Use 120 V, 15 A, 60 Hz service.
*Outside North America, this device may be known as a Residual
Current Device (RCD).
NOTICE: Do not use an extension cord with the product.
NOTE: Follow local codes when determining the electrical outlet
location.
Install a 120 V GFCI- or RCD-protected electrical outlet within 32″
(813 mm) of the toilet to accommodate the length of the power
cord.
Do not plug in the seat until instructed to do so.
Supply Stop
GFCI/RCD-Protected
Receptacle
1341257-2-C8 Kohler Co.

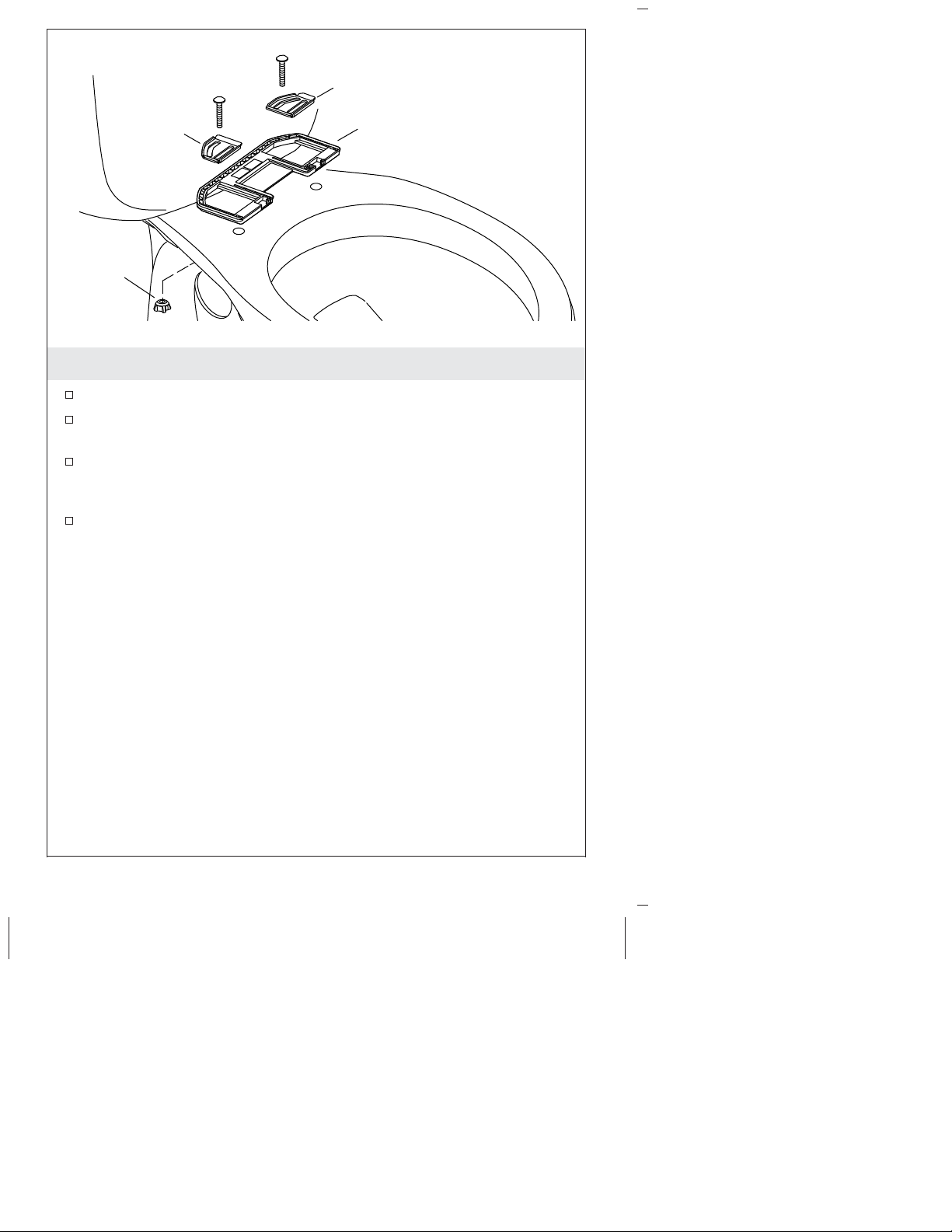

4. Install the Mounting Plate
Position the mounting plate over the mounting holes on the bowl.
Position the left and right inserts in the grooves on the mounting
plate.
For toilets with threaded mounting holes: Insert the bolts
through the inserts and thread into the mounting holes. Do not
fully tighten at this time.
For all other installations: Insert the bolts through the inserts and
into the mounting holes. Thread a nut onto each bolt. Do not
fully tighten at this time.
Left Insert
Nut
Right
Insert Mounting Plate
Kohler Co. 9 1341257-2-C

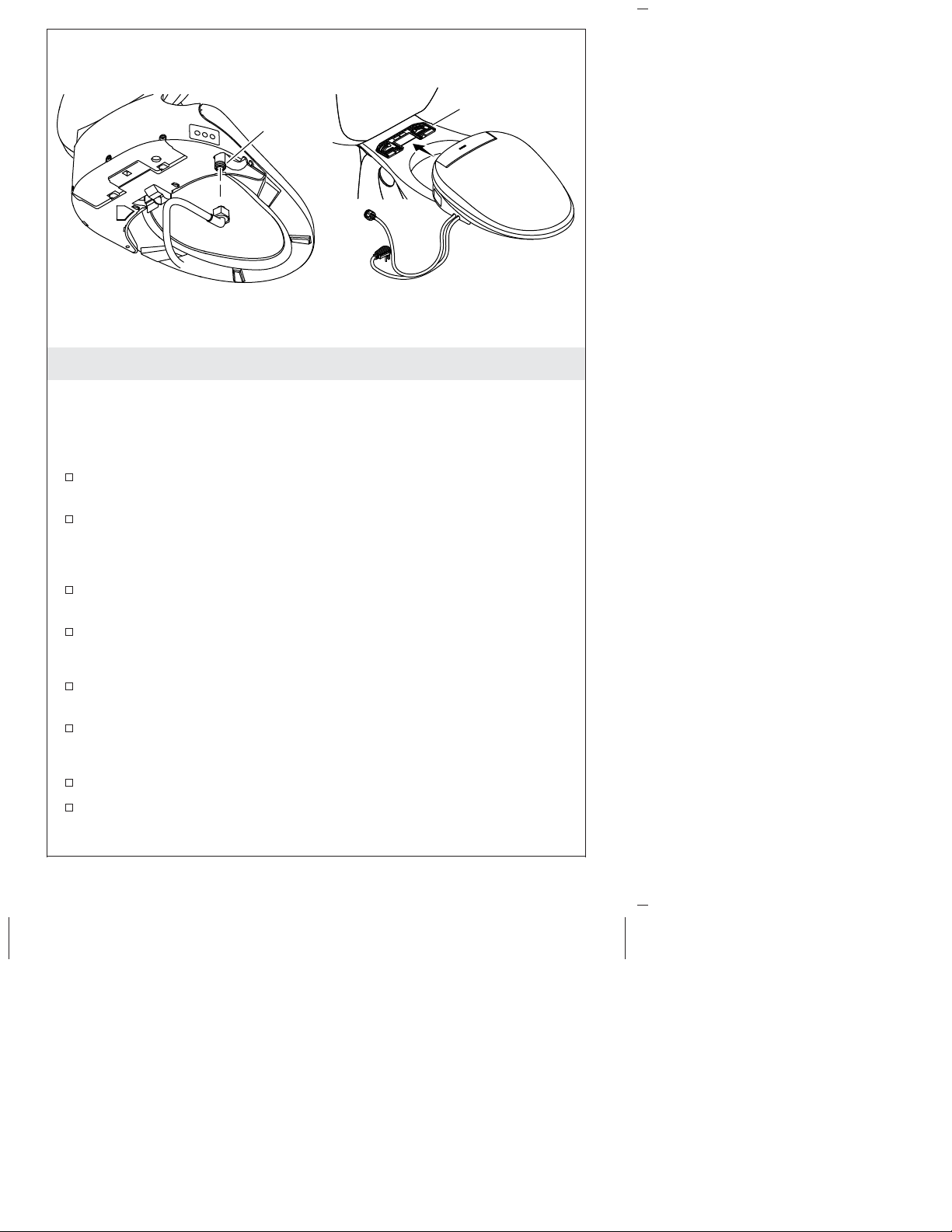

5. Install the Seat
Connect Supply Hose
IMPORTANT! Use only the supply hose included with the
cleansing seat. Using a different supply hose may damage the seat
components.
Connect the supply hose to the cleansing seat inlet. Do not
overtighten.
Fold the inlet flat so that the supply hose exits the side of the
seat.
Position the Seat
Slide the seat onto the mounting plate until you feel it snap into
place.
Check the positioning of the seat. Adjust the position if needed.
Adjust the Seat
Remove the seat by pressing in the release button and sliding the
seat forward.
Reposition the mounting plate as needed.
Install the Seat
Securely tighten the mounting plate bolts and nuts.
Slide the seat onto the mounting plate until you feel it snap into
place.
Mounting Plate
Inlet
1341257-2-C10 Kohler Co.
