KOBE CHX9130SB Troubleshooting guide

KOBE Range Hoods

Model No. / N

de modèles / Modelo No.

CHX9130SB CHX9130SB-W

CHX9136SB CHX9136SB-W

CHX9142SB CHX9142SB-W

CHX9148SB CHX9148SB-W

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

MANUEL D'INSTALLATION

ET MODE D'EMPLOI

INSTRUCCIONES DE INSTALACIÓN

Y MANUAL DE OPERACIÓN

[ENGLISH]………………………………………………………1

[FRENCH]………………………………………………………26

[SPANISH]…………………………………………………….57

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 2

COMPONENTS OF PACKAGE.................................................................................................. 4

INSTALLATION.......................................................................................................................... 5

OPERATION INSTRUCTIONS..................................................................................................12

MAINTENANCE........................................................................................................................13

SPECIFICATIONS ....................................................................................................................14

MEASUREMENTS & DIAGRAMS.............................................................................................15

PARTS LIST..............................................................................................................................17

CIRCUIT DIAGRAM..................................................................................................................20

TROUBLE SHOOTING.............................................................................................................21

DISCLAIMER............................................................................................................................22

WARRANTY .............................................................................................................................23

PRODUCT REGISTRATION.....................................................................................................25

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air

properly, make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl

spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of EPC

Trading Inc.

- EPC Trading Inc. will not be held responsible for any damages to

personal property or real estate or any bodily injuries whether caused

directly or indirectly by the range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

•Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

•Always turn hood ON when cooking.

•Use high settings on cooking range ONLY when necessary.

•Do not leave cooking range unattended when cooking.

•Always use cookware and utensils appropriate for the type and amount of food prepared.

•Use this unit only in the manner intended by the manufacturer.

•Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

•Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not

go out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a Class A, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

•

Extinguish any open flame.

•

Do not try to turn on the lights or any type of appliance.

•

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and

vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion

and exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those

published by the National Fire Protection Association (NFPA), and the American Society for

Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.

Disconnect appliance from electric power before servicing. If equipped, the

fluorescent light bulb contains small amounts of mercury, which must be

recycled or disposed of according to Local, State, and Federal Codes.

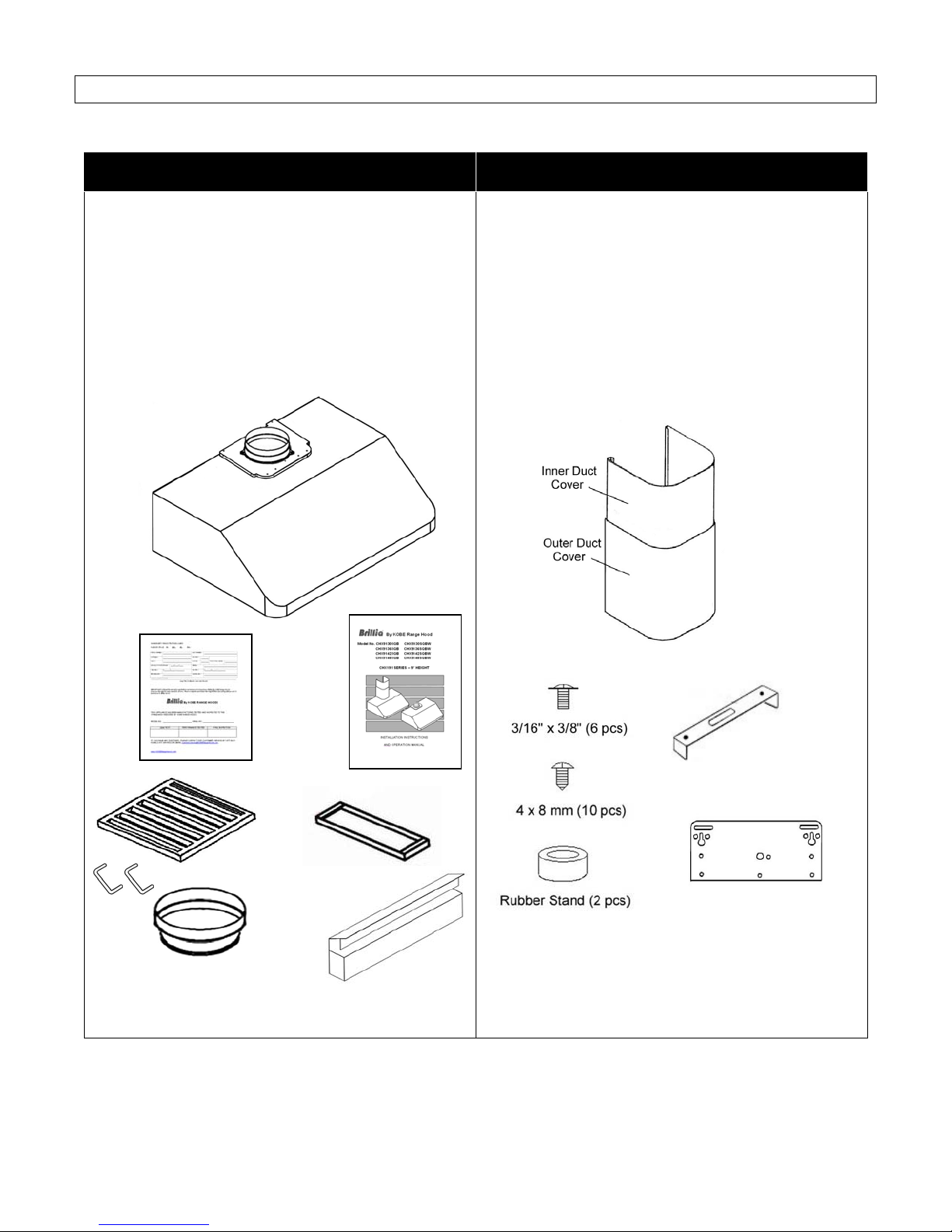

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Range Hood Box

Duct Cover Box

(Included for Wall Mount Style)

{A} Brillia Range Hood - 1

{B} Warranty Registration Card - 1

{C} Instructions Manual - 1

{D} Baffle Filter - 2 (for 30”, 36” hood)

- 3 (for 42”, 48” hood)

(E} Bottom Casing - 2

{F} 7” Round Adapter – 1

{G} Oil Tunnel – 1

{A}

{B} {C}

{D} {E}

{F} {G}

{H} Adjustable Duct Cover - 1

{I} Screws Package – 1

{J} Duct Cover-Mounting Bracket – 1

{K} Hood-Mounting Bracket – 1

{H}

{I} {J}

{K}

FOR MORE INFORMATION, PLEASE CONTACT BRILLIA BY KOBE AT (626) 775-6388.

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1. (All calculation in inches.)

- FOR UNDER THE CABINET -

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of the Cabinet

- FOR WALL MOUNT-

TABLE 2

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top to Hood

Bottom (Recommended 27” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF

REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD

MAY OCCUR.

Installation Contents

UNDER THE CABINET INSTALLATION ............................................................................................... 7

WALL MOUNT INSTALLATION............................................................................................................. 9

UNDER THE CABINET INSTALLATION

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM

ENTERING THE VENT OPENING.

•Decide the location of the venting pipe

from the hood to the outside. Refer to

Figure 1.

•A straight, short venting run will allow

the hood to perform more efficiently.

•Try to avoid as many transitions,

elbows, and long run as possible. This

may reduce the performance of the

hood.

•Temporarily wire the hood to test for

proper operation before installing.

•Important: Peel protective film off

the hood (if any).

•For installing under the cabinet with

recessed bottom, attach 4-inch wide

wood filler strips (not included) on each

side. Refer to Figure 2.

•Measure and create access opening for

electrical wires and 6” round plastic

exhaust under the cabinet.

Hood Installation

CAUTION: If required to move the

cooking range to install the hood, turn off

the power on an electric range at the main

electrical box. SHUT OFF THE GAS

BEFORE MOVING A GAS RANGE.

1. Puncture the knockout holes on the hood

as shown in Figure 3.

2. Using references on Table 1 and

measurements on page 15 center the

hood in place beneath the cabinet and

flush with the front of the cabinet.

3. Draw electrical wires through cabinet

access opening.

4. From the bottom of the hood, place screw

(not provided) into the exact center of

each knockout hole. Make sure all screws

are in place before tightening screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Figure 1

Figure 2

Figure 3

Figure 4

Ductwork Installation

5. Use aluminum or steel pipe to connect the

6” round plastic exhaust on the hood to

the ductwork above. Use duct tape to

make all joints secure and air tight. Refer

to Figure 4.

6. To convert ductwork to 7” round, attached

7” round adapter (provided) to the 6”

round plastic exhaust.

Wiring to Power Supply

SAFETY WARNING

RISK OF ELECTRICAL SHOCK. THIS

RANGE HOOD MUST BE PROPERLY

GROUNDED. MAKE SURE THIS IS DONE

BY SPECIALIZED ELECTRICIAN IN

ACCORDANCE WITH ALL APPLICABLE

NATIONAL AND LOCAL ELECTRICAL

CODES. BEFORE CONNECTING WIRES,

SWITCH POWER OFF AT SERVICE PANEL

AND LOCK SERVICE PANEL TO PREVENT

POWER FROM BEING SWITCHED ON

ACCIDENTALLY.

7. Connect the electrical wires.

-Connect three wires (black, white and

green) to house wires and cap with wire

connectors. Connect according to color:

black to black, white to white, and green

to green as shown on Figure 5.

-If necessary to hide the electrical wire

connections, push wires back into the

wiring box. Access the wire connections

underneath the hood. Make sure wires

do not slip between motor or any

moving parts to prevent any damage.

Accessories

8. Attach oil tunnel. Refer to Figure 6.

9. Refer to Figure 7. Slide the baffle filter

into the hood. Push the baffle filter

upward. Slide forward. Pull

downward. Fit into place.

10. For bottom casing, repeat above steps.

Refer to page 16.

Final Assembly

11. Turn power ON in control panel. Check

all lights and fan operation.

12. Make sure to leave this manual for the

homeowner.

Figure 5

Figure 6

Figure 7

This manual suits for next models

Table of contents

Languages:

Other KOBE Ventilation Hood manuals

KOBE

KOBE IN2730SF-1 Troubleshooting guide

KOBE

KOBE RAX9430SQB-2 Troubleshooting guide

KOBE

KOBE IS2036GS Troubleshooting guide

KOBE

KOBE IN28 SQB Series Troubleshooting guide

KOBE

KOBE Brillia INX27 SQB-700-3 Series Troubleshooting guide

KOBE

KOBE CH8136SQB Troubleshooting guide

KOBE

KOBE Brillia INX27 SQB-700-2 Series Troubleshooting guide

KOBE

KOBE Brillia UB4130W User manual

KOBE

KOBE CH77 SQB-5 Series Troubleshooting guide

KOBE

KOBE RA3830SQ Troubleshooting guide

KOBE

KOBE CH0130SQB Troubleshooting guide

KOBE

KOBE CH7730SQ Troubleshooting guide

KOBE

KOBE RA9230SQB-DC30-1 Troubleshooting guide

KOBE

KOBE Brillia RAX21 SQB-2 Series Troubleshooting guide

KOBE

KOBE CH2230SQ-1 Troubleshooting guide

KOBE

KOBE CH3830SQB-1 Troubleshooting guide

KOBE

KOBE Brillia Series Troubleshooting guide

KOBE

KOBE INX29 SQBF-500-2 Series Troubleshooting guide

KOBE

KOBE IN2636SQB-700 User manual

KOBE

KOBE IN2642SQB-1200-1 Troubleshooting guide

KOBE

KOBE PREMIUM IN26 Series Troubleshooting guide

KOBE

KOBE IS2430GSQB-1 Troubleshooting guide

KOBE

KOBE RA9236SQ Troubleshooting guide

KOBE

KOBE CHX36 SQB-29 Series Troubleshooting guide

Popular Ventilation Hood manuals by other brands

emmeti

emmeti RECUPA MED A-140 Installation and use manual

Nibe

Nibe F135 user manual

Kuppersberg

Kuppersberg INTRO 60 Technical Passport

Zephyr

Zephyr Spruce AK9834BS Use, care and installation guide

Hisense

Hisense MH6INBG manual

Miele

Miele DA 1255 Operating and installation instructions

Broan

Broan 46000 Specification sheet

GE Profile PV977 Owner's Manual & Installation Instructions

FALMEC

FALMEC FFRIA24W5FS Instruction booklet

Whirlpool

Whirlpool RH2600XL-1 SERIES installation instructions

Küppersbusch

Küppersbusch DX ISLA instruction manual

ETNA

ETNA AV360RVS Instructions for use

JUNO

JUNO JDF603E6 installation manual

Miele

Miele DA 6708 D Operating and installation instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG

AEG X68163BV1 user manual

AEG

AEG 125 D operating instructions

Smeg

Smeg KSEV97X instruction manual
