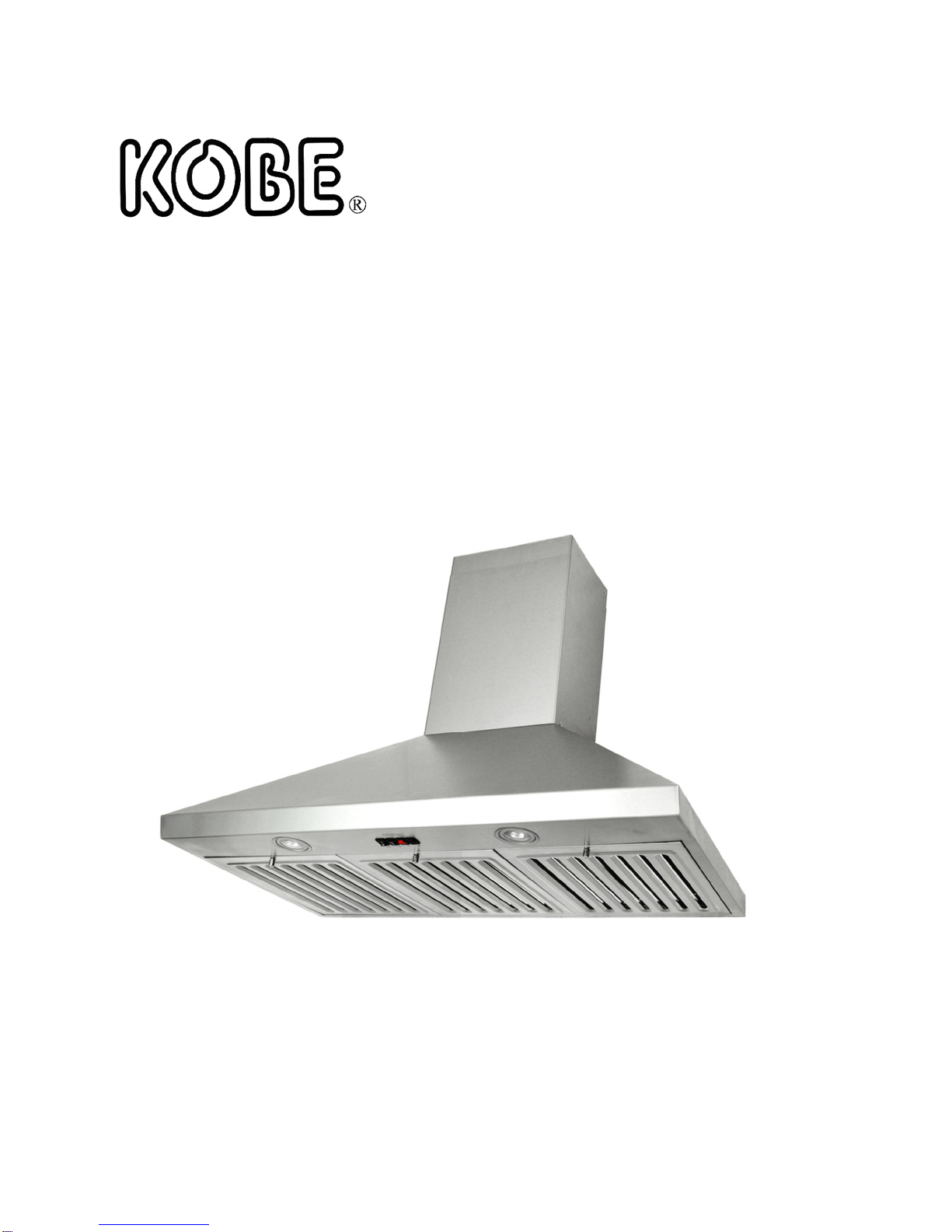

KOBE Brillia Series Troubleshooting guide

KOBE Range Hoods

Brillia Series

Model No.

CHX8130SQB-

1 (30”)

CHX8130SQB-DC30-1 (30”)

CHX8130SQB-DC46-1 (30”)

CHX8136SQB-1 (36”)

CHX8136SQB-DC30-1 (36”)

CHX8136SQB-DC46-1 (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic

damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial

number ready.

3. Contact your merchant for product replacement due to shipping

damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

[email protected] .

IMPORTANT

READ THIS FIRST

NO RETURN, NO REFUND, NO EXCHANGE IF:

PRODUCT HAS BEEN INSTALLED

KNOCK-OUT HOLES HAVE BEEN PUNCTURED

MISSING ORIGINAL PACKAGING MATERIAL

AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS.................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION.......................................................................................................................... 4

OPERATING INSTRUCTIONS................................................................................................... 8

MAINTENANCE......................................................................................................................... 9

SPECIFICATIONS....................................................................................................................10

MEASUREMENTS & DIAGRAMS.............................................................................................11

PARTS LIST..............................................................................................................................13

CIRCUIT DIAGRAM..................................................................................................................15

TROUBLE SHOOTING.............................................................................................................16

WARRANTY .............................................................................................................................17

PRODUCT REGISTRATION.....................................................................................................19

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONALAND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all

applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden

utilities.

3) Ducted fans must be vented to the outside.

a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or

garages.

NOTE - This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,

negligence or any other circumstances beyond the control of KOBE

authorized agents. Any repair carried out without the supervision of KOBE

authorized agents will automatically void the warranty.

- KOBE will not be held responsible for any damages to personal property or

real estate or any bodily injuries whether caused directly or indirectly by the

range hood.

WARNING: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

•Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease

should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

•Always turn hood ON when cooking.

•Use high settings on cooking range ONLY when necessary.

•Do not leave cooking range unattended when cooking.

•Always use cookware and utensils appropriate for the type and amount of food prepared.

•Use this unit only in the manner intended by the manufacturer.

•Before servicing, switch power off at service panel and lock service panel (if possible) to prevent

power from switching on accidentally.

•Clean ventilating fan frequently.

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.

KEEP FLAMMABLE OR COMBUSTIBLE MATERIALAWAY FROM FLAMES. If the flames do not go

out immediately, EVACUATE THE AREAAND CALLTHE FIRE DEPARTMENT or 911.

• NEVER PICK UPA BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

• Use an extinguisher ONLY if:

a) You have a ClassA, B, C extinguisher and know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

Extinguish any open flame.

Do not try to turn on the lights or any type of appliance.

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and

Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as thosepublished

by the National Fire Protection Association (NFPA), and the American Society for Heating,

Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, two people installation is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or

death. Disconnect appliance from electric power before servicing.

If equipped, the fluorescent light bulb contains small amounts of

mercury, which must be recycled or disposed of according to Local,

State, and Federal Codes.

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

Model No.:

CHX8130SQB-1 (30”)

CHX8130SQB-DC30-1 (30”)

CHX8136SQB-DC46-1 (30”)

CHX8136SQB-1 (36”)

CHX8136SQB-DC30-1 (36”)

CHX8136SQB-DC46-1 (36”)

Range Hood Box

{A} BRILLIA Range Hood (with RA092DC-1)

{B} Warranty Registration Card

{C} Quick Reference Guide

{D} Baffle Filter x 2 (30” hood)

x 3 (36” hood)

{E} Screws package

{F} 6” Round Plastic Collar

{G} Hood Mounting Bracket

{H} Duct Cover Mounting Bracket

{A}

{B} {C}

{D} {E}

{F} {G}

{H}

{I} Duct Cover Extension

Model No.: RA0930DC

{I}

{J} Duct Cover Extension

Model No.: RA0946DC

{J}

FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR

CONTACT KOBE RANGE HOODS AT (626) 775-8880.

3/16” x 3/8” (6 Pcs)

Knob attached

to baffle filter

Pre-installed

Duct Cover Box for RA0930DC

(Included in CHX81 SQB-DC30-1 ONLY)

Duct Cover Box for RA0946DC

(Included in CHX81 SQB-DC30-1 ONLY)

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before installation

To calculate the length of the installation, please refer to Table 1. (All calculation is measure in

inches.)

TABLE 1

A = Height of Floor to Ceiling

B = Height of Floor to Counter Top

(Standard: 36”)

C = Preferred Height of Counter Top

to Hood Bottom (Recommended

26” to 30”)

D = Height of Hood

E = Height of Duct Cover [F – D]

F = Height of the Hood Installation

[A – (B+C)]

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF REMOVING

ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE

HOOD MAY OCCUR.

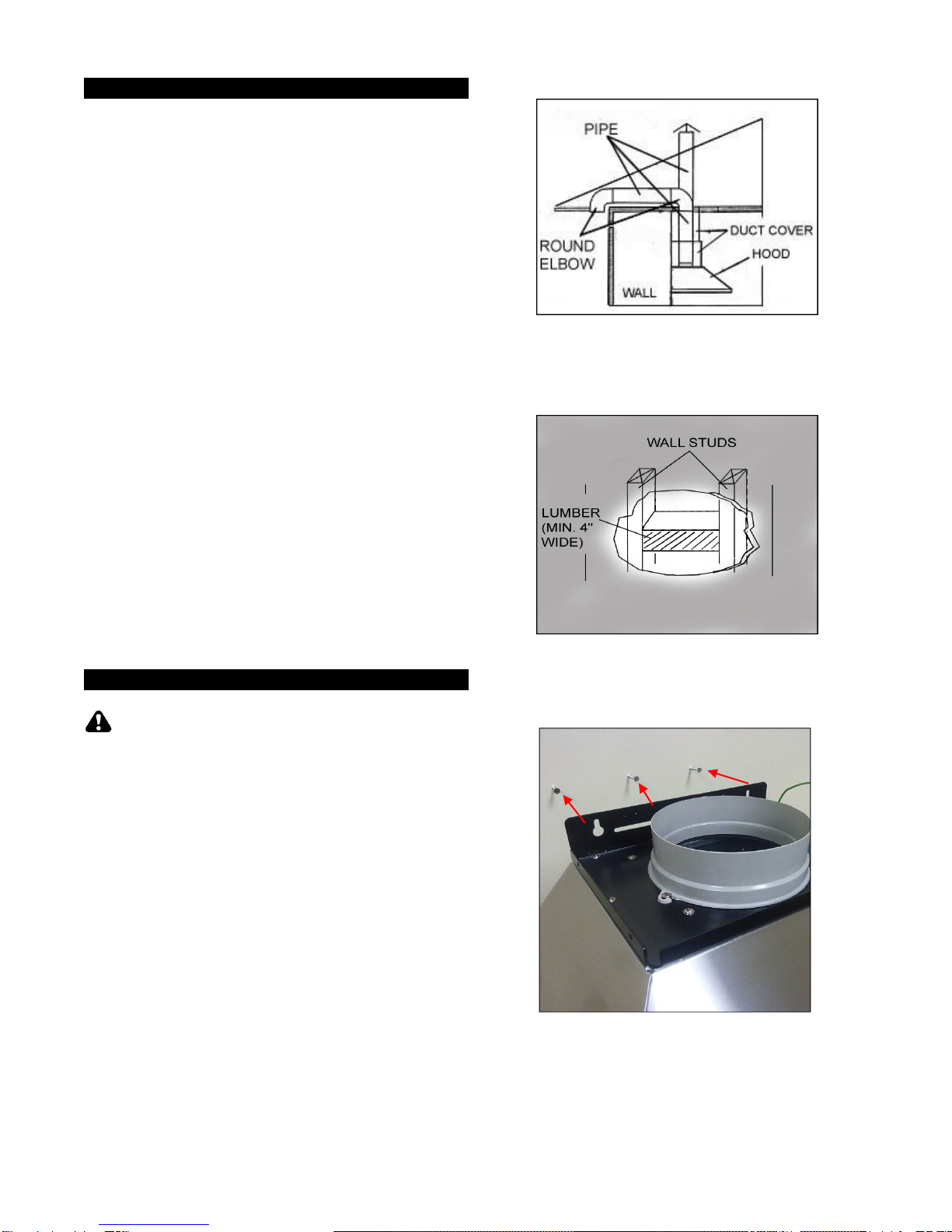

Preparation before Installation

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING

THE VENT OPENING.

- Decide the locationof venting pipefrom the hood

to the outside. Refer to Figure 1.

- A straight, short venting run will allow the hood

to perform more efficiently.

- Try to avoid as many transitions, elbows, and

long run as possible. This may reduce the

performance of the hood.

- Use duct tape to seal the joints between pipe

sections.

- Temporarily wire the hood to test for proper

operation before installing.

- If necessary, prepare back wall frame with cross

framing lumber for secure installation. Using

references on Table 1 and the measurements on

pages 11-12, decide the level of the lumber.

Refer to Figure 2.

- Peel protective film off the duct cover and the

hood (if any).

Hood Installation

CAUTION: If required to move the cooking

range to install the hood, turn off the power on

an electric range at the main electrical box.

SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

1. Using references on Table 1 and

measurements on pages 11-12, mark the

leveling point for hood-mounting bracket on

the wall.

2. Secure 3 mounting screws (not provided) on

the wall leaving 1/8” away from the wall.

Refer to Figure 3.

3. Align hood-mounting bracket to the mounting

screws on the wall and hook hood into place.

4. Secure and tighten the mounting screws.

CAUTION: MAKE SURE THE HOOD IS

SECURE BEFORE RELEASING.

Figure 1

Figure 2

Figure 3

Ductwork Installation

5. Use 6” round steel pipe (not provided) to

connect the plastic exhaust on the hood to the

ductwork above. Use duct tape to make all

joints secure and air tight.

Refer to Figure 4.

THIS RANGE HOOD MUST BE

PROPERLY GROUNDED. MAKE SURE

THIS IS DONE BY QUALIFIED

ELECTRICIAN IN ACCORDANCE WITH

ALL APPLICABLE NATIONAL AND LOCAL

ELECTRICAL CODES. BEFORE

CONNECTING WIRES, SWITCH POWER

OFF AT SERVICE PANEL AND LOCK

SERVICE PANEL TO PREVENT POWER

FROM BEING SWITCHED ON

ACCIDENTALLY.

- If hood is operating normally, connect three

wires (black, white and green) to house wires

and cap with wire connectors.

- Store wires in the wiring box.

Duct Cover Installation

NOTE: BE CAREFUL WHEN USING

ELECTRICAL SCREWDRIVER, DAMAGE TO

THE HOOD MAY OCCUR.

6. Using reference Efrom Table 1 and

measurements on pages 11-12, mark the

leveling point for duct cover bracket.

7. Secure the duct cover mounting bracket to the

wall with two screws (not provided). Make

sure all screws are tightened Refer to Figure

5. NOTE: Inner duct cover will cover the duct

cover bracket.

8. Slide the entire duct cover onto the hood.

Refer to Figure 6.

Figure 4

Figure 5

Figure 6

Wiring to Power Supply

Duct Cover Installation (Cont.)

NOTE: BE CAREFUL WHEN USING

ELECTRICAL SCREWDRIVER, DAMAGE TO

THE HOOD MAY OCCUR.

9. Secure the outer duct cover to the hood

mounting bracket with 4 (3/16” x 3/8”) screws

(provided). Refer to Figure 7.

10. Secure the inner duct cover with 2 (3/16” x

3/8) screws to the duct cover mounting

Bracket. Refer to Figure 8.

Install Accessories

11. Place baffle filters underneath the hood. Refer

to Figure 9.

Final Assembly

12. Turn power ON in control panel. Check all

lights and fan operation.

13. Make sure to leave this manual for the

homeowner.

Figure 7

Figure 8

Figure 9

Attach Together

Other manuals for Brillia Series

This manual suits for next models

Table of contents

Other KOBE Ventilation Hood manuals

KOBE

KOBE CHX3630SB-1 Troubleshooting guide

KOBE

KOBE IS2236SQB-1 Troubleshooting guide

KOBE

KOBE IN28 SQP Series Troubleshooting guide

KOBE

KOBE Brillia RAX21 SQB-2 Series Troubleshooting guide

KOBE

KOBE RAX9430SQB-2 Troubleshooting guide

KOBE

KOBE IN2636SQB Troubleshooting guide

KOBE

KOBE CH7930SQ Troubleshooting guide

KOBE

KOBE INX2730SQB-700-2 Troubleshooting guide

KOBE

KOBE RA38 Series Troubleshooting guide

KOBE

KOBE Brillia INX27 SQB-700-2 Series Troubleshooting guide

KOBE

KOBE RA9230SQB-1 Use and care manual

KOBE

KOBE CH9130SQB-1 Troubleshooting guide

KOBE

KOBE INX2930SQBF-500-1 Troubleshooting guide

KOBE

KOBE CH0036SQB User manual

KOBE

KOBE RA2230SQB-1 Troubleshooting guide

KOBE

KOBE RA92 Series Troubleshooting guide

KOBE

KOBE RA2830SB Troubleshooting guide

KOBE

KOBE Premium Series Troubleshooting guide

KOBE

KOBE INX2830SQH-700-1 Troubleshooting guide

KOBE

KOBE IN2636SQB-1200 Troubleshooting guide

KOBE

KOBE IS2236SQB-1 Troubleshooting guide

KOBE

KOBE IN26 30SQB-650-5 Series Troubleshooting guide

KOBE

KOBE CH7936SQB User manual

KOBE

KOBE CHX9130SB Troubleshooting guide

Popular Ventilation Hood manuals by other brands

emmeti

emmeti RECUPA MED A-140 Installation and use manual

Nibe

Nibe F135 user manual

Kuppersberg

Kuppersberg INTRO 60 Technical Passport

Zephyr

Zephyr Spruce AK9834BS Use, care and installation guide

Hisense

Hisense MH6INBG manual

Miele

Miele DA 1255 Operating and installation instructions

Broan

Broan 46000 Specification sheet

GE Profile PV977 Owner's Manual & Installation Instructions

FALMEC

FALMEC FFRIA24W5FS Instruction booklet

Whirlpool

Whirlpool RH2600XL-1 SERIES installation instructions

Küppersbusch

Küppersbusch DX ISLA instruction manual

ETNA

ETNA AV360RVS Instructions for use

JUNO

JUNO JDF603E6 installation manual

Miele

Miele DA 6708 D Operating and installation instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG

AEG X68163BV1 user manual

AEG

AEG 125 D operating instructions

Smeg

Smeg KSEV97X instruction manual
