KOBE CH00 SQB-1 User manual

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 1 of 5

Version 20160725

CH00 SQB-1 Parts Location and Replacement

This basic guide is to show the parts location of the CH00 SQB-1 and how to remove or install certain parts.

To see more detailed guidelines, please visit: Kobe Service and Repair

For under cabinet models: CH0030SQB-1, CH0036SQB-1, CH0042SQB-1, CH0048SQB-1

For wall mount models: CH0030SQB-WM-1, CH0036SQB-WM-1, CH0042SQB-WM-1, CH0048SQB-WM-1

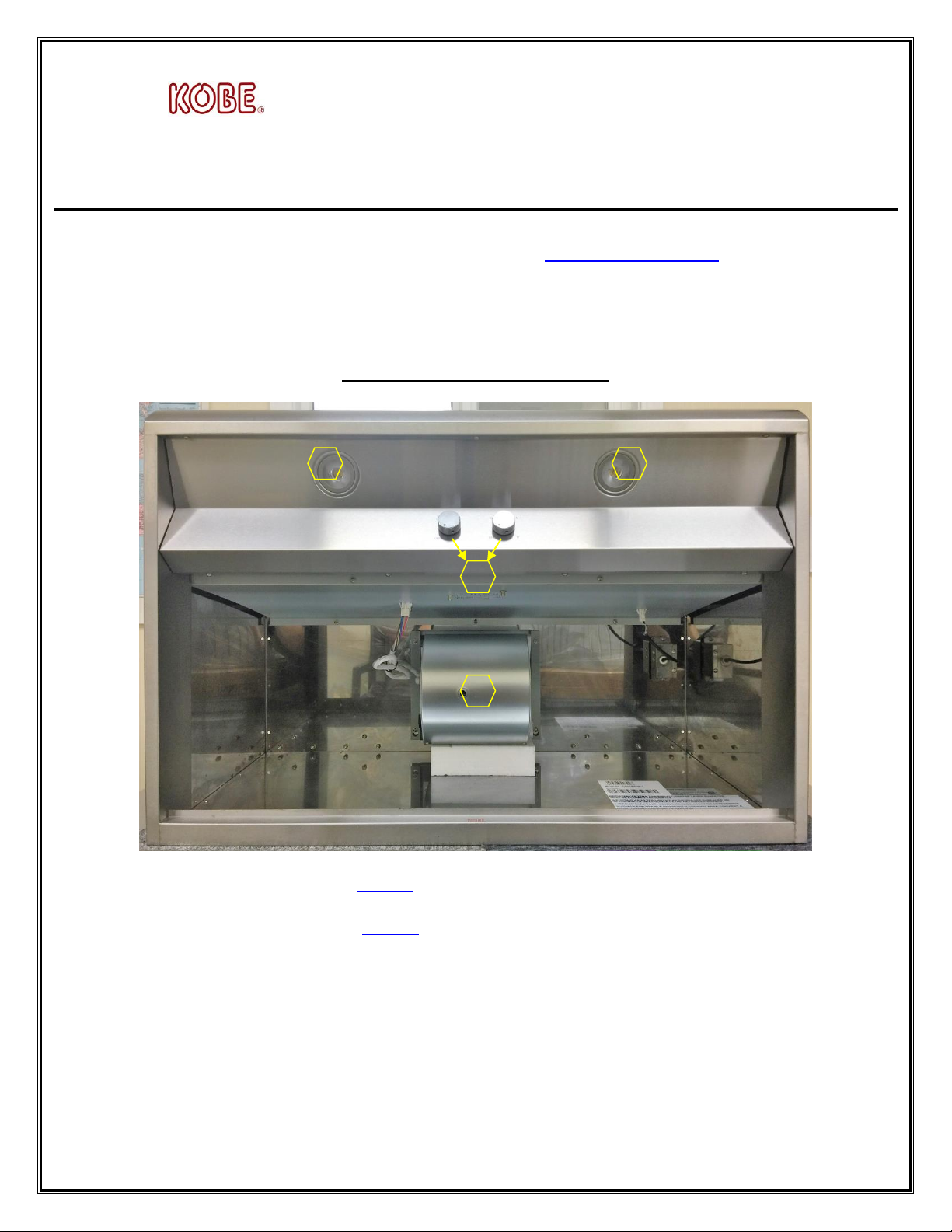

Overall Snapshot of CH00 SQB-1

1. Blower System (Manual Part #4 –See “Parts List” page on manual)

2. Knobs (Manual Part #11 –See “Parts List” page on manual)

3. LED Light (3W) (Manual Part #5 –See “Parts List” page on manual)

2

1

3

3

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 2 of 5

Version 20160725

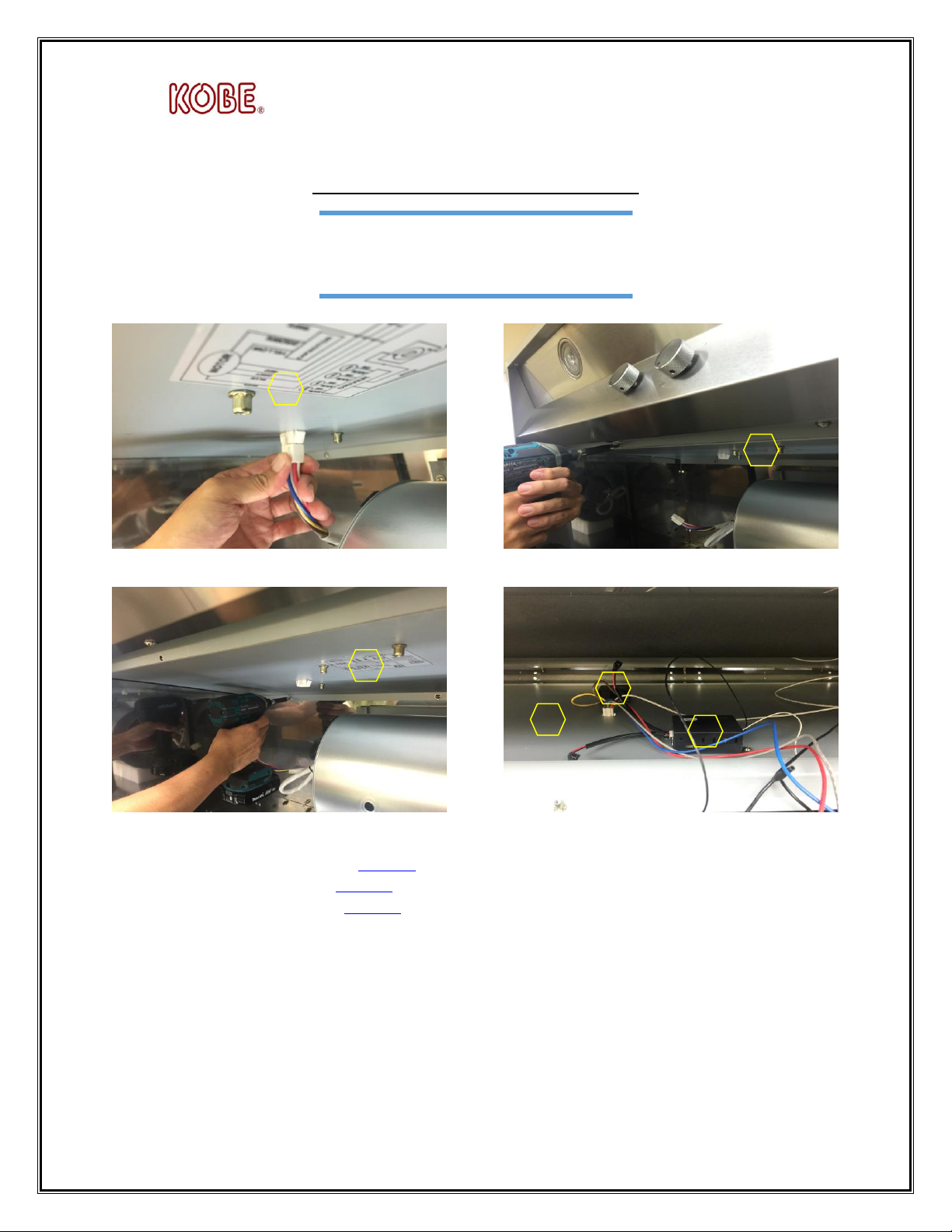

Accessing the Capacitor and LED Driver

Warning: When pulling the wires from the capar support, press the ‘push release’ at the back of the c

Figure 1 Figure 2

Figure 3 Figure 4

4. Capacitor Panel (Manual Part #6 –See “Parts List” page on manual)

5. Capacitor (Manual Part #7 –See “Parts List” page on manual)

6. LED Driver (Manual Part #8 –See “Parts List” page on manual)

4

4

4

4

5

6

Warning: Loosen the screw first with a

hand tool screw driver.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 3 of 5

Version 20160725

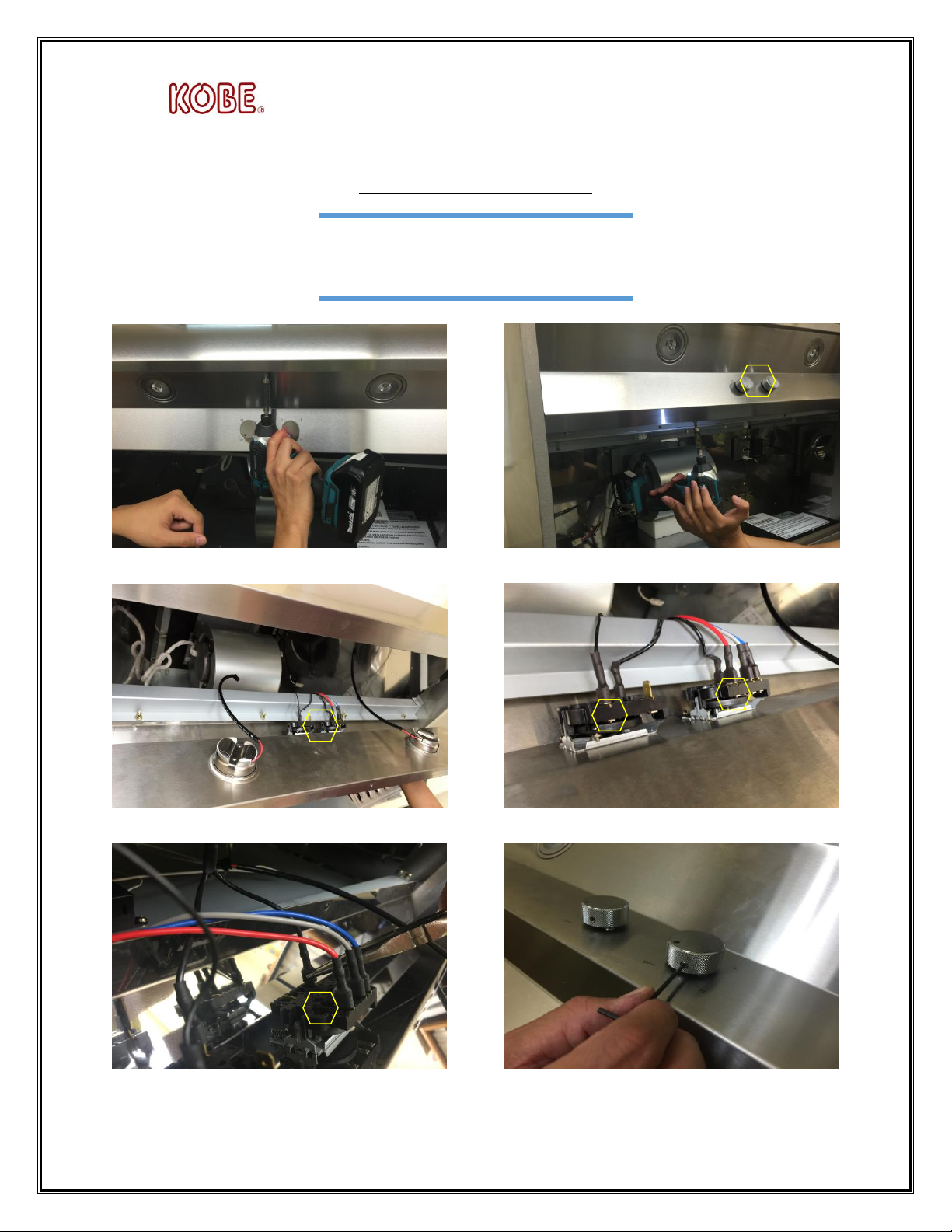

Removing the Control Knobs

Figure 1 Figure 2

Figure 3 Figure 4

Figure 5 Figure 6

2

2

2

2

2

Warning: Loosen the screw first with a

hand tool screw driver.

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 4 of 5

Version 20160725

Figure 7 Figure 8

Figure 9 Figure 10

Accessing the LED Light

2

KOBE Range Hoods

“So Quiet…You Won’t Believe It’s On!”

Page 5 of 5

Version 20160725

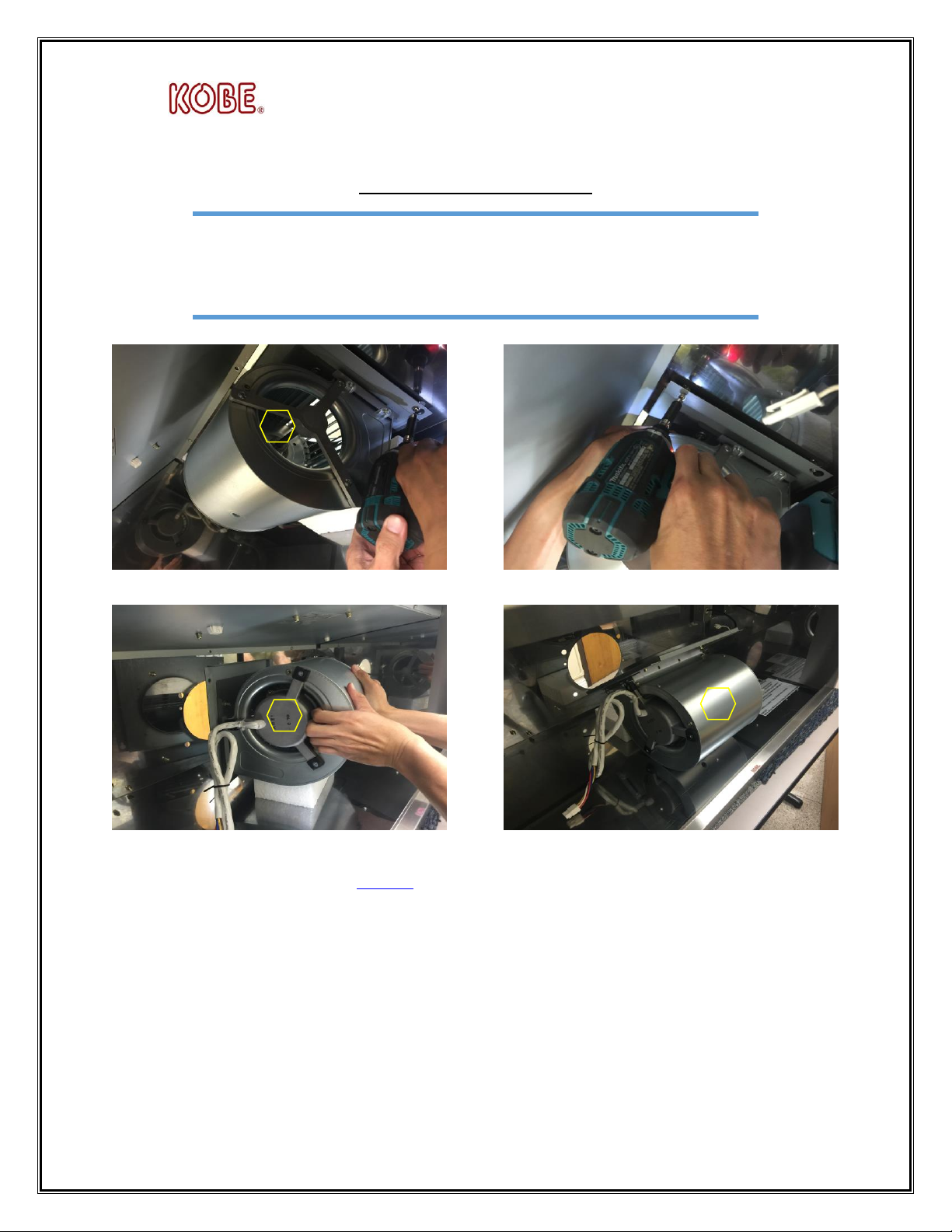

Removing the Blower System

Figure 1 Figure 2

Figure 3 Figure 4

1. Blower System (Manual Part #4 –See “Parts List” page on manual)

1

1

1

Warning:

1. Loosen the screw first with a hand tool screw driver.

2. Place a support or hold the blower before removing it.
