® KOBE Brand Range Hood

CH-180 Model

CH8036SQ

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

- READ AND SAVE THESE INSTRUCTIONS -

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL WIRING MUST BE DONE BY A PROFESSIONAL AND IN

ACCORDANCE WITH NATIONAL AND LOCAL ELECTRICAL CODES.

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

OBSERVE THE FOLLOWING:

1) Installation work and electrical wiring must be done by qualified professionals and in

accordance with all applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or

other hidden utilities.

3) Ducted hood must always be vented to the outside.

a) Before servicing or cleaning unit, SWITCH POWER OFFAT SERVICE PANEL.

b) Clean fan, optional filter and grease laden surfaces frequently. To reduce the risk of fire

and to properly disperse air, make sure to vent air outside. DO NOT vent exhaust air

into wall spaces, attics, crawl spaces or garages.

NOTE - This warranty is invalid without an authorized agent’s

receipt or if unit is damaged due to misuse, poor

installation, improper use, mistreatment, negligence

or any other circumstances beyond the control of

KOBE RANGE HOODS authorized agents. Any repair

carried out without the supervision of KOBE RANGE

HOODS authorized agents will automatically void the

warranty.

- KOBE RANGE HOODS will not be held responsible

for any damages to personal property or real estate or

any bodily injuries whether caused directly or

indirectly by the range hood.

CAUTION – FOR GENERAL VENTILATION USE ONLY. DO NOT USE TO EXHAUST

HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS. TO REDUCE THE RISK OF FIRE,

USE ONLY METAL DUCTWORK. SUFFICIENT AIR IS NEEDED FOR PROPER COMBUSTION

AND EXHAUSTING OF GASES THROUGH THE FLUE (CHIMNEY) OF FUEL BURNING

EQUIPMENT TO PREVENT BACK DRAFTING. FOLLOW THE HEATING EQUIPMENT

MANUFACTURER’S GUIDELINE AND SAFETYSTANDARDS SUCH AS THOSE PUBLISHED BY

THE NATIONAL FIRE PROTECTION ASSOCIATION (NFPA), AND THE AMERICAN SOCIETY

FOR HEATING, REFRIGERATION AND AIR CONDITIONING ENGINEERS (ASHRAE), AND

CODE AUTHORITIES.

- IMPORTANT SAFETY INSTRUCTIONS -

WARNING – TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A

RANGE TOP GREASE FIRE:

 Keep fan, optional filter and grease-laden surfaces clean.

 Always turn hood ON when cooking at high heat.

 Use high settings on cooking range ONLY when necessary. Heat oil slowly on low to

medium setting.

 Don’t leave cooking range unattended when cooking.

 Always use cookware and utensils appropriate for the type and amount of food being

prepared.

 Use this unit only in the manner intended by the manufacturer.

 Before servicing, switch power off at service panel and lock service panel (if possible) to

prevent power from being switched on accidentally and DETACH the fuse (see section

Changing the Fuse).

What to Do In The Event Of a Range Top Grease Fire

1) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the

burner. KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES.

If the flames do not go out immediately, EVACUATE THE AREA AND CALL THE FIRE

DEPARTMENT or 911.

2) NEVER PICK UPABURNING PAN – You may get burned.

3) DO NOT USE WATER, including wet dishcloths or towels – a violent steam blast will result.

4) Use an extinguisher ONLY if:

a) You know you have a Class ABC extinguisher and you already know how to operate it.

b) The fire is small and contained in the area where it started.

c) The fire department has been called.

d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

- Extinguish any open flame.

- Do not try to turn on the lights or any type of appliance.

- Open all doors and windows to air out any amount of gas. Call the Gas Company and Fire

Department right away.

CAUTION: Turning any switch on may cause ignition or an explosion.

- CONTENTS OF RANGE HOOD PACKAGE -

(Must keep all materials for returns or refunds)

1) KOBE range hood

2) Duct cover & screws

3) Patented installation template guide (screw position & vent outline)

4) Plastic packet of small parts containing:

a) Two oval oil cups & two round oil cups

b) Two duct cover position panel & screws

c) Two Halogen Lights 12V20W

d) Installation manual & warranty card

e) Two safety screen

f) Plastic adaptor for 7” duct opening

5) Packaging materials including:

a) Plastic bag to cover hood

b) Styrofoam

c) Outer carton

Unpack hood and check contents; remove template, & plastic packet of small parts

- PREPARING THE INSTALLATION LOCATION -

----SAFETY WARNING----

INTERIOR OF HOOD MAY HAVE VERY SHARP EDGES; PLEASE

WEAR PROTECTIVE GLOVES IF THE BOTTOM CASING NEEDS

TO BE REMOVED FOR CLEANING OR SERVICING.

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE

VENT OPENING.

Make sure the surface of the wall is clean and free of debris.

BEFORE INSTALLING, FIRST PEEL PROTECTIVE FILM OFF THE HOOD

AND TWO PIECE EXHAUST DUCT COVERS (SLIDE INNER SECTION OUT

OF OUTER DUCT COVER).

{Fig. 1e} Protective film

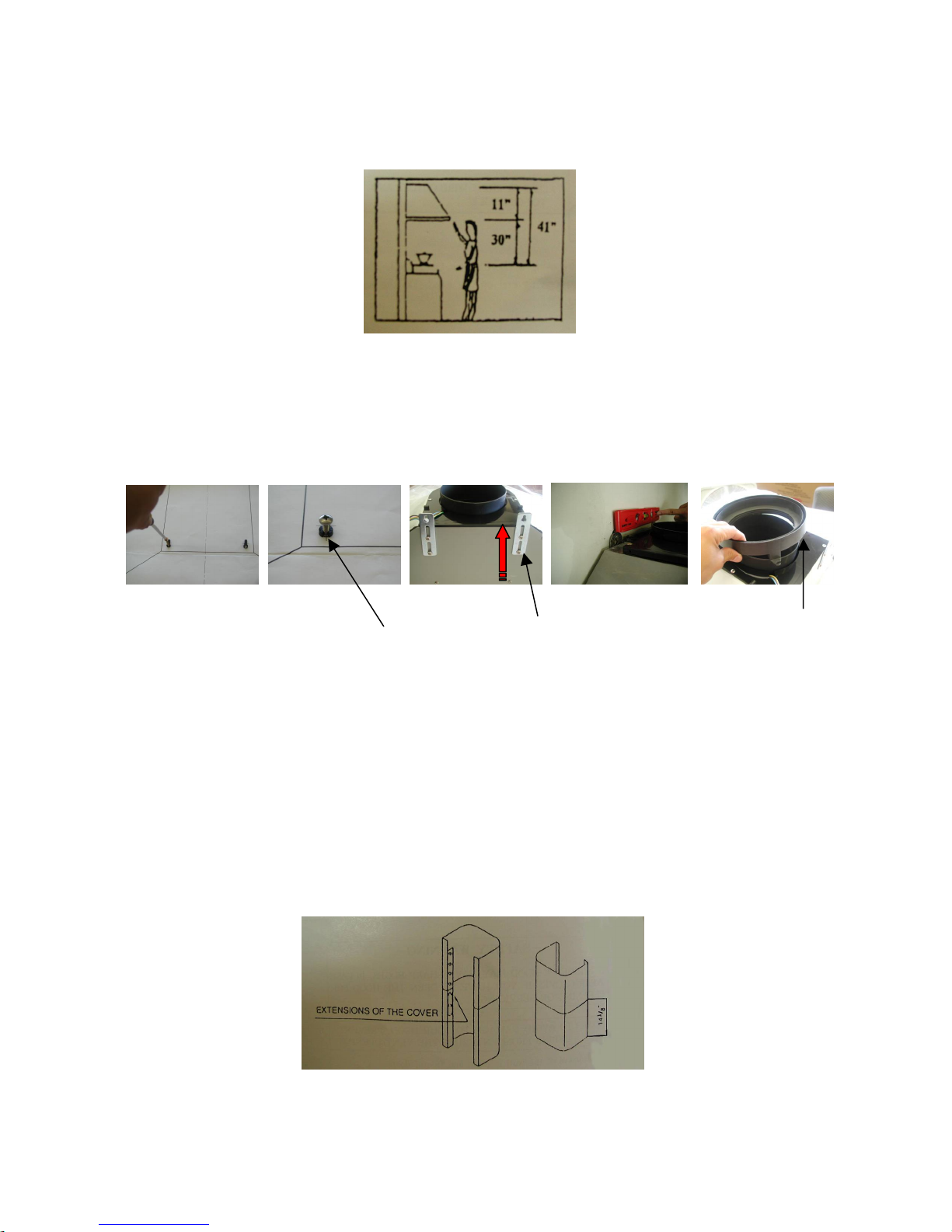

1) If you need to move the cooking range to install the hood, turn off the power for an electric

range at the main electrical box. SHUT OFF THE GAS BEFORE MOVING A GAS

RANGE.

{Fig. 1}

2) Secure mounting screws with plastic anchors (included) to clean wall surface 41” from

cooking surface leaving about 1/8” of the screw sticking out{Fig. 1a}. (Recommended

height from cooking surface to the range hood bottom is 30”. The height of the hood,

without duct cover, is 11 inches.)

{Fig. 1a} {Fig. 1b} {Fig. 1c} {Fig. 1d}

Use plastic adaptor

1/ 8” space (Adjustable brackets)for (7”) duct

Opening.

3) Use screwdriver to loosen mounting brackets at the back of the hood, adjust brackets and

tighten screws (Fig. 1b). Align mounting brackets to the 2 screws on wall and hook hood

into place (Fig. 1c). Tear out & dispose of the template. Make sure protective film has been

removed before installing (Fig.1e). CAUTION: MAKE SURE THE HOOD IS SECURE

BEFORE RELEASING.

4) After adjusting the Exhaust Duct Cover to the desired length (14 1/8”to 27½”), place a short

screw (included) through the oval opening and hole on duct cover. This will secure the duct

cover at the desired length (Fig. 2). Remove left or right pop out square located at the back

of duct cover for wire outlet access.

{Fig. 2}

5) Use 2 long screws (included) to secure the Exhaust Duct Cover Position Panel to the wall.

This will help keep the Exhaust Duct Cover in place. Repeat to secure second positioning

panel for extended portion of duct cover. (Fig. 3a)

Mounting Screws

{Fig. 3} {Fig. 3a}

6) Fasten duct cover to hood by using a short screws (included).Make sure the screw goes into

the plastic receiving end on the hood. Do the same for the other side of the duct cover.

(Fig. 3b)

{Fig. 3b} Screws on both sides

7) Slide oval oil container into plastic slot behind each safety screen (Fig.3c). And Attach round

oil container under each safety screen. Turn clock-wise until firmly in place (Fig.3d).

Round Oil Container

{Fig. 3c} {Fig. 3d}

Oval Oil container

For Installation of Additional KOBE Exhaust Duct Covers (Optional)

If installing additional KOBE Exhaust Duct Cover to extend duct cover beyond 27½”:

1) Pull out inner section of KOBE Exhaust Duct Cover and remove protective film before

installing. Reinsert the inner duct cover section.

2) Depending on additional length needed, adjust the duct cover to the desired length (14 1/8”

to 27½”) and place a short screw (included) through the oblong opening and hole on duct

cover. This will secure the duct cover at the desired length. Insert the inner section of

additional two piece duct cover to outer section of included two piece duct cover and secure

with two short screws. (Fig. 4).

{Fig. 4}

3) Repeat installation instruction from previous step 5).

Making The Electrical Connection (Should Be Done By ALicensed Professional)

----SAFETY WARNING----

INTERIOR OF HOOD MAY HAVE VERY SHARP EDGES; PLEASE

WEAR PROTECTIVE GLOVES IF THE BOTTOM CASING NEEDS

TO BE REMOVED FOR CLEANING OR SERVICING.

(Neutral) (Black)

(blue) (Ground) (brown)

(yellow/green)

1) There are three different color wire strands to be connected. Strip solid wire 5/16” and strip

stranded wire 3/8”.

2) Connect the power line ground wire to the grounding green lead supplied with the hood.

Ground wire will always be green.

3) Make the electrical connections by fastening the brown power wire to the opposing black

power wire and the hood’s blue power wire to the other white wire. Align any frayed strands

or conductors. Screw on conductors; push wires firmly into connectors when starting. Stop

when the bottom of the connector reaches conductor. Follow all electrical safety codes.

4) Plug into electrical outlet. Turn on power and check operation of fans and light.

5) Check that your fuse has not worked its way loose in shipping. Please see section on

Changing the Fuse.

Congratulations, your KOBE range hood is ready to be used!

- OPERATING INSTRUCTIONS -

KOBE range hood motors can be operated independently of one another.

This KOBE range hood model is operated by two 2-speed switches located on the front of the

hood. Each switch controls a separate motor with high and low settings. (Fig. 5) The low

setting will handle most exhaust requirements while the high speed should be used for heavier

cooking.

The light switch is located to the right of the control switches and must be turned on to use other

control switches. (Fig. 5) NOTE: Before replacing light bulb, turn off range hood. See section

on Changing the Light Bulb. DO NOT use more than a 20 watt halogen light bulb.

The QuietMode™ feature offers continuous ventilation at a greatly reduced noise level. The

LED indicator switch for the QuietMode™ feature is located to the right of the light switch.

When the QuietMode™ switch is turned on, the LED indicator will be lit and both fans will start

operating on high speeds then slow to QuietMode™ regardless of whether one or both fans are

on. When QuietMode™ is switched off; the previous controls will take effect. Remember to

turn off control switches after you are finished.

If motors start slow then it’s time to change the Quiet Mode™ unit. Call for servicing.

2 speed Left & Right Quiet Mode (LED) Light

Motor Switch Power & light

Switch

{Fig. 5}

- MAINTENANCE OF THE HOOD -

----SAFETY WARNING----

INTERIOR OF HOOD MAY HAVE VERY SHARP EDGES; PLEASE

WEAR PROTECTIVE GLOVES IF THE BOTTOM CASING NEEDS

TO BE REMOVED FOR CLEANING OR SERVICING.

Cleaning

To clean the hood surface, use only Luke-warm water and mild soap or detergent solutions. Dry

up surfaces using a soft cloth. CAUTION: Never use abrasive cleaners, paper towels, pads, or

cloths as they may damage the hood finish.

If the hood looks splotchy (stainless steel hoods), you can use an orange based cleaner to clean

the surface of the hood (make sure the cleaner does not get on any control switches). Spread a

light coating over the surface of the hood and leave on for a few minutes (do not leave on too

long or there may be damage to the hood finish). Use a soft cloth to wipe off the cleaning

solution while gently rubbing off any stubborn spots. Use a slightly damp cloth to get rid of any

remaining cleaning solution. Use a dry soft cloth to dry the hood.

To bring the glow back to a stainless steel finish, use a stainless steel cleaner.

To clean range hood fans, turn both motors on high speed and spray a mild degreaser into the

fans. Liquid residue will accumulate in the transparent holders located at the back of the safety

screen. These slide easily in and out for cleaning. The round transparent holders attached to the

fan cover can be unscrewed (turn counterclockwise) for cleaning. (To replace, just screw back in

turning clockwise until it clicks into place.) To clean the fan safety screen, remove the screw

(leave in a safe place), and slide safety screen out. CAUTION: Be careful of hook end of the

safety screen. Both the transparent holders and fan safety screens should be washed with warm

soapy water and completely dried before replacing. (Both are top rack dishwasher safe.)

CAUTION: Never put your hand into the area housing the fan while the fan is operating.

For the most efficient operation of your range hood, clean the range hood surface, fans, plastic

drip cups and optional filters regularly.

Changing the Light Bulb

1) Make sure light switch is turned off and range hood is unplugged. CAUTION: Wait until

halogen light is cool to the touch before changing.

2) Gently pull out round metal support from the bottom of the halogen light. The halogen light

should drop out of the light cavity.

3) Gently unplug the defective halogen light and discard. Plug in new halogen light (M16 type,

12V 20 watts max.) and push gently back into light cavity.

4) Replace metal support with prongs against the light.

5) Plug in range hood.

{Fig. 6}

(6a) (6b) (6c)

Screw driver

(6d) (6e)

(12V 20W) stamped

----SAFETY WARNING----

INTERIOR OF HOOD MAY HAVE VERY SHARP EDGES; PLEASE

WEAR PROTECTIVE GLOVES IF THE BOTTOM CASING NEEDS

TO BE REMOVED FOR CLEANING OR SERVICING.

This manual suits for next models

Table of contents

Other KOBE Ventilation Hood manuals

KOBE

KOBE IS2236SQB-1 Troubleshooting guide

KOBE

KOBE CH7730SQB Troubleshooting guide

KOBE

KOBE PREMIUM IN26 Series Troubleshooting guide

KOBE

KOBE RAX28 SQB-2 Use and care manual

KOBE

KOBE SQB-650-5A Series Troubleshooting guide

KOBE

KOBE IN2636SQB-1200 Troubleshooting guide

KOBE

KOBE CH9730SQB Troubleshooting guide

KOBE

KOBE CH0330SQB Troubleshooting guide

KOBE

KOBE RA2230SQB-1 Troubleshooting guide

KOBE

KOBE RA9430SQB Troubleshooting guide

KOBE

KOBE RAX2830SQB-2 Troubleshooting guide

KOBE

KOBE IN26 30SQB-650-5 Series Troubleshooting guide

KOBE

KOBE IS2236SQB-DC16-1 Troubleshooting guide

KOBE

KOBE OVS-ISX2130SQB-40 Troubleshooting guide

KOBE

KOBE CH7630SQB Troubleshooting guide

KOBE

KOBE IS2036GS Troubleshooting guide

KOBE

KOBE Brillia CHX7930SQB-WM-1 Operation and maintenance manual

KOBE

KOBE Brillia UB4130W User manual

KOBE

KOBE IN26 SQB-1100-5A Series Troubleshooting guide

KOBE

KOBE CHX30 Series Troubleshooting guide

KOBE

KOBE PREMIUM IN2630SQB-700 Troubleshooting guide

KOBE

KOBE Brillia INX27 SQB-700-3 Series Troubleshooting guide

KOBE

KOBE Brillia CHX2224SQB-1 Troubleshooting guide

KOBE

KOBE IS22 SQB-5 Series Troubleshooting guide

Popular Ventilation Hood manuals by other brands

emmeti

emmeti RECUPA MED A-140 Installation and use manual

Nibe

Nibe F135 user manual

Kuppersberg

Kuppersberg INTRO 60 Technical Passport

Zephyr

Zephyr Spruce AK9834BS Use, care and installation guide

Hisense

Hisense MH6INBG manual

Miele

Miele DA 1255 Operating and installation instructions

Broan

Broan 46000 Specification sheet

GE Profile PV977 Owner's Manual & Installation Instructions

FALMEC

FALMEC FFRIA24W5FS Instruction booklet

Whirlpool

Whirlpool RH2600XL-1 SERIES installation instructions

Küppersbusch

Küppersbusch DX ISLA instruction manual

ETNA

ETNA AV360RVS Instructions for use

JUNO

JUNO JDF603E6 installation manual

Miele

Miele DA 6708 D Operating and installation instructions

Tricity Bendix

Tricity Bendix LE 150 Installation & operating instructions

AEG

AEG X68163BV1 user manual

AEG

AEG 125 D operating instructions

Smeg

Smeg KSEV97X instruction manual
