KitchenAid KAWE565B User manual

and Care Guide

KitchenAld"

FOR THE WAY IT'S MADE."

A Note to You .................. 2

Um_da_i_

WasherSafety..................3

Gelti_ ToK_w Your

Wc_h_ ............................ 4

Ope_ling YourW_h_ ...5

Oth_ Fealu_ ............... 11

Laundw Tips................... 13

IfYou Need A_da_e

S_vice ....................... 25

Wa_anty ........................ 28

1-800-422..1230

Call with questions or comments.

KITCHENAID°Washers

Models: KAWE565B KAWE570B KAWE577B KAWE665B

Note to You

Thank you!

Thank you for buying a KITCHENAID ehome appliance. This world-class

product is the result of years of engineering experience. To ensure reliable,

trouble-free operation, please read and follow this Use and Care Guide. In it

you will find valuable informationto help you safely operate and maintain

your appliance.

Also, please complete and mail your Product Registration Card.

Your safety isimportant to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here isa brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Our Consumer Assistance Center telephone number,

1-800-422-1230, istoll-free 24 hours a day.

Ifyou have a question concerning your home appliance's operation, or if you need service,

call our toll-free Consumer Assistance Center telephone number for help. When calling, you

will need to know your appliance's complete model number and serial number. You can find

this information on the model and serial number plate (see diagram on page 4). Record these

numbers and purchase information below. You will need this information if you require

service. Keep this book and the sales sliptogether in a safe place for future reference.

NOTE: You must provide proof of purchase or installation date for in-warranty service.

Model Number Builder/Dealer Name

Serial Number Address

Date Installed Phone

Understanding Washer Safety

IMPORTANTSAFETYINSTRUCTIONS

To reduce the risk of fire, electrical shock, or injury when using

your washer, follow basic precautions including the following:

•Read all instructions before using your

washer.

•Do not machine wash or machine dry

items cleaned, washed, soaked in, or

spotted with wax, paint, gasoline, oil, or

other flammable fluids. The fumes can

create a fire hazard or explosion.

Always hand wash and line dry items

containing these materials.

•Flammable fluids (dry-cleaning sol-

vents, kerosene, gasoline, etc.) should

not be used or stored in or near your

washer. Do not add flammable fluidsto

your wash water. These substances

give off vapors that can create a fire

hazard or explosion.

•Do not allow children to operate, play

with, or crawl on or inside your washer.

Supervise children closely when your

washer is used near them.

•Before your washer isremoved from

service or discarded, remove the lidto

prevent accidental entrapment.

oAfter starting a cycle, do not reach into

the basket unless the Cycle Control

Knob is pushed in and all motion stops.

• Do not tamper with the controls.

•If your hot water has not been used

recently (usually 2 weeks or longer),

hydrogen gases may build up in your

water heater and your hot water

pipes. HYDROGEN GAS IS EXPLO-

SIVE. To prevent injuryor damage,

before using your washer, turn on all

hot water faucets and allow water to

runfor several minutes. This will

allow gases to escape. Do not smoke

or use any open flame near your

faucet while it is open.

Please ...

•Have only a qualified person install,

repair, or replace parts on washer.

•Maintain washer properly.

•Protect washer from the weather and

keep it where the temperature will

not fall below freezing.

•Install and level washer on a floor

that can support the weight.*

•Connect washer to the correct 3-

prong outlet, electrical supply, water

supply, and drain.*

•Ground washer properly.*

*See the Installation Instructions.

Understanding your responsibilities

• Store detergent, laundry aids and other

materials in a cool, dry place where

children cannot reach them (in a locked

cabinet if possible).

•Read and follow instructionson pack-

ages of detergent and laundry aids,

especially warnings and precautions.

•Do not use chlorine bleach and ammo-

nia or acids (such as vinegar or rust

remover) in the same wash. Hazardous

fumes can form.

•Do not wash or dry items that are

soiled with vegetable or cooking oil.

These items may contain some oil

after laundering. Due to the remaining

oil, the fabric may smoke or catch fire

by itself.

•Unplug power supply cord before

attempting to service your washer.

•Do not machine wash fiberglass

materials. Small particles can stickto

the fabrics washed in following loads

and cause skin irritation.

-SAVE THESEINSTRUCTIONS- 3

flingToKnowYourWasher

The parts and features of your washer are illustrated in this section. Become familiar with all

parts and features before using your washer.

NOTE: The drawings in this book may vary from your washer model. They are designed to

show the different features of all models covered by this book. Your model may not include all

features.

Temperature selector

Water level selector

Fabric softener

Cycle control knob

Model and serial

number plate

dispenser* (under lid)

Agitator Liquid bleach

dispenser*

Basket

Tub

Serf-clean lint filter

(inside agitator)

*Available on some models

Operating YourWasher

This section tells you how to operate your washer. Operating your washer properly

enables you to obtain the best possible results.

IN THIS SECTION

Bofore starting your washer ............ 5

Starting or stopping your washer ...5

Selecting a load size ......................... 6

Selecting wash-rinse

temperatures ..................................... 6

Selecting acycle and setting ........... 6

Using rinse and spin ........................ 9

Using drain and spin ........................ 9

What happens in each cycle .......... 10

Before starting your washer

Add measured detergent. Then place a

sorted load in the washer before starting.

See page 13 for additional =Before you

wash" information.

NOTE: If your washer has a Consumer Buy

Guide, remove it and place it in your Use

and Care Guide.

Starting or stopping your washer

Starting your washer

1. Select a load size and water temperature.

2. Push in and turn the Cycle Control Knob

clockwise. Stop when the indicator on the

knob's outer ring points to the setting in

the wash cycle you want. The settings

indicate soil level.

3. Pull out the Cycle Control Knob.

Stopping and restarting your

washer

=To stop the washer at any time, push in

the Cycle Control Knob.

• To restart the washer, close the lid(if

necessary) and pull out the Cycle Control

Knob.

Cycle= may vary with model

Operating YourWasher

Selecting a load size

Positionthe Load Size Selector at the setting

that corresponds to the size load you want to

wash. Select a load size based on the size of

load and the fabric you are washing. See

page 14 for additional loading information.

To change the load size setting after the

washer has started to fill, move the Selector

to the desired new setting.

NOTE: Your washer fills to the proper water

.J level (not to the top of the agitator) for

the load size selected.

•Items should move freely in the washer. Do

not overload the machine or select a load

size that is too small for the wash load.

•Use a large load size setting for best

results with permanent press clothes.

•Reduce wash time when using a small load

size setting. Loads with only a few small

items need less wash time.

Settings may vary with model

Ifyour selector has RESET

To change the water level selection after

the washer starts filling, first move the

Selector to RESET, then to the new water

level.

Selecting wash-rinse temperatures

Match the water temperature to the type of

fabric and soils being washed. The top

temperature is the wash water and the

bottom temperature is the rinse water.

See the "Water usage guide"on page 18

for more information.

Settings may vary with model

Selecting a cycle and seffing

You willfind information you need to help

you make correct cycle selections in this

section.

•Pages 7-9: Use the information on these

pages to guide you when selecting a wash

cycle and time.

•Page 10: Use this page to help you under-

stand what happens during a wash cycle.

6Cyclee may vary with model

peraling YourWasher

Regular/Heavy cycle

The Regular/Heavy cycle features high spin

speeds designed to shorten drying time.

•Use HEAVY to clean large loads of sturdily

constructed cotton and linen fabrics that

are heavily soiled.

•Use NORMAL to clean sturdily constructed

cotton and linen fabrics that are moder-

ately soiled.

•Use LIGHT to clean sturdilyconstructed

cotton and linen fabrics that are lightly

soiled.

Permanent Presscycle

The Permanent Press cycle features a cool-

down rinse and low spin speeds to reduce

wrinkling.

•Use NORMAL to clean permanent press

and some synthetic fabrics that are

moderately soiled.

•Use LIGHT to clean permanent press and

some synthetics that are lightlysoiled.

NOTE: The washer pauses briefly during the

wash cycle. This is normal for washer

operation.

Delicates cycle

The Delicates cycle features a brief wash

cycle. Low spin speeds reduce wrinkling.

•Use LIGHT to clean lightlyto moderately

soiled delicate items and washable knits.

Regular/heavy cycle

Permanent press cycle

Delicates cycle

Operating YourWasher

Pre-Wash cycle

The Pre-Wash cycle features a brief period

of agitation and high spin speeds to help

remove heavy soils and stains that need

pretreatment.

•Use warm water for prewashing stained

laundry. (Hot water can set stains.) See

pages 15-17 for stain removal information.

•After the Pre-Wash cycle ends, add

detergent and set a new wash cycle.

Soak/Pre-Wash cycle

(on some models)

The Soak cycle features brief periods of

agitation and soak time to help remove

heavy soils and stains that need pretreat-

ment.

•Use warm water when soaking laundry.

(Hot water can set stains.) See pages 15-

17 for stain removal information.

•Use the amount of detergent or presoak

additive recommended by manufacturer.

•The Soak cycle automatically advances

into Pre-Wash.

Extra Wash cycle

(on some models)

Extra Wash automatically prewashes the

laundry and advances intothe Regular/

Heavy cycle. (The washer does not need to

be reset after the Extra Wash cycle.) Use

this cycle when washing heavily soiled loads

that need maximum soil removal.

•For proper cleaning, use double the

amount of detergent recommended for a

wash cycle.

NOTE: The machine pauses during Extra

Wash. This is normal for washer operation.

Pre-wash cycle

SoakJpre-wash cycle

Extra wash cycle

Operating YourWasher

Usingrinse and spin

When using extra detergent for heavily

soiled clothes, or washing special-care

items, you may want an extra rinse and spin.

1. Push the Cycle Control Knob in and turn

clockwise to RINSE, as illustrated.

2. Pull the Cycle Control Knob out. The

washer willfillto selected load size,

agitate, drain, and spin.

Usingdrain and spin

A drain and spin may help shorten drying

times for some heavy fabrics or special-care

items by removing excess water.

1. Push the Cycle Control Knob in and turn

clockwise to SPIN, as illustrated.

2. Pullthe Cycle Control Knob out. The

washer will drain, then spin.

Operating YourWasher

What happens in each cycle

When the Cycle Control Knob is turned to a

setting and pulled out, the washer fills(to the

selected load size) before agitation and timing

start. The washer will begin agitating immedi-

ately after filling; agitation can occur with the

washer lid up or down.

After agitation starts, the Cycle Control Knob

turns clockwise until it points to OFF and the

cycle ends.

The washer pauses briefly throughout

each cycle. These pauses are normal for

washer operation.

WASH

Fill

Wash

_ Drain (or partial drain*)

No agitation

*For cool down, the Permanent Press cycle partially

drains, fills, agitates bdefly, and drains.

Spin

RINSE

Fill

Rinse

_Drain-No agitation

Spin-Spray rinse

Spin

Other manuals for KAWE565B

This manual suits for next models

Table of contents

Other KitchenAid Washer manuals

KitchenAid

KitchenAid KAWS750G User manual

KitchenAid

KitchenAid KAWS700J User manual

KitchenAid

KitchenAid KAWS750J User manual

KitchenAid

KitchenAid Pro Line KHWV01RSS User manual

KitchenAid

KitchenAid KAWE742B User manual

KitchenAid

KitchenAid W11563497A-SP User manual

KitchenAid

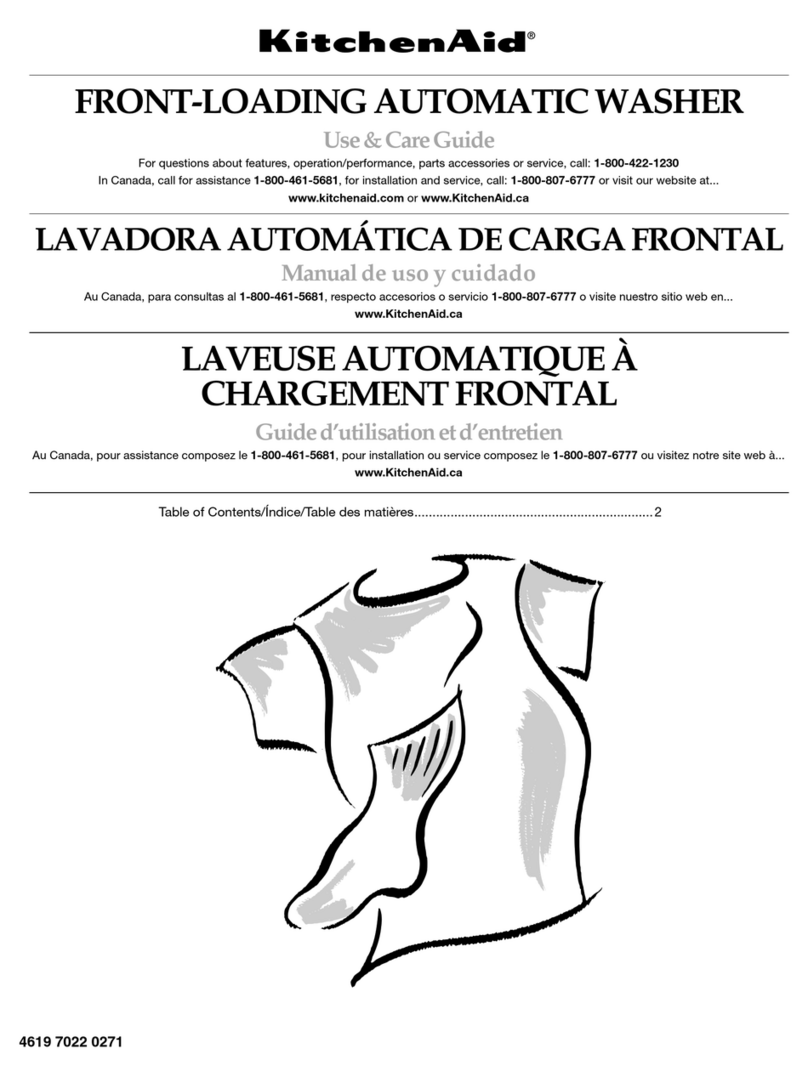

KitchenAid FRONT-LOADING AUTOMATIC WASHER User manual

KitchenAid

KitchenAid kawe700t User manual

KitchenAid

KitchenAid KAWE550V User manual

KitchenAid

KitchenAid KHWS02RWH - Ensemble Washer 12 Automatic Cycles 3.8 cu.... User manual

KitchenAid

KitchenAid KAWE670B User manual

KitchenAid

KitchenAid KAWE660W User manual

KitchenAid

KitchenAid KAWE770B User manual

KitchenAid

KitchenAid KAWE850V User manual

KitchenAid

KitchenAid KAWE470B User manual

KitchenAid

KitchenAid KAWE950V User manual

KitchenAid

KitchenAid Pro Line Series User manual

KitchenAid

KitchenAid KAWE760W User manual

KitchenAid

KitchenAid Pro Line KHWV01RSS User manual

KitchenAid

KitchenAid KAWS577E User manual

KitchenAid

KitchenAid KAWE860W User manual

KitchenAid

KitchenAid KAWE460W User manual

KitchenAid

KitchenAid Pro Line KHWV01R User manual

KitchenAid

KitchenAid KAWE650V User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
