KitchenAid KSSS42FTX02 User manual

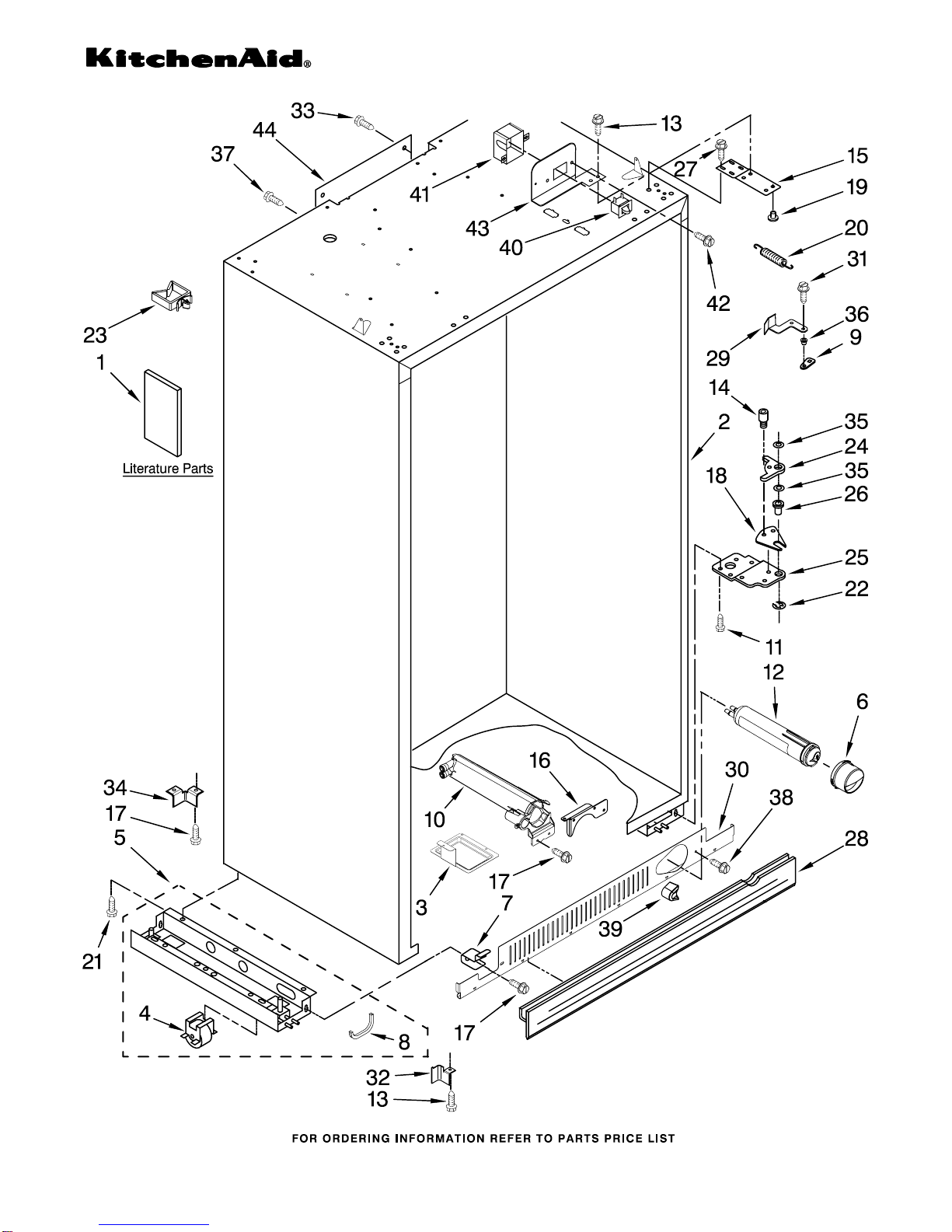

CABINET PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

11−07 Litho In U.S.A. (mat) Part No. W10177761 Rev. A

42" BUILT IN

REFRIGERATOR

CABINET PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161714

Use & Care Guide

W10164075

Energy Guide

W10159831

Service & Wiring

Sheet

2306337 Icemaker and

Ingredient Care

Center

Service Sheet

2318069 Main Control

Service Sheet

2316565 Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

3 2318189 Tray, Drip Filter

W10138054

Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2318194 Refrigerator Side

2318193 Freezer Side

6 Cap, Water Filter

2260518B Black

7 2307640 Mounting Stud,

Grille

8 2307584 Grommet, Crossover

Tube

9 2005783 Cam, Door Closer

10 2260526 Housing, Water

Filter

11 3400525 Screw

12 4396841 Filter, Water

13 489399 Screw

14 3400230 Screw, Door Stop

15 2257644 Hinge (Top)

16 2318190 Bracket, Mount

(Water Filter)

17 489464 Screw

18 2004994 Lock, Adjustable

Bushing

19 2300082 Bushing

20 Spring, Door

Closure

2221242 Right Side

2004517 Left Side

21 486194 Screw

22 2005008 Retaining Ring,

Adjustable Bushing

W10129069

Wire Clip (5)

24 2006342 Gap, Cover

Assembly (Bottom)

25 Hinge (Bottom)

2006780 Freezer Side

2006779 Refrigerator Side

26 2302876 Bushing,

Adjustable

27 8533913 Screw 1/4−20 x 5/8

28 Skirt−Grille,

Bottom

2209025B Black

29 Extension Arm,

Door Closer

2266882 Right

2266881 Left

30 Grille Bottom,

Front

2325185B Black

31 2005921 Screw

32 Bracket, Support

Base (Front)

2006616 Left

2006556 Right

33 1157158 Screw

34 2006617 Bracket, Support

Base (Rear) (2)

35 2006346 Washer

36 2266880 Bushing,

Extension Arm

37 1163283 Screw

38 8281163 Screw

39 2260503B Button, Filter

40 Switch, Rocker Arm

1118894 Refrigerator Door

Side

1115373 Freezer Door Side

41 2215938 Cover, Switch (2)

42 487415 Screw (2)

43 Bracket, Switch

2221097 Right

2221096 Left

44 2215612 Cover, Rear

CABINET TRIM PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION

W10132472

Cabinet, Trim

(Right Side)

2 1163283 Screw

3 2316687 Cabinet, Trim

(Bottom)

4 486194 Screw

5 2314017 Cabinet, Trim Top

W10132541

Cabinet Trim

(Left Side)

W10121451

Nutsert (4)

8 2005925 Seal−Trim, Side

9 489464 Screw

FREEZER SHELF PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION

1 2302868 Wire, Shelf (2)

2 2302871 Cover, Shelf

3 2302883 Shelf, Fixed (2)

4 2259082 Basket

5 2256270 Front, Basket

6 Slide, Basket

2259317 Right Side

2259318 Left Side

7 8533928 Screw

8 2266934 Door, Ice

9 2266931 Bucket, Ice

10 2266955 Spacer

REFRIGERATOR LINER PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

REFRIGERATOR LINER PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2306010 Thermistor

3 2208970 Air Duct

4 2259077 Ladder, Shelf (2)

5 520965 Screw Support,

Ladder (8)

6 2006475 Screw

7 487539 Screw

8 2302937 Thermistor

9 2302986 Lid, Air Baffle

W10169528

Baffle, Control

Assembly

11 2171846 Release Valve

12 2310205 Jumper, Air Baffle

13 488357 Screw

14 486194 Screw

15 2221296 Air Baffle

Assembly

16 2309222 Diffuser Assembly

17 2317105 Cover, Thermistor

18 2188820 Thermistor

19 2302992 Spacer, Air−

Baffle

20 2309087 Cover, Diffuser

21 2259412 Seal, Air Duct

(Round Hole)

22 2259398 Seal, Air Duct

(Square Hole)

23 2003577 Guard, Return Air

CONTROL PANEL PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION

1 2307586 Control Box

2 2310164 Wire, Jumper

3 2307592 Bracket,

Control Box

4 2307595 Shield, Light

5 487539 Screw

6 2317000 Clip, Control Box

7 2306086 Display Board,

Ingredient

Care Center

8 2223857 Socket, Light

9 2326255 Light Bulb

10 8281185 Screw

TOP GRILLE AND UNIT COVER PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION

1 2316825S Top Grille Assy

W10161693

Cover, Unit

3 486194 Screw

4 2256466 Back Panel

W10121229

Cover, Unit Front

6 487415 Screw

7 2310194 Wire Assembly

RC/FC Light Switch

8 2317923S Nameplate

9 489348 Clamp

10 2003347 Tee Bolt (4)

11 2004333 Nut (2)

REFRIGERATOR SHELF PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

REFRIGERATOR SHELF PARTS

(Etched Aluminum)

For Model: KSSS42FTX02

W10177761

Illus. Part

No. No. DESCRIPTION

1 2222592 Shelf Assy (4)

2 2256250 Trim, Glass Side

Meat Pan

3 2179404 Rack, Wine

4 2302842 Meat Pan Cover

Assembly

5 2302835 Crisper Cover

Assembly

6 2257582 Trim, Glass Rear

7 2252412 Crisper Pan (2)

8 Slide, Meat Pan

2302954 Left Side

2302955 Right Side

9 2302831 Trim, Glass Front

10 2256254 Trim, Glass Rear

11 2256248 Front, Crisper

Pan

12 2252255 Trim, Glass Side

13 Spacer, Crisper

2256222 Right Side (2)

2256223 Left Side (2)

14 Slide, Crisper

2302957 Right Side (2)

2302956 Left Side (2)

15 Spacer, Meat Pan

2256243 Left Side

2256244 Right Side

16 8533929 Screw

17 2256369 Pan Assembly

Meat

18 2256366 Front, Meat Pan
