KitchenAid KSRS25FGAL01 User manual

1 Literature Parts

LIT2200139 Use & Care Guide

LIT2200278 Service & Wiring Sheet

LIT2200423 Energy Label

LIT628370 Modular Icemaker Service Sheet

2 2174748 Front Roller (2)

3 489456 Screw

4 2196236 Roller (Rear) (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2196048 Shim, Hinge Top

10 489284 Screw

11 Hinge Cover

1129262 White

2150343 Almond

2151694 Black

2186858 Biscuit

12 2171851 Hinge Bottom (2)

13 Filler, Wrapper

2196094 White

2196095 Almond

2196097 Black

2196150 Biscuit

14 Grille

2198468W White

2198468N Almond

2198468B Black

2198468T Biscuit

15 489497 Screw

16 2196046 Hinge, Top (2)

17 489464 Screw

18 940139 Drain Fitting

19 1108438 Tube, Extension

20 1108439 Clip, Drain Tube

21 2176140 Cover, Unit

22 Hinge Cover

1119787 White

1119789 Almond

2155938 Black

2186857 Biscuit

23 549193 Clamp, Service Cord

24 489084 Screw

25 2155311 Door Closer, Lower Cam (2)

26 489483 Screw

27 2186443 Housing, Water Filter

28 2203220 Water Filter

29 489500 Screw

30 Cap, Water Filter

2186884W White

2186884N Almond

2186884B Black

2186884T Biscuit

31 Cabinet (Not A Serviceable Part)

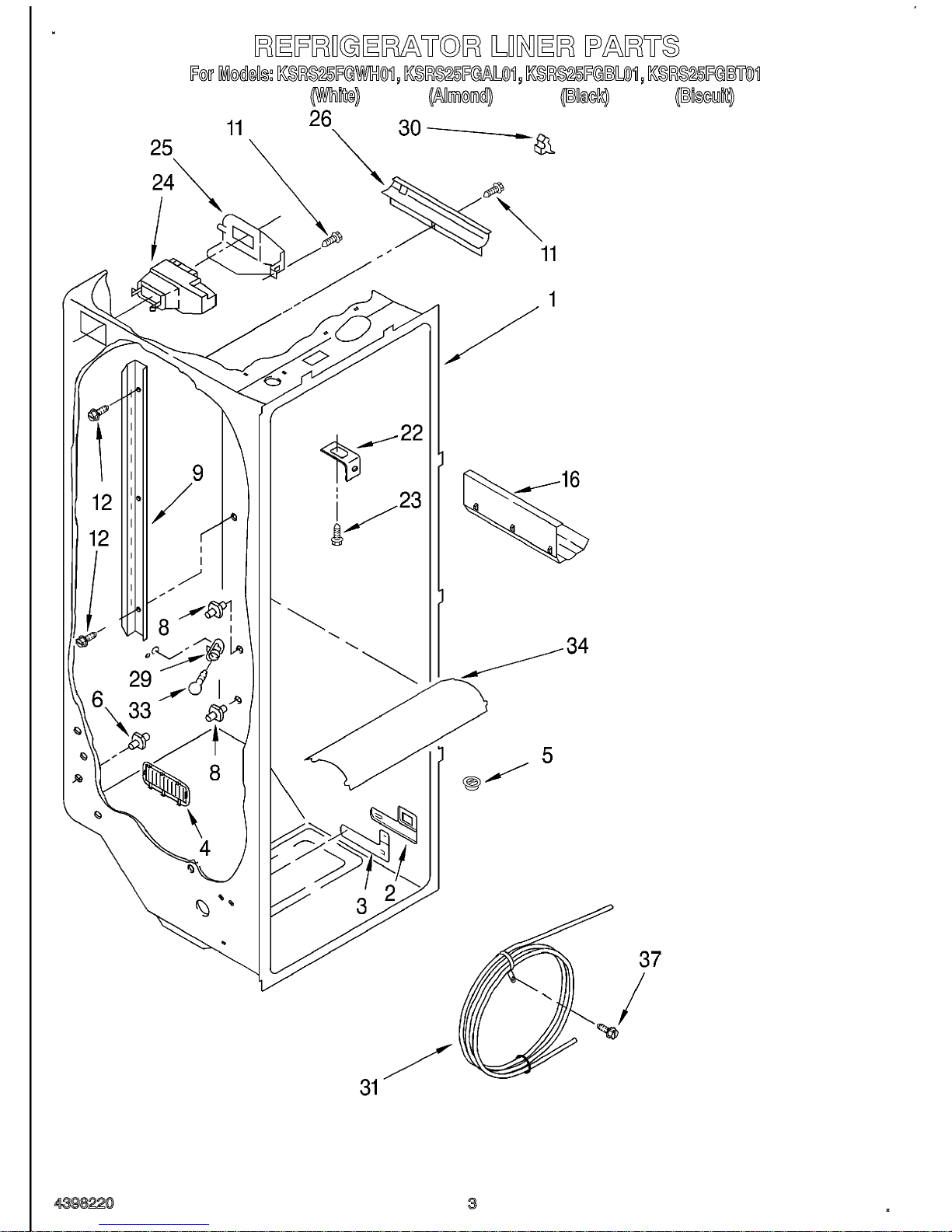

1 Liner (Not A Serviceable Part)

2 2194744 Escutcheon, Meat Pan Control

3 2182757 Slide Meat Pan Control

4 2182147 Louver

5 2171846 Release Valve

6 2172943 Stud (2)

8 1110718 Stud (10)

9 2181796 Ladder, Shelf (2)

11 486298 Screw (2)

12 487539 Screw

16 2179404 Rack, Wine & Egg

22 1123919 Bracket Retainer

23 489290 Screw (2)

24 2161467 Air Diffuser Assembly

25 2161470 Air Diffuser Cover

26 2150331 Cover, Conduit

29 2162085 Socket

30 842534 Clip, Air Duct

31 2196171 Reservoir

33 527949 Light Bulb

34 2203266 Light Lens

37 488280 Screw

1 2195978 Shelf Assembly, Cantilever (3)

2 2174253 Button, Humidity

3 2174252 Slide, Humidity

4 2174273 Gasket, Side (2)

5 2161491 Cover, Meat Pan (Includes Items 13, 14 & 15)

6 2198446 Snack Pan

7 2179243 Trim, Handle

8 2189526 Glass, Cover

9 2174250 Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, 14 & 19)

10 2174148 Glass, Cover

11 2174272 Gasket (Front)

12 2174274 Gasket (Rear)

13 2174478 Eyelet, Roller

14 2174388 Roller

15 489211 Screw

16 2179227 Crisper Pan (Includes 13, 14, 18, 19 & 21)

17 2179231 Meat Pan (Includes 13, 14, 19 & 22)

18 2174076 Window, Crisper

19 489261 Screw

20 2176095 Deflector

21 Cap, Crisper Pan

2174259 Right Side

2174258 Left Side

22 2174362 Window, Meat Pan

23 2182730 Egg Bin

24 2174021 Shelf & Roller Assembly

25 489439 Screw

26 2198277 Shelf, Snack Pan

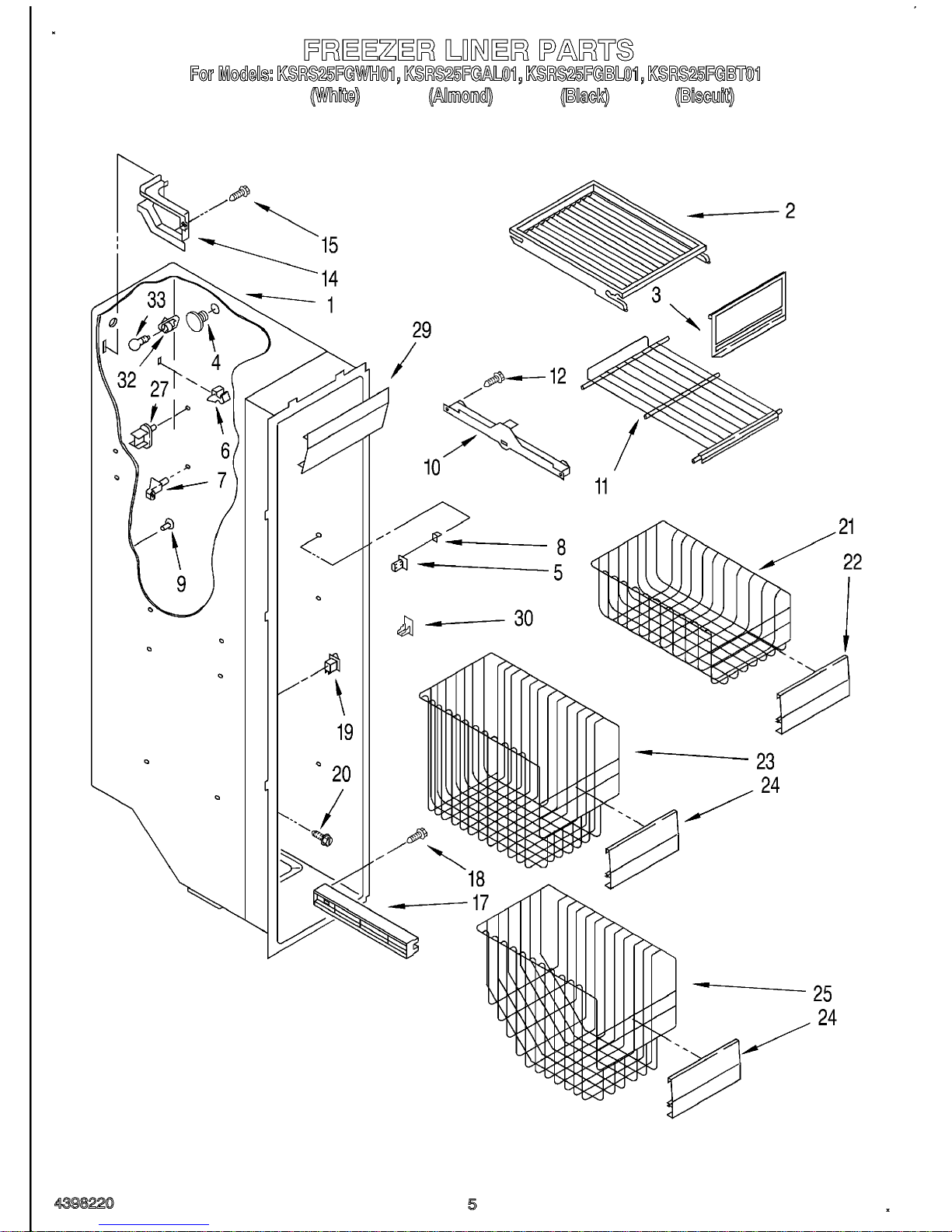

1 Liner (Not A Seviceable Part)

2 2174493 Shelf, Top Compartment

3 2171713 Door, Ice Compartment

4 940014 Hole Plug

5 946356 Stud, R.S. Front

6 842534 Clip, Air Duct (2)

7 1115317 Support, Stud (4)

8 946355 Support, Stud (2)

9 2176134 Grommet (2)

10 Slide, Container

1119237 Left Side

1119293 Right Side

11 2174267 Shelf

12 489100 Screw (4)

14 2155572 Cover, Wiring

15 489355 Screw

17 Shelf Track

2181760 Right Side (3)

2181759 Left Side (3)

18 486298 Screw

19 1115373 Switch, Rocker Arm

20 489478 Screw

21 2181763 Basket, Shallow

22 2171767 Front, Basket

23 2181765 Basket, Square

24 2171766 Front, Basket

25 2181764 Basket, Sloped

27 1115386 Stud, Shelf (4)

29 2171705 Light Lens

30 1106982 Stud, R.S. Rear

32 2162085 Socket, Light

33 527949 Bulb, Light

1 2183726 Bracket, Motor

2 2188242 Motor, Dispenser

3 2152713 Soleniod Assembly

4 2149100 Guide, Solenoid

7 2186815 Wiring Assembly, Ice Dispenser

8 489399 Screw

9 983663 Coupling, Motor

10 489478 Screw

11 2162085 Socket, Light

14 2196091 Ice Container

15 983668 Coupling, Conveyor

16 1118480 Stop, Cone

17 1119074 Feeder Cone

18 1119005 Spacer, Step (3)

19 1119007 Spacer, Flat (2)

20 1119006 Blade, Rotary

21 1119012 Blade, Rotary

22 1119013 Blade, Rotary

23 489235 Washer, Plain

24 1119009 Blade, Fixed (2)

25 2157405 Block, Blade

26 489229 Roll Pin

27 2181955 Conveyor

28 2171681 Drum

29 1118470 Drive Bar

30 2171682 Floating Baffle

31 1119018 Nut, Bearing

32 2155231 Control Arm

33 1119020 Spring, Return

34 1119021 Retainer Clip, Rod

35 488886 Screw

37 2180348 Housing, Crusher

38 1119017 Deflector, Ice

39 489234 Washer, Plain

40 489236 Retainer Ring

42 2152021 Sleeve-Auger

44 2171708 Front Cover, Ice Container

45 527949 Light Bulb

46 2171706 Light Lens, Dispenser
