KitchenAid KBRS22KWWH02 User manual
1 Cabinet (Not A Serviceable Part)
2 2152011 Roller, Front
3 489333 Screw, 5/16-24 x 1-1/4
4 981122 Roller, Rear (2)
5 488454 Screw, 1/4-28 x 1/2 (6)
6 489333 Screw
7 942768 Drain Fitting
8 489337 Screw (10)
9 Hole Plug
2151652 White
2151653 Almond
10 1105433 Heater, Mullion
11 2149060 Clip, Mullion (4)
12 1115105 Spacer (3)
13 Center Rail
1127242 White
1127245 Almond
14 489327 Screw
15 2155548 Cover, Flush
16 1105607 Tube Clamp (3)
17 1123514 Hinge, Top
18 1123515 Shim, Hinge Top
19 Hinge Cover
842010 White
989194 Almond
20 489179 Screw
21 836153 Hinge, Center
22 2151688 Shim, Hinge Center
841604 Shim, Center
23 1129056 Hole Seal
24 488296 Washer, 11/64
487802 Washer 7/64
25 549193 Clamp, Service Cord
26 2148563 Hinge Butt, Bottom
27 654366 Hinge Pin, Bottom
28 488714 Screw, 10-32 x 5/16
29 836196 Shim, Bottom
30 488184 Washer, 7/32
31 1129868 Spacer
32 1127377 Extension, Drain Tube
33 1125665 Corner Filler, Grille
34 Filler, Wrap Corner (2)
1110708 White
1110709 Almond
35 Grille
1125663 White
1125667 Almond
36 Hole Plug (5)
1129062 White
1129063 Almond
37 2149887 Cabinet Wiring Assembly
38 489048 Screw, 8-32 x 1/2
39 937360 Cord, Service
40 1105617 Cover, Unit
41 489084 Screw
42 2147310 Tap-Plate, Bottom Hinge
43 2149121 Cover, Wiring
47 2155537 Plug Cover
49 1121118 Sealing Gasket
1 Liner (Not A Serviceable Part)
2 Slide, Basket
986382 Right Side
986383 Left Side
3 486298 Screw
4 Shelf Track,
2149175 Right Side
2149174 Left Side
5 1106612 Stud (2)
6 1108112 Rocker Arm Switch
7 1127396 Electrical Shield Extension
8 488474 Screw
9 2149169 Scroll, Fan
10 1127434 Wiring Assembly, Fan Motor
11 1127401 Fan Motor
12 992920 Fan Blade
13 992953 Compression Ring
14 1114354 Grommet (2)
15 489168 Screw (2)
16 1127406 Gasket, Fan Scroll
17 489242 Screw (4)
18 1115004 Cover, Evaporator
19 489196 Screw (7)
20 1125567 Hole Cover, Evaporator
21 1123230 Strap
22 941839 Hole Plug
23 1103725 Hole Plug
1 Compartment Separator Assembly (Includes Center Rail and
Heater Assembly)
1126098 White
2149168 Almond
2 2149098 Defrost Timer
3 487534 Screw, 8 x 1-3/8 (2)
4 946059 Light Bulb
5 983910 Light Lens
6 851067 Light Socket
7 938213 Switch, Lighted
8 2149889 Wiring Assembly, Control Box
9 1102000 Cable Tie
10 1115076 Thermostat Barrier Assembly
11 487584 Screw, 8-15 x 3/8 (2)
12 848446 Bracket, Thermostat
13 488874 Screw
14 1125967 Control Knob
15 1125965 Control Panel Assembly (Includes Item 16)
16 940014 Hole Plug
17 489242 Screw
18 986021 Air Diffuser Assembly
19 836667 Spacer (2)
20 488357 Screw, 8 x 1-1/4 (2)
21 1127488 Gasket
22 984658 Air Damper
23 836493 Retainer, Air Damper
24 1126092 Knob, Air Diffuser (Includes Item 25)
25 837444 Retainer, Knob
26 1115373 Switch, Rocker
27 2155555 Stud-Hook
28 983359 Freezer, Light Lens
29 839213 Support, Stud
30 1121213 Compartment, Top Seperator Front
31 2149068 Shield, Light

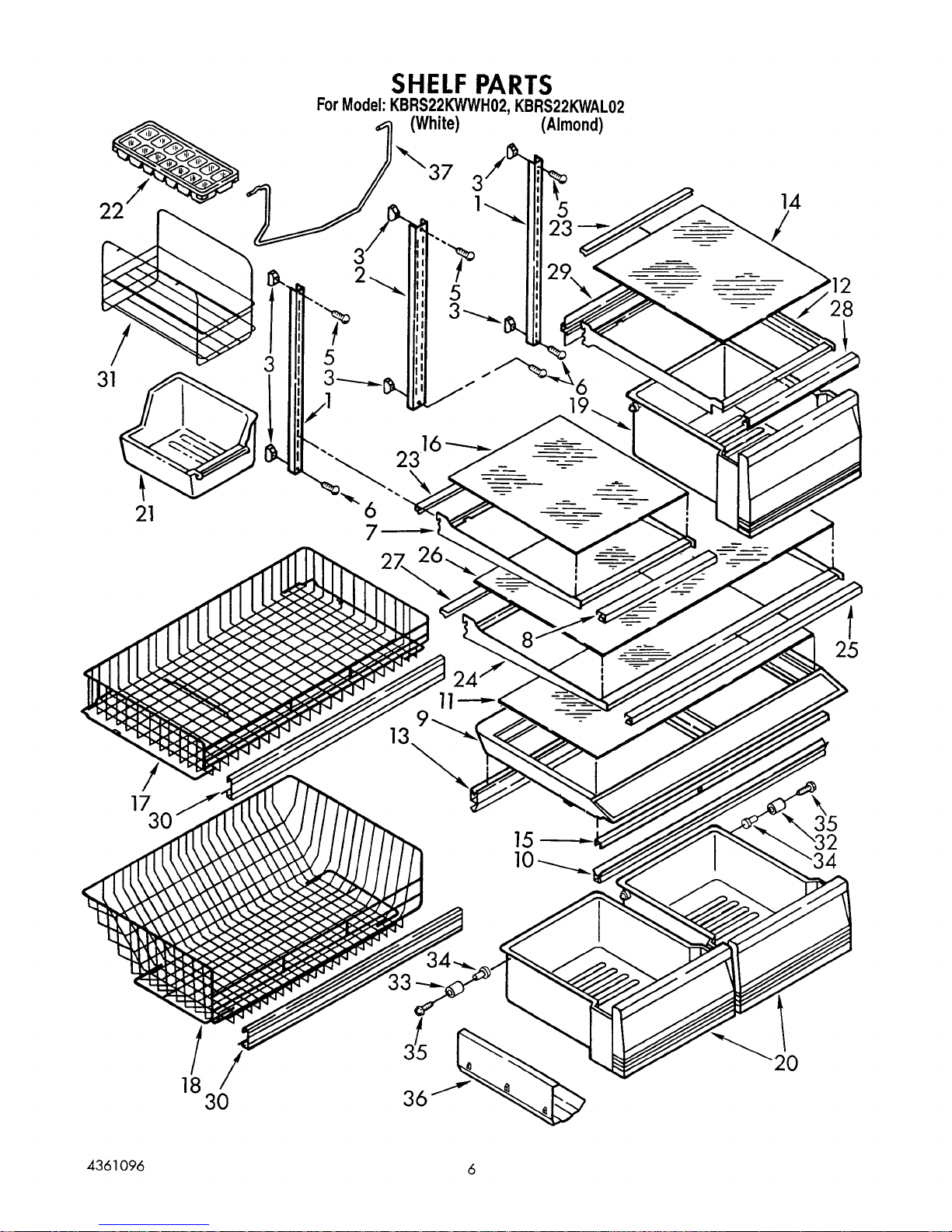

1 1127413 Shelf, Ladder (2)
2 1127414 Shelf, Ladder Center
3 520965 Screw, Support (4) Center (2)
5 489345 Screw, 8-32 x 1-1/4 (3)
6 488163 Screw, 8 x 1-1/4 (3)
7 1125520 Shelf, Cantilever (2)
8 1125782 Gasket (Front)
9 1125897 Pan Cover Assembly
10 1125528 Gasket, Pan Cover (Front)
11 1125531 Glass, Pan Cover
12 1125533 Pan Shelf, Cantilever
13 1125529 Gasket, Pan Cover (Rear) (2)
14 1125539 Glass, Shelf
15 1106613 Crisper, Support
16 1125521 Glass, Shelf
17 2149146 Basket-Freezer
18 1127250 Basket-Freezer
19 1125934 Pan, Meat
20 1117907 Pan, Crisper
21 1126135 Ice Cube Pan
22 841180 Ice Tray (4)
23 1110744 Retainer, Shelf
24 1125523 Shelf, Full Cantilever
25 1125783 Gasket (Front)
26 1125524 Glass, Full Shelf
27 1125525 Retainer, Shelf
28 1125576 Gasket (Front)
29 1125815 Gasket (Rear)
30 1125900 Trim, Basket
31 2147011 Shelf, Ice Tray
32 1125530 Roller
33 1112303 Roller
34 1112308 Eyelet, Roller
35 489261 Screw
36 1125913 Wine & Egg Rack
37 2149150 Icemaker Arm (When Ordering Field Installable Icemaker This
Arm Must Be Used)
LITERATURE AND OPTIONAL PARTS
Parts Not Illustrated and Optional Parts (Not Included)
Customer Touch Up Material
350942 *Primer, White (13 Oz. Spray Can)
350941 *Leveler, Enamel (13 Oz. Spray Can)
350939 *Enamel, Black (13 Oz. Spray Can)
350930 *Enamel, White (13 Oz. Spray Can)
350956 *Enamel, Almond (13 Oz. Spray Can)
72017 Brush Touch-Up Kit (White)
72107 Brush Touch-Up Kit (Almond)
72032 Brush Touch-up kit (Black)
Refinishing Material
799340 Enamel, Black (1 Qt. Uncut)
799344 Enamel, White (1 Qt. Uncut)
978883 Enamel, Almond (1 Qt. Uncut)
