KitchenAid KBRS22KWMS User manual

CABINET PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

7−10 Litho In U.S.A. (rrm)(bay) Part No. W10343021 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137649

Use & Care Guide

W10297638

Energy Guide

W10308611

Tech Sheet

2 Cabinet (Not a

Serviceable Part)

3 Plug, Button (3)

M0310731 Black

4 B5759655 Gasket

5 Roller Foot

Assembly

W10275850

Left

W10275849

Right

W10141622

Foot Brake

7 10351006 Pin, Center Hinge

9 12992602 Screw

10 Cover, Right Hinge

12477601AP

Apollo Grey

11 12992201 Screw

12 12990521 Screw

13 12249902 Label, Fill Tube

14 12992403 Screw

15 Hinge, Center (2)

12607103AP

Apollo Grey

12566606ED

Hinge, Top

17 Cover, Corner

12587703AP

Apollo Grey

20 12991302 Screw (8)

W10210979

Cover, Unit

22 Grille Assembly

(Includes Clips)

W10236194

Apollo Grey

23 12477501 Cover, Fill Tube

W10210988

Tube, Drain

25 12990511 Screw

26 12820505 Insulation, Sound

W10217701

Cover, Water Valve

FREEZER LINER PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

FREEZER LINER PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 A3189392 Gasket, Foam

3 12002497 Gear−L & R)

12812902WD

Shaft

12570701V

Socket, Light

8 12990521 Screw (8)

9 2255743N Bulb, Light

W10277466

Foil−FZ Light

W10308415

Cover, Evaporator

12 12990511 Screw (4)

13 Bracket, Door

W10122147

Left

W10122148

Right

W10277025

Module−FZ Light

15 13058002 Clip, Evap Motor

16 12466105 Switch, Light

17 12990504 Screw (2)

18 Cradle, Basket

W10280608

Left

W10280613

Right

W10120018

Slide, Drawer (2)

20 A3189395 Gasket, Bottom

21 Adapter, Slide

W10284684

Left

W10284685

Right

22 13024803 Grille, Fz Air

23 13057901 Shroud, Evap Fan

24 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

W10128551

Motor, Evaporator

27 D7753903 Funnel, Drain

28 M0500703 Seal

29 B8381501 Gasket

31 12815301 Cover, Thermistor

32 12990501 Screw (6)

34 12932103 Guide, Fill Tube

W10284694

Rack−Left

W10284695

Rack−Right

FREEZER DOOR PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

Illus. Part

No. No. DESCRIPTION

1 Door, Freezer

13092274S

Stainless

2 Handle, Door

W10314517N

Stainless

3 13001201 Mount, Handle

4 Gasket, Door

W10180623

Apollo Grey

W10290759

Screw

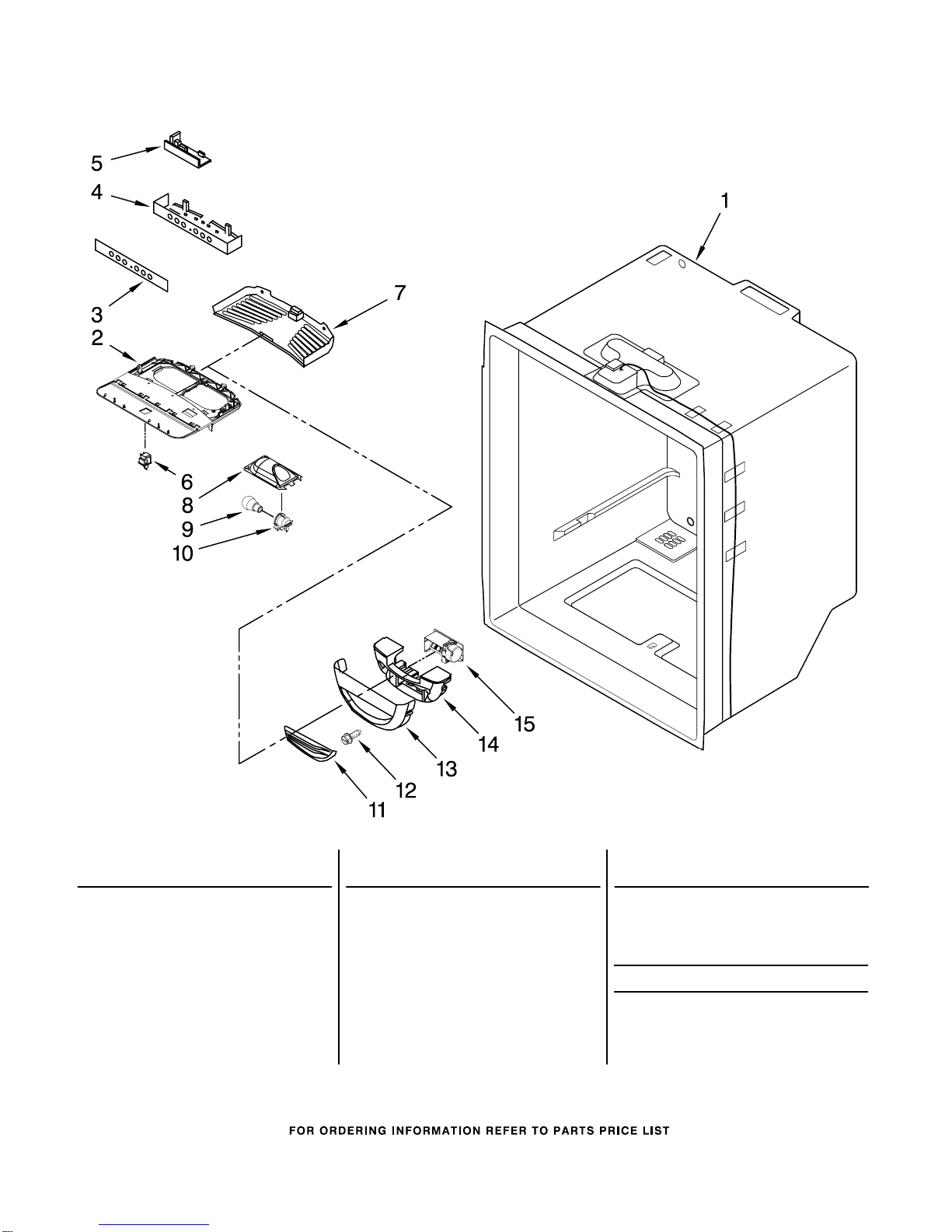

REFRIGERATOR LINER PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 12806301 Bracket, Control

and Lights

W10207257

Overlay

4 12806406 Module, Control

12784415V

Board, Control

C3680310V

Switch, Light

7 12806501 Cover, Light

12806601V

Housing, Light

9 2255743N Bulb, Light (2)

12570701V

Socket, Light (2)

11 12806801 Insert,

Damper Cover

12 12990604 Screw (2)

13 12806701 Cover, Damper

14 13012402 Insulation

W10196393

Control, Damper

(Includes Harness)

Following Parts Not Illustrated

12868701 Harness, Controls

(Refrigerator)

(Includes

Thermistor)

REFRIGERATOR DOOR PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

REFRIGERATOR DOOR PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

Illus. Part

No. No. DESCRIPTION

1 Door, Refrigerator

13107526S

Stainless−RH

13107524S

Stainless−LH

W10290759

Screw (2)

12804701SP

Door, Dairy

12369502SP

Tray, Dairy

W10119841

Bucket, Medium (3)

8 Gasket, Door

W10180621

Apollo Grey

9 Handle, Door

W10314517N

Stainless

10 Gripper, Bucket

W10184031

Medium

11 Closure, Door

12028505AP

Apollo Grey

12 Nameplate

W10243391

Apollo Grey

14 12557905 Retainer, Door

15 12990504 Screw

17 Stop, Door

10447114 Apollo Grey

20 13001201 Mount, Handle

UNIT PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

UNIT PARTS

For Models: KBRS22KWMS4, KBLS22KWMS4

(Stainless−RH) (Stainless−LH)

W10343021

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 12992301 Screw

2 12825803 Blade, Fan

W10210983

Basepan

4 12990511 Screw

5 2264017 Capacitor

W10217745

Tube, Discharge

W10292244

Harness, Evap.

(Incl. Heater)

W10296784

Pan, Drain

W10216919

Screw, Shoulder

10 12729128 Heater, Defrost

W10174384

Strap, Bale

W10197426

Start Device

W10137529

Grommet, Cond (4)

15 12477102 Roller (2)

16 12992101 Screw

10835903SP

Grommet (4)

W10135027

Condenser

W10281329

Clip, Drier

W10292802

Tray, Drip

21 12990701 Screw

22 12726402 Evaporator

23 Dam

12225702 Right Side

12225602 Left Side

W10239053

Motor, Fan

25 10428101 Clip, Heater

W10234024

Harness, Unit

with Power Cord

W10143759

Drier

W10130129

Compressor

(Includes items

11,12,17,27)

29 10623002 Clip, Evaporator

30 12477202 Axle, Roller (2)

W10189184

Shroud

W10206337

Extension, Basepan

W10206339

Fastener, Basepan

34 2319835 Grommet−Condenser

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.25 Ozs.

(R−134A)
