KitchenAid KBRC36FMS00 User manual

CABINET PARTS

For Models: KBRC36FMS00

(Stainless Steel)

9−05 Litho In U.S.A. (kdj) Part No. 8198469

36" BOTTOM MOUNT

BUILT IN REFRIGERATOR

CABINET PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2266810

Use & Care Guide

LIT2266819

Energy Label

LIT2266830

Service & Wiring

Sheet

LIT628370

Modular Icemaker

Service Sheet

LIT2266812

Installation

Instructions

2 Cabinet (Not A

Serviceable Part)

4 1112023 Roller, Front &

Rear (4)

5 Support, Leveler

Assembly

2004506 Refrigerator Side

2004505 Freezer Side

6 2005006 Grommet, Wiring

7 2005007 Grommet,

Flexible

8 489399 Screw

9 2006442 Mounting Bracket,

Grill

10 2005921 Screw

11 1112849 Cap, Grommet

12 2004514 Clamp

13 2204516 Tube, Drain

Condensate

14 2207470 Shim−Hinge, Door

15 2209090 Clamp, Filter

Housing

16 2208136 Clamp, Tube

17 2001295 Screw, Door Stop

18 2257644 Hinge, Door

Refrigerator Top

19 2005783 Cam−Closer,

Door

20 1157158 Screw

21 2006617 Bracket, Support

Door

22 2002903 Bushing

23 2209022 Housing, Water

Filter

24 2004517 Spring, Door

Closure

25 486194 Screw

26 2255709 Filter, Water

27 2006960 Bushing−Arm,

Extension

28 2006388 Gap, Cover

(Bottom)

29 2005101 Hinge, Bottom

Refrigerator

30 489464 Screw, 8−18 x 1/2

31 489282 Screw

32 2209024B Skirt, Grille−

Bottom

33 2006346 Washer

34 2215889B Grille Base,

Front

36 2215612 Cover, Air Duct

37 1113122 Grommet, Wiring

38 2221095 Arm, Extension

39 2221097 Bracket, Switch

40 2215938 Cover, Switch

42 2186494B Cap, Water Filter

43 8533913 Screw (4)

44 487415 Screw, 8−18 x 3/8

45 1118894 Switch, Rocker Arm

46 9791833 Clip

49 2221070 Clamp, Tube

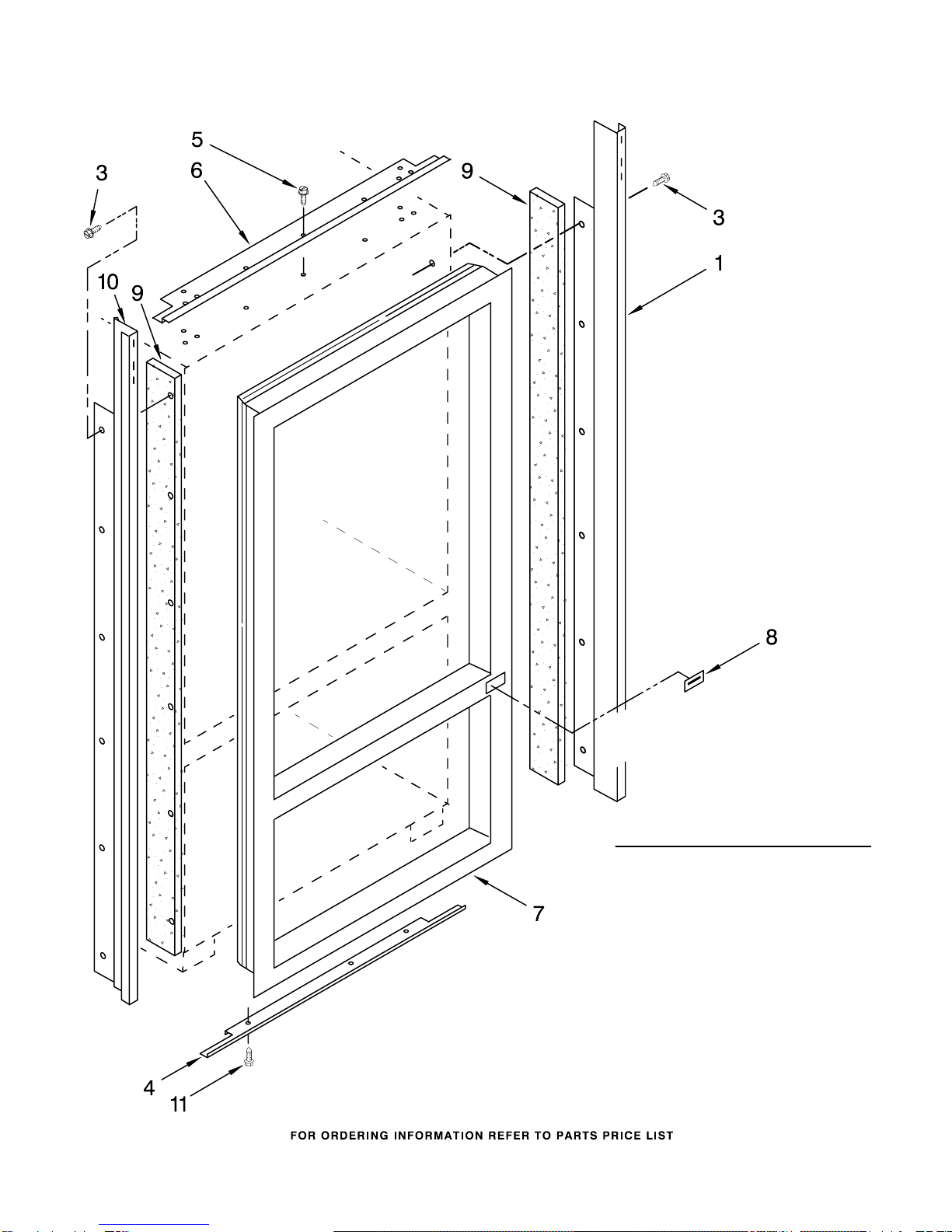

CABINET AND BREAKER TRIM PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

Illus. Part

No. No. DESCRIPTION

1 Cabinet Trim,

Right Side

2222552S Stainless Steel

3 1163283 Screw

4 2254724 Cabinet, Trim

(Bottom)

5 486194 Screw

6 2257366 Cabinet Trim, Top

7 Breaker Trim

(Not Serviced)

8 2005782 Cover, Hinge

9 2005925 Seal−Trim,Side

10 Cabinet Trim,

Left Side

2222553S Stainless Steel

11 489464 Screw, 8−18 x 1/2

TOP GRILLE AND UNIT COVER PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Top Grille

Assembly

2257410S Stainless Steel

2 2259320 Cover, Unit

4 2256466 Back Panel

5 2259095 Front,

Unit Cover

6 487415 Screw

7 2187423 Wire Assembly

9 489348 Clamp

11 2005292 Nameplate

12 2004333 Nut

13 Louver, Vent

2254765S Stainless Steel

14 2254759 Bracket, Louver

15 488879 Screw 8−32 x 5/16

LINER PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

LINER PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner,

Refrigerator

(Not Servicable)

2 Liner,Freezer

(Not Servicable)

3 2215610 Cover, Heat

Exchanger

4 2215827 Diffuser Cap,

Left Side

5 2005931 Diffuser Cap,

Right Side

6 2171846 Release Valve

7 487539 Screw, 8−15 x 1/2

8 486194 Screw

9 2208968 Motor, Grommet

10 2006148 Wiring Channel,

Freezer Rear

11 2215844 Foam, Fan Shroud

12 2215910 Grommet, Flexible

13 2215606 Shroud, Evaporator

Fan

14 2169142 Blade, Fan

15 2259385 Motor, Fan

16 2155590 Retainer,

Fan Motor

17 2221296 Air Baffle

Assembly

18 2215503 Bracket

19 8201595 Wiring Channel

20 2187677 Wiring Harness,

Freezer

21 2215833 Cover, Evaporator

Assembly

22 1116793 Cover, Thermistor

23 2213442 Thermistor

24 2209208 Drain Tube,

Condensate

25 2215530 Insulation, Baffle

26 2215531 Cover, Air

Diffuser

27 2204595 Heater−Tube,

Drain

28 2204538 Insulation, Tube

Drain

29 2204537 Cover, Tube

Drain

30 488500 Screw

31 2215835 Housing, Switch

32 1157158 Screw, 8−18 x 3/8

35 2209204 Clip, Thermistor

37 2215816 Control Panel

38 2257521 Overlay, Control

Panel

39 2252110 Circuit Board

(User Interface)

40 2215670 Insert,

Control Box

(User Interface)

41 489464 Screw

42 2162085 Socket, Light

43 2257556 Light Bulb

44 2187424 Harness, Control

Box

45 8201534 Cover, Wiring

Freezer Light

46 1115375 Clip, Wiring

47 1115373 Switch, Rocker

48 2005792 Wiring Cover,

Icemaker

49 2187378 Defrost Bi−Metal

50 2215829 Diffuser Assembly

51 2221121 Support,

Control Box

52 489006 Screw

REFRIGERATOR SHELF PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

REFRIGERATOR SHELF PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Slide, Freezer

Basket

2257355 Right Side

2257356 Left Side

2 2006475 Screw, 8−15 x 1.00

4 Spacer, Crisper

2256443 Right Side

2256442 Left Side

5 2179404 Rack, Wine

6 2221071 Egg Bin

7 Bracket, Freezer

Basket

2257327 Right Side

2257326 Left Side

12 2257562 Trim−Glass,

Side

13 2256474 Divider,

Crisper Pan

14 8533929 Screw

15 Slide, Crisper

2256440 Left Side

2256441 Right Side

18 2258973 Shelf (4)

19 2257563 Trim−Glass,

Side

21 2257561 Glass Shelf, Deli

29 2256375 Cripser Pan

Assembly

(Includes #30)

30 2256374 Front,

Crisper Pan

33 2257548 Front,

Deli Pan

37 2257560 Glass, Crisper

Shelf

38 2257564 Trim−Glass,

Rear

39 2257566 Trim−Glass,

Front

43 Slide, Deli

2257544 Left Side

2257545 Right Side

44 Spacer, Deli

2257531 Left Side

2257532 Right Side

47 2257535 Deli Pan

Assembly

(Includes #33)

48 2005410 Ladder, Shelf (4)

49 2006475 Screw,

FREEZER DOOR AND BASKET PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

FREEZER DOOR AND BASKET PARTS

For Models: KBRC36FMS00

(Stainless Steel)

8198469

Illus. Part

No. No. DESCRIPTION

1 2300085 Freezer Door

Panel (Includes

Item 9)

2 2204525 Divider, Basket

3 2207429 Clamp, Divider

4 2207415 Nut, Crimp

5 3190699 Screw

6 2005400 Filler, Foam

7 2300025 Spacer, Door

Edge − Side

8 2300027 Spacer, Door Edge

Top & Bottom

9 2300185 Door Gasket,

Magnetic

10 308544 Screw, 10−24 x 1/2

11 Handle, Door

2005290 Stainless Steel

12 2204542 Roller

13 Skin, Door

2300041 Stainless Steel

14 Screw, 8−15 x 1/2

8281250 Stainless Steel

15 2257426 Bracket Assembly,

Freezer Basket

17 2257442 Basket, Upper

18 2174124 Pan, Ice Cube

19 2207454 Nut, Hex

20 2207471 Bushing

21 3400507 Screw

22 2257331 Basket, Freezer

Lower

23 488500 Screw
