KitchenAid KDRU763VSS00 User manual

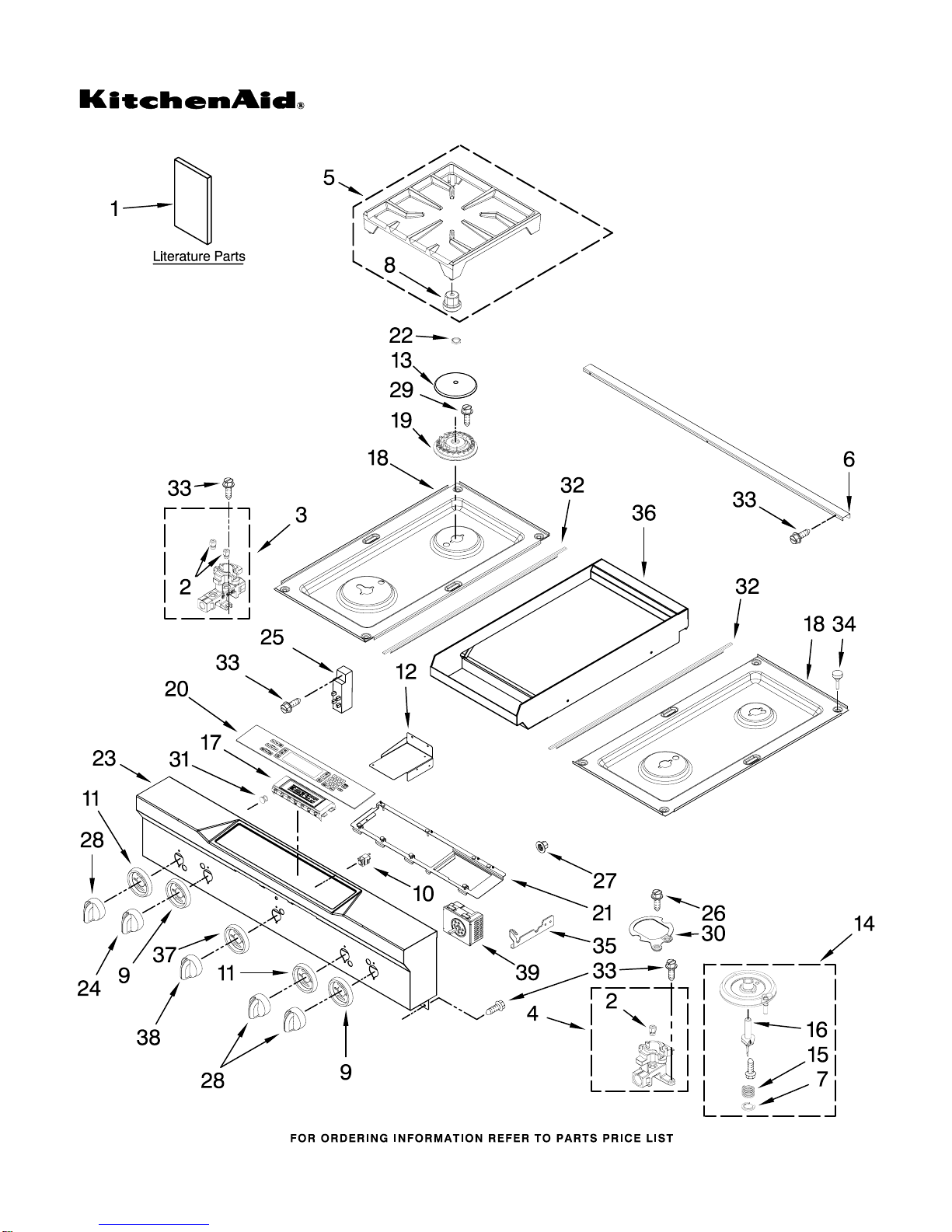

COOKTOP, BURNER AND GRATE PARTS

For Model: KDRU763VSS00

(Stainless)

11−09 Litho in U.S.A (amd) (eeb) Part No.W10260308 Rev. A

30" COMMERCIAL−STYLE

RANGE

COOKTOP, BURNER AND GRATE PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Tech Sheet

W10284341

English

W10284345

French

W10285549

Use & Care Guide

W10284348

Installation

Instructions

Safer Cooking Tips

9762761 English

W10065852

French

2 Orifice

W10160179

LF − High

W10160185

LF − Low

W10160232

LR & RF

W10282663

W10160187

Orifice Holder

(Dual − LF)

4 Orifice Holder

W10160234

LR & RF

W10282659

W10115928

Grate, Burner

W10269217

Trim, Island

W10160825

Clip, Electrode

8 8286695 Rubber, Foot

W10261510

Bezel, Front

W10116151

Indicator,

Housing

W10261512

Bezel, Rear

W10137323

Bracket,

Spark Module

13 Cap, Burner

8286816 LF

W10160229

LR & RF

W10115952

14 Base, Burner

W10189082

LR & RF

W10250405

15 Spring, Electrode

W10160826

LF, LR & RF

8286863 RR

16 Electrode

W10250406

LF (Dual)

W10160235

LR & RF

W10145991

W10298117

Module,

User Interface

18 Cooktop

W10282192

Right

W10189104

Left

19 Burner Head

W10250459

W10250458

LR & RF

W10282515

W10116103

Keypad

W10250477

Bracket

User Interface

W10115953

Nut, Burner

W10284666

Assembly, Console

W10250389

Knob, Control

(Dual − LF)

7431P038−60

Module, Spark

26 8286930 Gasket, Orifice

Holder

7103P166−60

Nut, Hex

W10250391

Knob, Control

W10078270

Screw

30 3196160 Screw

W10116115

Len,

Indicator Light

W10271525

Trim

7101P338−60

Screw

34 4448520 Bumper (12)

35 Bracket,

Moving Console

W10130759

Right

W10130760

Left

W10276498

Griddle, Module

W10261515

Bezel, Griddle

W10250390

Knob, Griddle

W10116113

Control, Griddle

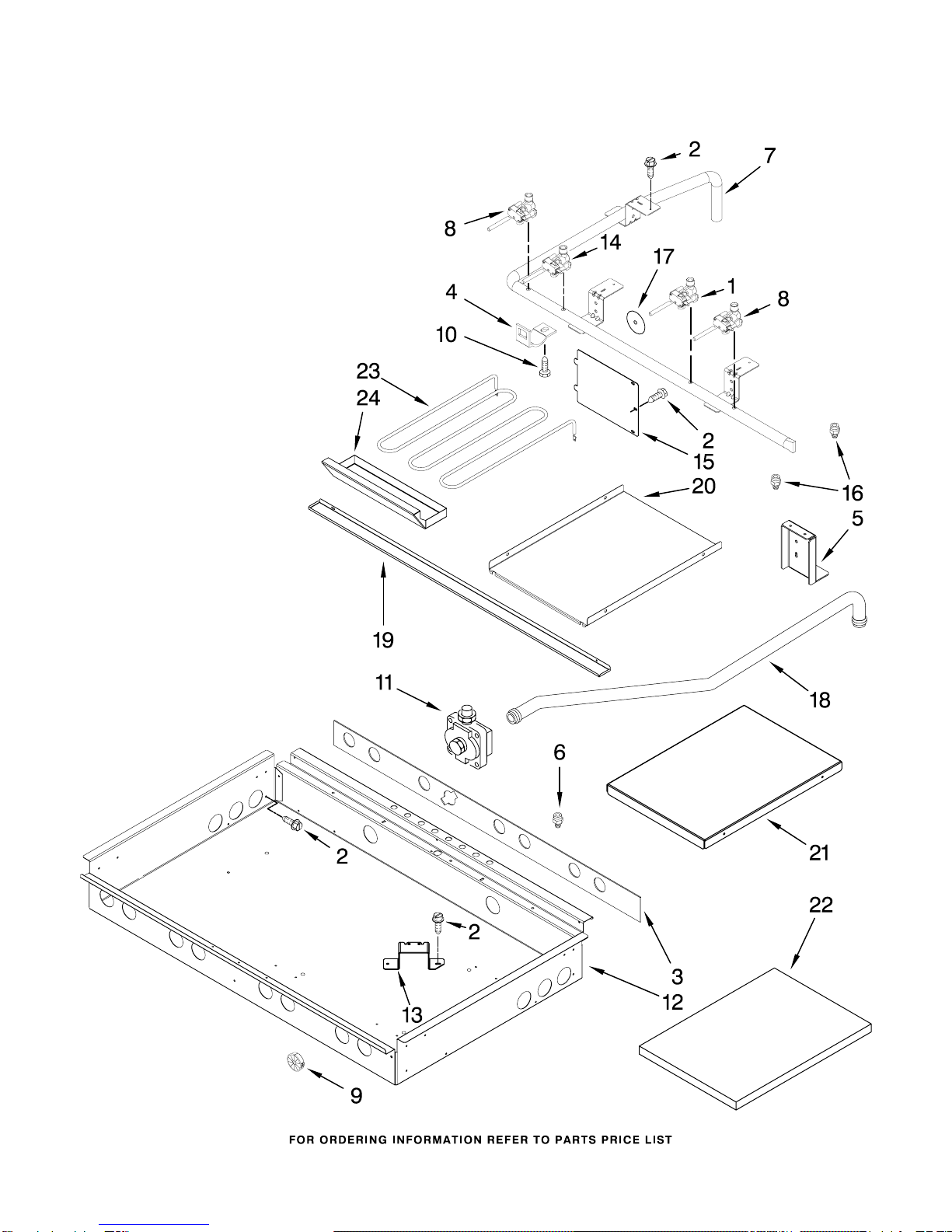

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KDRU763VSS00

(Stainless)

W10260308

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION

W10284547

Valve, Gas (RR)

7101P426−60

Screw

W10145622

Insulation,

Burner Box

W10189107

Bracket, Valve

W10115850

Bracket,

Pressure Regulator

6 4453115 Adapter,

1/2" Female

W10115985

Manifold

W10250407

Valve, Single

(LR & RF)

W10189097

Bushing,

Burner Box

W10189140

Screw, Valve Mtg

W10293267

Regulator,Pressure

W10250425

Burner Box

13 Bracket, Burner

W10115929

LF, LR & RF

W10280796

W10250410

Valve, Gas (LF)

W10115843

Cover, Ignition

16 4453116 Adapter,

1/2" Male

W10189177

Seal, Switch Cover

W10269191

Tube,

Pressure Regulator

W10269214

Drip, Tray

W10145620

Tray,

Element Griddle

W10246074

Tray,

Insulation Griddle

W10145621

Insulation,

Griddle

W10138296

Element, Griddle

W10276497

Drip Tray,

Griddle

Following Parts Not Illustrated

W10115908

Tubing, Gas

(LR)

W10115910

Tubing, Gas

(RF & LF)

W10115911

Tubing, Gas

(LF − Simmer)

W10280797

Tubing, Gas

(RR)

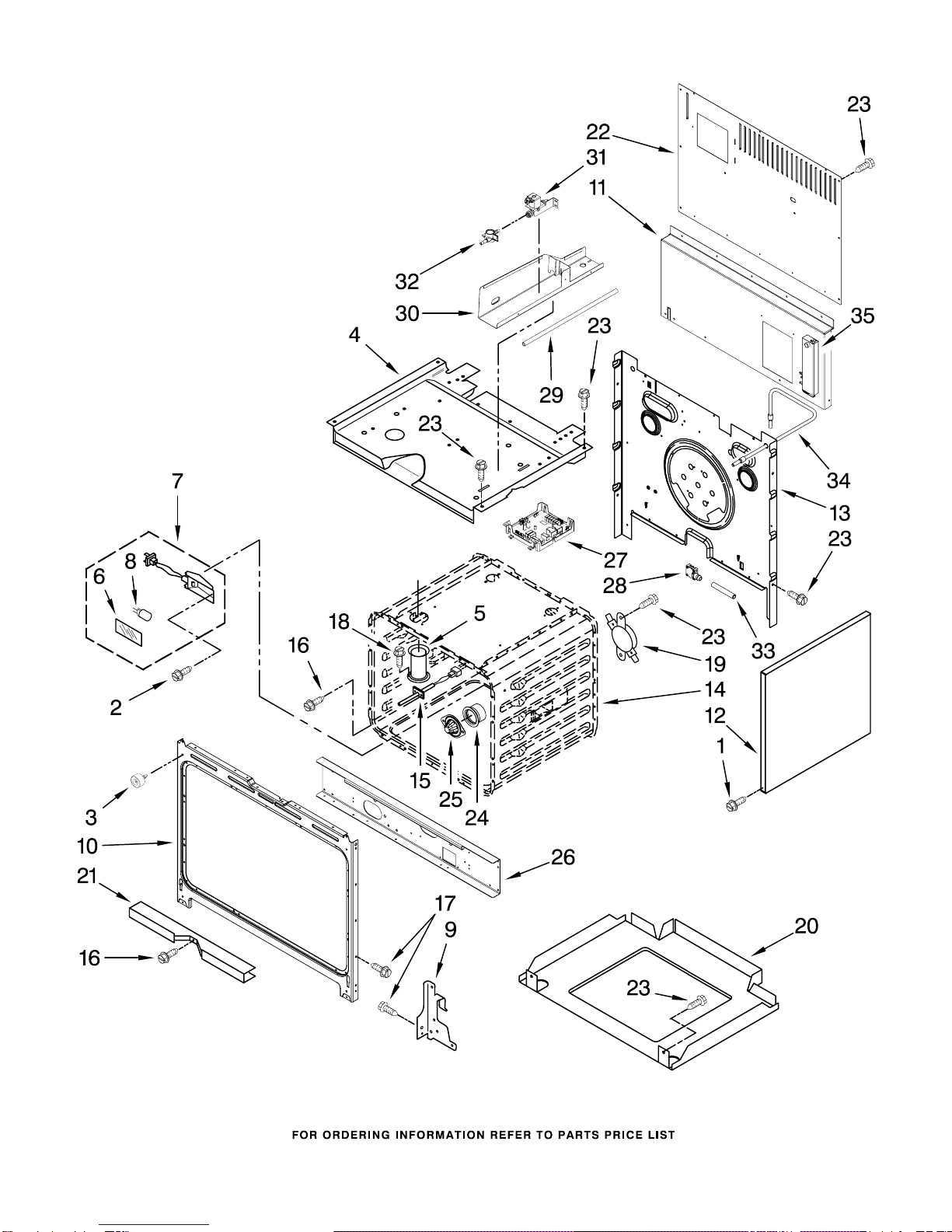

OVEN PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

OVEN PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION

1 4449743 Screw

2 4449748 Screw

W10105790

Assembly, Bumper

W10267896

Top, Chassis

W10288061

Tube, Vent

W10169756

Lens, Light

W10009940

Oven Light Assy

W10169757

Bulb, Light

9 Hinge Receiver

4455605 Left

4455606 Right

W10160867

Frame, Front

W10145398

Panel, Back Bottom

12 Side, Chassis

W10269205

Right

W10269206

Left

W10273153

Back, Chassis

14 Liner, Oven

(Not Serviced)

W10131825

Sensor

16 4449154 Screw

17 4449040 Screw

18 3196176 Screw

19 4449751 Thermostat (TOD)

W10235536

Base, Chassis

W10157511

Retainer, Gasket

W10269208

Panel, Back Top

7101P426−60

Screw

W10153096

Orifice, Boiler

25 9758597 Orifice, Boiler

Slip Fit

W10269193

Support, Channel

W10116188

Appliance, Manager

W10194453

Switch, Pressure

W10076930

Hose, Transfer

W10160877

Encloseure,

Steam Valve

W10111418

Valve, Solenoid

W10076760

Sensor,

Conductivity

W10116067

Hose, Silicone

W10160828

Tube,

Copper Steam

35 9758598 Assembly, Boiler

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

Steam Valve

8300158 Insulation, Wrap

W10145746

Insulation, Back

CHASSIS PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION

W10225970

Kickplate

W10138054

Roller, Assembly

5 3196537 Screw

6 9760860 Foot

W10249333

Base,

Leveling Leg

8 3196537 Screw

9 Panel, Side

W10250464

Right

W10250465

Left

W10115869

Shaft, Long

W10115793

Shaft, Short

12 489504 E−Ring

13 4449743 Screw

TOP VENTING PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10246075

Slope,

Exhaust Vent

W10160896

Vent, Cooling Top

W10245511

Blower

W10246078

Vent−Bottom

W10160875

Plate,

Cooling Latch

6 9762885 Transformer,

Control

7101P426−60

Screw

W10160844

Bracket, Blower

W10160858

Cover, Latch

W10270396

Chimney Seal

11 9761958 Block, Terminal

W10115858

Box, Terminal

14 9759721 Insulator,

Terminal Box

W10269198

Cover, Channel

16 3196163 Screw

7101P460−60

Screw

W10249337

Support, Control

W10270397

Seal, Foam

W10239444

Seal, Control

OVEN DOOR PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10225960

Door Liner

2 Hinge, Door

W10269203

Right

W10269204

Left

W10188327

Glass, Inner

W10115765

Insulation, Door

W10188324

Retainer, Glass

6 Cover, Hinge

W10115876

Left

W10115877

Right

W10226005

Glass, Inner

W10292297

Screw

W10113961

Nameplate

W10188330

Panel, Door

W10115712

Glass, Outer

W10217130

Screw, End Cap (2)

W10115718

Door Handle

14 Handle, End Caps

W10115713

Right

W10115714

Left

15 9759229 Bracket(2nd Glass)

W10212184

Screw, End Cap

W10145810

Bracket, Bottom

W10145806

Bracket, Top

W10296908

Shield, Heat Top

20 3196537 Screw

7101P426−60

Screw

W10226024

Shield,

Heat Bottom

W10296907

Bracket, Door Top

24 9759230 Bracket(3rd Glass)

W10145811

Bracket, Side (2)

W10225964

Support, Handle

W10061760

Screw

INTERNAL OVEN PARTS

For Model: KDRU763VSS00

(Stainless)

W10260308

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10160857

Shield,

Element Broil

W10115991

Element, Broil

W10212435

Oven, Rack

Sliding Hefty

W10277392

Rack, Heftier

W10115992

Element, Hidden

Bake

W10160879

Baffle, Convection

W10116228

Motor, Convection

W10116351

Blade, Fan

W10261523

Cover, Fan

W10116349

Nut

W10116434

Element,

Convection

W10160872

Tray, Hidden

Bake

13 9755542 Probe, Temperature

7101P500−60

Screw

W10150011

Jack, Meat Probe

16 9755546 Nut

17 9755547 Washer
