KitchenAid KDRP407HSS11 User manual

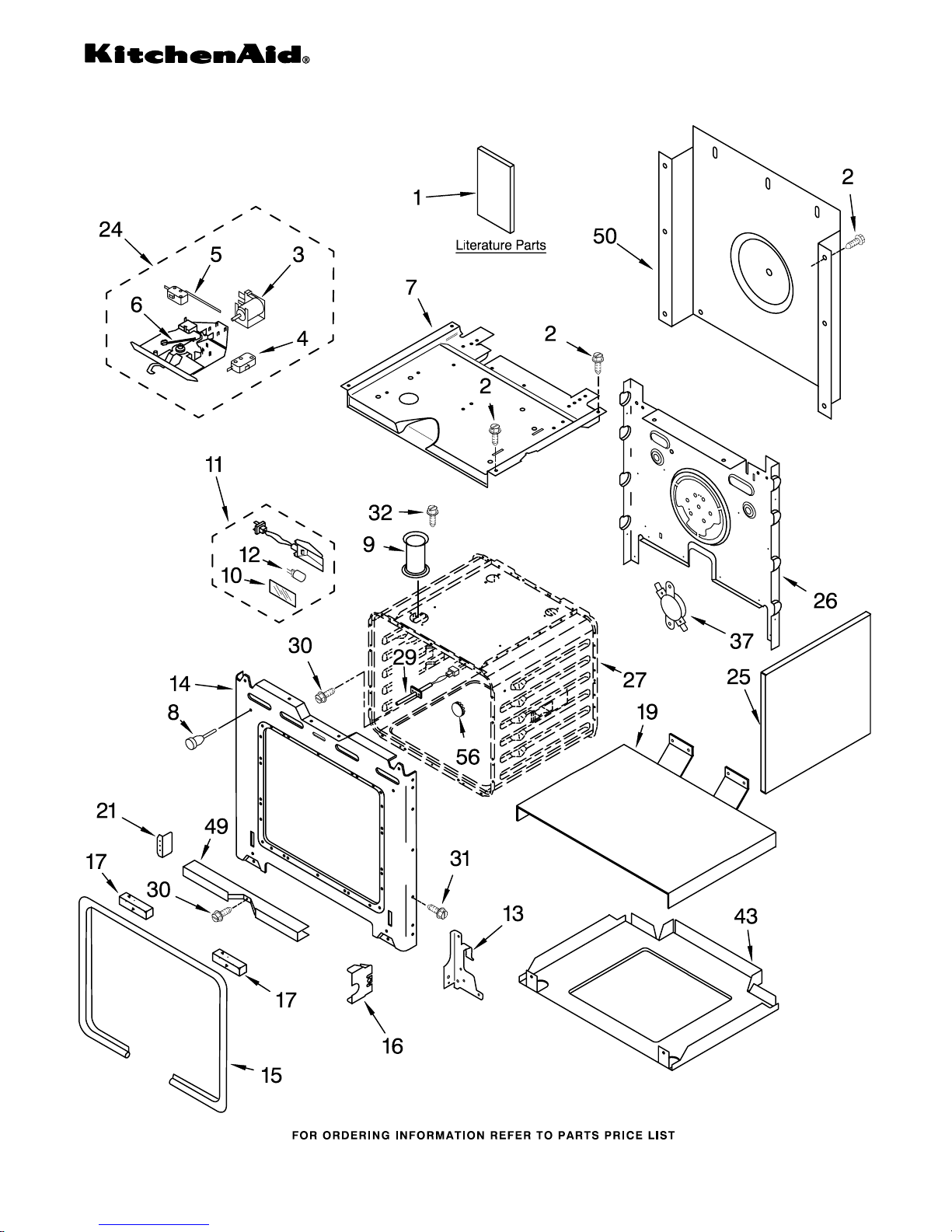

OVEN PARTS
1
For Model: KDRP407HSS11
(Stainless Steel)
30" KITCHENAID
FREE STANDING RANGE
DUAL FUEL
6−05 Litho in U.S.A. (cre) Part No. 8186191 Rev.B
OVEN PARTS
2
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
9759121 Installation
Instructions
4456611 Use & Care Guide
9759120 Tech Sheet
8301171 Conversion
Instructions
3191638 Safer Cooking Tips
2 4449809 Screw, 8−18 x 3/8
3 4452224 Solenoid
4 4452312 Switch, Micro
5 4456568 Switch, Micro
6 4451537 Spring, Latch
7 4455866 Top, Chassis
8 4448520 Bumper, Door
9 4452158 Tube, Vent
10 4452163 Lens, Light
11 4448972 Oven Light Assy
4449748 Screw
12 4452164 Bulb, Light
13 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
14 4455612 Frame, Front
15 4455382 Gasket, Door
16 4452152 Bracket, Mounting
4449809 Screw
17 4452260 Spacer, Foam
19 4451478 Support, Insulation
21 4455510 Bracket, Support
24 9759481 Latch Assy
25 4455641 Side, Chassis
26 4452234 Back, Chassis
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
30 4449154 Screw, 8−32 x .440
31 4449040 Screw, 8−18 x 3/8
32 3196176 Screw, 8−18 x 1/2
37 4451442 Thermostat (TOD)
(Temp.) SPST
43 4455649 Base, Chassis
49 4448933 Retainer, Gasket
50 4451747 Cover, Back
56 4448982 Button, Plug
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
4452337 Insulation,
Bottom Vent
OVEN DOOR PARTS
3
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4455618 Door Liner
2 Hinge, Door
8300577 R.Side
8300578 L.Side
3 4449259 Glass, Inner
4 4451722 Insulation, Door
5 8300778 Retainer, Glass
7 4449263 Glass, Inner
8 4449743 Screw, 8−32 x 3/8
9 4451668 Retainer, Glass
12 4452316 Assy, Door Glass
13 4455851 Door Handle
14 Bracket, Handle
4455803 Right Hand
4455804 Left Hand
3400832 Screw
19 4450362 Shield, Heat
20 4449809 Screw, 8−18 x 3/8
21 4452326 Seal, Door Top
23 4451432 Retainer, Clip
3400832 Screw
24 3196184 Screw, 8−32 x .548
INTERNAL OVEN PARTS
4
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
2 4456103 Element, Broil
4449154 Screw
3 4457277 Grill, Broiler
4 4457276 Pan, Broiler
5 3181534 Rack, Roasting
6 4452807 Rack, Oven
7 4452155 Element, Hidden
Bake
9 4451583 Motor, Convection
10 4452226 Blade, Fan
11 4448418 Cover, Fan
12 4452227 Nut
13 4452157 Element,
Convection
14 4455037 Tray, Hidden
Bake
15 4450039 Cover, Access
16 4449154 Screw, 8−32 x .440
17 4449809 Screw, 8−18 x 3/8
CONTROL PANEL PARTS
5
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4457169 Panel, Control
2 4453000 Bracket, Display
3 4453120 Bracket, Display
Mounting
4 3196537 Screw, 8−18 x 3/8
5 4452443 Control, Zodiac
6 4449746 Screw, 6−19 x 1
7 4455806 Glass,
Control Panel
8 4452999 Module, Display
9 2004333 Palnut
10 2005292 Nameplate
11 4457155 Face, Control
Panel
12 4455192 Bezel, Knob
13 4454970 Knob, Control
14 4455115 Knob, Temp/Time
15 4455141 Knob, Selector
16 4452998 Button, Cancel
17 4452997 Button, Enter
18 4453199 Escutcheon,
Control Panel
TOP VENTING PARTS
6
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 4452811 Blower 60MM
4449809 Screw (4)
3400015 Screw (1)
4 4455177 Elbow, Vent−Bottom
5 6610122 Transformer, Light
6 8300642 Transformer,
Control
7 4449809 Screw, 8−18 x 3/8
8 4455352 Bracket, Blower
11 4449868 Block, Terminal
14 4452442 Side, Control Top
21 4451758 Seal, Foam
22 4452489 Deflector, Vent
Box
23 4452441 Bracket, Control
Mounting
24 9759149 Control, Zodiac
25 4451985 Suppressor
3400080 Screw (4)
26 4453207 Insulator,
Control Board
7

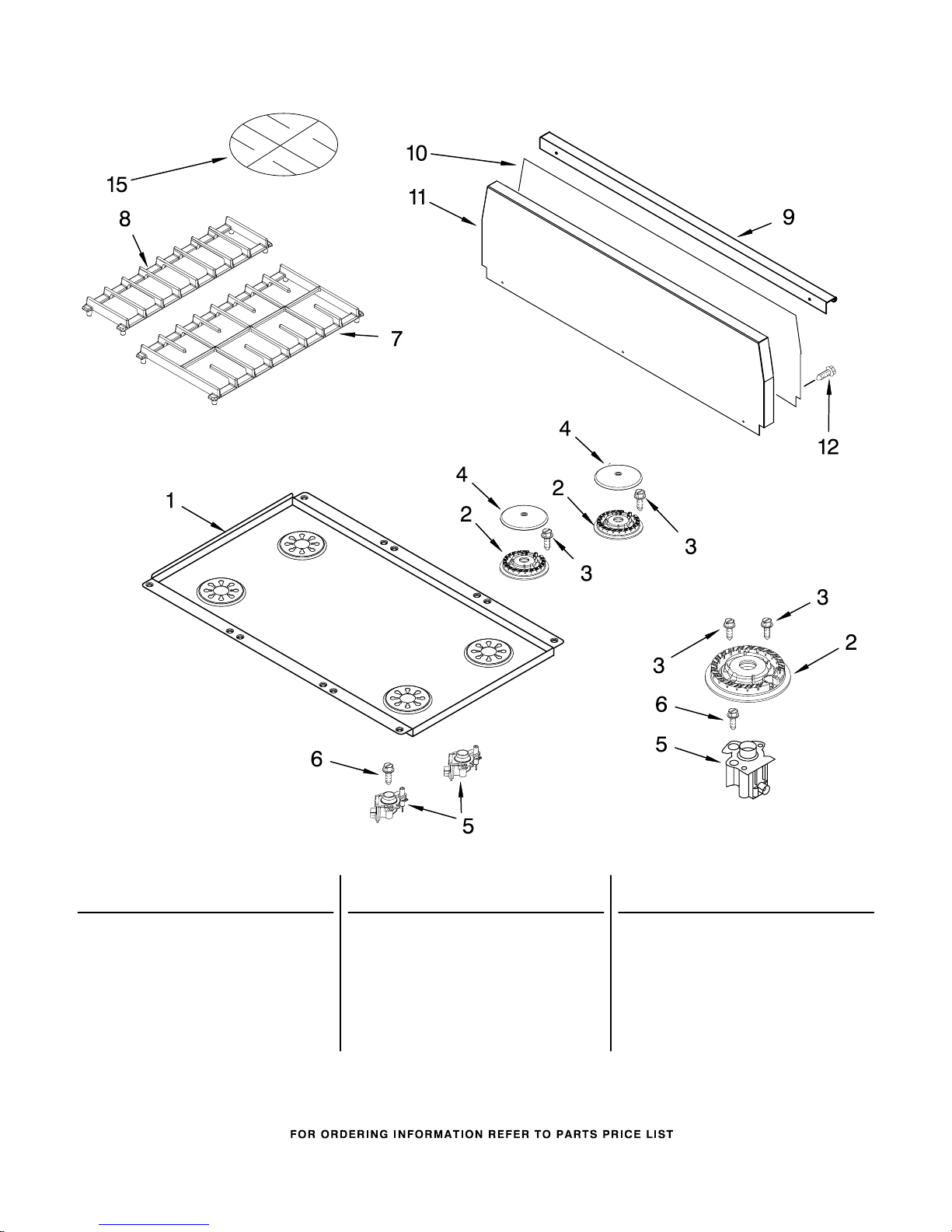

COOKTOP PARTS
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4456868 Cooktop
2 4455849 Burner Head
3 3368921 Screw, 7−18 x 3/4
4 4455243 Cap, Burner
5 4456622 Orifice Holder
(Includes Orific &
Ignitor)
3400843 Screw
6 3177991 Screw, 8−18 x 1/4
7 4454963 Grate, Burner
8 4454964 Grate, Filler
9 4454961 Trim, Island
10 4455031 Support,
Backsplash
11 4454959 Trim, Backsplash
12 3400837 Screw, 8−18 x 3/8
15 4455109 Plate, Simmer
8

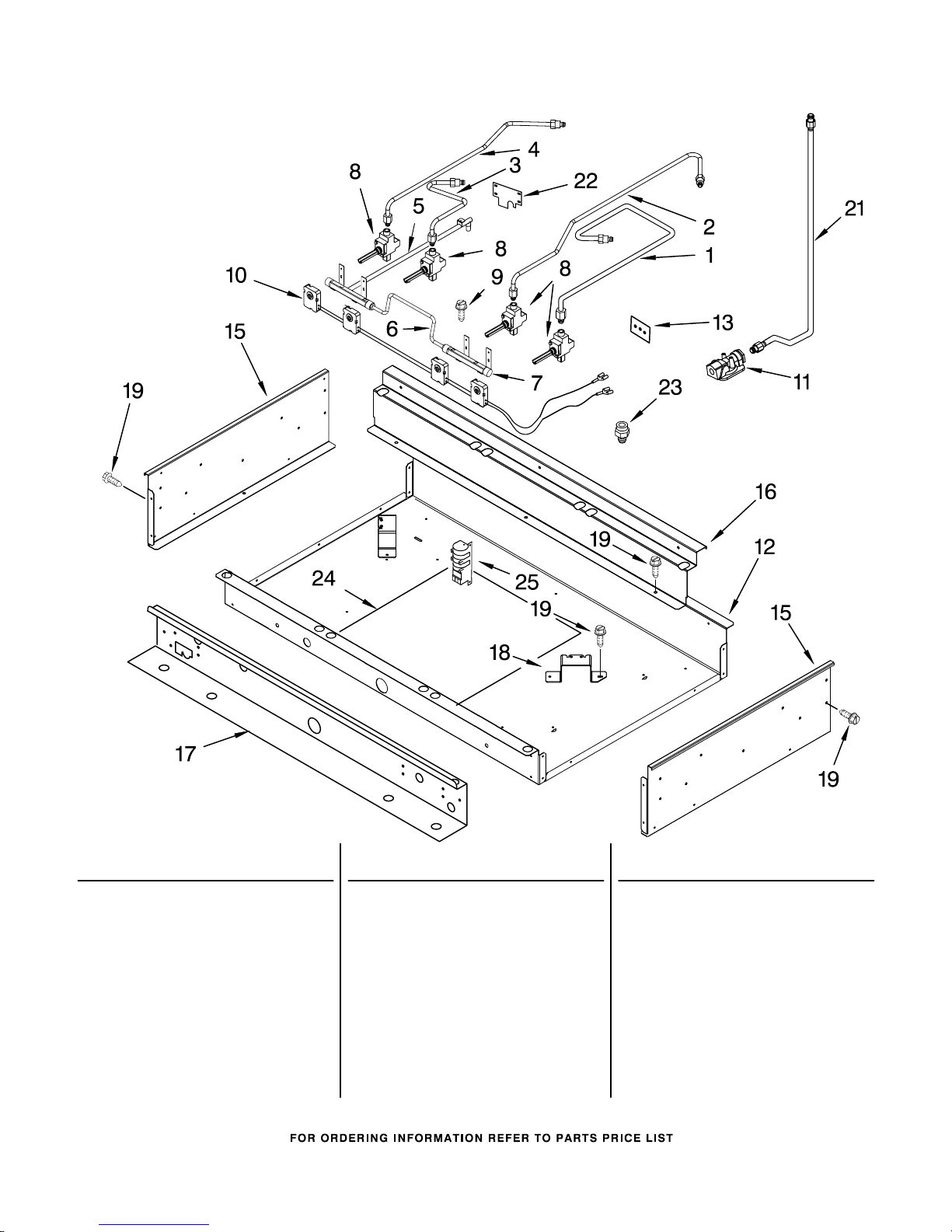

BURNER BOX AND MANIFOLD PARTS
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4455078 Tubing, Gas
Burner − RF
2 4455079 Tubing, Gas
Burner − RR
3 4455148 Tubing, Gas
Burner − LF
4 4455149 Tubing, Gas
Burner − LR
5 4452814 Manifold Assembly
Left Side
6 4452815 Tube, Manifold
7 4452816 Manifold Assembly
Right Side
8 4456818 Valve, Burner
9 3186217 Bolt, Gas Valve
10 4457173 Burner Switch &
Harness Assembly
3191387 Seal, Switch
11 4453033 Pressure Regulator
12 4457089 Box, Burner
13 3192439 Seal, Switch
15 Side, Burner Box
8285607 Right Side
8285606 Left Side
16 4457315 Support, Rear
17 4455828 Support, Cooktop
18 3192811 Bracket, Burner
19 3177991 Screw, 8−18 x 1/4
21 4455645 Tube, Manifold
22 4453119 Cover, Manifold
23 Adapter
4453116 1/2" Female
4453115 1/2" Male
4450118 Nut, 6−32 U Type
24 4453036 Cover, Burner
Box
25 8522426 Module, Spark
9

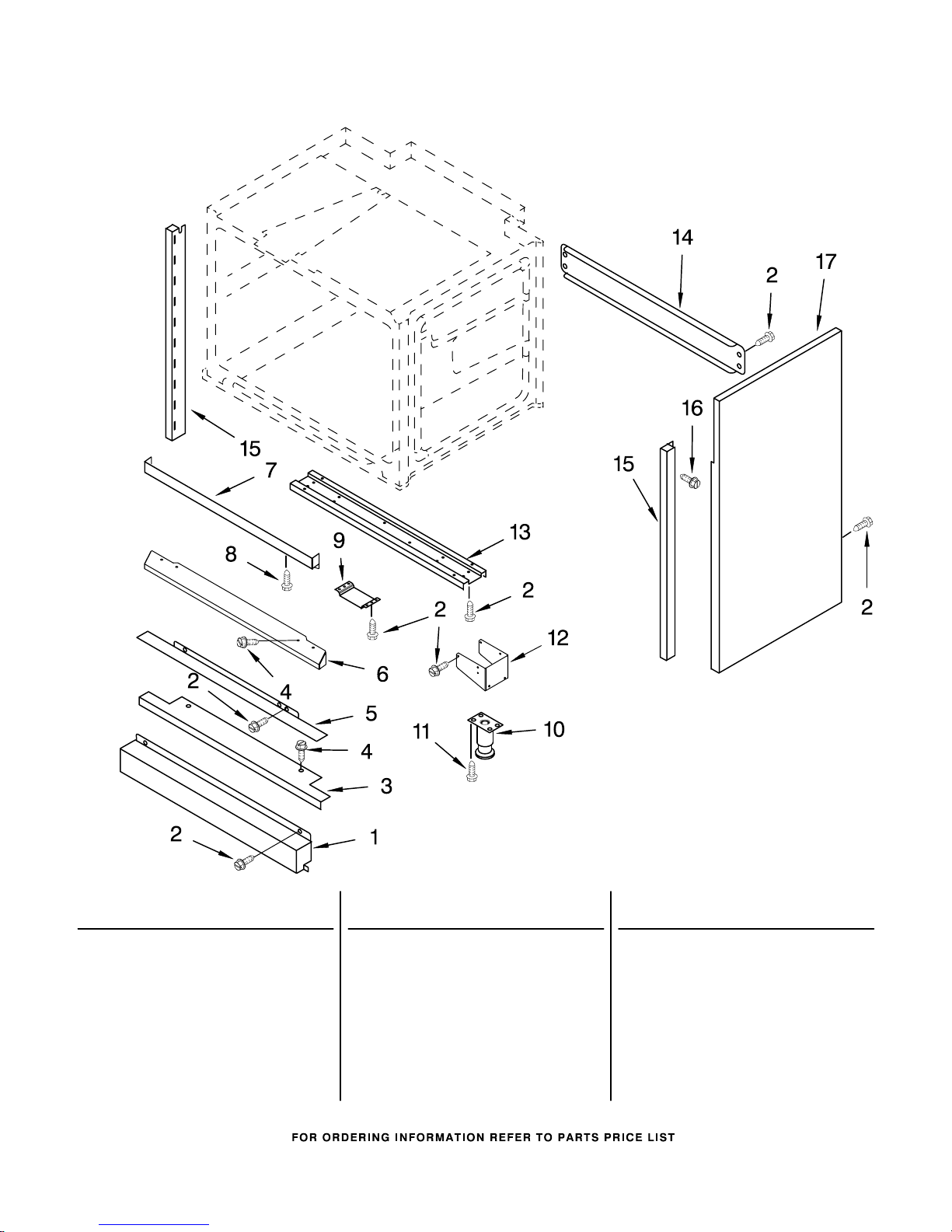

CHASSIS PARTS
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4452802 Vent, Bottom
Lower
2 4449809 Screw, 8−18 x 3/8
3 4452798 Backer, Trim Lower
4 3400837 Screw, 8−18 x 3/8
5 4452800 Deflector, Center
6 4452420 Vent, Bottom Upper
7 4452425 Vent, Center
4453323 Gasket
3400805 Screw (4)
8 3196537 Screw, 8−18 x 3/8
9 9759092 Bracket, Mounting
Regulator
10 4452430 Foot Assembly
11 3400518 Screw,
5/16−12 x 5/8
12 4455644 Gusset
13 4455643 Support, Channel
3400080 Screw (8)
14 4452433 Brace, Rear
15 Trim, Front
4452804 Right Side
4453205 Left Side
16 3196537 Screw, 8−18 x 3/8
17 Side Chassis
4452418 Right Side
4452419 Left Side
OPTIONAL PARTS
10
For Model: KDRP407HSS11
(Stainless Steel)
8186191
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242829 Wire (12 Ga.
150 c Red)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242826 Wire (14 Ga.
150 c White)
242827 Wire (14 Ga.
150 c Yellow)
242832 Wire (14 Ga.
200 c Yellow)
WIRING HARNESS PARTS
4448444 Grommet, Rail
9759051 Harness, Wire
(Main)
4456549 Harness, Wire
(Spark Module)
4456628 Harness, Wire
(Ignitor 39")
4456627 Harness, Wire
(Ignitor 28")
4456626 Harness, Wire
(Ignitor 15")
3191506 Bushing, Conduit
1129449 Bushing
8301668 Conduit
4449809 Screw
112432 Nut
4450800 Screw, Ground
4454835 Tie, Cable
4452222 Spacer, Harness
Miscellaneous
814381 Pin Hinge Kit
8284782 Spud Kit
4453141 Bracket, Anti−Tip
4453202 Bracket, Anti−Tip
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
4453192 Seal, Ribbon
Cable
4453191 Seal, Access
Panel
