KitchenAid KERS807SBB00 User manual

COOKTOP PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

12−07 Litho in U.S.A. (cre) Part No. 8186658

30" FREE STANDING

ELECTRIC OVEN

CONVECTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

9763461 Installation Instructiions

9763458 Use & Care Guide

9762786 Tech Sheet

9757680 Anti−Tip Instruct.

3191638 Safe Cooking Tips

9759133 Safe Cooking Tips

(French)

9763467 Guide, Easy Set

2 9761801 Central, Appliance

3 9761784 Bracket, Mounting

4 Cooktop

9762791BB

Biscuit

9762791WW

White

9762791BL

Black

6 Trim−CkTop, SI

9761739WH

White RH

9761739BT

Biscuit RH

9761739BL

Black RH

9761739SS

S.Steel RH

9761738WH

White LH

9761738BT

Biscuit LH

9761738BL

Black LH

9761738SS

S.Steel LH

W10054430

Gasket, Cooktop

9 Support

9757686 L.Hand

9757687 R.Hand

10 9756821 Support, Wiring

11 4449809 Screw (2)

12 Element, Surface

8203525 1800/1000W

8523696 1800W RR

4453909 2500/1200W (2)

13 9761423 Bracket, Front

Support

14 9761577 Cover, Backsplash

Rear

15 Backsplash

W10109750

W10109760

W10109740

W10109770

Black

Biscuit

White

Nickel Plated

Gasket

9763483BL

Black

9763483GY

Gray

16 9759944 Thrmstat, 60c SPST

17 9758799 Bracket, Ind. Lamp

18 3196160 Screw (2)

19 9759094 Spring, Locator

20 9761783 Bracket, Rear Sprt

21 Rail, Element (2)

9763517 Side (3)

9757825 Center (1)

22 246119 Screw

23 9761724 Cover, Cktp Rear

24 8523739 Indicator Lamp,

Hot Surface

25 3196537 Screw

26 9762768 Clip, Retainer

27 Glass, Backsplash

9761749BL

Black

9761749WH

White

9761749BT

Biscuit

W10050270

Grommet (19mm)

W10050280

Grommet (38mm)

CONTROL PANEL PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

9761551WH

White

9761551BT

Biscuit

9761551BL

Black

9761551NP

Nickel Plated

2 9761566 Switch, Membrane

(Touchsensor Glas)

3 9761799 Control, Interface

4 9763485 Shield, Console

5 3196068 Lens, Ind. (2)

6 9761745 Brkt, Touchsensor

7 3196160 Screw

9 Knob

(RF)

9761780WH

White

9761780BT

Biscuit

9761780BL

Black

9761780NP

Nickel Plated

(LF,RR,LR)

9762764WH

White

9762764BT

Biscuit

9762764BL

Black

9762764NP

Nickel Plated

11 Switch, Infinite

9763761 RF

9763762 LF,RR,LR

12 9757778 Bushing

14 3196537 Screw

OVEN PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

OVEN PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

(Right Hand)

9761572WH

White

9761572BT

Biscuit

9761572BL

Black

9761572SS

S.Steel

(Left Hand)

9761571WH

White

9761571BT

Biscuit

9761571BL

Black

9761571SS

S.Steel

2 3400832 Screw

3 Hinge Receiver

4455605 Left Hand

4455606 Right Hand

4 9760749 Bumper, Door

5 9757461 Bracket,Side Panel

6 9757811 Brace, Side Panel

7 8303099 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

10 4452165 Lens, Light

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

14 9760756 Frame, Front

W10074200

Gasket, Door

17 4452152 Bracket, Mounting

18 9757685 Guide,Side Pnl (2)

19 4451478 Support, Insulation

20 Body, Side

9760723PB

Black

9760723PC

Biscuit

9760723PW

White

21 3196537 Screw

22 9760888 Latch, Motorized

23 341196 Thermostat SPST

(205)

24 9759890 Clip, Side Panel

25 4455641 Side, Chassis

(R.H. & L.H.)

26 9759761 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 9759945 Cover, Rear

Standoff

29 4455636 Sensor

30 9756454 Bracket, GOC

W10083460

Slide. GOC

32 3196160 Screw

33 9757717 Insulation,

Bottom Vent

34 4449743 Screw

35 3196176 Screw

36 4449040 Screw

37 9759242 Thermostat (TOD)

Manager, 130c

(Temp.) SPST

38 4449154 Screw

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 9758583 Cover, Back

54 Vent, Bottom Upper

9756481WH

White

9756481BT

Biscuit

9756481BL

Black

9756481SS

S.Steel

55 Trim, Btm Vent

9756485WH

White

9756485BT

Biscuit

9756485BL

Black

9756485SS

S.Steel

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

DOOR AND DRAWER PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

DOOR AND DRAWER PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Nameplate

9763444BL

Black

9763444BT

Biscuit

9763444WH

White

9763444SS

S.Steel

2 3400832 Screw

3 3400805 Screw

4 4457132 Retainer, Glass

5 Glass, Door Front

9762766BL

Black

9762766WH

White

9762766BT

Biscuit

9762766SS

S.Steel

W10045140

Cover, Terminal

7 3196176 Screw

8 Handle, Door

8303774BL

Black

8303774WH

White

8303774BT

Biscuit

8303774SS

S.Steel

9 9759230 Bracket, Central

10 Hinge, Door

9760579 R.Side (Orange)

9760580 L.Side (Orange)

11 9761935 Foot, Rear

12 9759229 Bracket, Side

13 8274149 Sensor

14 8054056 Element, Warming

15 9757706 Glass, Inner

16 4457114 Shield, Heat Btm

17 9759225 Glass, Inner (2)

18 4451722 Insulation, Door

19 9759413 Liner, Door

20 9757805 Drawer Assy

21 3196037 Foot, Front

22 9763456 Panel, Drawer

23 9758676 Support, Element

24 Front, Drawer

9761747WH

White

9761747BL

Black

9761747BT

Biscuit

9761747SS

S.Steel

25 Bracket, Handle

9763497 R.Hand

9763496 L.Hand

26 Handle, Drawer

9761573WH

White

9761573BT

Biscuit

9761573BL

Black

9761573SS

S.Steel

27 8533988 Screw

28 4449809 Screw

29 Side, Base

9759953 R.Side

9759954 L.Side

30 4449743 Screw

31 3196537 Screw

32 Guide, Roller

4453719 R.Hand

4453718 L.Hand

33 4457103 Shield, Heat Top

INTERNAL OVEN PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

Illus. Part

No. No. DESCRIPTION

1 8301514 Element, Broil

2 4449154 Screw

3 4457277 Grill, Broiler

4 4457276 Pan, Broiler

5 3181534 Rack, Roasting

6 4448717 Rack, Oven

7 4452155 Element, Bake

8 9755542 Probe, Meat

9 4452157 Element, Convect.

10 9756690 Cover, Fan

11 4455037 Tray, Hidden Bake

12 4450039 Cover, Bake Tray

13 4451583 Motor, Convection

14 4452227 Nut

15 4452226 Blade, Fan

16 9755543 Jack, Meat Probe

17 9755547 Lock Washer

18 9755546 Hex Nut

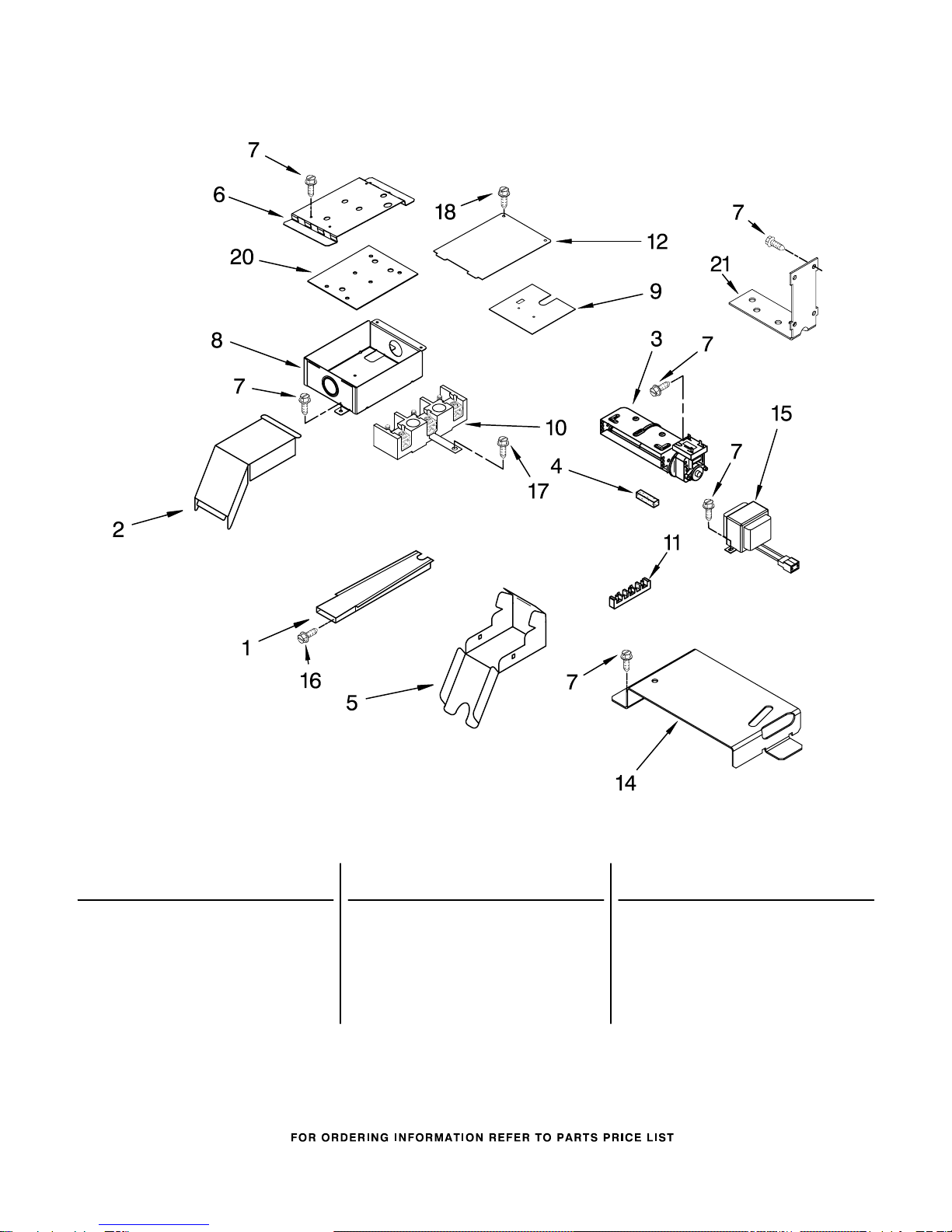

TOP VENTING PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent Top

3 Blower

9759320 45mm

4 4451758 Block, Foam

5 4455177 Elbow, Vent Bottom

6 9759938 Bracket, Term.Box

7 4449809 Screw

8 9757404 Box, Terminal

9 9759721 Insulator,Term Box

10 9761958 Block, Terminal

11 4449868 Block, Terminal

12 9757405 Cover, Term Box

14 9757829 Bracket, Transfrmr

15 9760212 Transformer

16 4449040 Screw

17 3400080 Screw

18 3196160 Screw

20 9759884 Insulation

21 4455352 Bracket, Blower

OPTIONAL PARTS

For Models: KERS807SBL00, KERS807SWW00, KERS807SBB00, KERS807SSS00

(Black) (Pure White) (Pure Biscuit) (S.Steel)

8186658

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9761567 Harness, Wire

(Main)

9762909 Harness, Wire

(Switch, Elec)

9762921 Harness, Wire

W10109280

Harness, Cktp

(Elec. Sw.)

9762426 Harness, Wire

(Connector Cable)

9763481 Harness, Ground

Strap

9759715 Conduit

313660 Clip, Ground Wire

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4452222 Spacer, Harness

3400015 Screw, Ground

Miscellaneous

814381 Hinge Pin Kit

4448950 Screw, Install (4)

9782676 Anit−Tip Assy

This manual suits for next models

Table of contents

Other KitchenAid Oven manuals

KitchenAid

KitchenAid SUPERBA KEBS277BAL0 User manual

KitchenAid

KitchenAid KEBI171D User guide

KitchenAid

KitchenAid 5KCO211B User manual

KitchenAid

KitchenAid KEBS208SBL04 User manual

KitchenAid

KitchenAid KEHU309SSS - 30" Microwave Combination Oven User manual

KitchenAid

KitchenAid KEBU107SSS02 User manual

KitchenAid

KitchenAid KEBS177SSS03 User manual

KitchenAid

KitchenAid KEMI301B User manual

KitchenAid

KitchenAid KEBS177SWH - 27 Inch Single Electric Wall... User manual

KitchenAid

KitchenAid KEBI141D User guide

KitchenAid

KitchenAid KEBS207DAL2 User manual

KitchenAid

KitchenAid KEBC167 User manual

KitchenAid

KitchenAid KEMI301G User manual

KitchenAid

KitchenAid KESS907SWW - on 30 Inch Slide-In Electric... User manual

KitchenAid

KitchenAid KEBC247VBL - 24 Inch Double Electric Wall... User manual

KitchenAid

KitchenAid KEBU208SSS02 User manual

KitchenAid

KitchenAid KCO275 User manual

KitchenAid

KitchenAid KEBS208BAL2 User manual

KitchenAid

KitchenAid KEBS277YAL3 User manual

KitchenAid

KitchenAid KEMS309BSP00 User manual

KitchenAid

KitchenAid KODC304EBL User manual

KitchenAid

KitchenAid KEBU107SSS00 User manual

KitchenAid

KitchenAid KEMS308SSS03 User manual

KitchenAid

KitchenAid KEMC308KBL04 User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
