KitchenAid KEBS278DBL6 User manual

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

1 Trim, Side

4450850 RH Black & BS Mdls

4450851 RH White Model

4450853 LH Black & BS Mdls

4450854 LH White Model

Screw

4449747 Black & BS Mdls

4449041 White Model

4 4448520 Bumper, Door

6 4452200 Divider, Vent

4449809 Screw

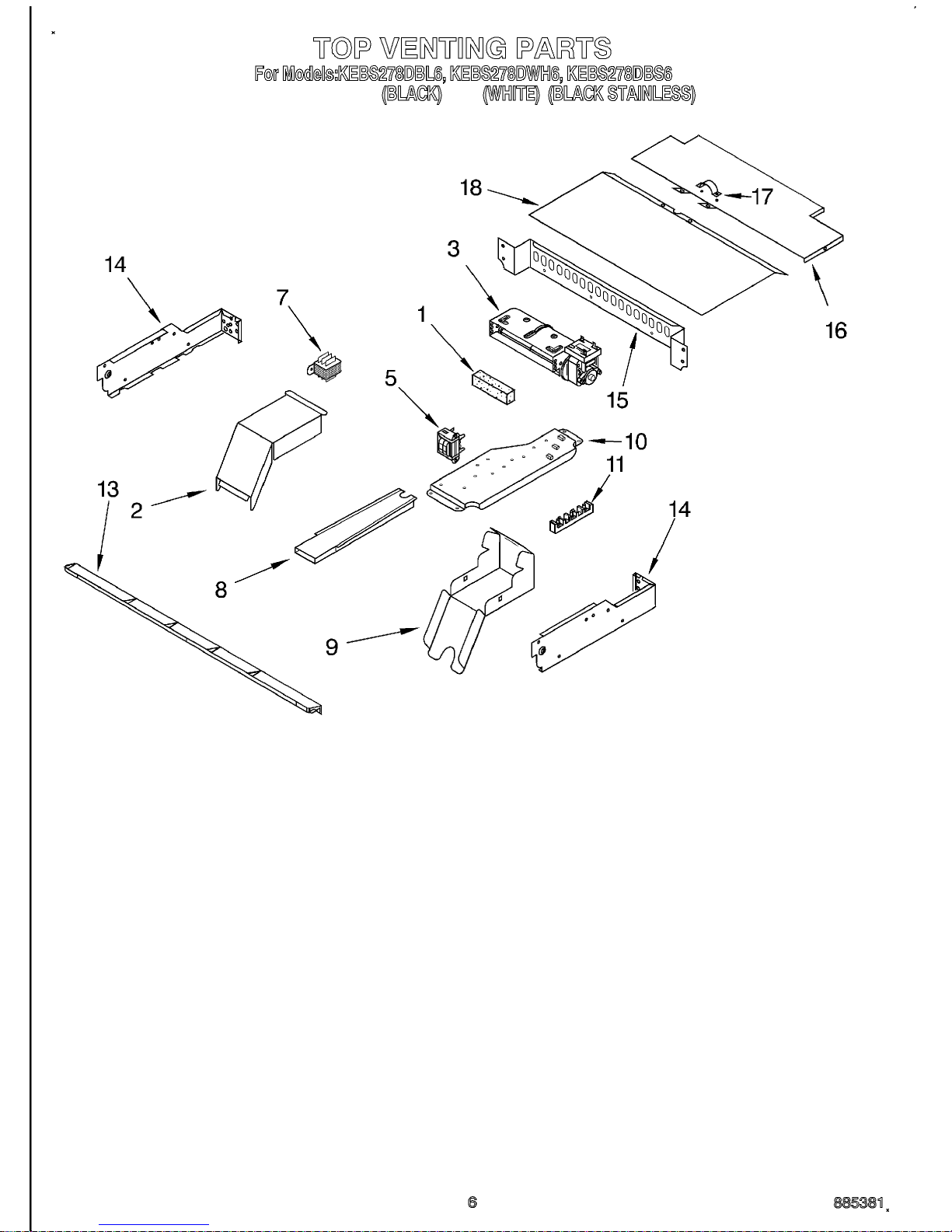

7 4452043 Top Chassis

4449809 Screw

9 4452158 Tube, Vent

4449154 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

12 4452164 Bulb, Light

4449748 Screw

14 4451739 Frame, Front

4449040 Screw

4450118 Nut

15 4449371 Gasket, Door

19 4451477 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

24 4451424 Latch Assy

4451663 Solenoid

4451422 Microswitch N.C.

4451426 Microswitch

4449154 Screw

25 4454691 Side, Chassis (R.H. & L.H.)

4449809 Screw

26 4451545 Back, Chassis

4449809 Screw

27 Liner, Oven (Not serviceable)

29 4450026 Sensor

4449154 Screw

33 4450280 Deflector, Vent

34 4452161 Vent, Center

37 4452223 Thermostat (TOD)

4449809 Screw

43 4451397 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

4448458 Black & BS Models

4448459 White Model

4159465 Screw

53 4449845 Support, Bracket

4449809 Screw

FOLLOWING PARTS NOT ILLUSTRATED

INSULATION

4449315 Insulation, Wrap

4450364 Insulation, Back

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

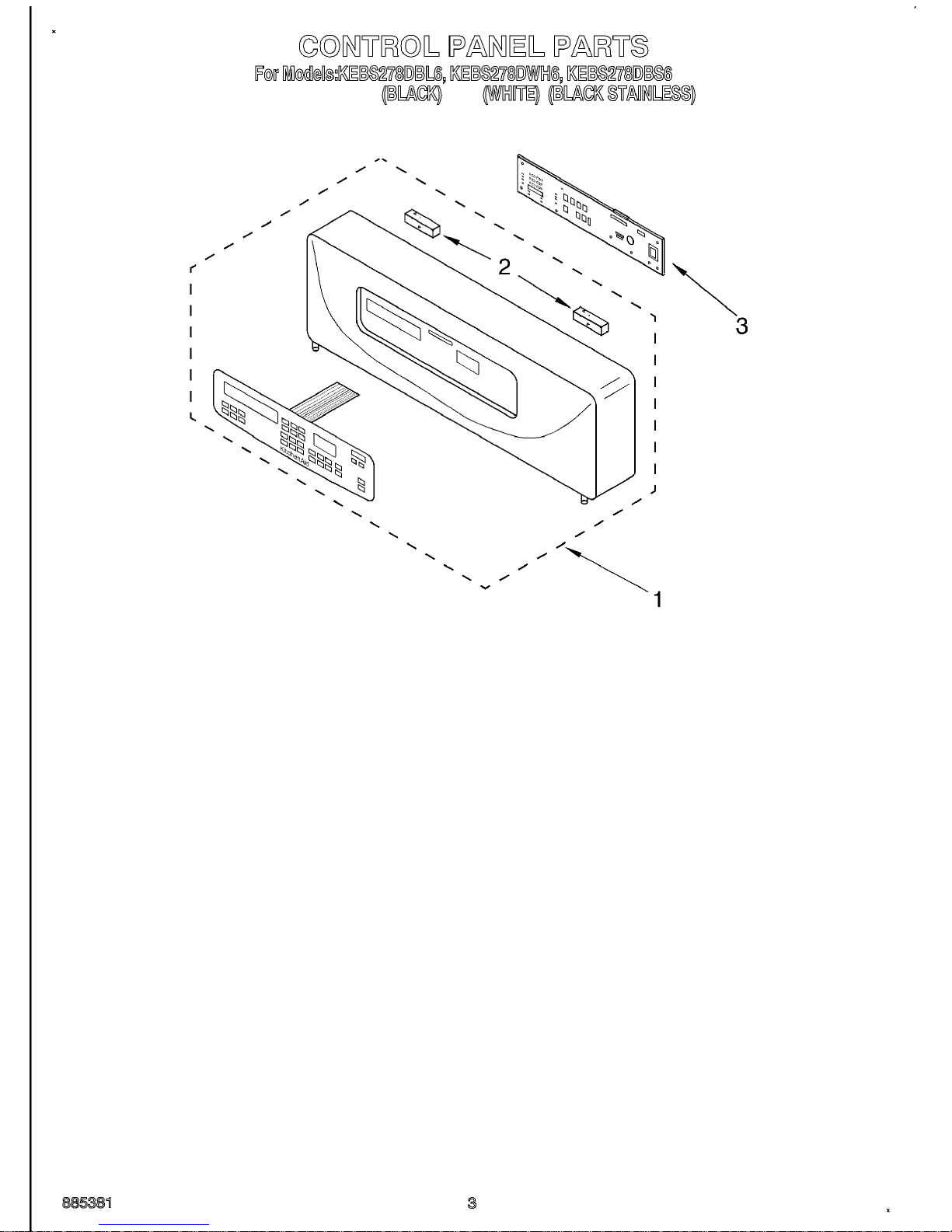

1 Control Panel Assy. W/Membrane Switch

4451279 Black & BS Models

4451280 White Model

4159465 Screw

2 4451033 Gasket, Control Panel

3 4448871 Microcomputer

4449745 Screw

LITERATURE PARTS

LIT4450410 Installation Instructions

LIT4450571 Use & Care Guide (Oven)

LIT4449066 Cookbook (T/C Oven)

LIT4452026 Tech Sheet (Oven)

LIT4449264 Easy Set Guide

LIT3191638 Safer Cooking Tips

NOTE: The screws and nuts required to attach a part are listed immediately

following that part.

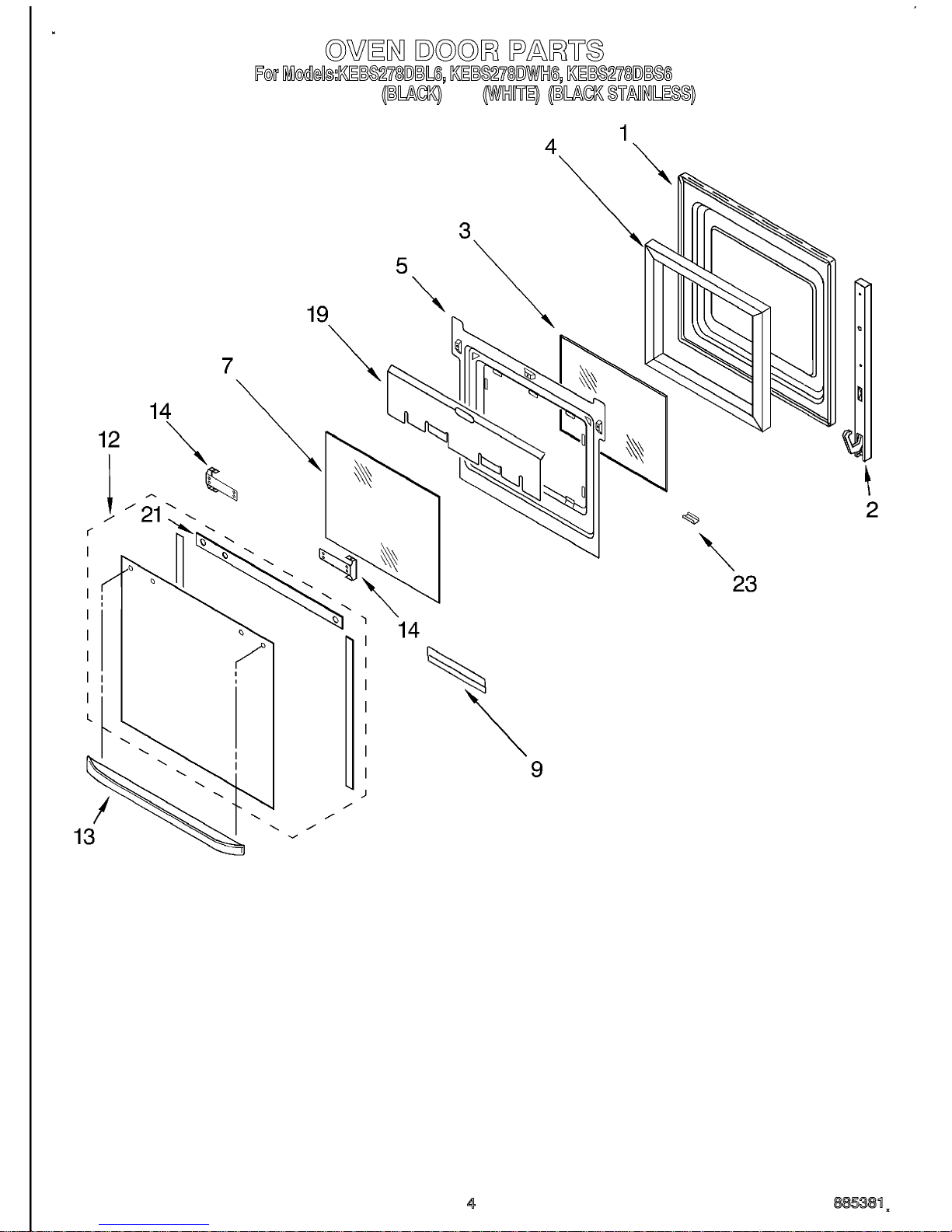

1 4451718 Door Liner

2 4451172 Hinge, Door

4449743 Screw

3 4449253 Glass, Inner

4 4451721 Insulation, Door

5 4451670 Retainer, Glass

4449809 Screw

7 4449257 Glass, Inner

9 4451668 Retainer, Glass

4449809 Screw

12 Door Glass, Assy

4452071 Black Model

4452072 White Model

4452077 BS Model

13 Door Handle

4448411 Black & BS Models

4448412 White Model

14 4450813 Bracket, Handle

4451040 Screw

19 4450361 Shield, Heat

4449809 Screw

21 4451673 Seal, Door Top

23 Retainer, Clip

4450863 Black & BS Models

4450864 White Model

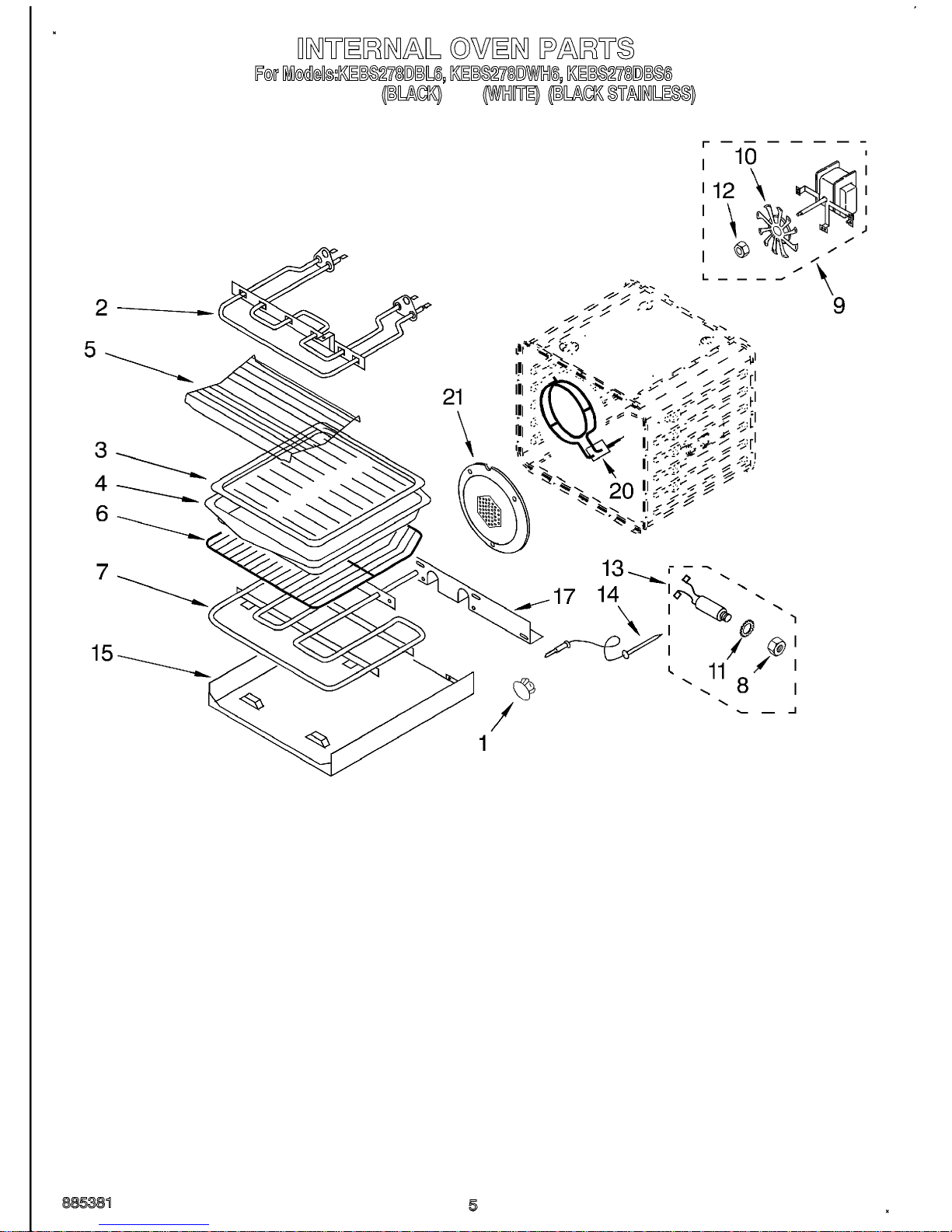

1 4448982 Plug, Button

2 4452156 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448715 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Fan, Convection

4449154 Screw

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4448722 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4452157 Element, Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw
