KitchenAid KEBK206SWH02 User manual

OVEN PARTS

For Models:KEBK206SWH02

(White)

2−09 Litho in U.S.A. (amd) (psw) Part No. W10250488 Rev. A

30" BUILT−IN ELECTRIC

DOUBLE OVEN

OVEN PARTS

For Models:KEBK206SWH02

(White)

W10250488

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8304336 Installation

Instructions

W10162179

Use & Care Guide

Tech Sheet

W10220954

English

W10220955

French

8304335 Easy Set Guide

Safer Cooking Tips

9762761 English

W10065852

French

W10153090

Bracket, Base

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 8303829 Exhaust,Vent Slope

W10181196

Divider,

Center Vent

W10204470

Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10169756

Lens, Light

W10009940

Assembly,

Oven Light

W10169757

Bulb, Light

13 3400832 Screw (2)

W10115861

Frame, Front

15 8304493 Gasket, Door

16 3196176 Screw

17 4449040 Screw

18 4449154 Screw

19 4451478 Support, Insulation

20 4450038 Screw (2)

21 Side,Mounting Rail

8303677WH

Right

8303678WH

Left

W10195935

Latch, Mortorized

23 4449743 Screw

24 4448444 Grommet,

Mounting Rail

25 4455641 Side, Chassis

26 8304303 Back, Chassis

27 Liner, Oven

(Not serviceable)

28 8304452 Thermal Fuse

W10131825

Sensor

30 8303685 Vent, Center

31 8303516 Base, Chassis

32 8304478 Retainer, Gasket

33 8303517 Cover, Back

8303705WH

Trim, Bottom Vent

W10169348

Bracket,

Thermostat

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

8303965 Insulation, Wrap

8303967 Insulation, Back

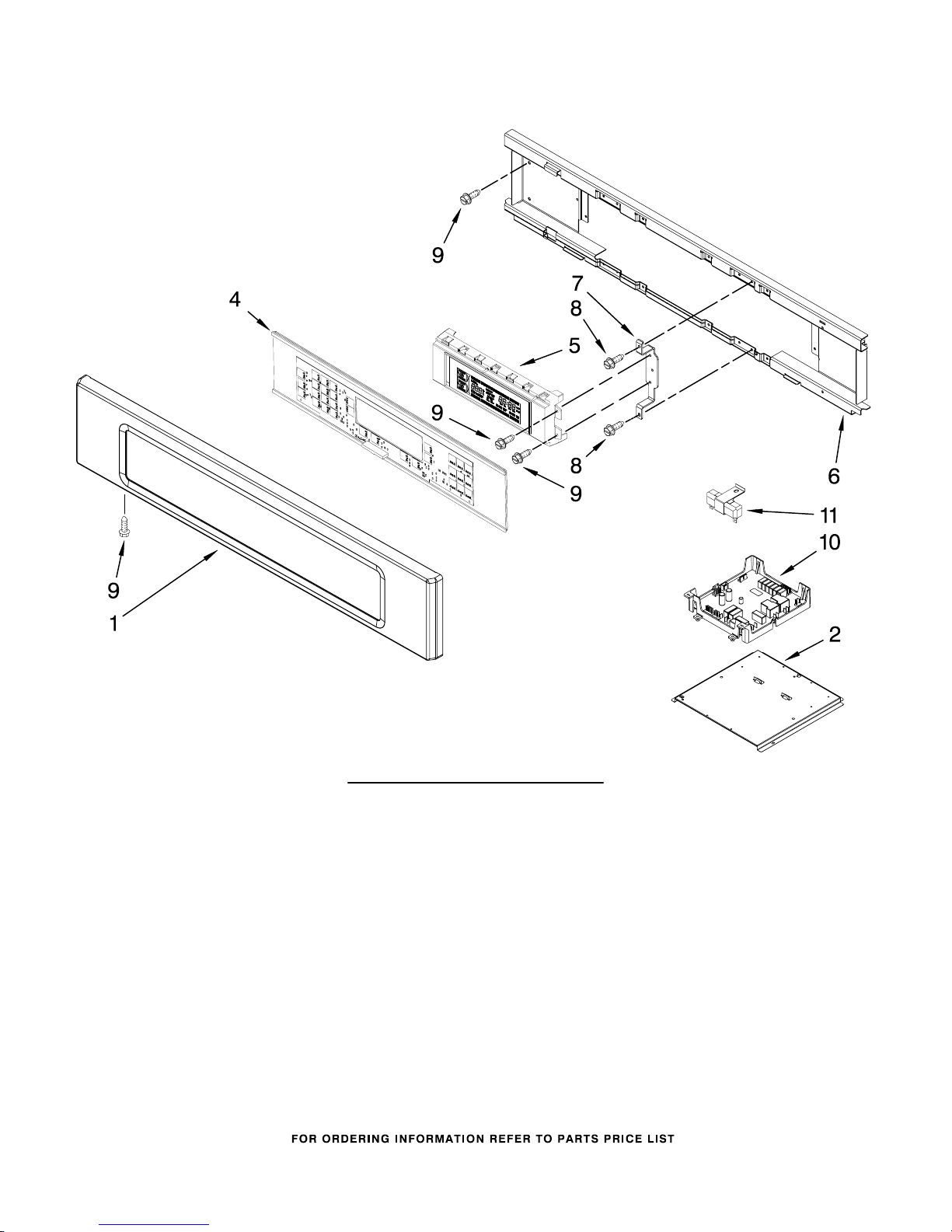

CONTROL PANEL PARTS

For Models:KEBK206SWH02

(White)

W10250488

Illus. Part

No. No. DESCRIPTION

8303716WH

Panel, Control

2 8303687 Support,

Appliance Manager

4 8304333 Control Panel,

Glass Touch

W10172472

User Inferface

6 8303719 Backer, Control

7 8303887 Bracket,Enclosure

8 4449154 Screw

9 3400832 Screw

W10119142

Appliance Manager

11 8304441 Resistor, Drop

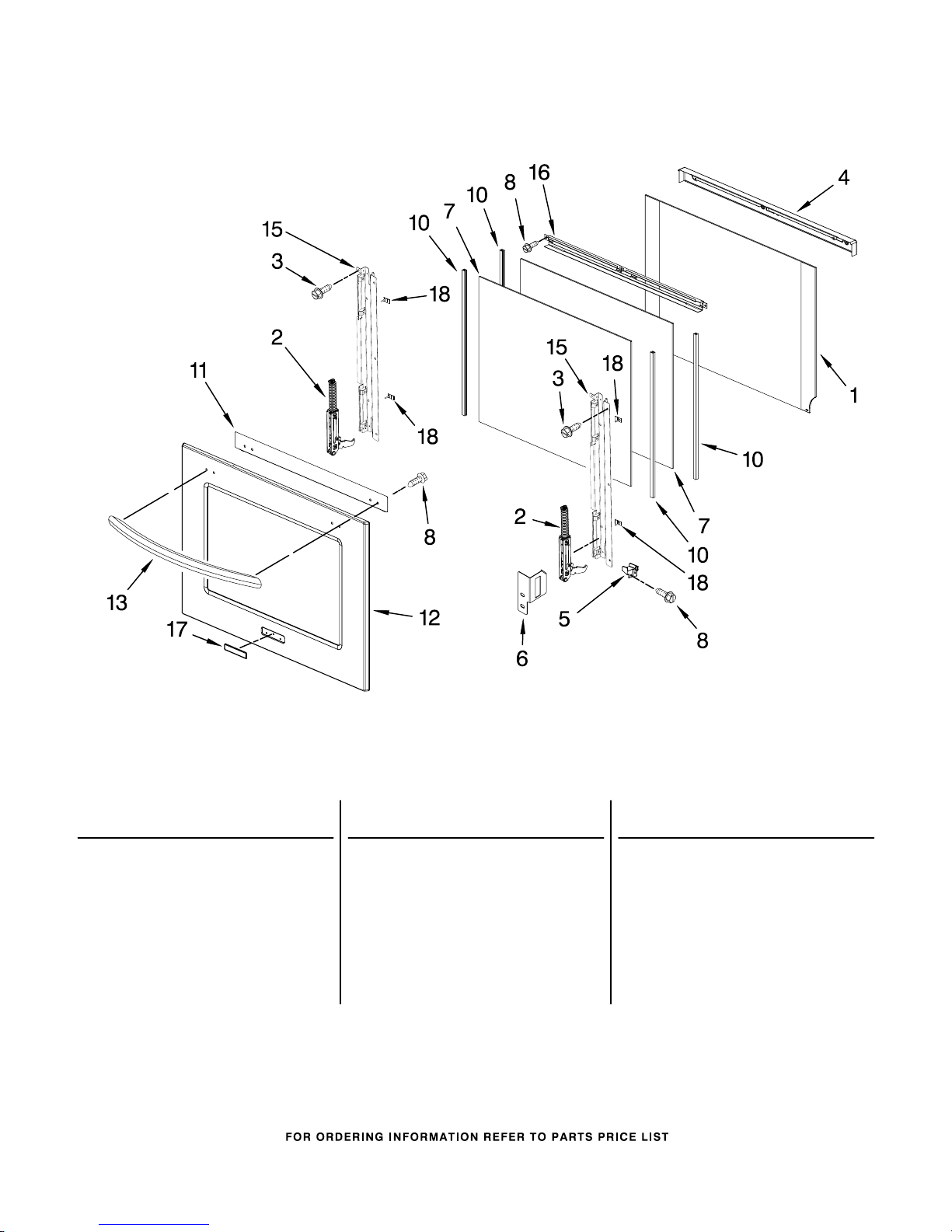

OVEN DOOR PARTS

For Models:KEBK206SWH02

(White)

W10250488

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

8303737BL

Door Liner

W10174285

Hinge, Door

3 3196183 Screw

8304581BL

Vent, Door Top

5 Bracket, Door

8304377 Right

8304378 Left

6 Cover, Hinge

W10137044

Right

W10137043

Left

7 8303731 Glass, Inner

8 4449743 Screw

10 8304523 Seal

8304360BL

Bracket, Handle

12 8303995 Door Glass, Assy

Lower Includes #17

8303996 Door Glass, Assy

Upper No Nameplate

8303774WH

Door Handle

8303745BL

Frame, Door Side

16 8303746 Bracket,

Top Door

8304603WH

Nameplate

18 8304522 Bumper, Glass

INTERNAL OVEN PARTS

For Models:KEBK206SWH02

(White)

W10250488

Illus. Part

No. No. DESCRIPTION

1 9760774 Element, Broil

2 8304602 Sheild,

Broil, Element

W10179152

Rack, Oven

4 9760768 Element, Bake

5 4455037 Tray, Bake

6 4449154 Screw

7 4450039 Cover, Bake Tray

8 4449809 Screw

TOP VENTING PARTS

For Models:KEBK206SWH02

(White)

W10250488

Illus. Part

No. No. DESCRIPTION

1 9752759 Relay

2 8304643 Duct, Air Outlet

3 4449809 Screw

4 8303972 Blower, 60mm

6 8285593 Connector, Cover

W10111628

Transformer,

Control

9 4449868 Block, Terminal

10 3400080 Screw

11 8303684 Vent, Control

Panel

12 Side, Control Top

8303518 Right

8304255 Left

13 8303520 Back, Control

14 8304219 Cover, Top

7103P027−60

Nut,

Terminal Block

OPTIONAL PARTS

For Models:KEBK206SWH02

(White)

W10250488

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

WIRING HARNESS PARTS

W10143473

Harness,

Door Latch

W10171562

Harness, Main

8304051 Harness,

Commnication

8304439 Conduit, Double

4450800 Screw,Ground

98997 Clip

W10155291

Connector, Flex

Miscellaneous

4448950 Screw, Install (4)
