KitchenAid KEBS208BAL1 User manual

Illus. Part

No. No. DESCRIPTION

CONTROL PANEL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

8−94 Litho in U.S.A.(jcn) Part No. 4174409

30" ELECTRIC

BUILT−IN

DUAL THERMAL CONVECTION

BUILT−IN OVEN

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Membrane, Switch

3187067 Black

3187068 White

3187069 Almond

2 3181889 Bracket, Mounting

Switch Membrane

3 3187895 Microcomputer

3179117 Screw

4 255564 Strain Relief

3148107 Screw

5 3182985 Clip, Retainer

6 3182162 Trim, Door

7 Door, Latch Handle

3182152 Black

3182155 White

3182158 Almond

8 3183703 Trim, Panel

9 3185424 Bracket

3182939 Screw

10 Frame, Control

Panel

3187948 Black Model

3187949 White Model

3187950 Almond Model

11 3184567 Clip, Control

Frame

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3187226 Tech Sheet

LIT3187359 Installation

Instructions

LIT3188197 Use & Care Guide

LIT3150693 Cookbook

LIT3183987 Guide−Autoset

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

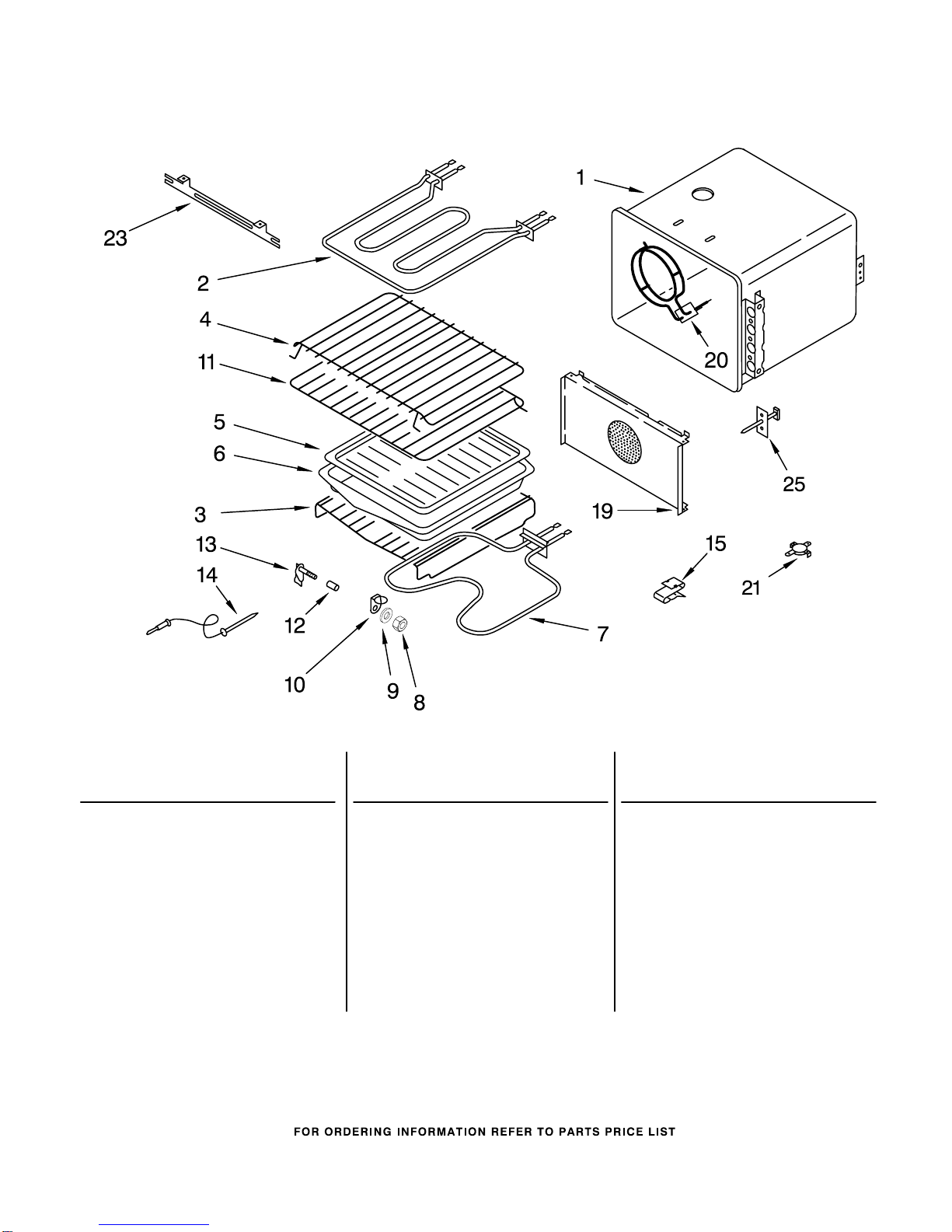

INTERNAL OVEN PARTS

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3182031 Liner, Oven

2 661417 Element, Broil

3150532 Screw

3 3187601 Rack, Roaster

4 3181639 Rack, Offset

5 3147845 Pan, Broiler

6 3187600 Grill, Broiler

7 661416 Element, Bake

3150532 Screw (2)

8 4167277 Nut, Meat Probe

9 4163975 Gasket, Meat Probe

10 4167266 Probe Cover

11 3181638 Rack, Straight Oven

12 3179672 Spacer − Tubing

13 3150107 Meat Probe Jack

14 3150144 Meat Probe

15 313570 Clip, Tubing

19 3181724 Cover, Fan

3179117 Screw

20 661460 Element, Convect.

21 3149653 SPST−Thermostat

23 3180694 Bracket, Element

3150532 Screw

25 3148440 Sensor, Heat

3148107 Screw

UPPER OVEN PARTS

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

UPPER OVEN PARTS

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3186975 Frame Front

2 307985 Pin, Hinge Ear (2)

3 309111 Snubber, Door (2)

4 308306 Pushnut (2)

5 3182031 Oven 30"

311056 Screw (3)

6 310713 Bracket, Oven

Mounting (2)

343641 Screw (6)

8 3185086 Button, Plug

9 3185944 Insulation Tray

3148107 Screw (2)

10 311774 Support, Side

Wrapper (4)

3148107 Screw (4)

11 Side Wrapper

3185953 Right Side

3185956 Left Side

3148107 Screw,

12 Hinge Ear

3185662 Right Side

3185663 Left Side

13 310659 Plate (2)

(Side Panel)

308544 Screw (4)

14 3185664 Channel Arm (2)

15 307986 Pin, Hinge (2)

16 307594 Retainer Ring (2)

17 308125 Anchor Spring (2)

18 308126 Spring, Oven

Door (2)

19 3183792 Tube, Vent

343641 Screw, Ground

20 310839 Eliminator, Smoke

21 310662 Plate Cover

3148107 Screw (2)

22 3185197 Seal, Pyro

24 3150505 Oven Light Assy.

25 311255 Bulb, Oven Light

26 3184533 Gasket, Light

28 3183796 Baffle, Top

Insulation

3148107 Screw (2)

29 3182585 Bracket, Mounting

Control Frame

3179847 Screw

312713 Screw

35 310345 Switch, Door

690989 Screw

40 3184099 Cover, Top

3148107 Screw (4)

41 Side Trim L.H.

3187908 Black Model

3187909 White Model

3187910 Almond Model

Side Trim R.H.

3187902 Black Model

3187903 White Model

3187904 Almond Model

42 3182052 Panel, Back

3148107 Screw (16)

43 Trim, Center vent

3188144 Black Model

3188145 White Model

3188146 Almond Model

44 311582 Stand Off

48 3185961 Cover, Rear

3148107 Screw (9)

55 309102 Bracket Stand Off

3148107 Screw

58 3182042 Bracket, Motor

3179117 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

310433 Insulation, Wrap

310435 Insulation, Oven

3149328 Insulation, Top

LOWER OVEN PARTS

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LOWER OVEN PARTS

Illus. Part

No. No. DESCRIPTION

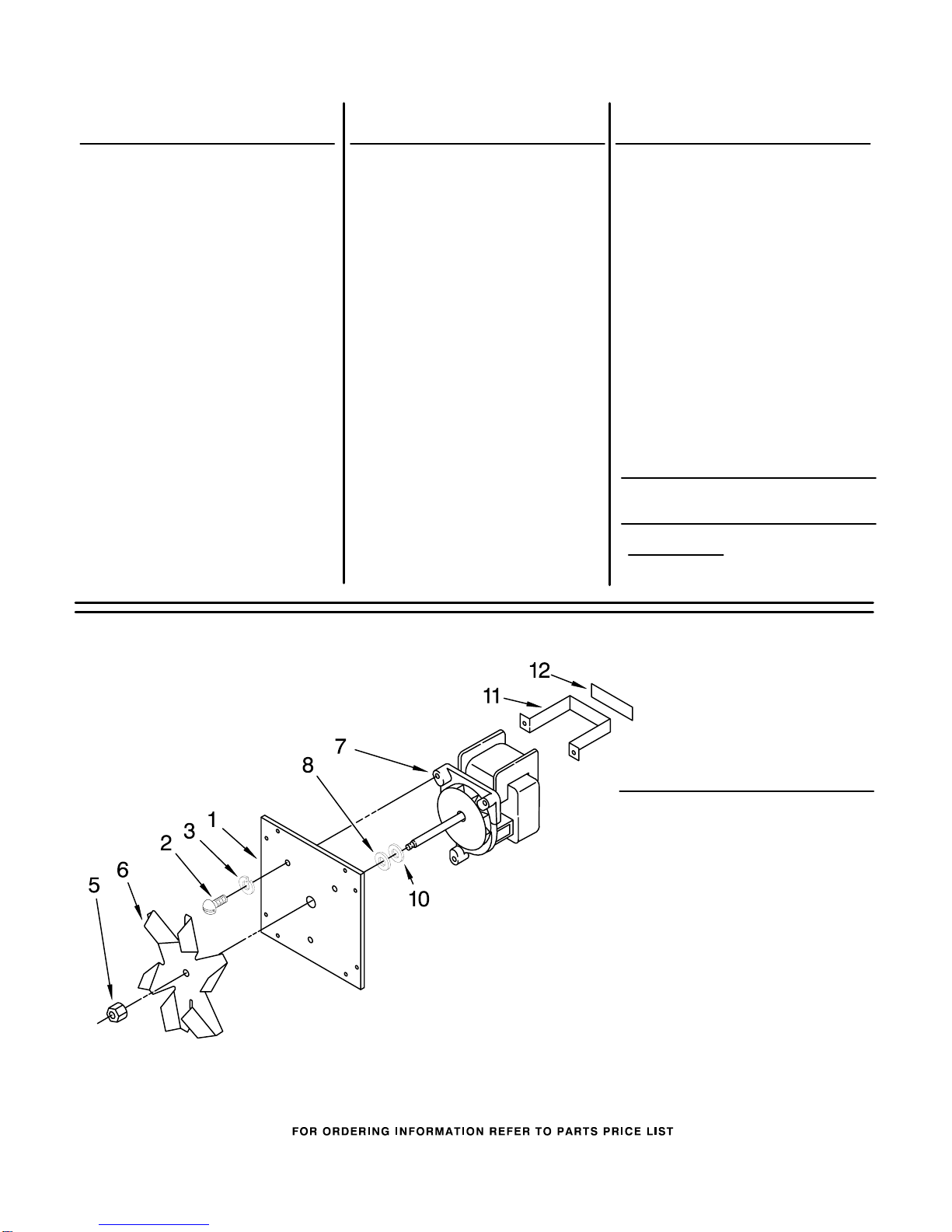

CONVECTION FAN PARTS

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3186975 Frame, Front

2 307985 Pin, Hinge Ear (2)

3 309111 Snubber, Door (2)

4 308306 Pushnut (2)

5 3182031 Oven 30"

311056 Screw (3)

6 3185086 Button, Plug

7 310713 Bracket, Oven

Mounting (2)

10 3185944 Insulation Tray

3148107 Screw (2)

11 Side Wrapper

3185955 Right Side

3185958 Left Side

12 311774 Support, Side

Wrapper (4)

3148107 Screw (2)

13 Hinge Ear

3185662 Right Side

3185663 Left Side

14 310659 Plate, Side

Panel (2)

308544 Screw (4)

15 3185664 Channel Arm (2)

17 307986 Pin Hinge

18 307594 Retainer, Ring

19 308125 Anchor, Spring (2)

20 308126 Spring, Oven

Door (2)

343641 Screw

21 3182159 Tube, Vent (Lower)

22 310839 Eliminator, Smoke

3148107 Screw (2)

23 310662 Plate Cover

3148107 Screw (2)

24 3182161 Tube, Vent (Upper)

25 3183796 Baffle, Top

26 3184533 Gasket, Light

Insulation

3150532 Screw (4)

27 3150505 Oven Light Assy.

28 311255 Bulb, Oven Light

29 310345 Switch, Door

30 3185197 Seal, Door

31 3182052 Panel, Back

3148107 Screw (6)

32 255095 Angle Support (2)

3148107 Screw (6)

33 Side Trim L.H.

3187911 Black Model

3187912 White Model

3187913 Almond Model

Side Trim R.H.

3187905 Black Model

3187906 White Model

3187907 Almond Model

34 Grill, Bottom

3150349 Black

3150350 White

3150351 Almond

309029 Screw, 8−15 x 1/2

Black (3)

35 311592 Angle Support (2)

37 3185945 Cover, Bottom

3148107 Screw (4)

41 3185959 Cover, Rear

3148107 Screw (11)

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

310433 Insulation, Wrap

310435 Insulation, Oven

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3182045 Mounting Plate

2 4173193 Screw (3)

3 4173194 Lockwasher (3)

5 4173237 Nut(Left Hand)

6 4173236 Fan

7 3183220 Motor

8 4173238 E−Ring

10 4173230 Flatwasher

11 3181750 Bracket, Guard

12 3179790 Gasket, Foam

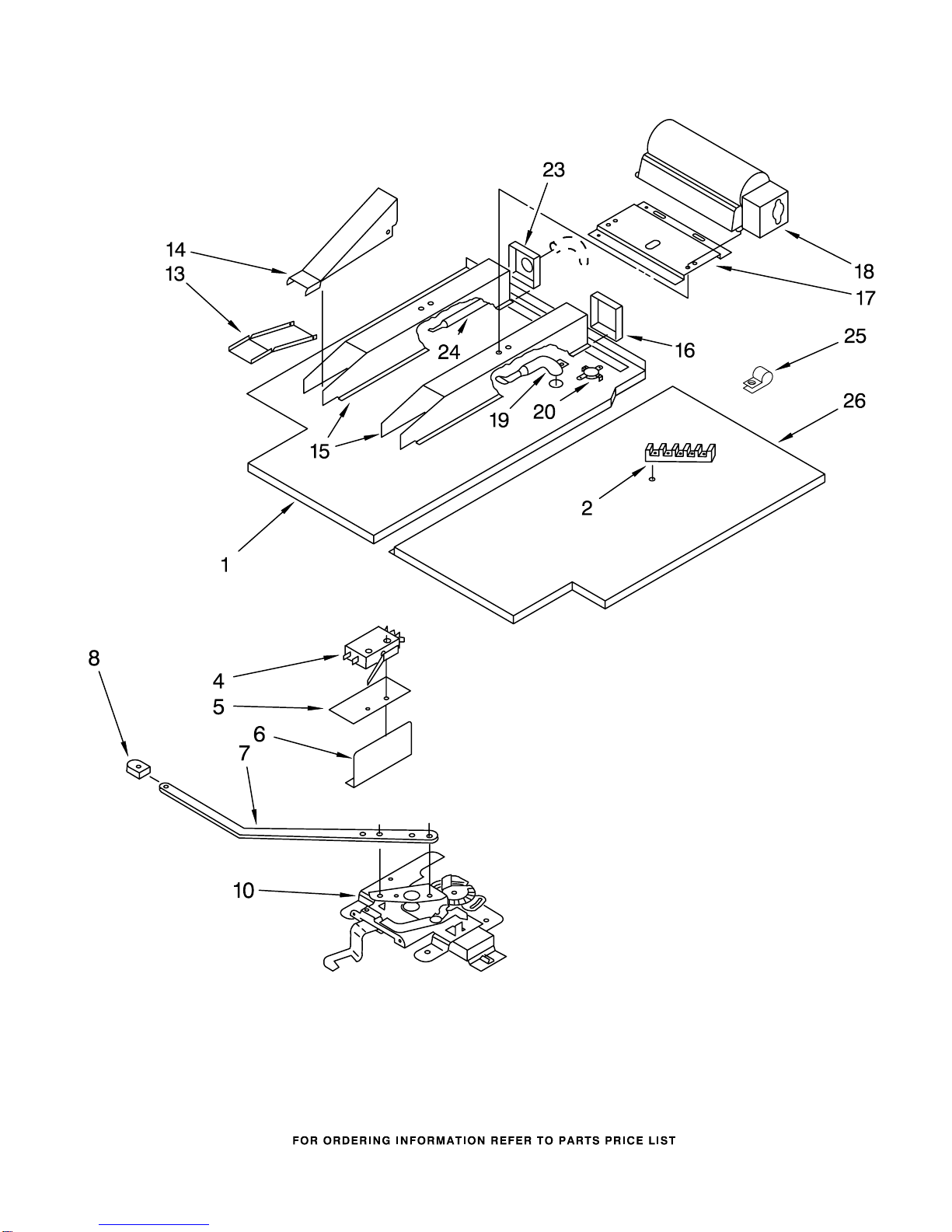

LATCH AND VENT PARTS

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

LATCH AND VENT PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3183948 Baffle, Vent Mtg.

2 258076 Block, Terminal

308043 Screw

112432 Nut, Hex (3)

4 3183784 Switch, Latch

98106 Screw

5 309245 Insulator, Switch

6 313035 Shield, Terminal

309258 Screw (2)

7 Handle, Latch

3184002 Upper Oven

3183637 Lower Oven

308422 Screw (2)

8 3184039 Knob, Latch

3183294 Screw

10 3183800 Latch Assembly

13 3183954 Nozzle, Vent

Bottom

14 3183955 Nozzle, Vent Top

300890 Screw

15 3184078 Box, Vent

4173231 Screw

3179116 Screw

16 3183964 End, Vent Box

300890 Screw

17 3183533 Bracket, Mounting

Fan

3177991 Screw

18 3183720 Blower, Fan

19 3183792 Tube, Vent

343641 Screw

20 3149650 SPST Thermostat

23 3183965 End, Vent Box

Lower Oven

24 3183793 Tube, Vent

Lower Oven

25 3183532 Clamp, Tube

3148443 Screw

26 3183949 Extension, Baffle

3148107 Screw

UPPER AND LOWER OVEN DOOR PARTS

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 3172218 Liner, Door

3 3148441 Seal, Flange (2)

4 3169202 Glass, Clear

3185647 Screw (4)

5 3148183 Seal, Door

6 3148159 Retainer,

4173601 Screw

7 3169203 Glass, Inner & Outer

8 3188553 Retainer,

Glass (2)

10 Glass, Panel

3188052 Black

3188050 White

3188051 Almond

11 3188706 Foil, Door

12 Handle, Door

3186524 Black

3186525 White

3186526 Almond

3149253 Screw (4)

254225 Screw (2)

14 Top, Door

3148223 Black Model

3149355 White/Almond

Model

15 3148282 Clip, Mtg. (2)

3149333 Screw

16 3148234 Frame, Inner

3185647 Screw

19 Frame, Panel

3171530 Black Model

3187920 White Model

3187921 Almond Model

20 3147951 Insulation, Door

21 Cap, Top

3181366 Black Model

3181367 White Model

3188375 Almond Model

3188400 Screw

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION

For Model: KEBS208BBL1, KEBS208BWH1, KEBS208BAL1

(BLACK) (WHITE) (ALMOND)

4174409

1 3187612 Wire Harness

Upper Oven

2 3187613 Wire Harness

Lower Oven

3 3184809 Clip, Wire

5 3187558 Harness, Wire

Lower Latch

7 313438 Clip

246132 Screw

This manual suits for next models

Other KitchenAid Oven manuals

KitchenAid

KitchenAid KEB1100T User manual

KitchenAid

KitchenAid KEBS208DBL7 User manual

KitchenAid

KitchenAid KEMS308SSS03 User manual

KitchenAid

KitchenAid KEBI171D User guide

KitchenAid

KitchenAid KEBC167MSS02 User manual

KitchenAid

KitchenAid KEBC107 User manual

KitchenAid

KitchenAid KEBU107SSS02 User manual

KitchenAid

KitchenAid KEBS278DBL4 User manual

KitchenAid

KitchenAid KCO213 User manual

KitchenAid

KitchenAid KEBS276X User manual

KitchenAid

KitchenAid KEBK171SSS - 27" Single Wall Oven User manual

KitchenAid

KitchenAid KEHU309SSS - 30" Microwave Combination Oven User manual

KitchenAid

KitchenAid KEBK101SBL04 User manual

KitchenAid

KitchenAid KESO-140S User manual

KitchenAid

KitchenAid KEB276 User manual

KitchenAid

KitchenAid KEBC247VBL - 24 Inch Double Electric Wall... User manual

KitchenAid

KitchenAid KEBS277DAL2 User manual

KitchenAid

KitchenAid KEBC247KBL02 User manual

KitchenAid

KitchenAid KEBK101SSS03 User manual

KitchenAid

KitchenAid KEMS309BSP00 User manual

KitchenAid

KitchenAid KEBK101 User manual

KitchenAid

KitchenAid KCO224 User manual

KitchenAid

KitchenAid KEBC247KBL04 User manual

KitchenAid

KitchenAid KOCCX 45600 User manual

Popular Oven manuals by other brands

Bosch

Bosch HVA531NS0 instruction manual

Electrolux

Electrolux EOF6P46X user manual

NEFF

NEFF B44S32 5GB Series instruction manual

Combi

Combi BLODGETT BC142GDS Specifications

AEG

AEG COMPETENCE 311704300 Installation and operating instructions

Falcon

Falcon DOMINATOR PLUS G3106 Series Servicing instructions

Rational

Rational SCC WE 61G installation manual

Smeg

Smeg DOSPA38X User manuals

Electrolux

Electrolux air-o-convect 20 GN 2/1 user manual

Miele

Miele HR 1954-2 operating instructions

KHIND

KHIND OT50 instruction manual

Henny Penny

Henny Penny Smoker Box installation manual

Lang

Lang ECOD-AP Installation and operation instructions

AEG

AEG BEK455310M user manual

Frigidaire

Frigidaire FNGE90JGR user manual

Hotpoint

Hotpoint FE9 S831 JSH IX user manual

GE Advantium SCB2000 owner's manual

AEG

AEG DE401301DM user manual
