KitchenAid KUIS18PNJB7 User manual

CABINET LINER AND DOOR PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

10−05 Litho In U.S.A. (tpm) Part No. 8214597

ICE CUBE

MAKER

CABINET LINER AND DOOR PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2313788 Use & Care Guide

2313728 Service &

Wiring Sheet

2 3400886 Screw 8−18 x 1 1/4

3 2208354 Bin, Door

4 2185678 Spacer

5 2217394 Cover, Wiring

6 489442 Screw

7 Panel, Exterior

2208352W White

2208352B Black

8 2217298 Panel, Interior

9 2217467 Tube, Air Vent

10 2208377 Insulation

11 2208367 Clamp, Half

12 8281265 Screw

13 Bracket, Door

2217466 Left Side

2217465 Right Side

14 489503 Clamp

15 2217295 Gasket, Door

16 2208535 Clip

17 Nameplate

2212760 White

2212762 Black

18 Hinge

2208425 Left Side

2208426 Right Side

19 2208401 Shim, Hinge

20 Handle, Door

2208440W White

2208440B Black

21 688983 Screw

22 2208399 Assembly,

Unit Cover

23 Screw, Handle

8281188 White

8281186 Black

24 2217227 Ballast−Back, IM

25 2217225 Pad, Foam

26 2185691 Channel, Wiring

27 Endcap, Door

2208350W White

2208350B Black

28 2208459 Tube, Drain

29 2208386 Scoop

30 3400884 Screw 8−18 x 5/8

31 8533996 Clamp

32 Panel, Lower

2208382W White

2208382B Black

33 2208487 Bracket, Spring

34 2208417 Pin, Hinge

35 489048 Screw, Ground

36 2208480 Spring

37 Endcap, Panel

2208383W White

2208383B Black

38 2208529 Dampener, Spring

39 489423 Screw

40 2208449 Holder, Scoop

42 3374849 Leg, Leveler (4)

43 2208384 Insulation

45 2185690 Shield, Electrical

46 2217296 Gasket, Top Panel

47 Grill, Front

2217206W White

2217206B Black

48 489474 Screw 8−18 x 1

49 Cabinet & Liner

(NOT SERVICED)

50 Top

2929701W White

2929701B Black

51 941839 Hole Plug

52 692400 Nut, Push−In

53 3400240 Nut,

Leg Leveler

54 2208434 Strike, Magnet

55 3400916 Washer

56 8281191 Screw

57 488208 Screw

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

Illus. Part

No. No. DESCRIPTION

1 2185758 Valve, Complete

Water

2 2217286 Tube, Plastic

3 488208 Screw

4 2185523 Dispenser, Water

5 2217269 Evaporator

6 627018 Nut, Compression

7 841707 Insert, Tube

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener, Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2185673 Hose, Overflow

16 2217378 Support,

Reservoir Bracket

17 2313603 Bracket, Front

and Rear

18 2313602 Bracket, Side

Left and Right

19 2185681 Harness, Grid

20 2208427 Support, Bracket

Evaporator/Grid

21 2313604 Guide, Ice Grid

22 2208533 Tube

23 487627 Ball Sleeve

24 487857 Nut, Ball Sleeve

25 8281193 Screw

26 3400886 Screw 8−18 x 1 1/4

27 8281192 Screw

28 2313601 Grid Assembly

(Complete)

29 2174754 Wire, Grid Cutter

30 2208365 Cover, Grid

31 8281228 Thumbscrew

32 8201653 Reservoir, Water

33 3400884 Screw 8−18 x 5/8

34 2185696 Cap, Drain

35 3400909 Nut, Push−In

PUMP PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

Illus. Part

No. No. DESCRIPTION

1 2217220 Pump, Water

(Complete)

2 3400884 Screw 8−18 x 5/8

3 2185677 Cover, Pump

4 2185585 Bracket, Connector

Assembly

CONTROL PANEL PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2185657 Transformer

3 2185592 Assembly, Switch

(ALSO ORDER #4)

4 2208317W Overlay

5 2304016 Control Board

6 2149705 Switch, Plunger

7 2185694 Lens, LED

8 2185692 Wiring Harness

Grid/ Light

9 745362 Bulb

12 2313633 Thermostat, Bin

13 2185825 Clamp

14 2187836 Wiring Harness,

Main to Pump

15 3400884 Screw

16 2187256 LED Assembly

18 3400850 Screw 8−16 x 3/8

20 2313635 Thermister,

Ice Control

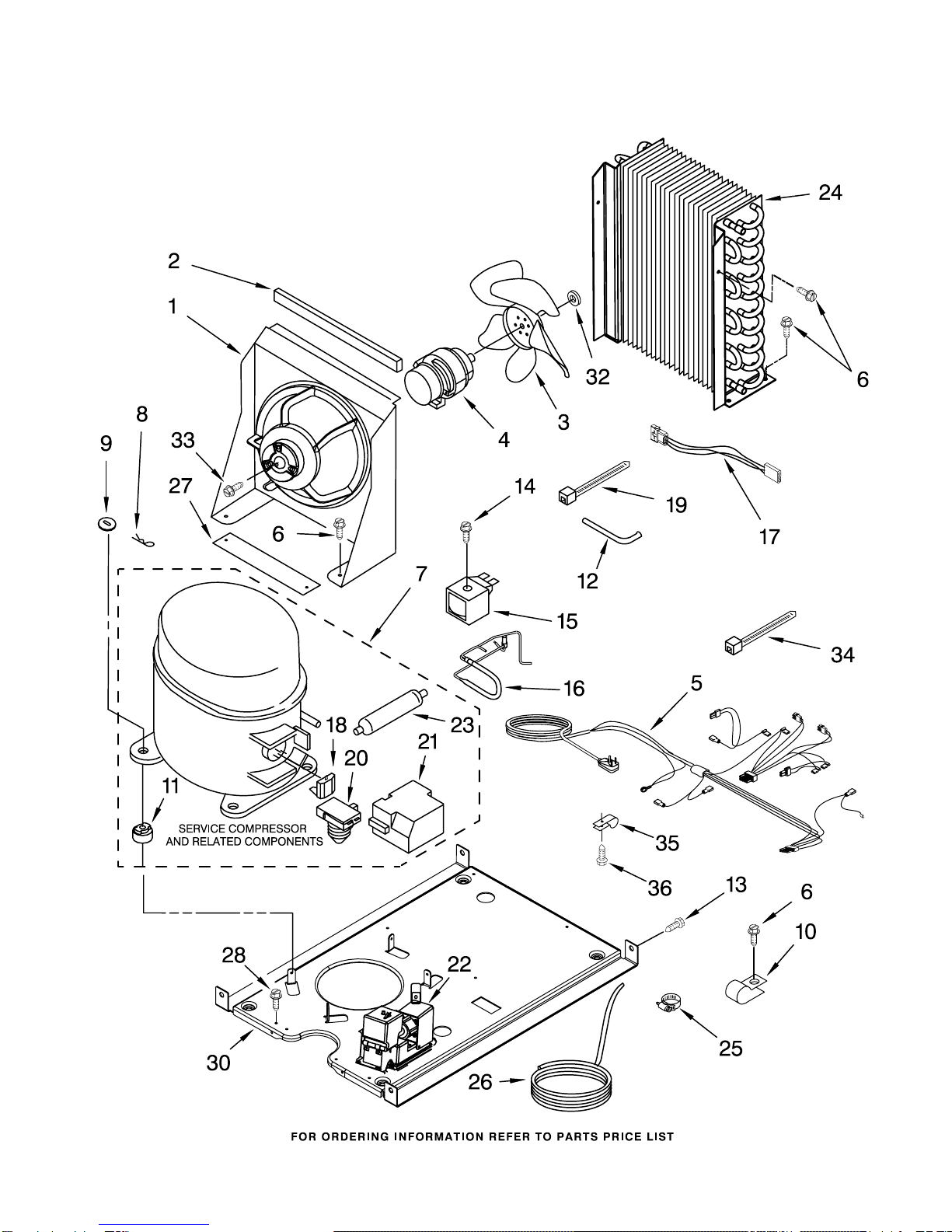

UNIT PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

UNIT PARTS

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2217434 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2190685 Blade, Fan

4 2188537 Motor, Fan

5 2313636 Wiring Harness,

Complete Unit

(Includes

Power Cord)

6 304392 Screw 8−18 x 1/2

7 2208370 Compressor

(Includes

Illus. 11,18,

20,21 & 23)

8 A201435 Clip, Mounting

9 A201441 Shim (4)

10 2185960 Clamp (Power Cord)

11 Grommet (4)

2217318 Production

4387558 Service

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2208413 Valve, Body

17 2187835 Wiring Harness,

Condenser Fan

18 Overload

2217223 Production

4387938 Service

(Includes Relay)

19 2155774 Strap

20 Relay, Start

2217224 Production

4387938 Service

(Includes

Overload)

21 Cover, Terminal

2208371 Production

4387731 Service

22 2208534 Pump, Drain

23 Drier

2209223 Production

4387019 Service

24 2217398 Condenser

25 489505 Clamp

26 2208432 Tube, Drain

27 2217397 Pad, Foam (2)

28 488500 Screw

30 2217423 Base, Unit

32 486692 Nut, Speed

33 489494 Screw 8−32 x 3/4

34 851095 Wire Tie

35 2185788 Clamp

36 3400884 Screw

REFRIGERANT CHARGE

6.5 OZ. (R134A)

OPTIONAL PARTS (NOT INCLUDED)

For Models: KUIS18PNJW7, KUIS18PNJB7

(White−Pump Model) (Black−Pump Model)

8214597

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

8171307 Cleaner, Icemaker

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")
