CABINET LINER AND DOOR PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

Part No. 8198398

ICE CUBE

MAKER

5−09 Litho In U.S.A. (ebk) (psw)

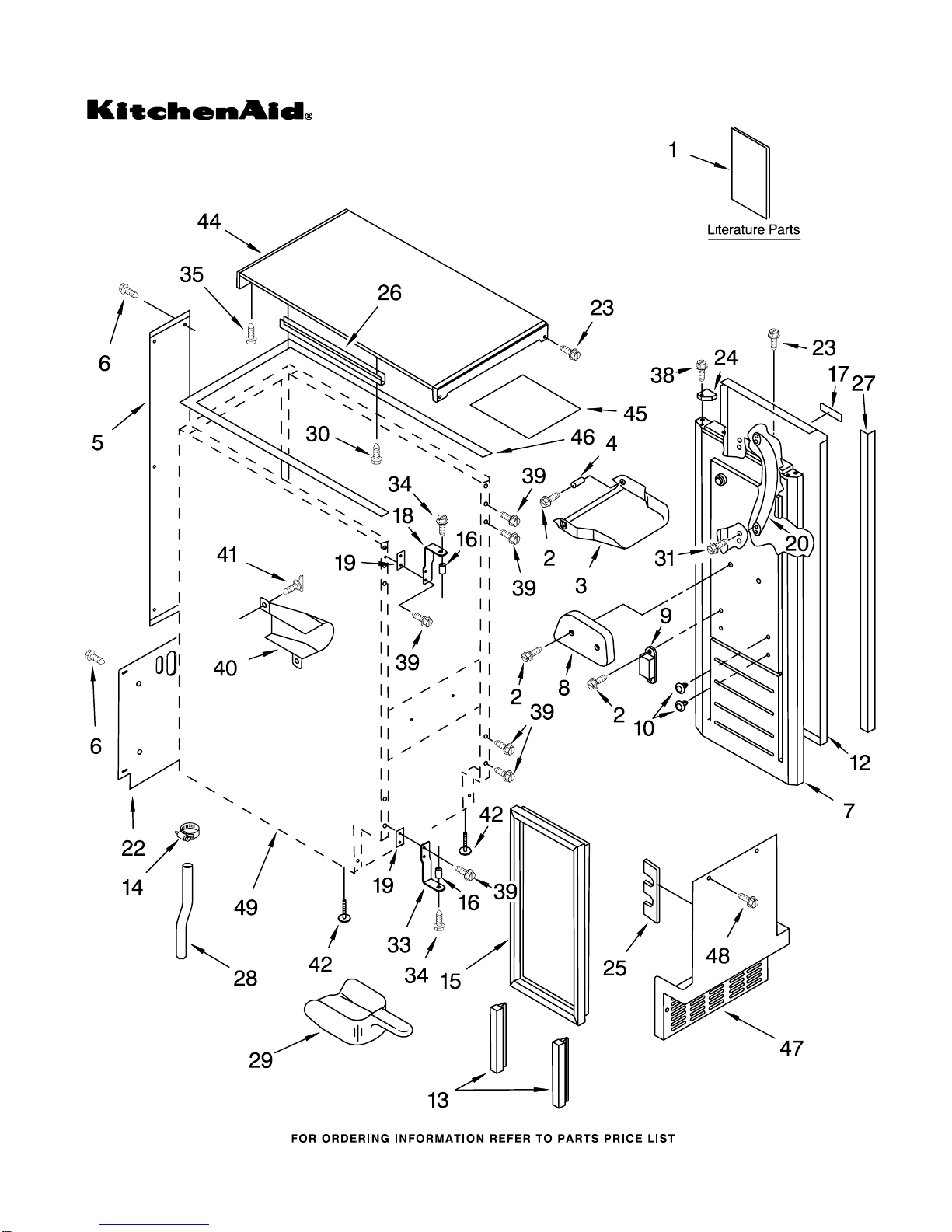

CABINET LINER AND DOOR PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT2217246

Use & Care Guide

LIT2217232

Service &

Wiring Sheet

2 3400886 Screw 8−18 X 1 1/4

3 2185742 Bin, Door

4 2185678 Spacer

5 2185575 Cover, Wiring

6 489442 Screw

7 2932800B Door

8 2185695 Cam, Door

9 2185991 Assembly,

Magnetic Catch

10 2189000 Plug, Hole

12 2185962 Wrap, Door

13 2185777 Gasket, Bottom

14 2208483 Clamp

15 2185776 Gasket, Door

16 2185640 Sleeve, Hinge

17 2005292 Nameplate

18 2185710 Hinge, Top

19 2185709 Shim, Hinge

20 2208597S Handle, Door

22 2185730 Assembly,

Unit Cover

23 8281184 Screw 8−18X1/2 (4)

24 Filler, Endcap

2185655B Left Side

2185656B Right Side

25 2185756 Pad, Foam

26 2185691 Channel, Wiring

27 2185964 Grommet,

Edge Guard (2)

28 2185989 Tube, Drain

29 585158 Scoop

30 3400884 Screw 8−18 X 5/8

31 3400037 Screw 10−32 X 3/8

33 2185711 Hinge, Bottom

34 2185712 Pin, Hinge

35 489048 Screw, Ground

8−32 X 1/2

38 348689 Screw 8−18 X 3/4

39 489423 Screw 10−32X11/16

40 2185927 Holder, Scoop

41 8281228 Thumbscrew

42 3376439 Leg, Leveler

44 2929700B Top

45 2185690 Shield, Electrical

46 2185645 Gasket, Top Panel

47 2185571B Grill, Front

48 489474 Screw 8−18 X 1

49 Cabinet & Liner

(NOT SERVICED)

Parts Not Illustrated and

Optional Parts (Not Included)

8171307 Cleaner, Icemaker

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

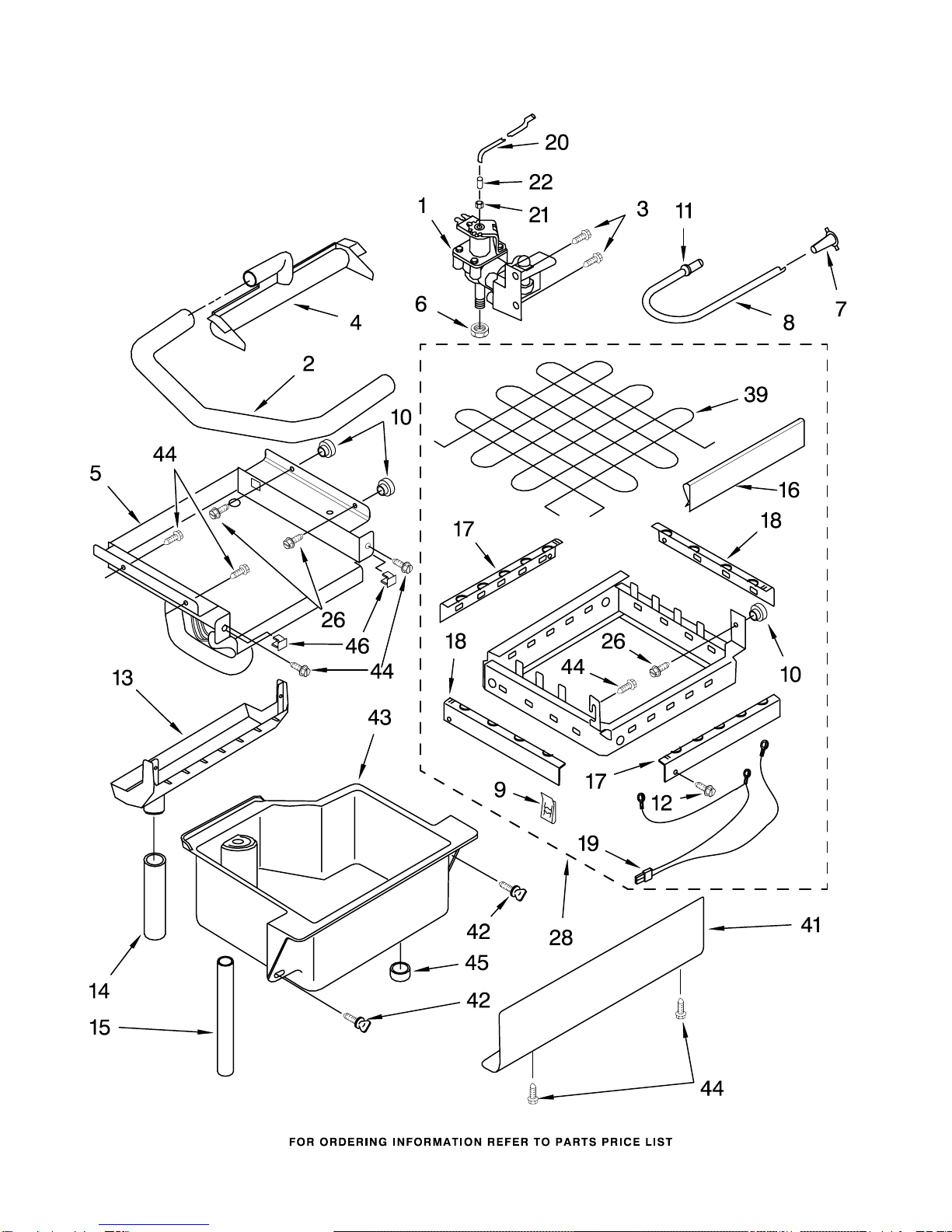

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

EVAPORATOR ICE CUTTER GRID AND WATER PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

Illus. Part

No. No. DESCRIPTION

1 2185758 Valve, Complete

Water

2 2217286 Tube, Plastic

3 488687 Screw 8−15 X 5/8

4 2185523 Dispenser, Water

W10218037

Evaporator

6 627018 Nut, Compression

7 841707 Insert, Tube

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener,

Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2185673 Hose, Overflow

16 2217310 Guide−Ice, Grid

17 2185615 Bracket, Front

and Rear

18 2185611 Bracket, Side

Left and Right

19 2185681 Harness, Grid

20 2208533 Tube

21 487857 Nut−Ball, Sleeve

22 487627 Ball Sleeve

26 3400886 Screw 8−18 X 1 1/4

28 2185614 Grid Assembly

(Complete)

39 2174754 Wire, Grid Cutter

41 2185570 Cover, Grid

42 8281228 Thumbscrew

43 2185624 Reservoir, Water

44 3400884 Screw 8−18 X 5/8

45 2185696 Cap, Drain

46 3400909 Nut, Push−In

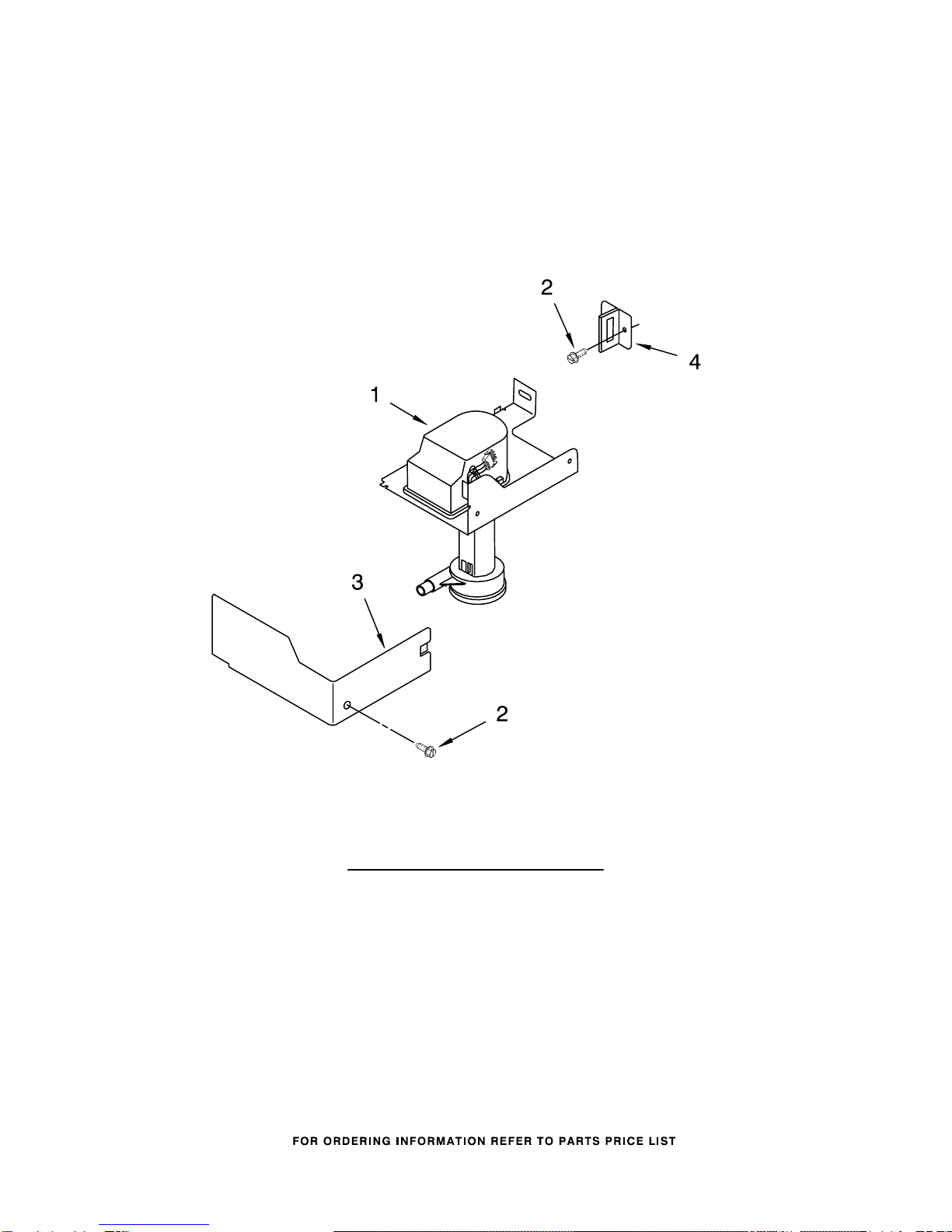

PUMP PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

Illus. Part

No. No. DESCRIPTION

1 2217220 Pump, Water

(Complete)

2 3400884 Screw 8−18 X 5/8

3 2185677 Cover, Pump

4 2185585 Bracket, Connector

Assembly

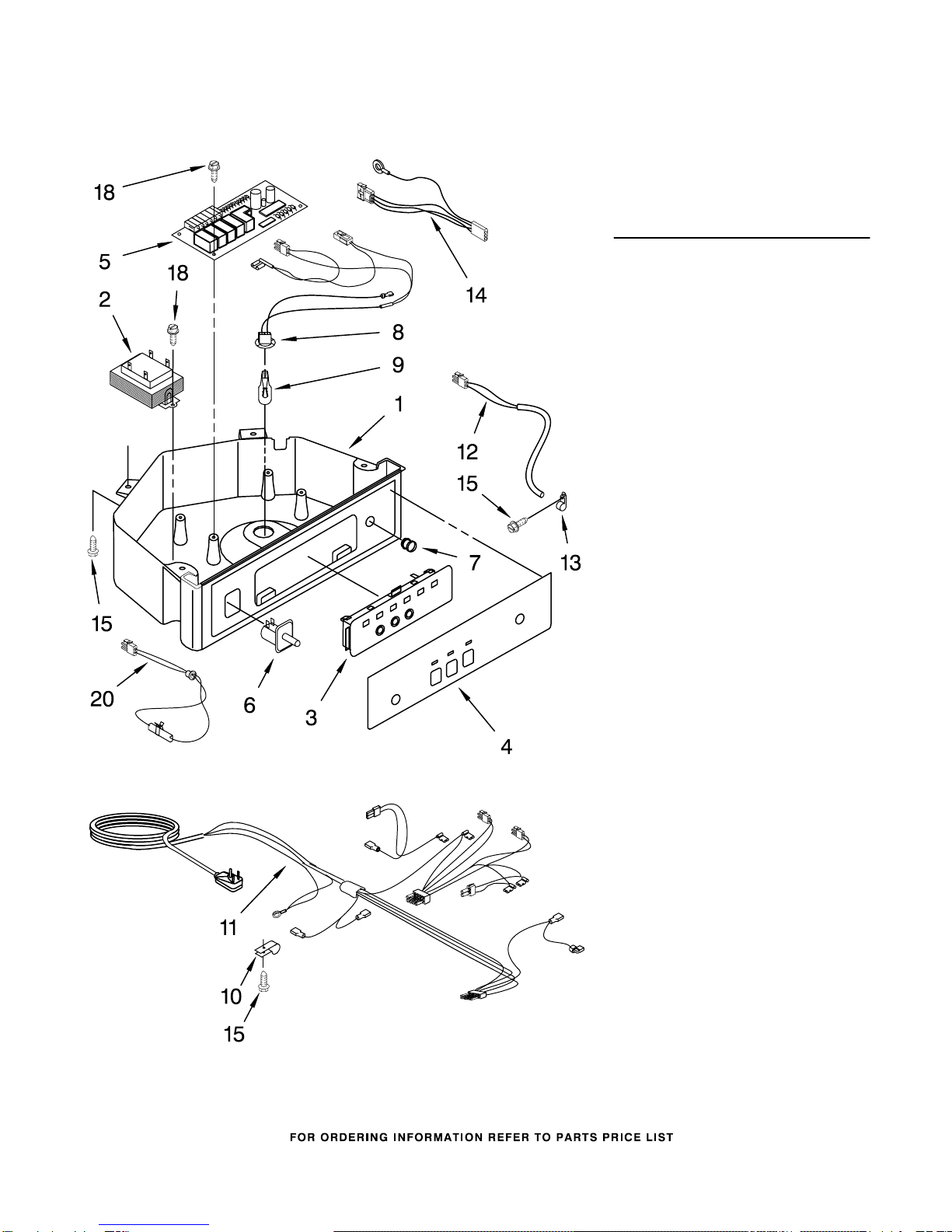

CONTROL PANEL PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2185657 Transformer

3 2185592 Assembly, Switch

(ALSO ORDER #4)

4 2208317W Overlay

5 6100499 P.C. Board

6 2149705 Switch, Plunger

7 2185694 Lens, LED

8 2185692 Wiring Harness

Grid/ Light

9 745362 Bulb

10 2185788 Clamp

11 2187286 Wiring Harness,

Complete Unit

(Includes

Power Cord)

12 2217288 Thermostat, Bin

13 2185825 Clamp

14 2185703 Wiring Harness,

Main to Pump,

15 3400884 Screw 8−18 X 5/8

18 3400850 Screw 8−16 X 3/8

20 2217289 Thermister,

Ice Control

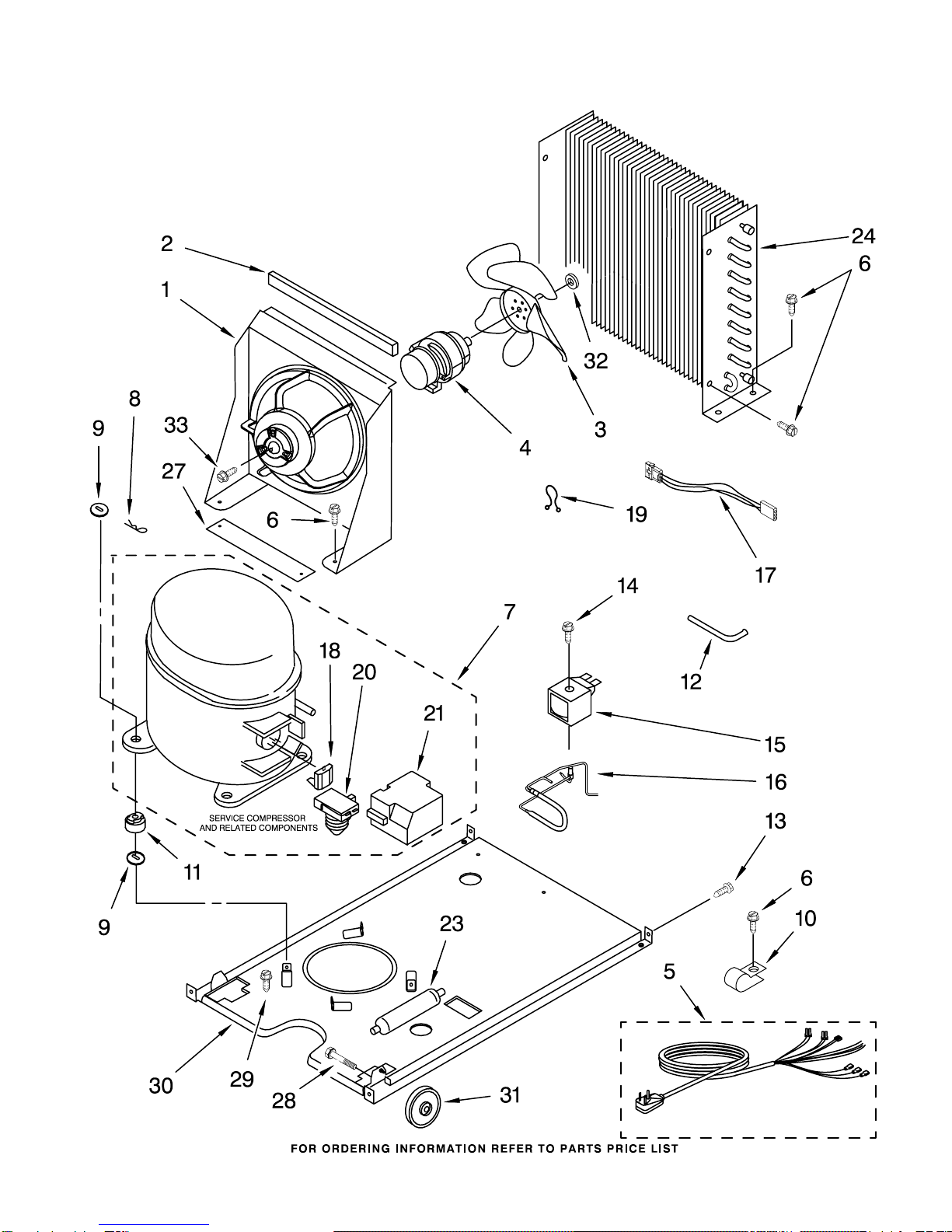

UNIT PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

UNIT PARTS

For Models: KUIS155HLS4

(STAINLESS STEEL)

8198398

Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2190685 Blade, Fan

4 2188537 Motor, Fan

5 Wiring Harness,

Complete Unit

(See #11 On

Control Panel

Parts Page)

6 304392 Screw 8−18 X 1/2

7 2208370 Compressor

8 A201435 Clip, Mounting

9 A201441 Shim (4)

10 2185960 Clamp (Power Cord)

11 2217318 Grommet (4)

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2208413 Valve, Body

17 2187267 Wiring Harness,

Condenser Fan

18 2217223 Overload

19 2217322 Twist Loc

20 2217224 Relay, Start

21 2208371 Cover, Terminal

23 2209223 Drier

24 2185529 Condenser

27 2185858 Pad, Foam (2)

28 3370389 Screw 10−32X15/16

29 488500 Screw, Ground

8−32 X 3/8

30 2185511 Base, Unit

31 302819 Wheel

32 486692 Nut, Speed

33 489494 Screw 8−32 X 3/4

REFRIGERANT CHARGE

6.5 OZ. (R134A)
