CABINET LINER AND DOOR PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

5−09 Litho In U.S.A. (djc) (eeb) Part No. 8199452

ICE CUBE

MAKER

CABINET LINER AND DOOR PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2217404 Use & Care Guide

2313728 Service &

Wiring Sheet

2 3400886 Screw 8−18 x 1 1/4

3 2185742 Bin, Door

4 2185678 Spacer

5 2217394 Cover, Wiring

6 489442 Screw

7 Door

2932803W White

2932803T Biscuit

2932803B Black

2932803BS

Stainless Steel

8 2185695 Cam, Door

9 2217393 Assembly,

Magnetic Catch

10 941839 Plug, Hole

11 8533996 Tube Clamp

12 2189000 Hole Plug,

Handle

13 2217367 Gasket, Bottom

14 489503 Clamp

15 2217294 Gasket, Door

16 2185640 Sleeve, Hinge

17 Nameplate

2212760 White

2212761 Biscuit

2212762 Black

18 2185710 Hinge, Top

19 2185709 Shim, Hinge

20 Handle, Door

2208492W White

2208492T Biscuit

2208492B Black

21 692400 Nut, Push−In

22 2185730 Assembly,

Unit Cover

23 Screw

8281188 White

8281187 Biscuit

8281186 Black

24 Filler, Endcap

Left Side

2185655W White

2185655T Biscuit

2185655B Black

Right Side

2185656W White

2185656T Biscuit

2185656B Black

25 2185756 Pad, Foam

26 2185691 Channel, Wiring

27 3400240 Nut,

Leg Leveler

28 2185989 Tube, Drain

29 585158 Scoop

30 3400884 Screw 8−18 x 5/8

33 2185711 Hinge, Bottom

34 2185712 Pin, Hinge

35 489048 Screw, Ground

38 348689 Screw 8−18 x 3/4

39 489423 Screw

40 2185927 Holder, Scoop

41 8281228 Thumbscrew

42 3374849 Leg, Leveler (4)

44 Top

2929700W White

2929700T Biscuit

2929700B Black

45 2185690 Shield, Electrical

46 2217293 Gasket, Top Panel

47 Grill, Front

2185571W White

2185571T Biscuit

2185571B Black

48 489474 Screw 8−18 x 1

49 Cabinet & Liner

(NOT SERVICED)

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

EVAPORATOR ICE CUTTER GRID AND WATER PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

Illus. Part

No. No. DESCRIPTION

1 2185758 Valve, Complete

Water

2 2217286 Tube, Plastic

3 488208 Screw

4 2185523 Dispenser, Water

5 Evaporator

6 627018 Nut, Compression

7 841707 Insert, Tube

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener,

Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2185673 Hose, Overflow

16 2313604 Guide−Ice, Grid

17 2313603 Bracket, Front

and Rear

18 2313602 Bracket, Side

Left and Right

19 2185681 Harness, Grid

22 2208533 Tube

23 487627 Ball Sleeve

24 487857 Nut, Ball Sleeve

26 3400886 Screw 8−18 x 1 1/4

28 2313601 Grid Assembly

(Complete)

29 2174754 Wire, Grid Cutter

30 2185570 Cover, Grid

31 8281228 Thumbscrew

32 8201653 Reservoir, Water

33 3400884 Screw 8−18 x 5/8

34 2185696 Cap, Drain

35 3400909 Nut, Push−In

W10218037

PUMP PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

Illus. Part

No. No. DESCRIPTION

1 2217220 Pump, Water

(Complete)

2 3400884 Screw 8−18 x 5/8

3 2185677 Cover, Pump

4 2185585 Bracket, Connector

Assembly

CONTROL PANEL PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

Illus. Part

No. No. DESCRIPTION

1 2185738 Box, Control

2 2185657 Transformer

3 2185592 Assembly, Switch

(ALSO ORDER #4)

4 2208317W Overlay

5 2304016 Control Board

6 2149705 Switch, Plunger

7 2185694 Lens, LED

8 2185692 Wiring Harness

Grid/ Light

9 745362 Bulb

12 2313633 Thermostat, Bin

13 2185825 Clamp

14 2187836 Wiring Harness,

Main to Pump

15 3400884 Screw

18 3400850 Screw 8−16 x 3/8

20 2313635 Thermister,

Ice Control

UNIT PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

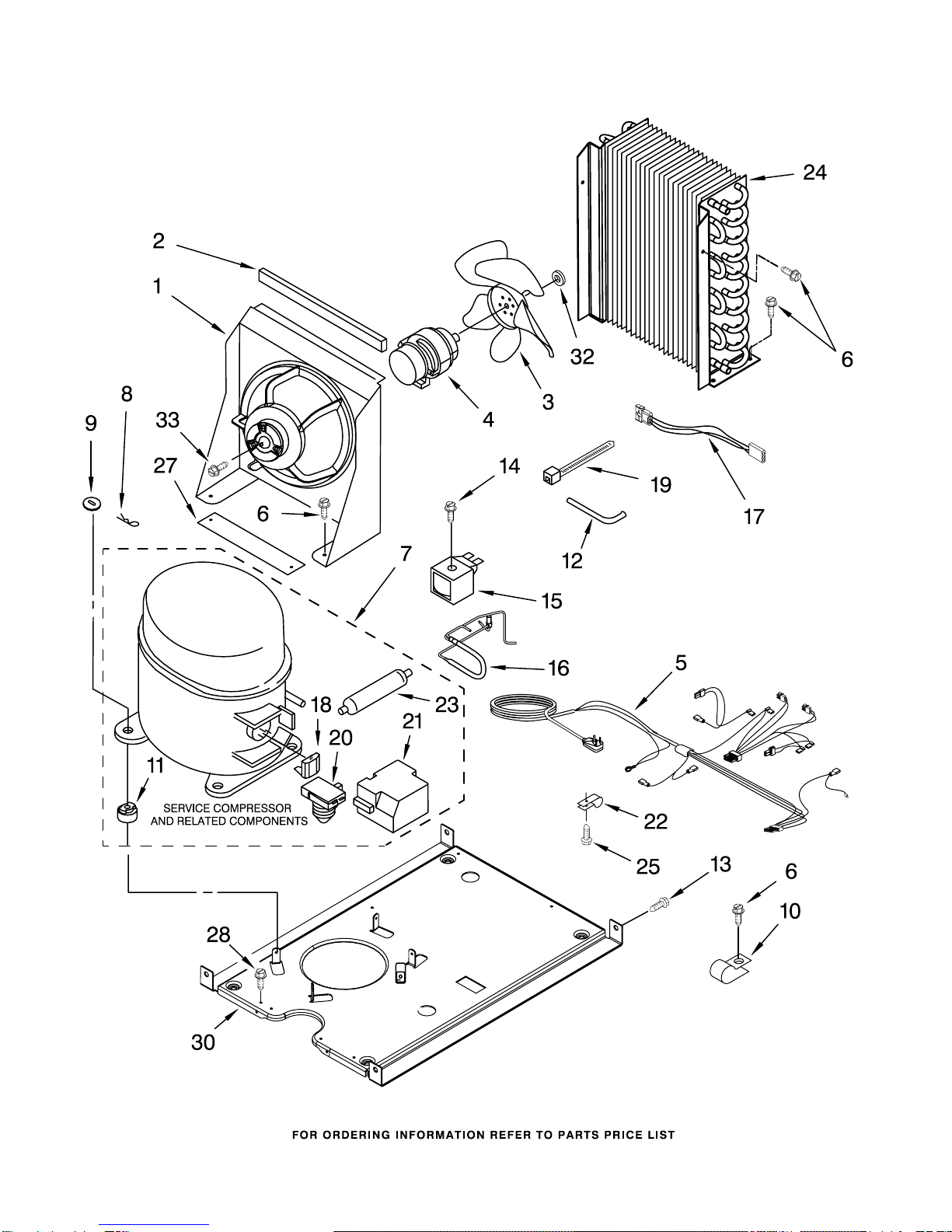

UNIT PARTS

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

8199452

Illus. Part

No. No. DESCRIPTION

1 2217434 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2190685 Blade, Fan

4 2188537 Motor, Fan

5 2313636 Wiring Harness,

Complete Unit

(Includes

Power Cord)

6 304392 Screw 8−18 x 1/2

7 2208370 Compressor

(Includes

Illus. 11,18,

20,21 & 23)

8 A201435 Clip, Mounting

9 A201441 Shim (4)

10 2185960 Clamp (Power Cord)

11 Grommet (4)

2217318 Production

4387558 Service

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2208413 Valve, Body

17 2187835 Wiring Harness,

Condenser Fan

18 Overload

2217223 Production

4387938 Service (Includes Relay)

19 2155774 Strap

20 Relay, Start

2217224 Production

4387938 Service

(IncludesOverload)

21 Cover, Terminal

2208371 Production

4387731 Service

22 2185788 Clamp

23 Drier

2209223 Production

4387019 Service

24 2217398 Condenser

25 3400884 Screw

27 2217397 Pad, Foam (2)

28 488500 Screw

30 2217388 Base, Unit

32 486692 Nut, Speed

33 489494 Screw 8−32 x 3/4

REFRIGERANT CHARGE

6.5 OZ. (R134A)

OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KUIS15NRHW7, KUIS15NRHT7, KUIS15NRHB7, KUIS15NRHS7

(White) (Biscuit) (Black) (Stainless Steel)

Parts Not Illustrated and

Optional Parts (Not Included)

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

8199452
