CABINET LINER AND DOOR PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

5−09 Litho In U.S.A. (rrm)(bay) Part No. W10165860 Rev.A

ICE CUBE

MAKER

CABINET LINER AND DOOR PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2313814 Use & Care Guide

2324311 Service &

Wiring Sheet

2 3400886 Screw 8−18 x 1 1/4

3 2185742 Bin, Door

4 2185678 Spacer

5 2217394 Cover, Wiring

6 489442 Screw

7 2932803B Door

8 2185695 Cam, Door

9 2217393 Assembly,

Magnetic Catch

10 941839 Plug, Hole

11 2189000 Hole Plug,

Handle

12 2313816 Wrap, Door

13 2217367 Gasket, Bottom

14 692400 Nut, Push−In

15 2217294 Gasket, Door

16 2185640 Sleeve, Hinge

W10046610

Nameplate

18 2185710 Hinge, Top

19 2185709 Shim, Hinge

20 9872207S Handle, Door

21 8281186 Screw

W10136199

Assembly,

Unit Cover

24 Filler, Endcap

2185655B Left Side

2185656B Right Side

25 2185756 Pad, Foam

26 2185691 Channel, Wiring

27 2185964 Grommet,

Edge Guard (2)

28 3400240 Nut,

Leg Leveler

29 585158 Scoop

30 3400884 Screw 8−18 x 5/8

31 3400237 Screw 10−32 x 3/8

33 2185711 Hinge, Bottom

34 2185712 Pin, Hinge

35 489048 Screw, Ground

8−32 x 1/2

36 2208367 Clamp

37 8281265 Screw

38 348689 Screw 8−18 x 3/4

39 489423 Screw

40 2185927 Holder, Scoop

41 8281228 Thumbscrew

42 3374849 Leg, Leveler(4)

43 2217467 Tube, Air Vent

44 2929700B Top

45 2185690 Shield, Electrical

46 2217293 Gasket, Top Panel

47 2185571B Grill, Front

48 489474 Screw 8−18 x 1

49 Cabinet & Liner

(NOT SERVICED)

50 489505 Clamp

51 2155774 Strap

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

EVAPORATOR, ICE CUTTER GRID AND WATER PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

Illus. Part

No. No. DESCRIPTION

W10159841

Valve, Complete

Water

2 2217286 Tube, Plastic

3 488208 Screw

4 2185523 Dispenser, Water

W10218037

Evaporator

6 2313705 Pump Reservoir

Drain

7 2313851 Tube, Reservoir

Pump

8 2172593 Tube, Water Fill

9 488660 Nut, Speed

10 836667 Spacer

11 2208539 Fastener,

Pushnut

12 489443 Screw

13 2185625 Reservoir,

Water Slide

14 2185626 Tube

15 2313890 Hose, Overflow

16 2313604 Guide−Ice Grid

17 2313603 Bracket, Front

and Rear

18 2313602 Bracket, Side

Left and Right

19 2185681 Harness, Grid

W10136146

Tube

21 2310169 Wire Assembly

Valve

26 3400886 Screw 8−18 x 1 1/4

28 2313637 Grid Assembly

(Complete)

29 2174754 Wire, Grid Cutter

30 2185570 Cover, Grid

31 8281228 Thumbscrew

32 2324334 Reservoir, Water

33 3400884 Screw 8−18 x 5/8

34 2185696 Cap, Drain

35 3400909 Nut, Push−In

PUMP PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

Illus. Part

No. No. DESCRIPTION

1 2313628 Pump Recirculating

2 3400884 Screw 8−18 x 5/8

3 2185677 Cover, Pump

4 2313844 Bracket, Connector

Assembly

5 2313627 Bracket−Pump

6 2313643 Sensor−Water Level

8 2310092 Wiring Harness

Main To Pump

9 2313702 Pump Assembly

CONTROL PANEL PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

Illus. Part

No. No. DESCRIPTION

W10139127

Box, Control

2 2310139 Transformer

3 2304122 Assembly, Switch

(ALSO ORDER #4)

4 2313693 Overlay

W10122069

Control Board

6 2149705 Switch, Plunger

Grid/Light

7 2187585 Wire Assy−Active

Overlay Jumper

9 745362 Bulb

12 2313633 Thermostat, Bin

13 2185825 Clamp

15 3400884 Screw 8−18 x 5/8

18 3400850 Screw 8−16 x 3/8

20 2313635 Thermister,

Ice Control

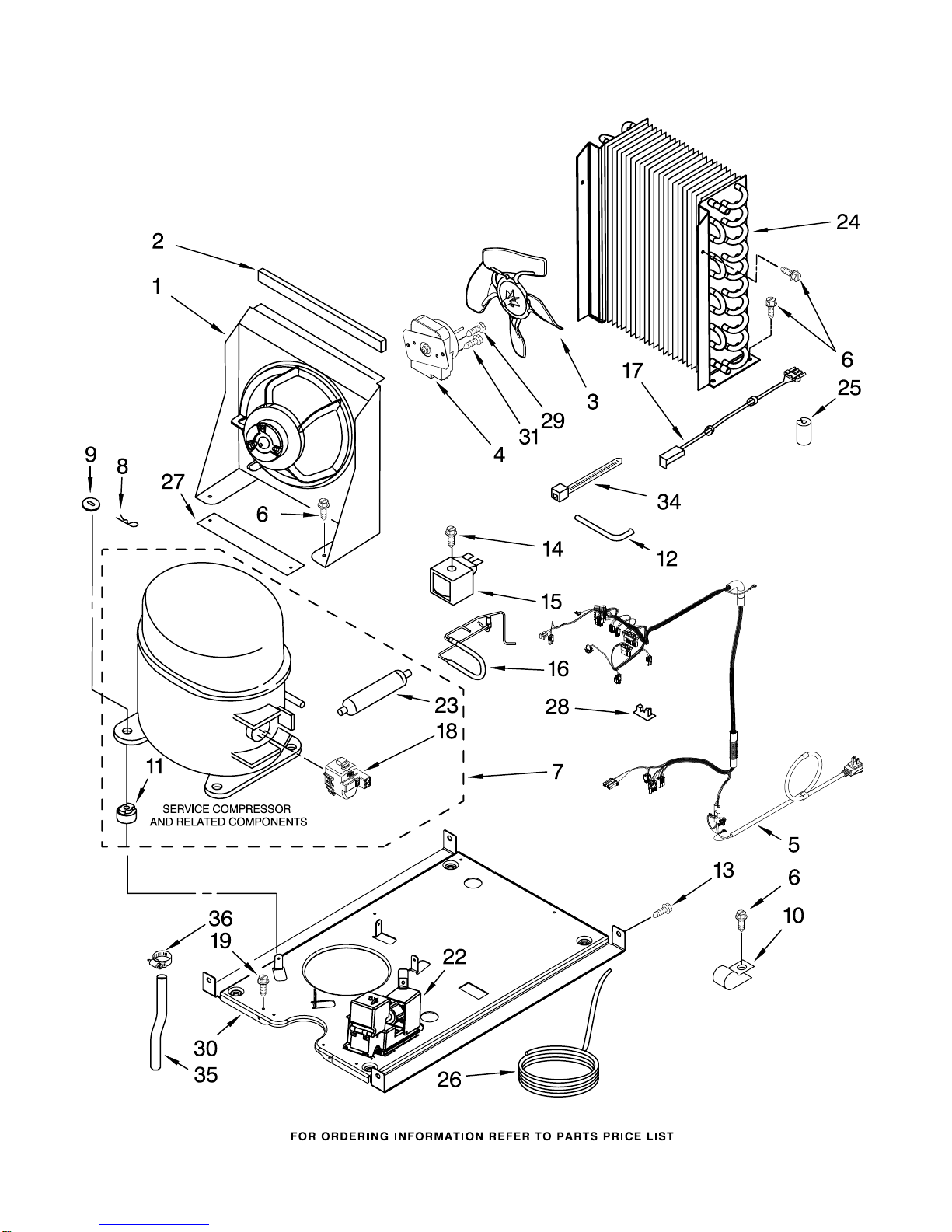

UNIT PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

UNIT PARTS

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 2185532 Bracket, Fan Mtg.

2 2185675 Pad, Foam

3 2188935 Blade, Fan

4 2315558 Motor & Mounting

Plate Assembly

W10139121

Wiring Harness,

Complete Unit

(Includes

Power Cord)

6 304392 Screw 8−18 x 1/2

W10136195

Compressor

(Includes

Illus. 11 & 23)

8 A201435 Clip, Mounting

9 A201441 Shim (4)

10 2185960 Clamp (Power Cord)

11 Grommet (4)

2217318 Production

4387558 Service

12 2208415 Tube, Process

13 489423 Screw

14 489472 Screw

15 759112 Coil, Solenoid

16 2313806 Hot Gas Valve

17 2187629 Wiring Harness,

Condenser Fan

W10136197

Start Relay

& Overload

Combo Device

19 488500 Screw

22 2208534 Pump, Drain

23 Drier

2319826 Production

4387019 Service

24 2313624 Condenser

25 2319835 Grommet−Cond.(1)

26 2208432 Tube, Drainage

27 2217397 Pad, Foam (2)

28 1115375 Clip−Wiring

29 8281197 Screw

30 2217388 Base, Unit

31 8281196 Screw

34 851095 Wire Tie

35 2185672 Tube, Drain

36 489503 Clamp

REFRIGERANT CHARGE

6.5 OZ. (R134A)

OPTIONAL PARTS (NOT INCLUDED)

For Models: KUIC15PLTS1

(Stainless−Pump Model)

W10165860

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

503695 Sealer, Cork

(1/4 Pound)

797403 Cement, Insulation

(1 Oz.)

505587 Sealer, Mastic

(1 Qt.)

212643 Sealer, Gum

(22 Pcs. 3/16" x 7")

479976 Kit, Insulation

(5 Pcs. 3" x 24"

x 48")

8537055 Cleaner,

Stainless Steel

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

ACCESSORIES

Previous Architect

Series Handle Kit

2217442S Stainless Steel
