KitchenAid KUIS18PNTB - 18" 50 lb. Icemaker User manual
CABINET LINER AND DOOR PARTS
1
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
09−10 Litho In U.S.A. (mjb)(bay) Part No. W10347334 Rev.A
ICE CUBE
MAKER
CABINET LINER AND DOOR PARTS
2
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10206425
Use & Care Guide
W10206442
Service &
Wiring Sheet
2 3400886 Screw 8−18 x 1 1/4
3 2208354 Bin, Door
4 2185678 Spacer
5 2217394 Cover, Wiring
6 489442 Screw
7 Panel, Exterior
2208352W White
2208352B Black
8 2217298 Panel, Interior
10 2208377 Insulation
11
W10218024
Ballast−Back, I.M.
13 Bracket, Door
2217466 (Left Side)
2217465 (Right Side)
14 489503 Clamp
15 2217295 Gasket, Door
16
W10136142
Clip
17 Nameplate
W10243393
White
W10243392
Black
18 Hinge
2208425 (Left Side)
2208426 (Right Side)
19 2208401 Shim, Hinge
20 Handle, Icemaker
2208440W White
2208440B Black
22
W10136200
Assembly,
Unit Cover
23 Screw, Handle
8281188 White
8281186 Black
25 2217225 Pad, Foam
26 2185691 Channel, Wiring
27 Endcap, Door
2208350W White
2208350B Black
28 2208459 Tube, Drain
29 2208386 Scoop
30 3400884 Screw 8−18 x 5/8
31 692400 Nut, Push−In
32 Panel, Lower
2208382W White
2208382B Black
33 2208487 Bracket, Spring
34 2208417 Pin, Hinge
35 489048 Screw, Ground
36 2208480 Spring, Hinge
37 Endcap, Panel
2208383W White
2208383B Black
38 2208529 Dampener, Spring
39 489423 Screw
40 2208449 Holder, Scoop
42 3374849 Leg, Leveler (4)
43 2208384 Insulation
44 Top
W10320115
White
W10320113
Black
45 2185690 Shield, Electrical
46 2217296 Gasket, Top Panel
47 Grill, Front
2217206W White
2217206B Black
48 489474 Screw 8−18 x 1
49 Cabinet & Liner
(NOT SERVICED)
52 3400240 Nut,
Leg Leveler
53 2208434 Strike, Magnet
55 8281191 Screw
58 488208 Screw
59 2217467 Tube−Vent
60 2208367 Clamp−Half
61 8281265 Screw
62 489505 Clamp
3
EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
EVAPORATOR, ICE CUTTER GRID AND WATER PARTS
4
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
Illus. Part
No. No. DESCRIPTION
1
W10163596
Valve, Complete
Water
2 2217286 Tube, Plastic
3 488208 Screw
4 2185523 Dispenser, Water
5
W10218037
Evaporator
6 2313705 Pump, Drain
7 2313851 Tube, Reservoir
Pump
8
W10122016
Tube, Water Fill
9 488660 Nut, Speed
10 836667 Spacer
11 A201435 Clip
12 489443 Screw
13 2185625 Reservoir,
Water Slide
14 2185626 Tube
15 2313890 Hose, Overflow
16 2217378 Bracket−Reservoir
17 2313603 Bracket, Rear
W10136175
Bracket, Front
18 2313602 Bracket, Side
Left and Right
19 2185681 Harness, Grid
20 2208427 Support, Bracket
Evaporator/Grid
21 2313604 Guide, Ice Grid
22
W10218065
Tube
24 2310169 Wire Assembly
(Valve)
25 489420 Screw
26 3400886 Screw 8−18 x 1 1/4
28 2313637 Grid Assembly
(Complete)
29 2174754 Wire, Grid Cutter
30
W10136999
Screw
31 2208365 Cover, Grid
32 8281228 Thumbscrew
33 2324334 Reservoir, Water
34 3400884 Screw 8−18 x 5/8
35 2185696 Cap, Drain
36 3400909 Nut, Push−In
PUMP PARTS
5
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
Illus. Part
No. No. DESCRIPTION
1 2313628 Pump−Recirculating
2 3400884 Screw 8−18 x 5/8
3 2185677 Cover, Pump
4 2313844 Bracket, Connector
Assembly
5 2313627 Bracket−Pump
6 2313643 Sensor−Water Level
8 2310092 Wiring Harness
Main To Pump
9 2313702 Pump Assembly
6

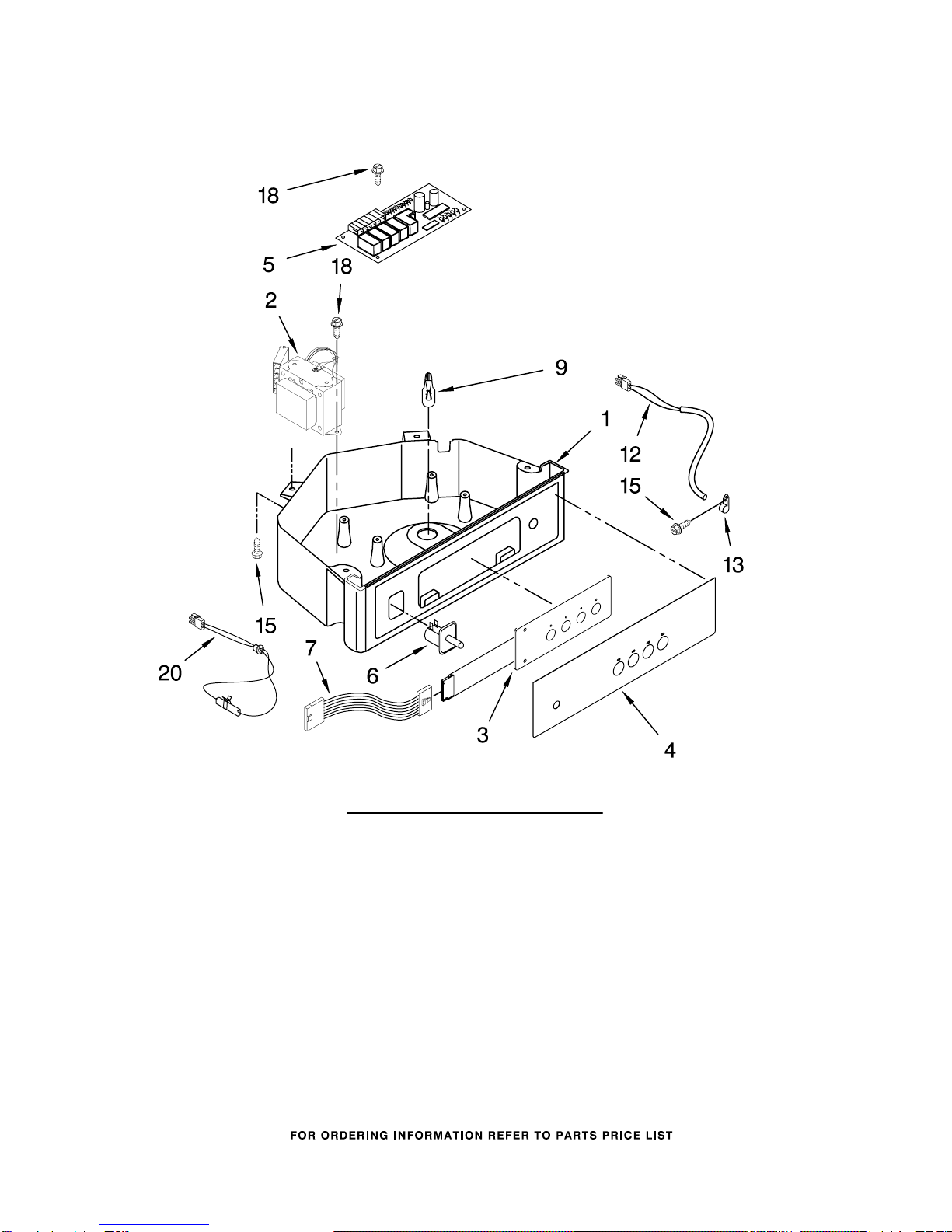

CONTROL PANEL PARTS
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
Illus. Part
No. No. DESCRIPTION
1 2185738 Box, Control
2 2310139 Transformer
3 2304122 Assembly, Switch
(ALSO ORDER #4)
4
W10206463
Overlay
5
W10226156
Control Board
6 2149705 Switch, Plunger
Grid/ Light
7 2187585 Wire Assy−Active
Overlay Jumper
9 745362 Bulb
12 2313633 Thermostat, Bin
13 2185825 Clamp
15 3400884 Screw 8−18 x 5/8
18 3400850 Screw 8−16 x 3/8
20 2313635 Thermister,
Ice Control

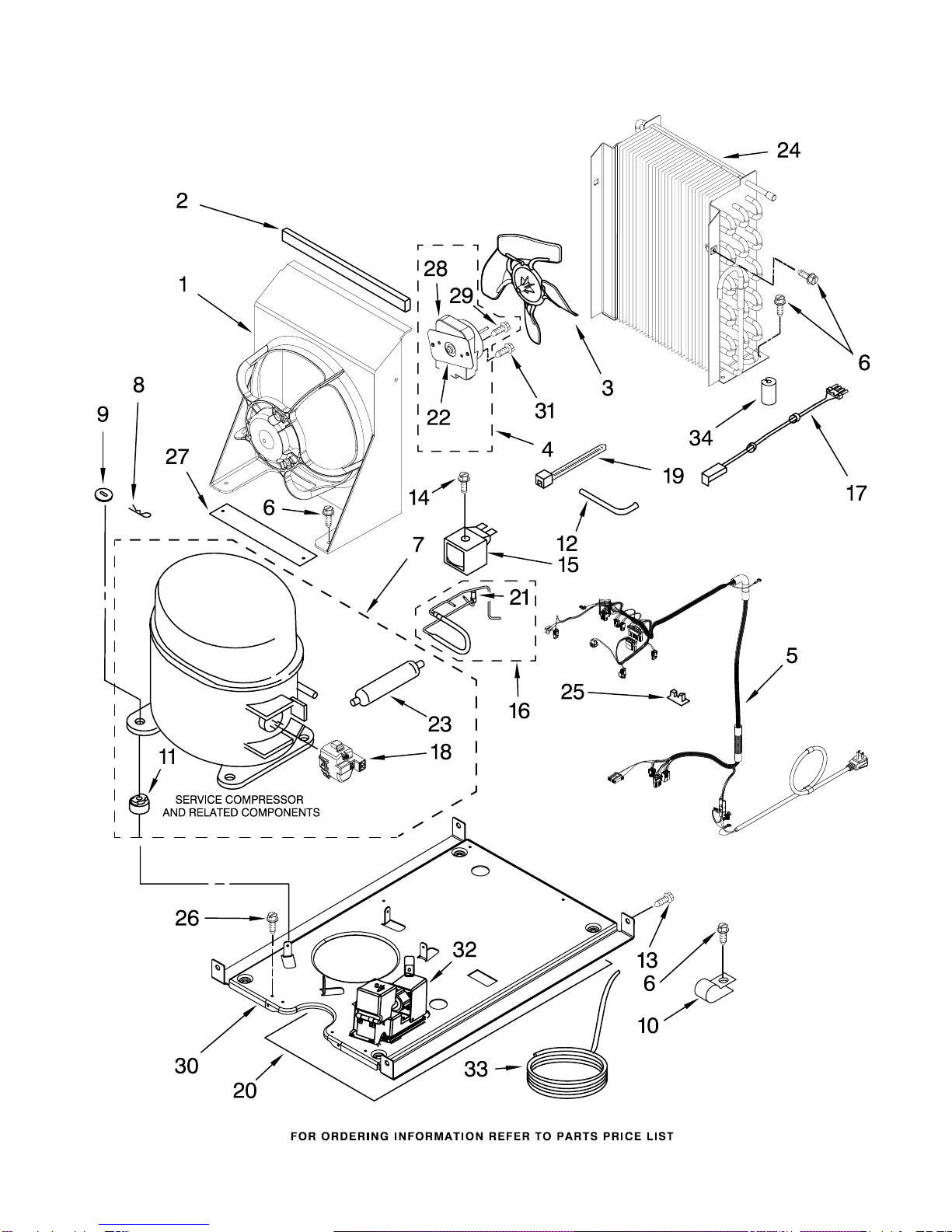

UNIT PARTS
7
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
UNIT PARTS
8
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
Illus. Part
No. No. DESCRIPTION
1 2185532 Bracket, Fan Mtg.
2 2185675 Pad, Foam
3 2188935 Blade, Fan
4 2315558 Motor & Mounting
Plate Assembly
5
W10193296
Wiring Harness,
Complete Unit
(Includes
Power Cord)
6 304392 Screw 8−18 x 1/2
7
W10136195
Compressor
(Includes
Illus. 11 & 23)
8 3405028 Clip, Mounting
9 A201441 Shim (4)
10 2185960 Clamp (Power Cord)
11 Grommet (4)
2217318 Production
4387558 Service
12 2208415 Tube, Process
13 489423 Screw
14 489472 Screw
15
W10206473
Coil, Solenoid
16 2313806 Hot Gas Valve
17 2187629 Wiring Harness,
Condenser Fan
18
W10136197
Start Relay
& Overload
Combo Device
19 2155774 Strap
20
W10282061
Heat Shield
21 759113 Solenoid Valve
22 2301979 Plate
23 Drier
2319826 Production
W10183199
Service
24 2313624 Condenser
25 1115375 Clip−Wiring
26 488500 Screw
27 2217397 Pad, Foam (2)
28 2188891 Motor
29 8281197 Screw
30 2217423 Base, Unit
31 8281196 Screw
32 2208534 Pump, Drain
33 2208432 Tube, Outlet
34 2319835 Grommet−Cond.(1)
REFRIGERANT CHARGE
6.5 OZ. (R134A)
OPTIONAL PARTS
9
For Models: KUIS18PNTW4, KUIS18PNTB4
(White) (Black)
W10347334
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
503695 Sealer, Cork
(1/4 Pound)
797403 Cement, Insulation
(1 Oz.)
505587 Sealer, Mastic
(1 Qt.)
212643 Sealer, Gum
(22 Pcs. 3/16" x 7")
479976 Kit, Insulation
(5 Pcs. 3" x 24"
x 48")
8537055 Cleaner,
Stainless Steel
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
