KitchenAid KBNS361TSS User manual

GRILL PARTS

KitchenAid

For Models: KBNS361TSS00, KBSS361TSS00

(Stainless Steel) (STLS w/Jacket)

12−07 Litho In U.S.A. (cre) Part No. W10133053 Rev.B

36" BUILT−IN GRILL

GRILL PARTS

For Models: KBNS361TSS00, KBSS361TSS00

(Stainless Steel) (STLS w/Jacket)

W10133053

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10110724

Use & Care Guide

W10110730

Conversion Instr.

(LP to Natural)

W10128619

Cover, Rear

W10133863

Panel, Rear

W10133867

Panel, Access

W10128634

Bracket, Panel

Left

W10128635

Bracket, Panel

Right

W10128636

Bracket, Warming

Rack

W10128637

Cover, Access

Panel

W10128638

Clip, Wire

W10133868

Hood Assy

W10128640

Hole Plug

W10132699

Panel, Side Left

W10128644

Bracket, Grease

Tray (Right)

W10128655

Roller, Drip Tray

W10133870

Drip Tray Assy

(Includes Rollers)

W10128657

Bracket, Grease

Tray (Left)

W10128669

Transformer

W10132690

Cover, Wire

Terminal

19 Bushing

W10132691

Plastic (#SB22)

W10132692

Plastic (#SB19)

W10133869

Outlet,Transformer

W10133876

Harness, Wire

Light

W10128664

Cover, Igniter

W10128665

Igniter

W10128751

Nameplate

W10128753

Knob, Main Burner

W10128756

Knob, Rear Burner

W10128759

Bezel, Knob

W10128761

Switch, Light

W10128762

Panel, Control

W10128763

Harness, Wire

Control

W10128764

Valve, Main Brnr

W10128766

Valve, Rear Brnr

W10128767

Igniter, Main Gas

W10133871

Manifold

W10133873

Baffle, Front

36 Electrode

W10128770

Main Burner

W10133874

Main Burner

W10133875

Main Burner

W10132700

Side Panel, Right

W10132701

Flange (RT)

W10132697

Bracket, Flange

W10128777

Thermometer

W10128779

Bezel, Thermometer

W10128780

Insulator,

Thermometer(Small)

W10128782

Insulator,

Thermometer(Large)

W10133877

Handle, Hood

W10128785

Endcap, Handle

(Left)

W10128786

Spacer, Handle

W10128787

Endcap, Handle

(Right)

W10128788

Hinge, Lid

W10133878

Hood

W10128715

Box, Battery

W10128711

Cover, Battery

Box

W10132698

Washer

W10132696

Flange (LF)

W10132694

Brkt,Trnsfrmr(Top)

W10132695

Brkt,Trnsfrmr(Btm)

W10132702

Regulator (NG)

W10128747

Fixture,Manifold

W10128748

Connector (Brass)

W10128749

Base, Manifold

Fixture

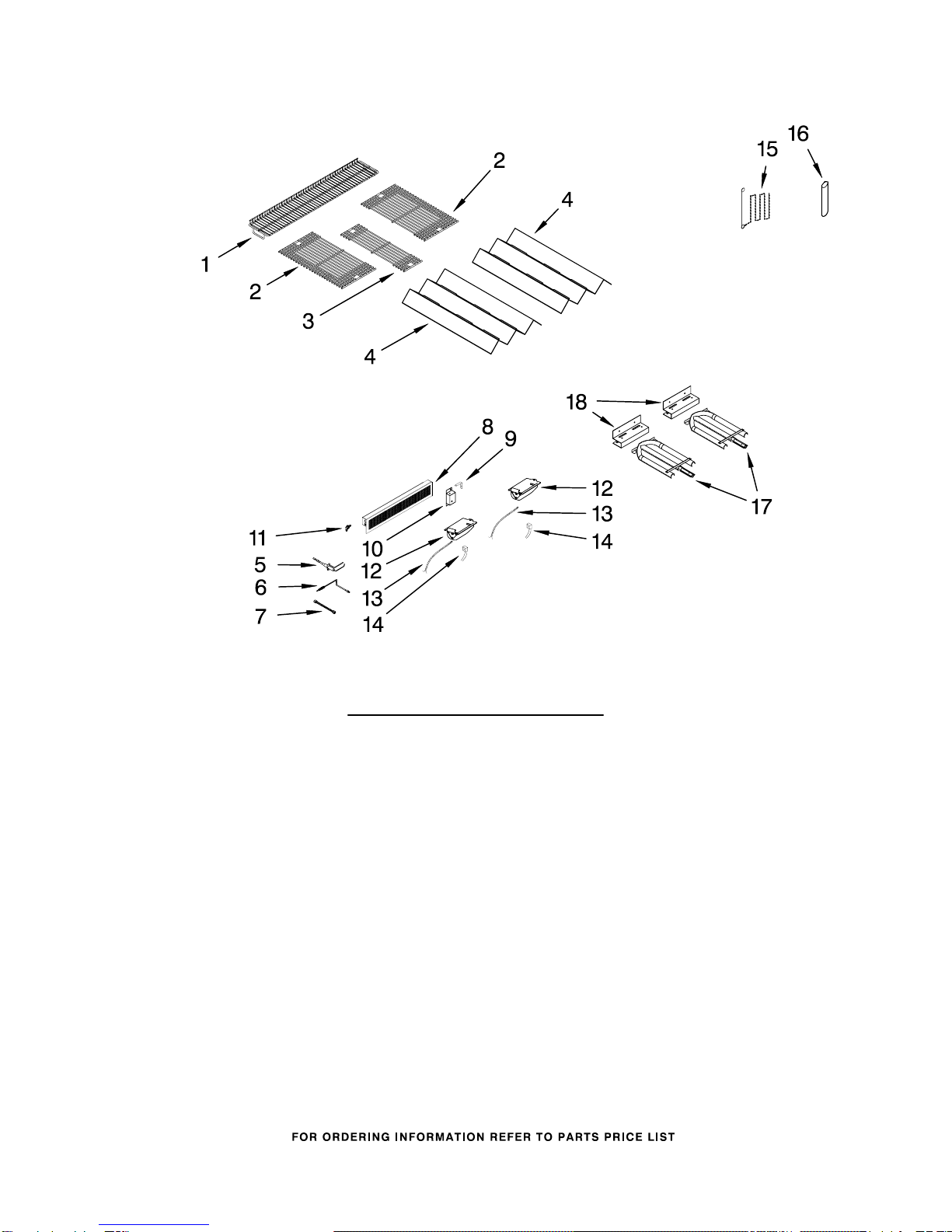

BURNERS, GRATES, AND LIGHTS PARTS

For Models: KBNS361TSS00, KBSS361TSS00

(Stainless Steel) (STLS w/Jacket)

W10133053

Illus. Part

No. No. DESCRIPTION

W10133859

Rack, Warming

W10133860

Rack, Large

W10133862

Rack, Small

W10128618

Plate, Sear

W10128621

Electrode, Rear

W10128622

Thermocouple,

Rear Burner

W10128623

Flex Tube,

Rear Burner

W10133864

Burner, Rear

W10128625

Bracket, Rear

Thermocouple

W10128626

Cover, Rear

Thermocouple

W10128627

Orifice, Rear

Burner

W10128628

Light, Grill

W10133866

Light, Grill(Set)

W10133865

Socket, Light

W10128704

Rod, Lighting

W10128703

Bag, Lighting Rod

W10128775

Burner, Main

W10128776

Bracket,Main Brnr

OPTIONAL PARTS

For Models: KBNS361TSS00, KBSS361TSS00

(Stainless Steel) (STLS w/Jacket)

W10133053

Illus. Part

No. No. DESCRIPTION

Miscellaneous

4396540 Altitude 2K−5K LP

4396541 Altitude 5K−8K LP

4396542 Altitude 8K−10K LP

4396544 Altitude 2K−5K NG

4396545 Altitude 5K−8K NG

4396546 ALtitude 8K−10K NG

W10118099

Conv.Kit (NG−LP)

W10118098

Conv.Kit(LP−NG)

KBDU271TSS

Smoker Box

KFKU361TSS

36" Rotiss. Kit

W10136977

36" Insulated

Jacket
