KitchenAid KUDS03FSBL1 User manual

DOOR AND PANEL PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

5−06 Litho in U.S.A. (ebk) Part No. 8194449

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8574116 Instructions,

Installation

8572292 Energy Guide

8574093 Guide, Use & Care

8572288 Guide, Consumer

Reference

8572216 Tech Sheet

8564958 DVD, Use & Care

2 Arm, Hinge

8534854 Left

8534853 Right

3 8564886 Stiffener, Door

4 8542577 Insulation, Door

5 Access Panel

8573255 Black

8573256 White

8573257 Biscuit

6 Panel, Full Front

(Includes Items

16 & 17)

W10021900

Black

W10021910

White

W10021920

Biscuit

W10021930

Stainless

8 Toe Panel

(Includes Item 11)

8558252 Black

8558253 White

8558254 Biscuit

9 Handle

W10021550

Black

W10021560

White

W10021570

Biscuit

W10021540

Stainless

10 8564951 Stud, Mounting

11 8268581 Insulation,

Toe Panel

12 302868 Screw

13 304392 Screw

14 8534008 Screw

15 3400071 Screw (2)

16 Nameplate

W10021860

Black

W10021870

White

W10021880

Biscuit

W10021850

Stainless

17 2004333 Nut

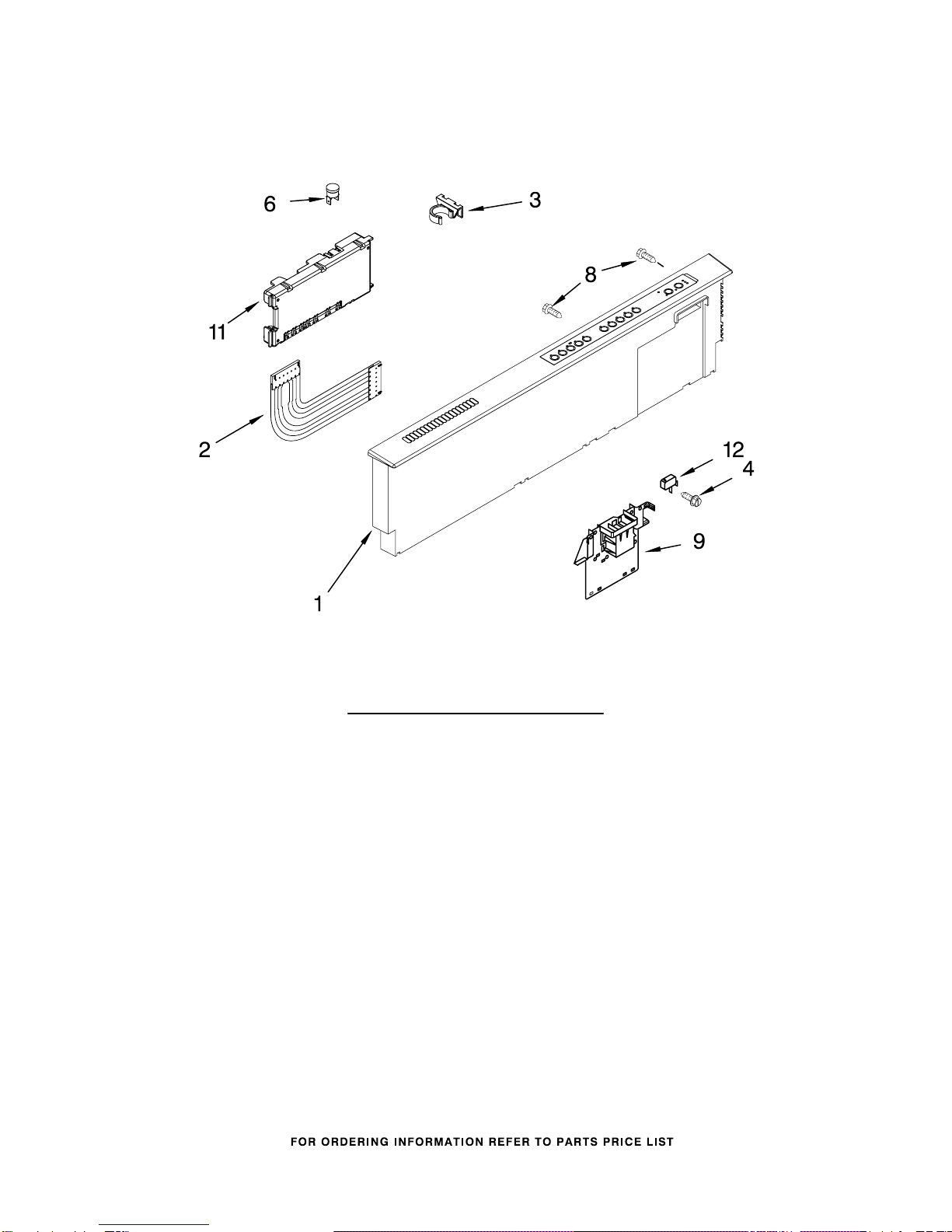

CONTROL PANEL PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION

1 Console Assembly

(Includes Insert)

8574137 Black

8574138 White

W10021940

Biscuit

8574139 Stainless

2 8564960 Cable, Ribbon

3 8546546 Clip, BI−Metal

4 3400412 Screw

6 661663 Fuse, Thermal

Electronic

8 3369051 Screw (6)

9 8270175 Latch Assembly

11 8562996 Control,

Electronic

12 8269209 Switch, Door

DOOR AND LATCH PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8530900 Inner Door

Mastic Assembly

(Also Order

Item 6)

4 8268937 Inlet, Air

5 8572611 Vent Assembly

(Also Order

Item 6)

6 8269259 Gasket, Vent

7 8545536 Deflector, Vent

(Also Order

Item 6)

8 8564772 Dispenser,

Assembly

9 8564929 Knob, Rinse Aid

10 8545608 Harness, Vent

Motor

12 8574060 Wiring Harness

13 8281154 Screw (6)

14 8535660 Seal,

Console/door

15 8535637 Bracket,

Dispenser

16 8531865 Shield,

Dispenser

LOWER WASHARM AND STRAINER PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION

1 8572307 Wash Arm Assembly

2 8268343 Cap, Internal

Rear Feed

(Also Order

Item 3)

3 8268340 Seal, Sprayarm

4 8268342 Hub, Lower

Sprayarm

(Also Order

Item 3)

HEATER PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION

1 8537057 Heater Element

Assembly

(Also Includes

Item 2)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

5 3400931 Retainer, Spring

Grip

NOTE:

If heater element is

removed, it must be replaced.

FILL AND OVERFILL PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION

1 8545946 Control, Overfil

Assembly

2 8531412 Hose, Inlet

3 8531325 Water Inlet

(Also Order

Item 4)

4 8531323 Gasket

5 8535151 Nut, Inlet

(Also Order

Item 4)

6 371505 Clamp, Hose

7 8563405 Fill Valve

Assembly

8 3400014 Screw

9 3378128 Washer

11 8268909 Switch, Overfill

Control

13 8531743 Gasket, Flat

14 9741998 Nut, Standpipe

15 8268895 Float & Retainer

Assembly

16 8268892 Lever, Overflow

Switch

TUB AND FRAME PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

TUB AND FRAME PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION

W10041750

Tub Assembly

2 8574123 Barrier, Moisture

Undercounter

3 8531629 Door Seal

4 8270119 Plug Tub (2)

5 8531022 Drain Loop

With Check Valve

7 8269110 Seal, Cabinet

8 8573061 Strain Relief

9 8270021 Mount, Door

Balance

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw (2)

13 3400924 Retainer, Push−in

14 3370389 Screw (2)

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 8524474 Wheel, door

Balance

18 8270182 Spring, Door

Balance

19 8545574 Absorber, Sound

20 3400892 Screw

21 8268991 Cover, Terminal

Box

24 8535568 Link, Door

Balance

25 8268587 Insulator, Sound

26 304666 Retainer, Push (2)

27 8269016 Clip, Grounding

28 8573239 Shield, Sound

Tub

29 9742648 Bracket,

Thermostat

30 661566 Thermostat

31 8269426 Strike, Latch

36 8559845 Actuator Assembly

37 8559843 Motor, Wax

48 356138 Clamp, Hose (1)

50 8269297 Miscellaneous

Parts Bag

(Includes 2 Screws

& 2 Hose Clamps)

PUMP AND MOTOR PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

PUMP AND MOTOR PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black) (White) (Biscuit) (Stainless)

8194449

Illus. Part

No. No. DESCRIPTION

1 8534952 Accumulator Assy

2 8283527 Shield, Motor

3 3400069 Screw

4 8572618 Sump With Seal

5 8268375 Check Valve, Sump

6 8268383 Chopper Assembly

7 9741232 Screw

8 8531857 Protector, Inlet

10 8535760 Motor Assembly

11 3400217 Screw

12 8268391 Screen, Separation

14 8572617 Sump & Motor

Assembly

(Includes

Item 15)

15 8269524 Tab, Sump

16 8533949 Nut

17 661662 Pump, Drain

18 8531019 Volute, Back

(Also Order

Items 23 & 30)

19 8269144 Hose, Drain

20 8535759 Motor

21 8268397 Seal, Volute

22 8531017 Impeller Kit

23 8268403 Face Seal Assembly

(Also Order

Item 30)

24 356138 Clamp, Hose

25 8563432 Optical Water

Indicator

26 8269507 Capacitor

27 8534946 Shield,

Capacitor

30 8531018 Washer
