KitchenAid KUDS01IJAL0 User manual

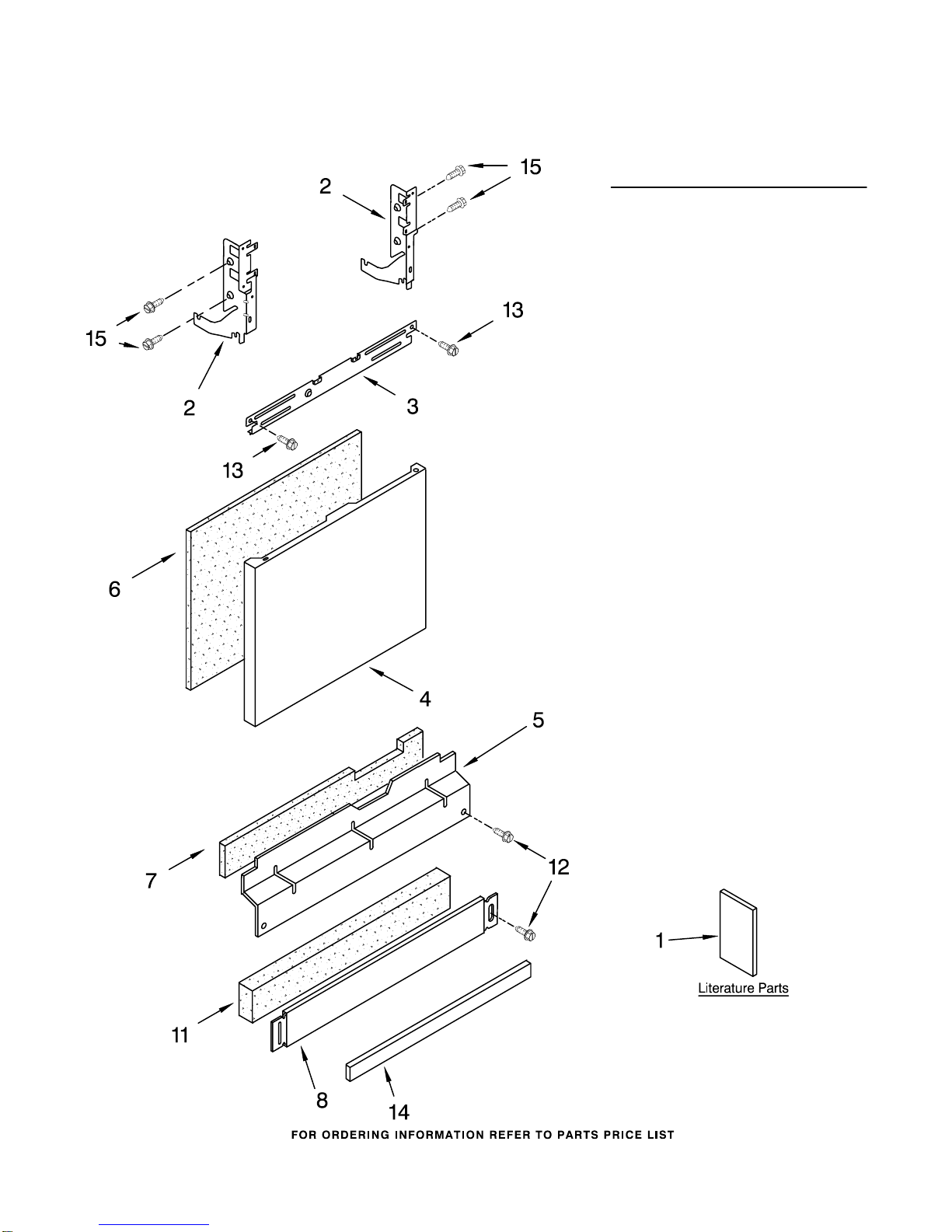

DOOR AND PANEL PARTS UNDERCOUNTER

DISHWASHER

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8524479

Instructions,

Installation

LIT8269911

Energy Guide

LIT8269904

Guide, Use & Care

Tech Sheet

LIT8269519

English

LIT8269520

French

2 Arm, Hinge

8269012 Left

8269011 Right

3 8268983 Stiffener,

Door

4 Panel Front

8269841 Black

8269842 White

8269843 Almond

8269844 Biscuit

8270064 Stainless

5 Access Panel

(Includes Item 7)

8269007 Black

8269008 White

8269010 Almond

8269009 Biscuit

6 8268580 Insulation, Door

7 8268584 Insulation,

Access Panel

8 Toe Panel

(Includes Item 11)

8269003 Black

8269004 White

8269006 Almond

8269005 Biscuit

11 8268581 Insulation,

Toe Panel

12 Screw

302868 Black

3400836 White

3400865 Biscuit/Almond

13 304392 Screw

14 9744140 Seal, Toe Panel

15 3400071 Screw (2)

01−05 Litho in U.S.A. (kdr) Part No. 8193521 Rev. B

CONTROL PANEL PARTS

28193521

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Console Asm.

includes Active

Overlay & Insert

8269136 Black

8269138 White

8269139 Almond

8269140 Biscuit

4 8268540 Spring, Handle

5 8524471 Actuator, Latch

6 8269213 Fuse, Thermal

Electronic

7 8269206 Display, Dual

Digit

8 3369051 Screw (6)

9 Handle, Latch

8269117 Black

8269167 White

8269169 Almond

8269168 Biscuit

10 8524476 Bolt, Latch

11 8528172 Control,

Electronic

12 8269209 Switch, Door

14 8268547 Shield

15 3400409 Screw

DOOR AND LATCH PARTS

8193521

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8269108 Inner Door

Mastic Assembly

(Also Order

Item 6)

4 8269266 Inlet, Air

5 8269251 Vent Assembly

(Also Order

6 8269259 Gasket, Vent

7 8269260 Deflector, Vent

(Also Order

Item 6)

8 8269996 Dispenser,

Assembly

(Also Order

Item 11)

9 8269258 Seal, Front

10 8269190 Dispenser,

Wiring Harness

11 8269189 Sensor, Rinse Aid

12 8269191 Wiring Harness

Main

13 8281154 Screw (6)

14 8269143 Seal,

Console/door

15 8269743 Bracket,

Dispenser

16 8268541 Shield,

Dispenser

17 8268933 Seal, Splash

Guard

LOWER WASHARM AND STRAINER PARTS

8193521

Illus. Part

No. No. DESCRIPTION

1 8268300 Wash Arm Assembly

2 8268343 Cap, Internal

Rear Feed

3 8268340 Seal, Sprayarm

4 8268342 Hub, Lower

Sprayarm

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

HEATER PARTS

8193521

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 8194200 Heater Element

Assembly

(Also Includes

Item 2 and

Electronic

Control)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

5 3400931 Retainer, Spring

NOTE:

If heater element is

removed, it must be replaced.

FILL AND OVERFILL PARTS

68193521

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 8268889 Control, Overfil

Assembly

2 8269242 Hose, Inlet

3 8269240 Water Inlet

Assembly

(Includes

Items 4 & 5)

4 8269241 Gasket

5 8269268 Bezel, Inlet

6 301958 Clamp, Hose

7 8268572 Fill Valve

Assembly

8 3400014 Screw

9 3378128 Washer

11 8268909 Switch, Overfill

Control

12 8268891 Standpipe,

Overfill

13 4161670 Gasket, Flat

14 9741998 Nut, Standpipe

15 8268895 Float & Retainer

Assembly

16 8268892 Lever, Overflow

Switch

TUB AND FRAME PARTS

8193521 7

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

TUB AND FRAME PARTS

8193521

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 8269105 Tub Assembly

(Also Order

Item 2)

2 8268395 Seal, Sump

3 8268888 Door Seal

4 8270119 Plug Tub (2)

5 8269112 Drain Loop

With Check Valve

7 8269110 Seal, Cabinet

9 8270021 Mount, Door

Balance

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw (2)

13 3400924 Retainer, Push−in

14 3370389 Screw (2)

15 8268977 Wheel Leg

16 3374849 Leveler, Leg

17 8524474 Wheel, door

Balance

18 8270020 Spring, Door

Balance

20 3400892 Screw

21 8268991 Cover, Terminal

Box

24 8270022 Link, Door

Balance

25 8268587 Insulator, Sound

26 304666 Retainer, Push (2)

27 8269016 Clip, Grounding

28 8268585 Shield, Sound

Tub

29 9742648 Bracket,

Thermostat

30 661566 Thermostat

31 8269111 Strike, Latch

32 9741232 Screw

46 8268477 Switch, Pressure

48 356138 Clamp, Hose (1)

PUMP AND MOTOR PARTS

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

8193521

PUMP AND MOTOR PARTS

8193521

For Models: KUDS01IJBL0, KUDS01IJWH0, KUDS01IJAL0, KUDS01IJBT0, KUDS01IJBS0

(Black) (White) (Almond) (Biscuit) (Stainless)

Illus. Part

No. No. DESCRIPTION

1 8268429 Accumulator Assy

2 8268529 Shield, Motor

3 3400069 Screw

4 8268382 Sump

5 8268389 Check Valve, Sump

6 8268383 Chopper Assembly

7 9741232 Screw

8 8268390 Protector, Inlet

9 8268427 Protector, Foreign

10 8268407 Motor Assembly

11 3400217 Screw

12 8268391 Screen, Separation

13 8268395 Seal, Sump

14 8268422 Sump & Motor

Assembly

15 8268432 Tab, Sump

16 3400921 Nut

17 8268411 Pump, Drain

18 8268405 Volute, Back

(Also Order

Item 23)

19 8269144 Hose, Drain

20 8268408 Motor And

Capacitor

21 8268397 Seal, Volute

22 8268398 Impeller Kit

23 8268403 Face Seal Assembly

24 356138 Clamp, Hose

25 8269208 Thermister

26 8269507 Capacitor

27 8269512 Shield, Capacitor

28 8269449 Shield, Drain

Pump

29 8269501 Shield, Pressure

Switch
