KitchenAid KUDP01FLBL1 Setup guide

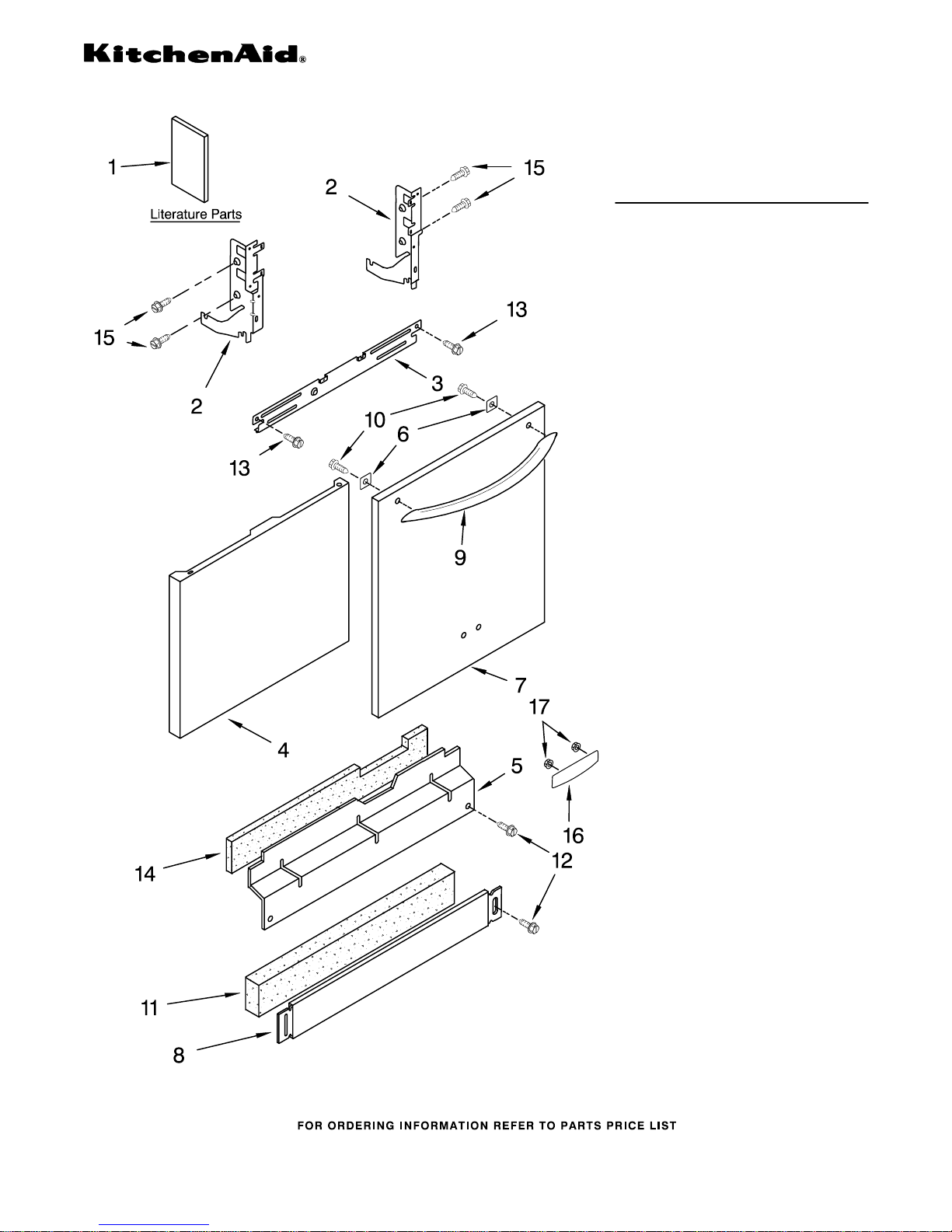

DOOR AND PANEL PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

UNDERCOUNTER

DISHWASHER

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8524480

Instructions,

Installation

LIT8531624

Energy Guide

LIT8531532

Guide, Use & Care

Tech Sheet

LIT8537797

English/French

2 Arm, Hinge

8534854 Left

8534853 Right

3 8268983 Stiffener,

Door

4 8524576 Panel Front

5 Access Panel

(Inculdes Item 14)

8269007 Black

8268995 White

8268996 Biscuit

6 9744437 Plate, Backing

7 Panel, Full Front

(Includes Items

16 & 17)

8531226 Black

8531227 White

8531228 Biscuit

8531225 Stainless

8 Toe Panel

(Includes Item 11)

8270026 Black

8269000 White

8269001 Biscuit

9 Handle

8524407 Black

8524408 White

8524409 Biscuit

9744438 Stainless

10 3400067 Screw

11 8268581 Insulation,

Toe Panel

12 Screw

302868 Black

3400836 White

3400865 Biscuit

13 304392 Screw

14 8268584 Insulation,

Access Panel

15 3400071 Screw (2)

16 Nameplate

2005292 Black

2209118W White

2209118T Biscuit

17 2004333 Nut

01−05 Litho in U.S.A. (rle) Part No. 8193812 Rev. B

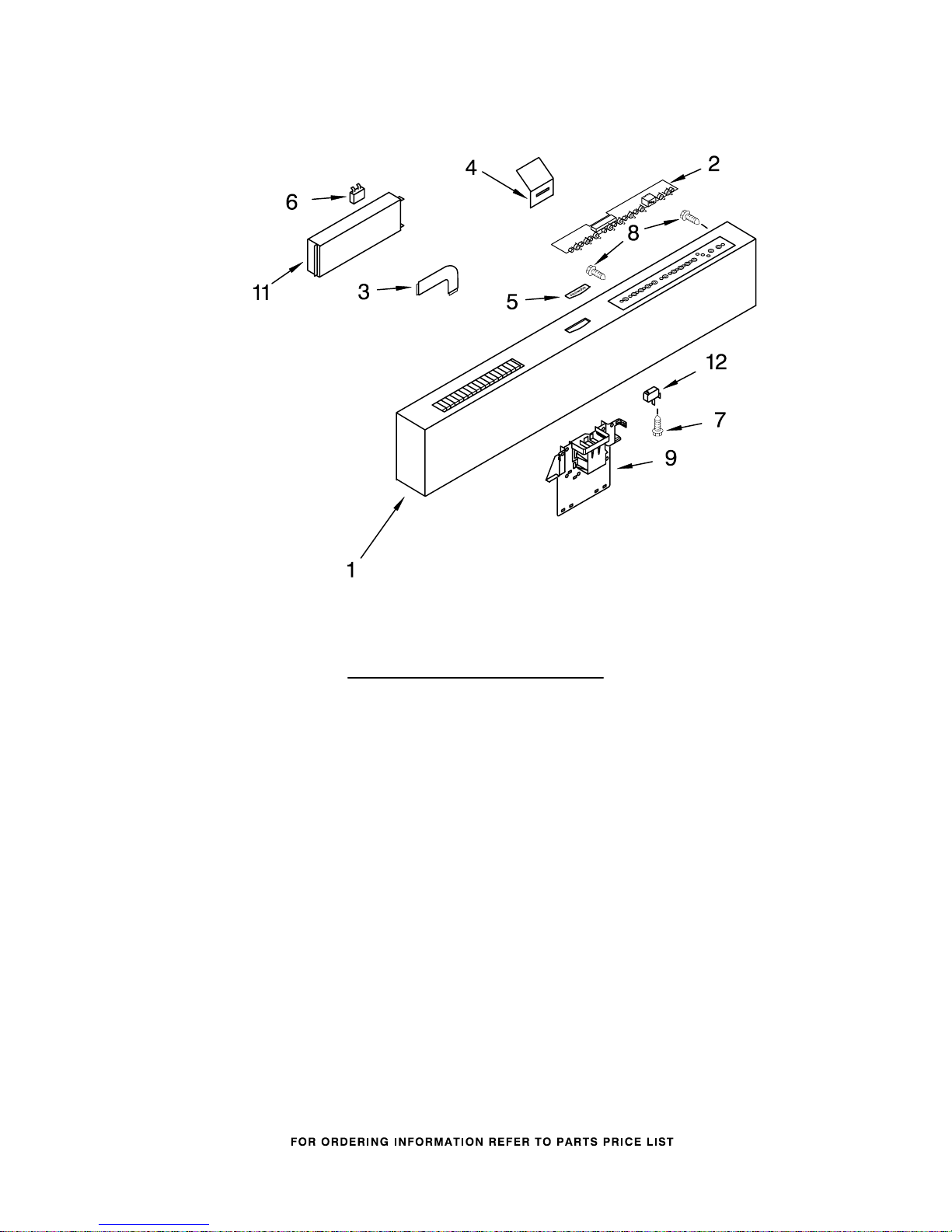

CONTROL PANEL PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION

1 8531536 Console Assembly

(Includes Insert

& Medallion)

2 8531262 User Interface

3 8524447 Ribbon Cable

4 8524547 Shield

5 8524426 Medallion

6 8269213 Fuse, Thermal

Electronic

7 3400412 Screw

8 3369051 Screw (4)

9 8270175 Latch Assembly

11 8534866 Control,

Electronic

12 8269209 Switch, Door

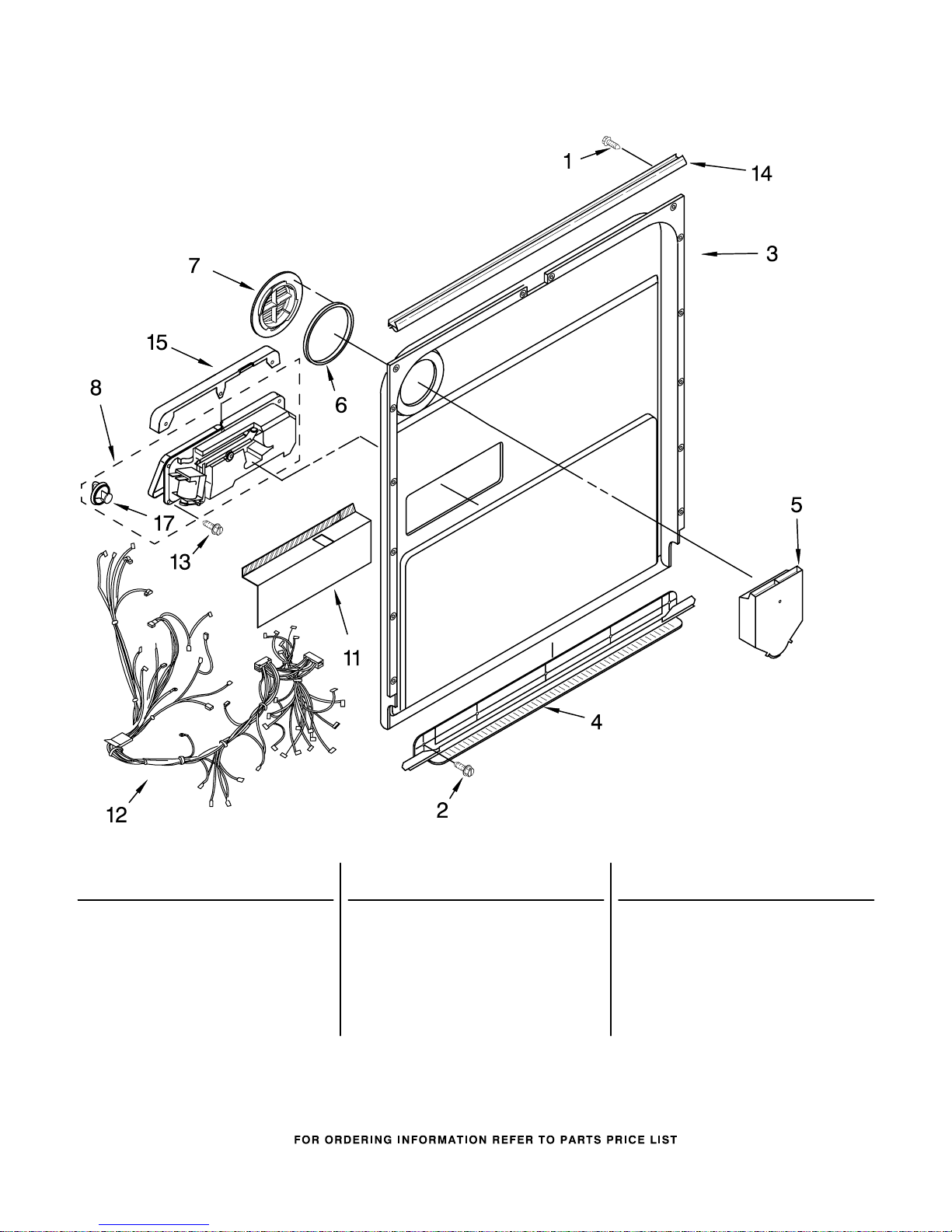

DOOR AND LATCH PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3369051 Screw, Door

2 8281217 Screw

3 8530900 Inner Door

Mastic Assembly

(Also Order

Item 6)

4 8268937 Inlet, Air

5 8270151 Vent Assembly

6 8269259 Gasket, Vent

7 8269260 Deflector, Vent

(Also Order

Item 6)

8 8269996 Dispenser,

Assembly

11 8268541 Shield, Dispenser

12 8534932 Wiring Harness

Main

13 8281154 Screw (6)

14 8269143 Seal,

Console/door

15 8269743 Bracket,

Dispenser

17 8533380 Cap, Rinse Aid

LOWER WASHARM AND STRAINER PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION

1 8268300 Wash Arm Assembly

2 8268343 Cap, Internal

Rear Feed

3 8268340 Seal, Sprayarm

4 8268342 Hub, Lower

Sprayarm

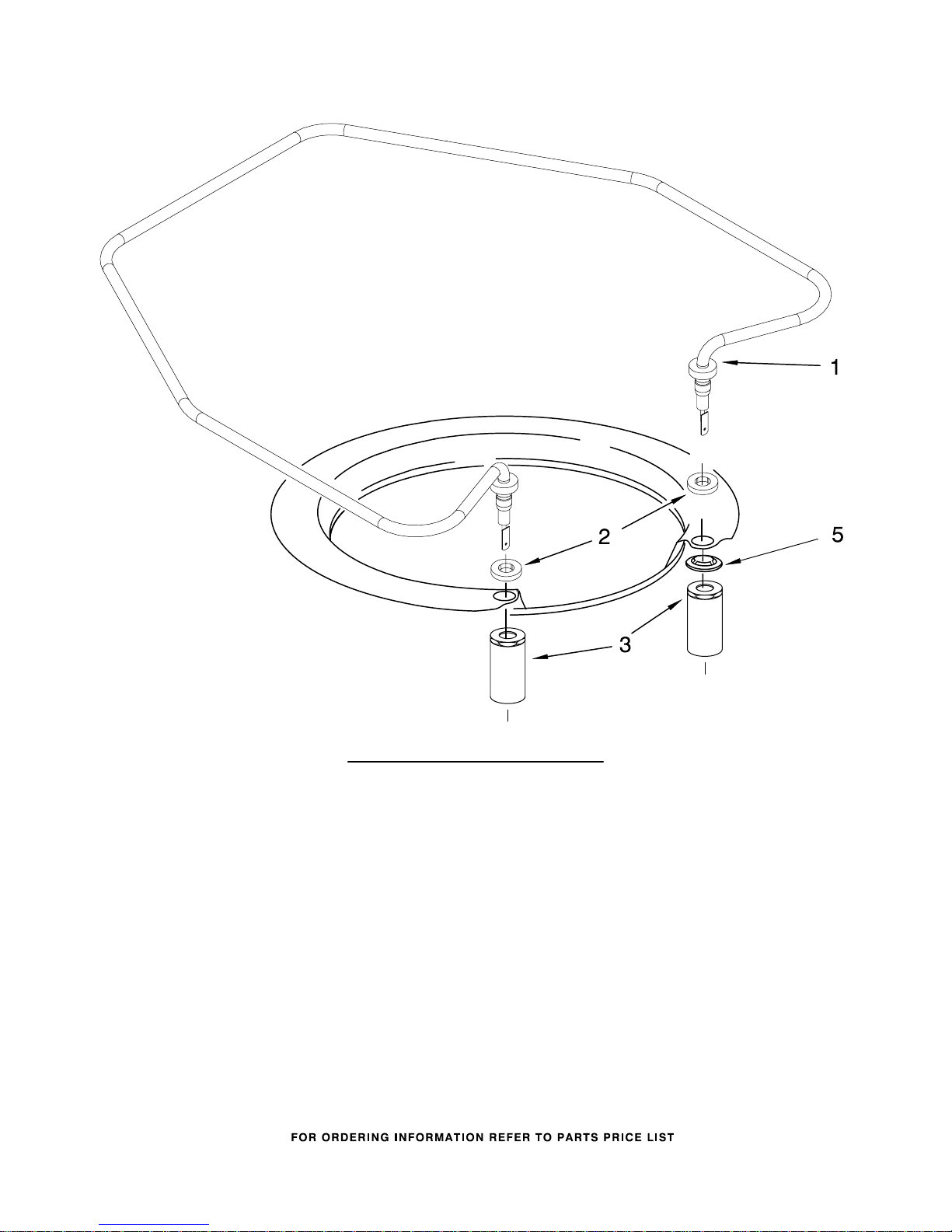

HEATER PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION

1 8194200 Heater Element

Assembly

(Also Includes

Item 2 and

Electronic

Control)

2 717273 Washer, Heater

Element

3 8268548 Nut, Heater

Element

5 3400931 Retainer,

Spring Grip

NOTE:

If heater element is

removed, it must be replaced.

FILL AND OVERFILL PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION

1 8268889 Control, Overfil

Assembly

2 8269242 Hose, Inlet

3 8269240 Water Inlet

Assembly

(Includes

Items 4 & 5)

4 8269241 Gasket

5 8269268 Bezel, Inlet

6 301958 Clamp, Hose

7 8531669 Fill Valve

Assembly

8 3400014 Screw

9 3378128 Washer

11 8268909 Switch, Overfill

Control

12 8268891 Standpipe,

Overfill

13 4161670 Gasket, Flat

14 9741998 Nut, Standpipe

15 8268895 Float & Retainer

Assembly

16 8268892 Lever, Overflow

Switch

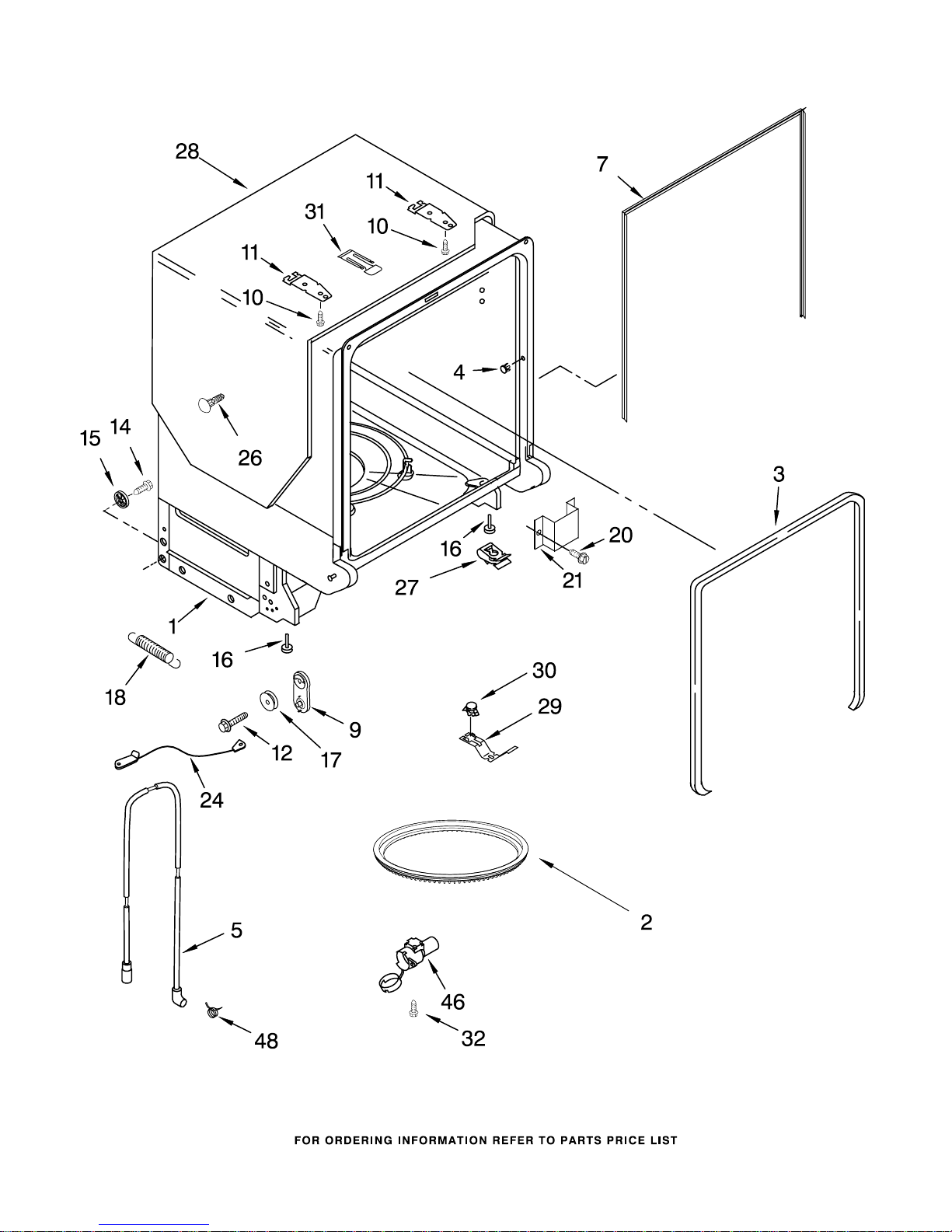

TUB AND FRAME PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

TUB AND FRAME PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION

1 8524618 Tub Assembly

(Also Order

Item 2)

2 8268395 Seal, Sump

3 8268938 Door Seal

4 8270119 Plug Tub (2)

5 8531022 Drain Loop

With Check Valve

7 8269110 Seal, Cabinet

9 8270021 Mount, Door

Balance

10 3367670 Screw

11 8269145 Bracket,

Undercounter

12 3400074 Screw (2)

14 3370389 Screw (2)

15 8268977 Wheel Leg

16 8524584 Leveler, Leg

17 8524474 Wheel, door

Balance

18 8270182 Spring, Door

Balance

20 3400892 Screw

21 8268991 Cover, Terminal

Box

24 8270022 Link, Door

Balance

26 304666 Retainer, Push (2)

27 8269016 Clip, Grounding

28 8531027 Shield, Sound

Tub

29 9742648 Bracket,

Thermostat

30 661566 Thermostat

31 8269426 Strike, Latch

32 9741232 Screw

46 8268477 Switch, Pressure

48 356138 Clamp, Hose (1)

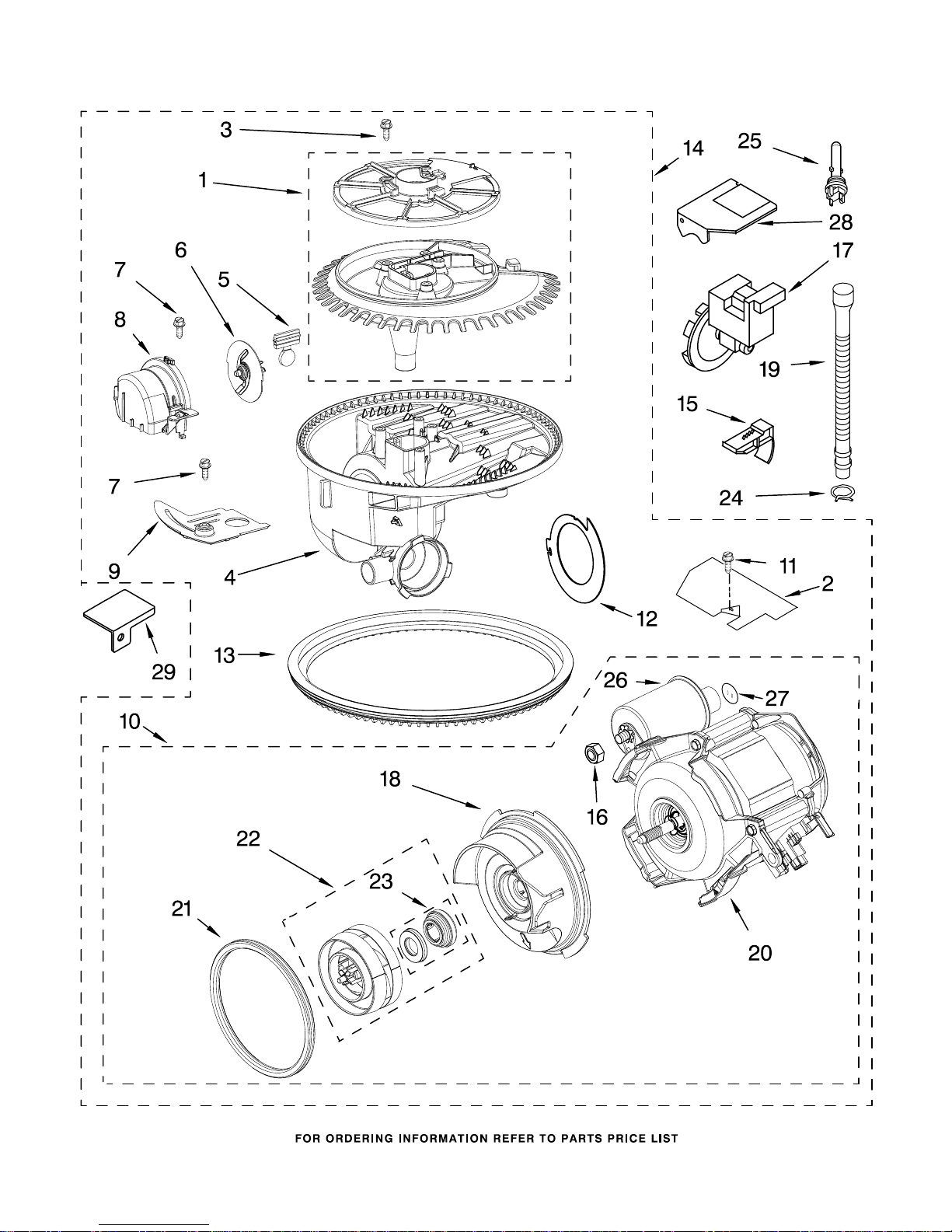

PUMP AND MOTOR PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

PUMP AND MOTOR PARTS

For Models: KUDP01FLBL1, KUDP01FLWH1, KUDP01FLBT1, KUDP01FLSS1

(Black) (White) (Biscuit) (Stainless)

8193812

Illus. Part

No. No. DESCRIPTION

1 8268429 Accumulator Assy

2 8268529 Shield

3 3400069 Screw

4 8268382 Sump

5 8268375 Check Valve, Sump

6 8268383 Chopper Assembly

7 9741232 Screw

8 8268390 Protector, Inlet

9 8268427 Protector, Foreign

10 8268407 Motor Assembly

11 3400217 Screw

12 8268391 Screen, Separation

13 8268395 Seal, Sump

14 8268422 Sump & Motor

Assembly

15 8269524 Tab, Sump

16 3400921 Nut

17 661658 Pump, Drain

18 8268405 Volute, Back

(Also Order

Item 23)

19 8269144 Hose, Drain

20 8268408 Motor

21 8268397 Seal, Volute

22 8268398 Impeller Kit

23 8268403 Face Seal Assembly

24 356138 Clamp, Hose

25 8269208 Thermister

26 8269507 Capacitor

27 8269512 Shield,

Capacitor

28 8269449 Shield, Drain

Pump

29 8269501 Shield, Pressure

switch
