DOOR AND PANEL PARTS
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
12−08 Litho in U.S.A. (els) (eeb) Part No. W10246516 Rev. A
UNDERCOUNTER
DISHWASHER
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10056407
Instructions,
Installation
W10056439
Energy Guide
W10205938
Guide, Use & Care
Spanish
W10205937
Guide, Use & Care
English/French
W10130990
Tech Sheet
2 Arm, Hinge
8534854 Left
8534853 Right
3 8268983 Stiffener, Door
4
W10073520
Insulation, Door
5 Access Panel
8573255 Black
8573256 White
8573257 Biscuit
6 Panel, Full Front
(Includes Items
4, 12 & 13)
W10077995
Black
W10077996
White
W10077997
Biscuit
W10137620
Stainless
7 Toe Panel
(Includes
Items 8 & 14)
8558252 Black
8558253 White
8558254 Biscuit
8 8268581 Insulation,
Toe Panel
9 Screw
302868 Black
3400836 White
3400865 Biscuit
10 304392 Screw
11 3400071 Screw
12 Nameplate
W10021860
Black
W10021870
White
W10021880
Biscuit
W10021850
Stainless
13 2004333 Nut
14 8269016 Clip, Grounding
CONTROL PANEL PARTS
2
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION
1 Console Assembly
(Includes Insert)
W10056466
Black
W10056467
White
W10056468
Biscuit
W10056469
Stainless
2 8268540 Spring, Handle
3 8546546 Clip, BI−Metal
4 3400412 Screw
5 8524471 Actuator, Latch
6 661663 BI−Metal
7 3369051 Screw
8 Handle, Latch
8269117 Black
8269167 White
8269168 Biscuit
9 8524476 Bolt, Latch
10
W10084141
Control,
Electronic
11 8269209 Switch, Door
DOOR AND LATCH PARTS
3
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 3369051 Screw, Door
2 8281217 Screw
3
W10056249
Inner Door
Mastic Assembly
(Also Order
Item 6)
4
W10077883
Inlet, Air
5
W10164259
Vent Assembly
(Also Order
Item 6)
6 8269259 Gasket, Vent
7
W10077877
Deflector, Vent
(Also Order
Item 6)
8
W10077882
Dispenser,
Assembly
9 8269258 Seal, Front
10 8545608 Harness, Vent
Motor
11 8574160 Seal, Side
12
W10071150
Wiring Harness
13
W10177098
Screw
14 8535660 Seal,
Console/door
15 8535637 Bracket,
Dispenser
16 8531865 Shield,
Dispenser
17
W10077881
Knob, Rinse Aid
FILL, DRAIN AND OVERFILL PARTS
4
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION
1 8268892 Lever, Overfill
Switch
2
W10041920
Hose, Inlet
3
W10041900
Water Inlet
(Also Order
Item 4)
4 8531323 Gasket
5 8531327 Nut, Inlet
(Also Order
Item 4)
6 371505 Clamp, Hose
7
W10219505
Fill Valve
Assembly
8 304392 Screw
9 8268909 Switch, Overfill
Control
10 8545946 Standpipe,
Overfill
(Includes Item 11)
11 8531743 Gasket, Flat
12 9741998 Nut, Standpipe
13
W10077871
Float & Retainer
Assembly
14 8269297 Miscellaneous
Parts Bag
(Includes 2 Screws
& 2 Hose Clamps)
15 356138 Clamp, Hose
16
W10137608
Drain Loop
with Check Valve
17
W10070120
Harness, Jumper
TUB AND FRAME PARTS
5
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
TUB AND FRAME PARTS
6
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION
1
W10164353
Tub Assembly
(Includes Heater
Assembly)
2 3400072 Screw
3
W10112096
Door Seal
4
W10082838
Plug Tub
5 9743002 Gasket, Bracket
Mounting
6 8269110 Seal, Cabinet
7 8573061 Strain Relief
8
W10084084
Mount, Door
Balance
9 3367670 Screw
10 8269145 Bracket,
Undercounter
11 3400074 Screw
12 3370389 Screw
13 8268977 Wheel Leg
14 8524584 Leveler, Leg
15
W10084085
Wheel, Door
Balance
16 8270020 Spring, Door
Balance
17
W10078083
Wheel & Mount
Assembly
(Also order #5)
18 3400892 Screw
19 8268991 Cover, Terminal
Box
20
W10158291
Link, Door
Balance
21 304666 Retainer, Push
23 8573239 Shield, Sound
Tub
24 9742648 Bracket,
Thermostat
25 661566 Thermostat
26 8580309 Strike, Latch
27 3378128 Washer,
Pronged Cup
28 3400014 Screw
29 8572661 Actuator Assembly
30
W10082769
Motor, Wax
31 8268582 Sound, Bottom
Insulation
32 3400924 Retainer, Push
33
W10084568
Shield, Motor
PUMP AND MOTOR PARTS
7
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
PUMP AND MOTOR PARTS
8
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION
1 8534952 Accumulator Assy
2 8283527 Shield, Motor
3 3400069 Screw
4 8572618 Sump With Seal
5 8268375 Check Valve, Sump
6
W10083957
Chopper Assembly
7 9741232 Screw
8 8531857 Protector, Inlet
9 8535760 Motor Assembly
10 3400217 Screw
11
W10084567
Screen, Separation
12
W10084107
Sump & Motor
Assembly
(Includes
Item 13)
13 8269524 Tab, Sump
14 8533949 Nut
15 661662 Pump, Drain
16 8531019 Volute, Back
(Also Order
Items 21 & 26)
17 8269144 Hose, Drain
18 8535759 Motor
19 8268397 Seal, Volute
20 8531017 Impeller Kit
21 8268403 Face Seal Assembly
(Also Order
Item 26)
22 356138 Clamp, Hose
23
W10134017
Optical Water
Indicator
24
W10216724
Capacitor
25 8531018 Washer

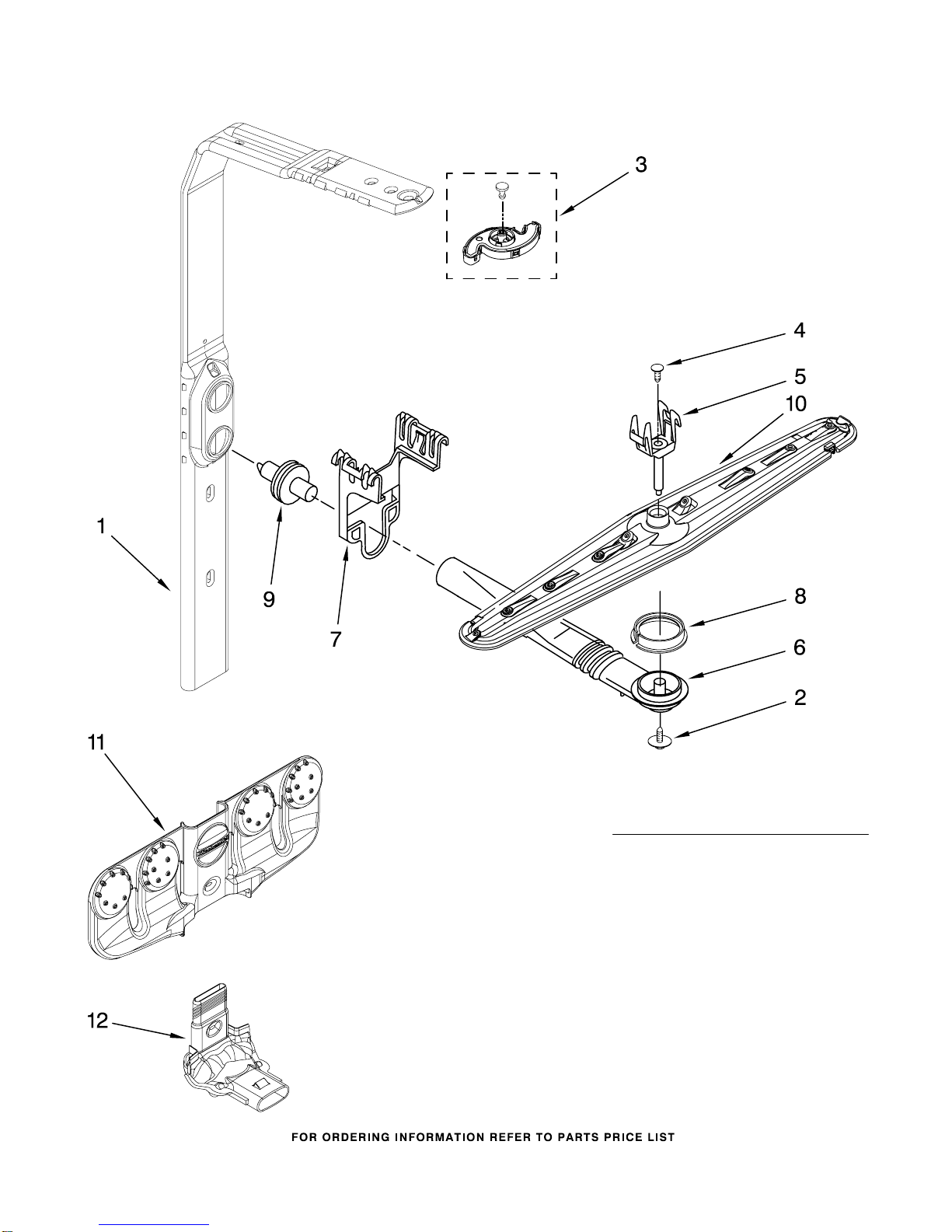

UPPER WASH AND RINSE PARTS
9
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION
1
W10077859
Feed Tube
Assembly
2 8533889 Screw
3 8557720 Sprayarm, 3rd
Level
4
W10118464
Cover, Screw
5
W10082867
Mount
6
W10082949
Manifold
7
W10082832
Hanger
8 8268433 Seal, Sprayarm
9
W10082831
Nozzle−Feed
10
W10082841
Sprayarm
11
W10077600
Manifold
Turbo−Zone
12
W10077903
Valve Assembly
HEATER PARTS
10
For Models: KUDS30IVBL0, KUDS30IVWH0, KUDS30IVBT0, KUDS30IVSS0, KUDK30IVBS0
(Black) (White) (Biscuit) (Stainless) (Black/Stainless)
W10246516
Illus. Part
No. No. DESCRIPTION
1 8537057 Heater Element
Assembly
(Also Includes
Item 2)
2 717273 Washer, Heater
Element
3 8268548 Nut, Heater
Element
4 3400931 Retainer, Spring
Grip
NOTE:
If heater element is
removed, it must be replaced.
