KitchenAid KUDD03DTBL0 User manual

FRONT PANEL PARTS

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

11−08 Litho in U.S.A. (cre) (eeb) Part No. W10244792 Rev. A

DRAWER

DISHWASHER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10216167

Instructions,

Installation

W10208035

Energy Guide

2 Control Panel

(Includes User

Interface)

W10117977

Black

3 Intermediate Panel

W10117988

Lower

W10117987

Upper

W10117966

Anchor

Panel

5 Handle

9761573BL

Black

9761573WH

White

9761573SS

Stainless

6 Panel, Drawer

(Lower)

(Also Order

Item 11)

W10117955

Black

W10118028

White

W10117956

Stainless Steel

(Upper)

(Nameplate not

Included)

W10117952

Black

W10118027

White

W10117953

Stainless

W10117965

Pad, EPS

8 99003716 Trim, Toe Kick

9 Y912620 Screw

10 99003156 Screw

11 Nameplate

8304603BL

Black

8304603WH

White

8304603SS

Stainless

W10117969

Harness, User

Interface

TUB PARTS

The model(s) number shown may be different than what is printed on the

model/serial tag of your product. The number(s) shown combine the model

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

TUB PARTS

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 99003763 Line Break

Assembly

2 99003698 Dispenser

3 99003605 Bezel,

Inlet/Outlet

4 Slide

99003760 Right Hand

99003759 Left Hand

W10155595

Fan Motor and

Housing Assembly

6 99003696 Bracket, Pressure

Switch

7 99003626 Switch, Pressure

8 99003781 Air Inlet Assembly

9 99003694 Hose, Pressure

Switch

10 99003733 Control Module

11 99003782 Plate, MCM

Enclosure

12 99003740 Screw

W10180845

Drawer, Tub

14 Y6919650 Shield, Drip

15 99003714 Cover, Bottom

16 99003631 Clamp, Drain

Suction

W10190553

Drain Pump Assy.

18 99003632 Clamp

19 99003730 Wash Pump

W10120019

Sensor, Turbidity

21 99002651 O−Ring, Turbidity

Sensor

22 99003773 Solenoid, Fine

Drain

23 99003727 H Bracket

24 99003701 Bracket,

Thermostat

25 99003624 Fuse, Thermal

26 99003623 Thermostat, High

Limit

27 99001979 O−Ring, Pump

Thermostat

28 99003699 Bracket, Dispenser

29 99003705 Wire Jumper,

Thermostat

30 99003708 Wire Jumper,

Heater

W10118491

Bracket, Drain

Pump

W10190274

Catch, Drawer

Release

33 99003758 Barrier, MCM

W10121259

Shield, Motor

35 99003715 Filter

36 99003602 Seal

WASH SYSTEM PARTS

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

WASH SYSTEM PARTS

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

Illus. Part

No. No. DESCRIPTION

1 99003689 Wash Arm Assembly

2 99003697 Cap, Wash Arm

W10190556

Filter Flowplate

Assembly

4 Y6918536 Screw

5 99003720 Compression Ring,

Fine Drain

6 99003692 Seal, Fine Drain

7 99003772 Armature, Fine

Drain

8 99003774 Spring, Fine Drain

9 99003775 Shaft, Fine Drain

10 99003625 Heater

11 Y6920320 O−Ring (EPDM)

12 99003777 Coarse Cup, Lower

13 99003776 Coarse Cup, Upper

14 99003778 Coarse Cup Cap

15 Y6920170 Inlet, Upper

(Manifold)

16 99003602 Washer

17 Y6920354 Bracket, Upper

Manifold Mtg

18 Y6920171 Cap, Manifold

Inlet

19 99003602 O−Ring

20 99003683 Manifold, Upper

Assembly

21 99003771 Nut, Heater

22 99003704 Shield, Fine

Filter

23 99003634 Clamp, Manifold

24 99003697 Pivot, Wash Arm

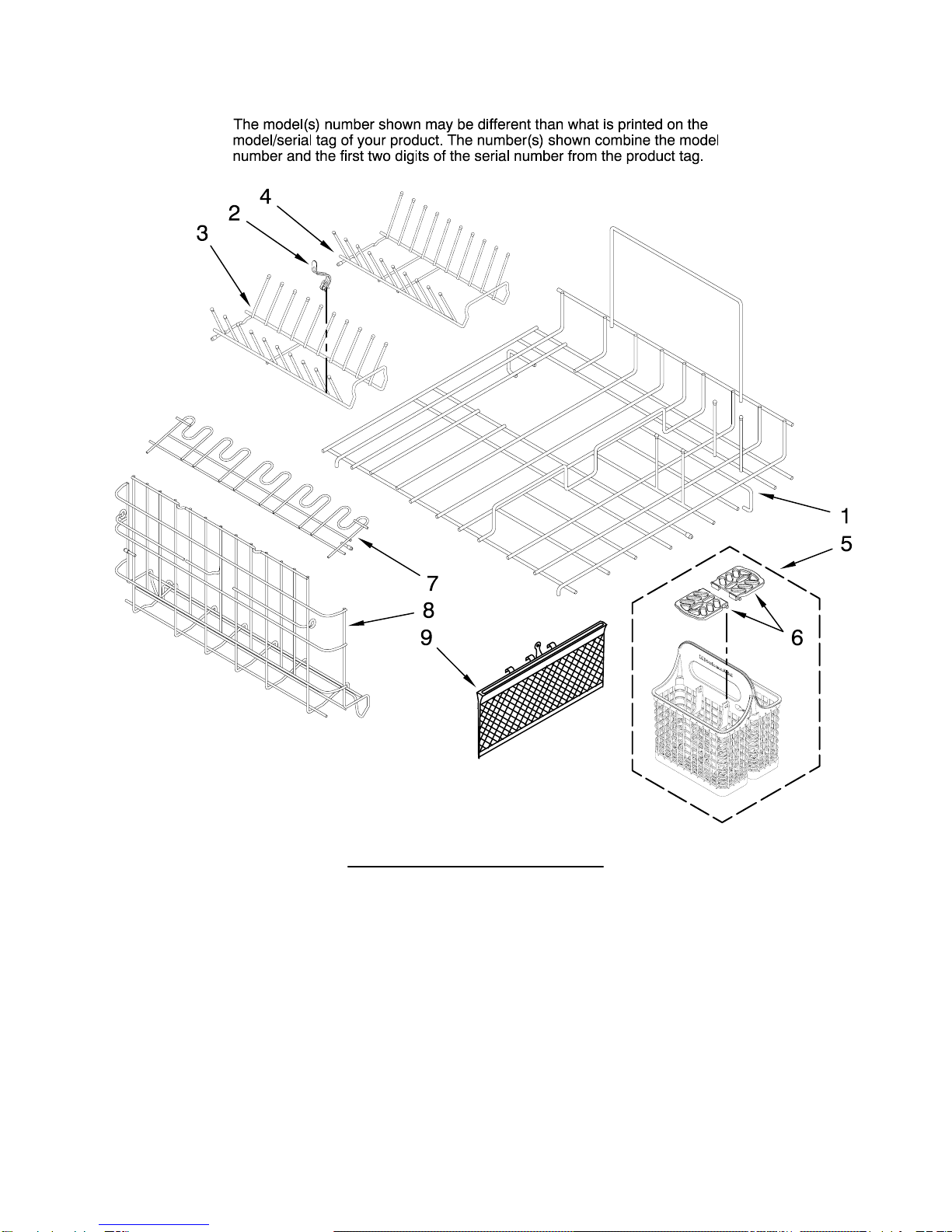

UPPER AND LOWER DISHRACK PARTS

Illus. Part

No. No. DESCRIPTION

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

W10118023

Rack, Base

W10077844

Clip, No−Flip

W10154735

Rack, Insert

(Includes Item 2)

W10118019

Rack, Insert

(Small Tines)

W10118031

Basket, Silverware

Assembly

W10118032

Cover, Silverware

Basket

W10118001

Shelf, Rack

W10118010

Rack, Left

9 8519716 Basket, Small

Items

FRAME AND LID PARTS

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 99003677 Lid Assembly

(Seal Included)

2 Y6920305 Bracket, Lid

(Rear)

3 99003722 Bracket, Lid Assy.

(Side)

4 99003724 Roller, Lid Pin

5 Lid Slider Assy.

99003725 Right Hand

99003726 Left Hand

6 99003706 Harness, Drawer

W10188309

Brace, Top Side

(Undercounter

Mounting Bracket)

W10166505

Retainer, Flex

9 99003710 Harness, Upper

10 99003709 Harness, Lower

13 99003732 Base, Utility Box

14 99003731 Cover, Utility Box

15 99003766 Hose, Fill

(Lower)

16 99003765 Hose, Fill

(Upper)

W10189242

Retainer, Valve

End

W10186746

Valve, Water

19 99003597 Hose, Drain

20 Y6919906 Y− Connector

21 99003633 Clamp

22 99003635 Clamp

ACCESSORY PARTS

For Models: KUDD03DTBL0, KUDD03DTWH0, KUDD03DTSS0

(Black) (White) (Stainless)

W10244792

Illus. Part

No. No. DESCRIPTION

W10133725

Trim, Side

2 99003716 Trim, Toe Kick

(BlacK)

3 Toe Kick Base (LH)

Y6920293 Black

Y6920297 White

4 Toe Kick Base (RH)

Y6920295 Black

Y6920299 White

5 Toe Kick

Slide (LH)

Y6920294 Black

Y6920298 White

6 Toe Kick

Slide (RH)

Y6920296 Black

Y6920300 White

7 Y6920591 Bracket, Mounting
