KitchenAid KGCP482KSS0 User manual

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP482KSS0

(Stainless Steel)

7−01 Litho in U.S.A. (cre) Part No.8185793

48" Stainless Steel

Professional Cooktop

(with grill)

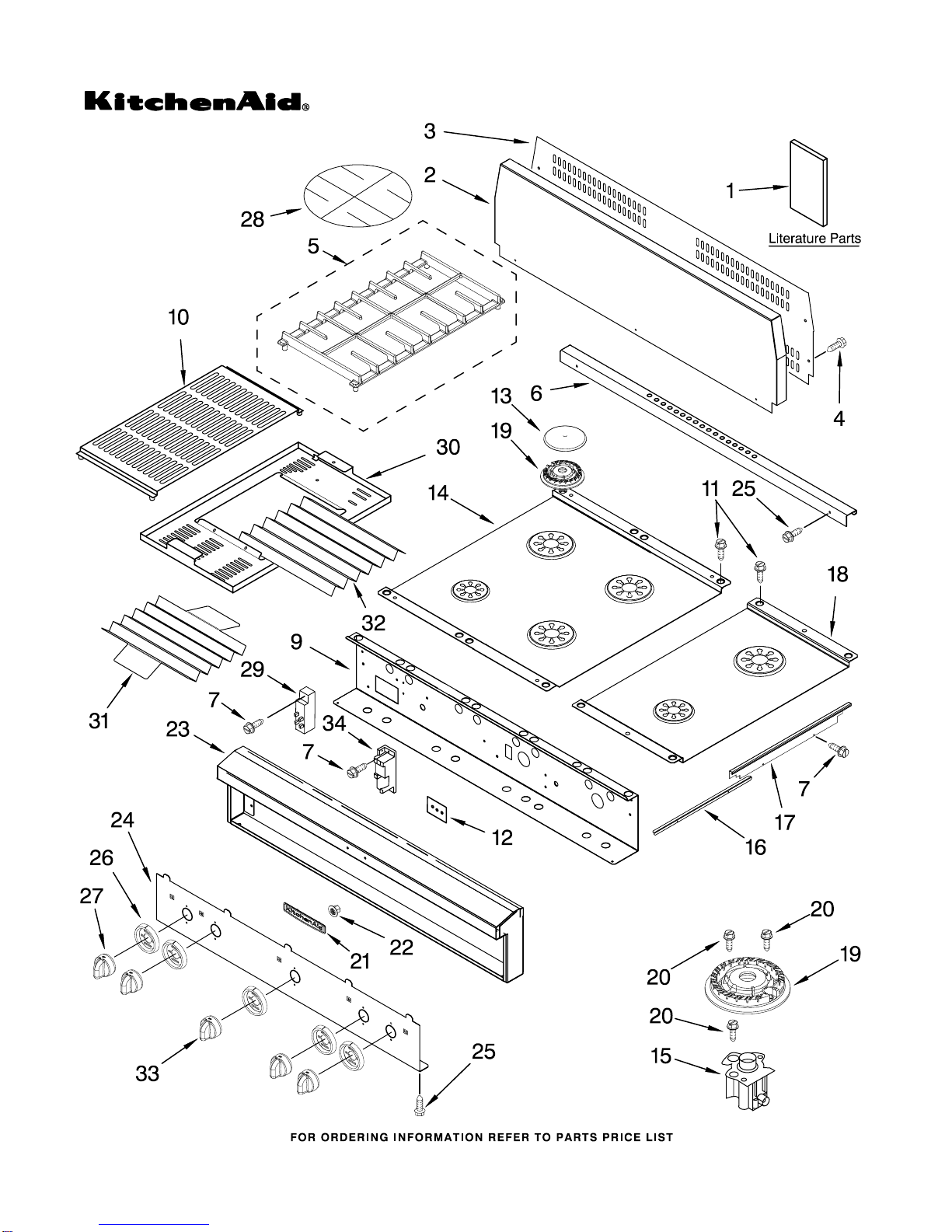

COOKTOP, BURNER AND GRATE PARTS

For Model: KGCP482KSS0

(Stainless Steel)

8185793

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT8284821

Wiring Diagram

LIT8284746

Use & Care Guide

LIT8284979

Installation

Instructions

LIT8284780

Instructions,

LP Conversion

2 8284730 Backsplash

3 8284760 Support,Backsplash

4 3196537 Screw, 8−18 x 3/8

5 4454963 Grate, Burner

6 8284852 Trim, Island

7 3400843 Screw, 8−18 x 1/4

9 8284973 Support, Control

Panel

10 8284741 Grate, Grill

11 4449040 Screw

12 3192439 Seal

13 Cap, Burner

4455243 14K (2)

8284669 6K (2)

14 8284739 Cooktop (24")

15 Holder, Orifice

Includes Orifice

9754188 Turbo (4)

9754182 Auxillary (2)

16 4454974 Support Rail

R.H.& L.H.

17 Trim, Side

8284818 Right Hand

8284819 Left Hand

18 8284812 Cooktop (12")

19 Burner Head 14K

4455849 Turbo (2)

8273216 Auxillary (2)

20 3368921 Screw, 7−18 x 3/4

21 2005292 Nameplate

22 2004333 Palnut

23 8284939 Control Frame

24 8284738 Panel, Control

25 3196176 Screw, 8−18 x 1/2

26 4455192 Bezel, Knob

27 4454970 Knob, Burner

28 4455109 Plate, Simmer

29 8522423 Module, Spark

4−Burner

30 8284918 Frame, Wave Tray

31 8284919 Plate, Wave

32 8284917 Plate, Wave tray

3177991 Screw

33 8284742 Knob, Grill

34 8522422 Module, Spark

2 burner

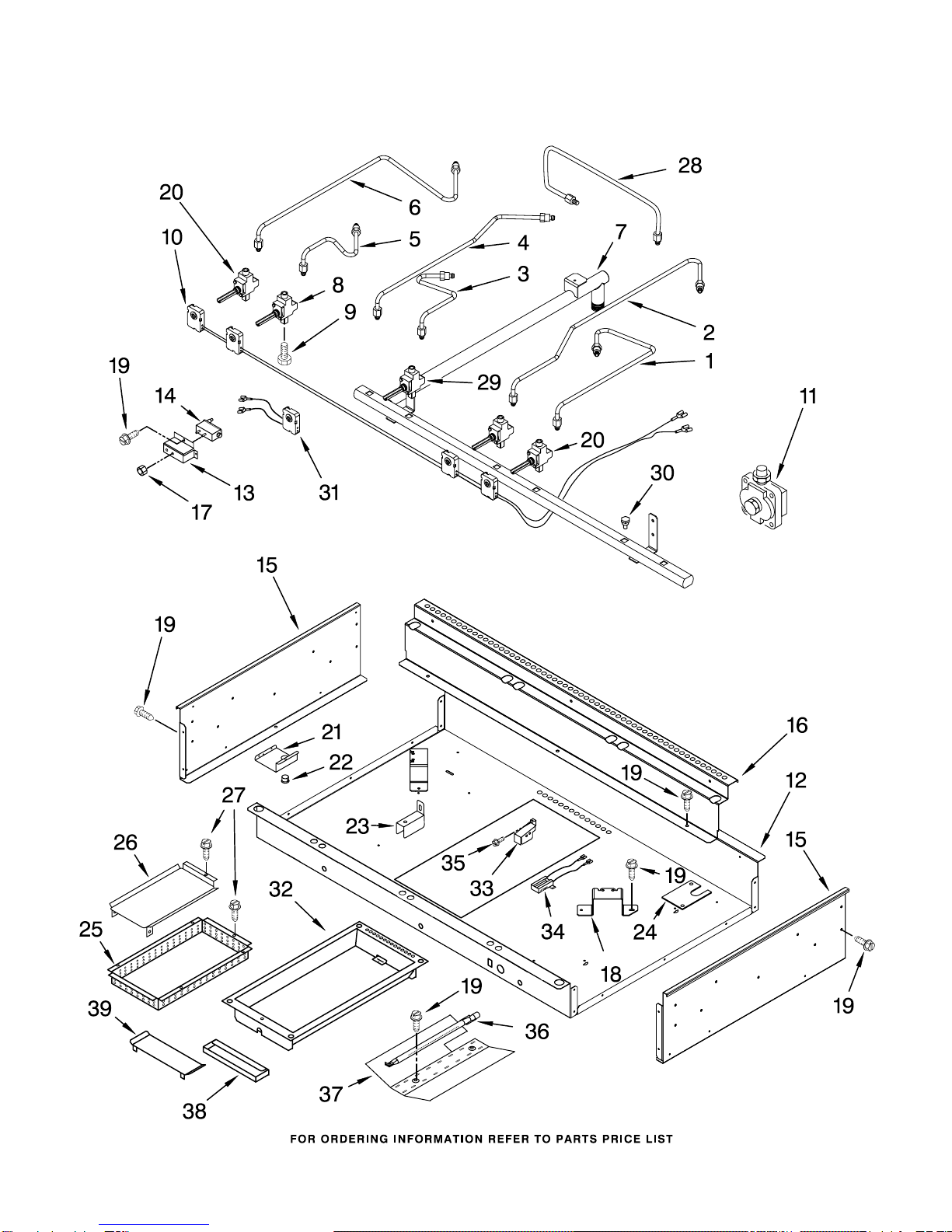

BURNER BOX, GAS VALVES, AND SWITCHES

For Model: KGCP482KSS0

(Stainless Steel)

8185793

BURNER BOX, GAS VALVES, AND SWITCHES

PARTS NOT ILLUSTRATED

For Model: KGCP482KSS0

(Stainless Steel)

8185793

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4455040 Tubing, Gas

Burner − RF

2 4455041 Tubing, Gas

Burner − RR

3 4455151 Tubing, Gas

Burner − CF

4 4455152 Tubing, Gas

5 4455153 Tubing, Gas

Burner − CR

Burner − LF

6 4455154 Tubing, Gas

Burner − LR

7 8284737 Manifold

(Includes Items

#9 & #30)

8 3192157 Valve, Burner

(Turbo)

9 3185829 Bolt, Valve

10 8284815 Burner Switch &

Harness Assembly

3191387 Seal, Switch

11 4455157 Regulator,Pressure

12 8284971 Burner Box

13 8284795 Bracket, Grill

Valve

14 8284858 Valve, Grill

15 Side, Burner Box

8284735 Right Hand

8284736 Left Hand

16 8284947 Support, Rear

17 488130 Hex Nut

18 3192811 Bracket, Burner

19 3177991 Screw, 8−18 x 1/4

20 3191292 Valve, Burner

Auxillary

21 8284680 Cover Shelf

22 8284722 Bushing, Cover

Shelf

23 4449845 Bracket, Support

24 4455139 Cover, Panel

25 8284854 Box, Burner

Lower

26 8284960 Guard, Rear Spill

27 3400843 Screw

28 8284790 Tube, Grill

29 8284922 Valve, Gas Grill

30 8284796 Plug, Manifold

31 8284974 Harness, Switch

Grill

32 8284787 Module, Grill

33 8284968 Bracket, Ignitor

34 8284941 Ignitor, Grill

35 3400855 Screw

36 8284764 Log Burner, Grill

37 8284900 Deflector

38 8284791 Tray, Drip

39 8284901 Guard, Spill

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

3192231 Power Cord

1129449 Bushing

4173634 Bushing, Electric

8284847 Harness, Wire

Jumper

3191418 Harness, Wire

Jumper (6 burner)

8284772 Harness, Wire

Ignitor (Brown)

8284976 Harness, Wire

Jumper (yellow)

8284849 Harness, Wire

Jumper (white)

8284848 Harness, Wire

Jumper (black)

Miscellaneous

8284782 L.P. Orifice Spud

Pack
