A Note to You ......................2

Cooktop Safety ..................3

Parts and Features .............5

Using Your Cooktop .........12

Using the surface burners..12

Characteristics of

cookware materials..........14

Ceramic glass surface.....15

Caring For Your

Cooktop .............................16

Cleaning chart..................16

Stainless steel surfaces...17

Sealed surface burners

and cooktop .....................18

Troubleshooting................20

Requesting Assistance

or Service ..........................21

Warranty ............................23

For assistance or service in the U.S.A.,

call the Consumer Assistance Center.

For assistance or service

in Canada, see page 22.

KITCHENAID®Gas Sealed Burner Cooktop

Use and Care Guide

www.kitchenaid.com

MODELS KGCR055G KGCT055G KGCS105G KGCS127G KGCS166G

KGCT305G KGCT365G KGCT366G KGCC505H KGCC566H

Thank you for buying a KITCHENAID®appliance!

KitchenAid designs the best tools for the most important room in your house. To ensure that you enjoy

many years of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information concerning how to operate and maintain your new appliance properly and safely. Please

read it carefully. Also, please complete and mail the enclosed Product Registration Card.

ANote to You

Please record your model’s information.

Whenever you call our Consumer Assistance Center

at 1-800-422-1230 (in Canada, 1-800-461-5681) or

request service for your appliance, you need to know

your complete model number and serial number. You

can find this information on the model and serial

number plate (see illustration on pages 5-11 for

location of plate).

Please also record the purchase information.

NOTE: You must provide proof of purchase or

installation date for in-warranty service.

Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase/

Installation Date

Builder/

Dealer Name

Address

Phone

Cooktop Safety

continued on next page

You will be killed or seriously injured if you don’t

follow instructions.

You can be killed or seriously injured if you don’t

follow instructions.

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and on your appliance. Always read and

obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to hazards that can kill or hurt you and others.

All safety messages will be preceded by the safety alert symbol and the word “DANGER” or

“WARNING.” These words mean:

wDANGER

wWARNING

All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury or death.

– Do not store or use gasoline or other flammable vapors and liquids in the vicinity

of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS

•Do not try to light any appliance.

•Do not touch any electrical switch.

•Do not use any phone in your building.

•Immediately call your gas supplier from a neighbor’s phone. Follow the gas

supplier’s instructions.

•If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer, service agency

or the gas supplier.

SAVE THESE INSTRUCTIONS

WARNING: To reduce the risk of fire, electrical

shock, injury to persons, or damage when using the

cooktop, follow basic precautions, including the

following:

•CAUTION: Do not store items of interest to

children in cabinets above the cooktop – children

climbing on the cooktop to reach items could be

seriously injured.

•Proper Installation – The cooktop, when installed,

must be electrically grounded in accordance with

local codes or, in the absence of local codes, with

the

National Electrical Code, ANSI/NFPA 70 or the

Canadian Electrical Code, Part 1.

Be sure the

cooktop is properly installed and grounded by a

qualified technician.

•This cooktop is equipped with a three-prong

grounding plug for your protection against shock

hazard and should be plugged directly into a prop-

erly grounded receptacle. Do not cut or remove the

grounding prong from this plug.

IMPORTANT SAFETY INSTRUCTIONS

•Disconnect the electrical supply before

servicing the cooktop.

•Never Use the Cooktop for Warming or Heating

the Room.

•Injuries may result from the misuse of the

cooktop such as stepping, leaning, or sitting on

the top surface.

•Maintenance – Keep cooktop area clear and free

from combustible materials, gasoline, and other

flammable vapors and liquids.

•Storage on the cooktop – Flammable materials

should not be stored on or near surface units.

•Top burner flame size should be adjusted so it

does not extend beyond the edge of the

cooking utensil.

Cooktop Safety

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to

publish a list of substances known to the State of California to cause cancer, birth defects, or other

reproductive harm, and requires businesses to warn of potential exposure to such substances.

WARNING: This product contains a chemical known to the State of California to cause cancer, birth

defects, or other reproductive harm.

This appliance can cause low-level exposure to some of the substances listed, including benzene,

formaldehyde, carbon monoxide, toluene, and soot.

Control panel

OFF

Models KGCT055G (15 inch/38.1 cm)

KGCR055G (15 inch/38.1 cm)-not shown

6,000 BTU

burner

Front burner

control knob

Rear burner

control knob

12,500 BTU

burner

Model and serial

number plate

(under cooktop)

(p. 2)

Surface burner

grate

(p. 14)

Surface

burner

cap

(pp. 14, 15, 16)

Use the rear burner for simmering or for cooking smaller quantities of food requiring small cookware.

Use the front burner for cooking large quantities of food, deep-fat frying, or cooking with large cookware.

Parts and Features

Control panel

Parts and Features

OFF

Model KGCT365G (36 inch/91.4 cm)

9,000 BTU

burner 12,500 BTU

burner

6,000 BTU

burner

Left front burner

control knob

Left rear burner

control knob

Right front burner

control knob

Right rear burner

control knob

14,000 BTU

burner

Model and serial

number plate

(under cooktop)

(p. 2)

Surface burner

grate

(p. 14)

Surface

burner

cap

(pp. 14, 15,

16)

Use the left rear and right front burners for simmering or for cooking smaller quantities of food requiring small

cookware.

Use the left front and right rear burners for cooking large quantities of food, deep-fat frying or cooking with

large cookware.

Control panel

Parts and Features

OFF

Models KGCS105G (30 inch/76.2 cm)

KGCT305G (30 inch/76.2 cm)

14,000 BTU

burner

9,000 BTU

burner 12,500 BTU

burner

6,000 BTU

burner

Left front burner

control knob

Left rear burner

control knob

Right front burner

control knob

Right rear burner

control knob

Model and serial

number plate

(under cooktop)

(p. 2)

Surface burner

grate

(p. 14)

Surface

burner

cap

(pp. 14, 15, 16)

Use the left rear and right front burners for simmering or for cooking smaller quantities of food requiring small

cookware.

Use the left front and right rear burners for cooking large quantities of food, deep-fat frying, or cooking with

large cookware.

Control panel

Parts and Features

OFF

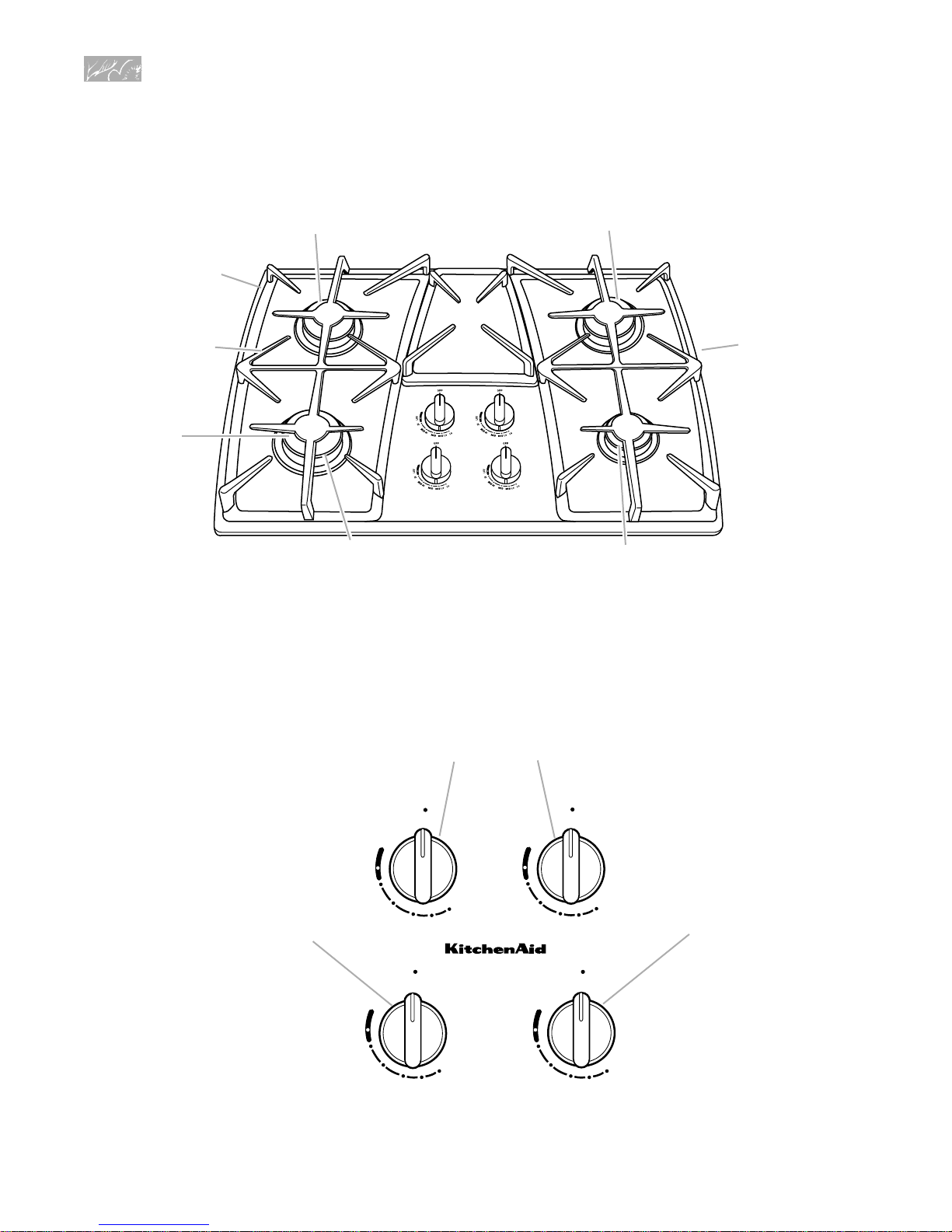

Model KGCC505H (30 inch/76.2 cm)

14,000 BTU

burner

9,000 BTU

burner 12,500 BTU

burner

6,000 BTU

burner

Left front burner

control knob

Left rear burner

control knob

Right front burner

control knob

Right rear burner

control knob

Model and serial

number plate

(under cooktop)

(p. 2)

Left surface

burner grate

(p. 14)

Surface

burner

cap

(pp. 14,

15, 16)

Use the left rear and right front burners for simmering or for cooking smaller quantities of food requiring small

cookware.

Use the left front and right rear burners for cooking large quantities of food, deep-fat frying, or cooking with

large cookware.

Right surface

burner grate

(p. 14)

Parts and Features

OFF

Control panel

Model KGCC566H (36 inch/91.4 cm)

Left

front

burner

control

knob

Left rear

burner

control

knob

Right front

burner

control

knob

Right rear

burner

control

knob

Center rear burner

control knob

14,000 BTU

burner

6,000 BTU

burner 9,000 BTU

burner 12,500 BTU

burner

6,000 BTU

burner

Model and

serial number

plate

(under cooktop)

(p. 2)

Left surface

burner grate

(p. 14)

Surface

burner

cap

(pp. 14, 15,

16)

Use the left rear, center, or right front burners for simmering or for cooking smaller quantities of food

requiring small cookware.

Use the left front and right rear burners for cooking large quantites of food, deep-fat frying or cooking with

large cookware.

Right surface

burner grate

(p. 14)

OFF

Control panel

Models KGCS166G (36 inch/91.4 cm)

KGCT366G (36 inch/91.4 cm)

Left

front

burner

control

knob

Left rear

burner

control

knob

Right front

burner

control

knob

Right rear

burner

control

knob

Center rear burner

control knob

14,000 BTU

burner

6,000 BTU

burner 9,000 BTU

burner 12,500 BTU

burner

6,000 BTU

burner

Model and

serial number

plate

(under cooktop)

(p. 2)

Surface burner

grate

(p. 14)

Surface

burner

cap

(pp. 14, 15,

16)

Use the left rear, center, or right front burners for simmering or for cooking smaller quantities of food

requiring small cookware.

Use the left front and right rear burners for cooking large quantites of food, deep-fat frying or cooking with

large cookware.

Parts and Features

This manual suits for next models

Table of contents

Other KitchenAid Cooktop manuals

KitchenAid

KitchenAid KCGS556ESS User manual

KitchenAid

KitchenAid KECD805EAL0 User manual

KitchenAid

KitchenAid KGCP463KSS - 36" Sealed Burner Commercial-Style Gas... User manual

KitchenAid

KitchenAid KECC051HBL05 User manual

KitchenAid

KitchenAid KECD805HBL0 User manual

KitchenAid

KitchenAid KECC566RBL00 User manual

KitchenAid

KitchenAid KECD865HWH2 User manual

KitchenAid

KitchenAid KECC507GAL2 User manual

KitchenAid

KitchenAid Architect Series II KECD807X User manual

KitchenAid

KitchenAid KHIS 7720 User manual

KitchenAid

KitchenAid KGCP484KSS04 User manual

KitchenAid

KitchenAid KECC568GAL0 User manual

KitchenAid

KitchenAid KECC568RPB01 User manual

KitchenAid

KitchenAid KECD807XBL00 User manual

KitchenAid

KitchenAid KECC501GAL2 User manual

KitchenAid

KitchenAid KICU508SBL0 User manual

KitchenAid

KitchenAid KECC056, KECC506, KECC507, KECC508, KECC556, KECC567,... User manual

KitchenAid

KitchenAid KECC508MBB02 User manual

KitchenAid

KitchenAid KECC501BAL1 User manual

KitchenAid

KitchenAid KECC568RPB - Pure 36 Inch Smoothtop Electric... User manual

KitchenAid

KitchenAid KHGL 9010/B User manual

KitchenAid

KitchenAid GAS DOWNDRAFT COOKTOP User manual

KitchenAid

KitchenAid KGCS166GBL3 User manual

KitchenAid

KitchenAid KECC567BAL2 User manual

Popular Cooktop manuals by other brands

Bonnet

Bonnet OPTIMUM 700 Technical instructions

Jenn-Air

Jenn-Air JGCP430 installation instructions

Frigidaire

Frigidaire FES367FCC Wiring diagram

Ztove

Ztove EZ2 DUO instruction manual

Kleenmaid

Kleenmaid cooking GCTK9011 Instructions for use and warranty details

Casselin

Casselin CSASRE24 manual

Jenn-Air

Jenn-Air JGC2536EB00 Use & care guide

Waldorf

Waldorf RN8603E-B Technical data sheet

Whirlpool

Whirlpool SMP658CNEIXL quick guide

Wolf

Wolf CI243C/B Use and care guide

Fulgor Milano

Fulgor Milano F5PGK305S1 installation instructions

GE JP389 Specifications

Wells

Wells WV-2HFG owner's manual

IKEA

IKEA Lagan HGA4K user manual

Samsung

Samsung NA36N9755 installation manual

Miele

Miele KM 404 operating instructions

Lacor

Lacor 69562 Instructions for use and maintenance

Keating Of Chicago

Keating Of Chicago MG-2 manual
