KitchenAid KECC507HSS2 User manual

COOKTOP PARTS

For Model: KECC507HSS2

(Stainless Steel)

9−00 Litho in U.S.A. (RS) Part No. 8185581

30" ELECTRIC

BUILT−IN

COOKTOP

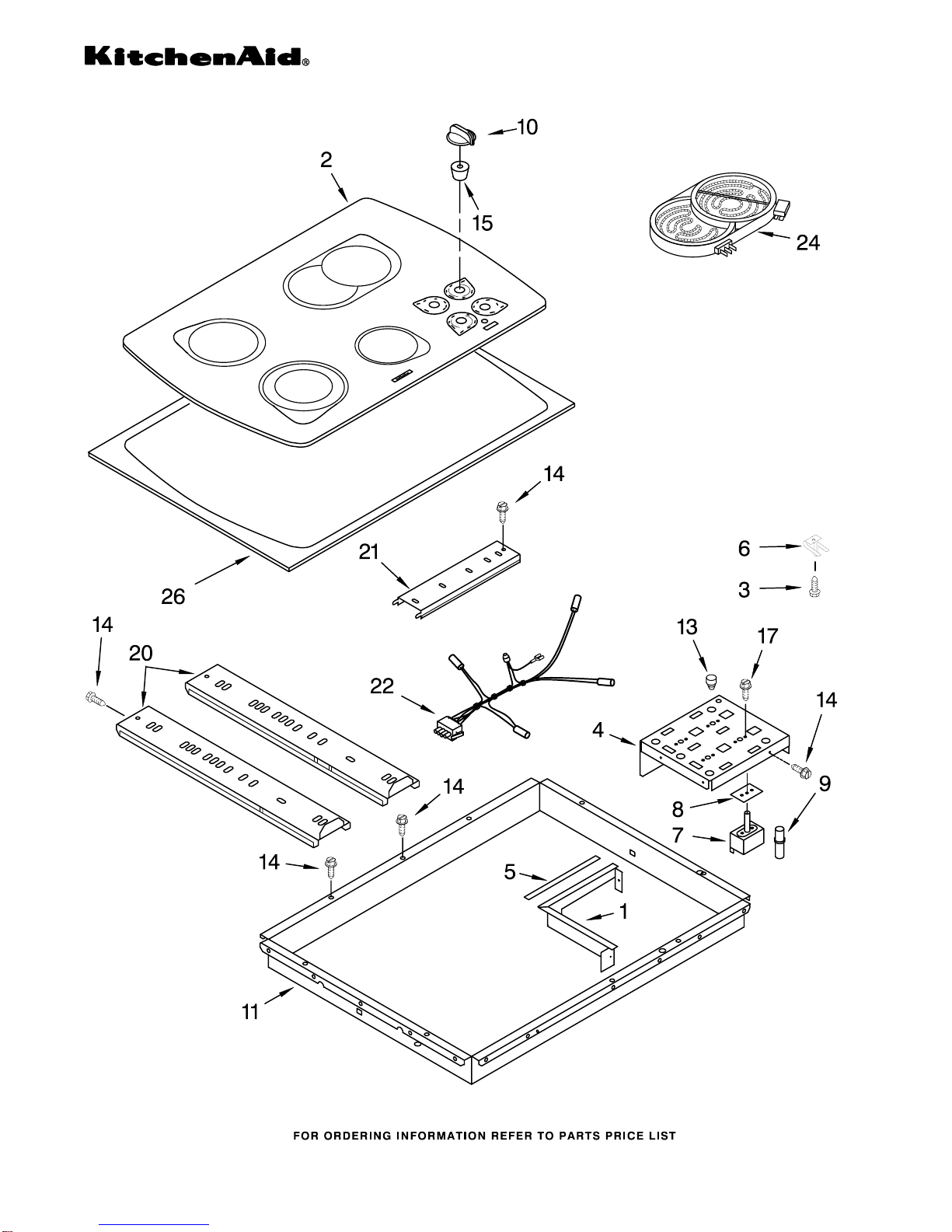

COOKTOP PARTS

For Model: KECC507HSS2

(Stainless Steel)

8185581

Illus. Part

No. No. DESCRIPTION

1 4455468 Shield, Heat

2 4455590 Cooktop, Glass

3 246119 Screw

4 4455421 Bracket, Switch

5 3191839 Seal, Heat Shield

6 3191791 Spring Locator (8)

7 Switch, Infinite

3191049 Use W/1500W

Left Rear Burner

3188516 Use W/1800W

Right Rear Burner

3191049 Use W/1200W

Right Front Burner

3188516 Use W/2400 W

Left Front Burner

8 3183956 Seal, Switch Shaft

9 3193012 Light, Indicator

9750372FF

Knob, Control (4)

11 4455515 Box, Burner

13 3192477 Bumper, Silicone

14 3196537 Screw

15 3182435 Seal, Switch (4)

17 311865 Screw

20 3191515 Rail, Element (2)

21 3192268 Rail, Element (1)

22 3191343 Lamp, Hot

Surface Indicator

24 Element, Surface

4452742 1200W − RF

4452743 1500W − LR

4452741 1000/1800W − RR

8272563 1000/2400W − LF

3192737 Seal, Heat

3192439 Seal, Limiter

26 8284627 Frame, Cooktop

MISCELLANEOUS PARTS

For Model: KECC507HSS2

(Stainless Steel)

8185581

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3191771

Installation

Instructions

LIT3191795

Wiring Diagram

LIT8284718

Use & Care Guide

LIT3191638

Safe Cooking Tips

Miscellaneous

3172515 Mtg. Hardware Kit

3191239 Tape, Foam

4455364 Bracket,

Support (4)

3192408 Bracket,

Support (2)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

4455273 Wiring Harness

Surface Unit

3400015 Screw, Ground

3192220 Conduit Assy.
