KitchenAid KECC507HSS1 User manual

COOKTOP PARTS

For Model: KECC507HSS1

(Stainless Steel)

9−00 Litho in U.S.A. (RS) Part No. 8185505

30" ELECTRIC

BUILT−IN

COOKTOP

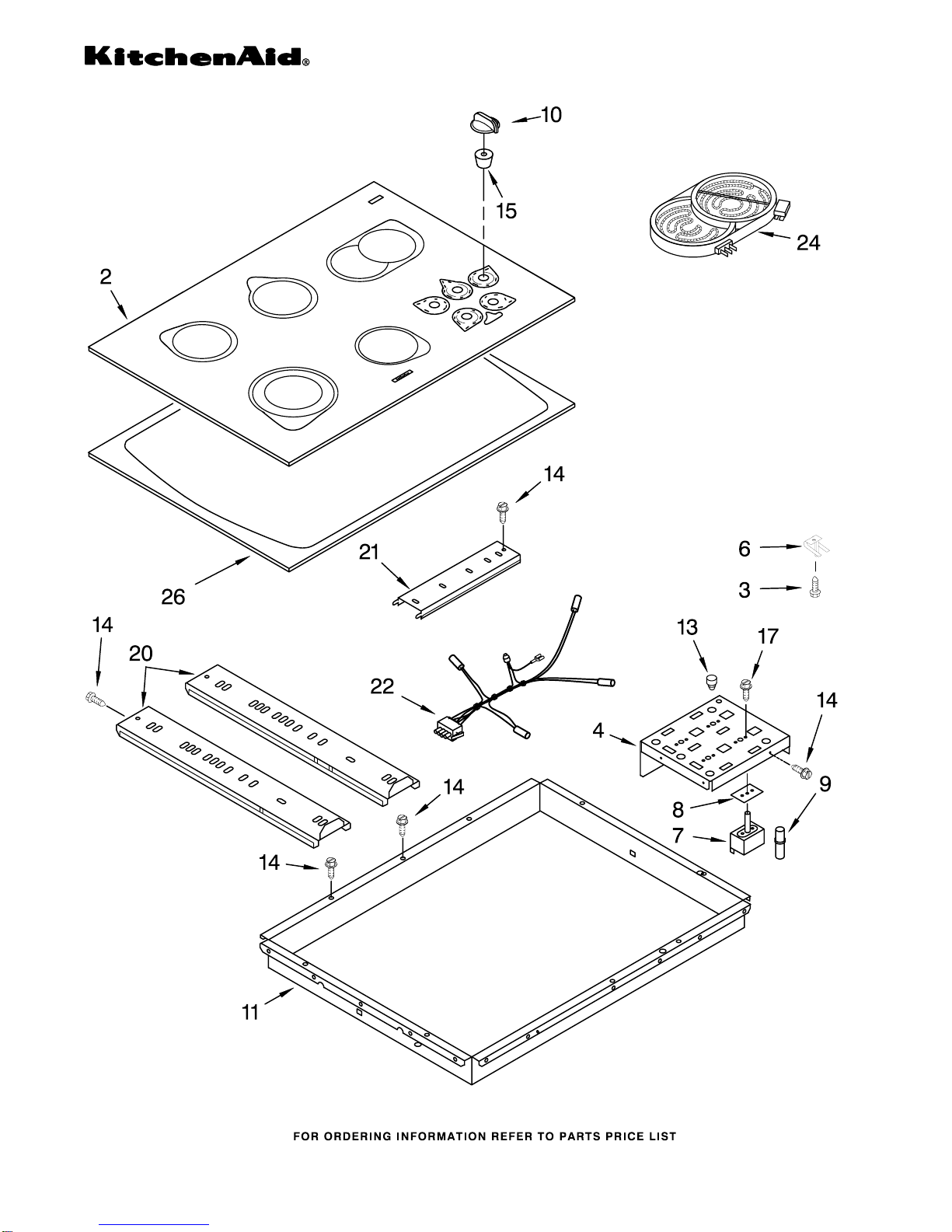

COOKTOP PARTS

For Model: KECC507HSS1

(Stainless Steel)

8185505

Illus. Part

No. No. DESCRIPTION

2 3192581 Cooktop, Glass

3 246119 Screw

4 4455420 Bracket, Switch

6 3191791 Spring Locator (8)

7 Switch, Infinite

3191049 RF − LR − Center

3188516 LF − RR

8 3183956 Seal, Switch Shaft

9 3193012 Light, Indicator

9750372FF

Knob, Control (4)

11 4455516 Box, Burner

13 3192477 Bumper, Silicone

14 3196537 Screw

15 3182435 Seal, Switch (4)

17 311865 Screw

20 3191515 Rail, Element (2)

21 3192269 Rail, Element (1)

22 3192222 Lamp, Hot

Surface Indicator

24 Element, Surface

4452742 1200W − RF

4452743 1500W − LR

8272564 1500W − Center

4452741 1000/1800W − RR

8272563 1000/2400W − LF

3192737 Seal, Heat

3192439 Seal, Limiter

26 8284628 Frame, Cooktop

MISCELLANEOUS PARTS

For Model: KECC507HSS1

(Stainless Steel)

8185505

Illus. Part

No. No. DESCRIPTION

FOLLOWING PARTS

NOT ILLUSTRATED

LITERATURE PARTS

LIT3192799

Installation

Instructions

LIT3191797

Wiring Diagram

LIT8284718

Use & Care Guide

3191638 Safe Cooking Tips

Miscellaneous

3172515 Mtg. Hardware Kit

4455364 Bracket, Support

3192408 Bracket, Support

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 C

242820 Wire, Black

14 Ga. 150 C

242822 Wire, Blue

14 Ga. 150 C

242830 Wire, Brown

14 Ga. 200 C

242823 Wire, Green

14 Ga. 150 C

242824 Wire, Orange

14 Ga. 150 C

242829 Wire, Red

12 Ga. 150 C

242825 Wire, Red

14 Ga. 150 C

242831 Wire, Red

14 Ga. 200 C

242826 Wire, White

14 Ga. 150 C

242827 Wire, Yellow

14 Ga. 150 C

242832 Wire, Yellow

14 Ga. 200 C

ACCESSORY PARTS

3191048 Cleaner, Glass

WIRING HARNESS PARTS

4455275 Wiring Harness

Surface Unit

3400015 Screw, Ground

3192221 Conduit Assy.
