Key Digital KD-UPS52U User manual

4K/18G USB/Universal Presentation Switcher

with 5 Inputs (HDBT, 2xHDMI, DP, USB-C), 2 Mirrored

Outputs (HDBT, HDMI), LAN, ARC, Audio De-Embed,

IR, RS-232, IP Control, CEC Manager

™

. Includes Rx.

The Experts in Digital Video Technology and Solutions™

Quick Setup Guide

KD-UPS52U

Table of Contents

CONNECT ..................................................................... 2

CONFIGURE ................................................................... 4

CONTROL ..................................................................... 6

Always follow the instructions provided in this Quick Setup Guide.

Default IP Address: 192.168.1.239

Please visit www.keydigital.com for the latest product

documentation and software downloads. Product features and

speciﬁcations are subject to change without notice.

KD-UPS52U

Key Digital®KD-UPS52U is a 4K/18G KD-App Ready universal presentation switcher + soft-codec

enabling interface with CEC Manager™, auto switching, and audio de-embedding creating a user-

friendly, simpliﬁed presentation system. KD-UPS52U features two HDMI, 1 Display Port, one USB-C,

and one HDBaseT input which integrates natively with universal presentation + USB switching wall plate

transmitter, KD-X4x1WUTx (sold separately). KD-UPS52U also features two USB-A and one USB-B

connectors, enabling connected laptops and computers to connect with web cams, USB microphones,

touchscreen displays, and more. Mirrored HDMI and HDBaseT outputs enable audience + presenter

views and the HDBaseT output marries in with the included KD-X100MRx for integrating monitors or

projectors up to 100m / 328ft away when the selected source is outputting 4K/UHD (up to 150m /

492ft at 1080p). Designed for professional audio video installations in conference rooms, board rooms,

classrooms, lecture halls, auditoriums, and more, KD-UPS52U enables multiple video sources to be

displayed on up to two connected displays while analog (balanced/unbalanced) and digital (PCM) audio

de-embed ports feed audio of the selected source into an ampliﬁer, DSP, or sound bar. Integrating

KD-UPS52U with KD-Amp220 will enable an app-ready all-in-one solution for control of video switching

with sound and speech enforcement. Key Digital CEC Manager™enables basic controls

of the connected displays for a simplistic all-in-one integration system. KD-UPS52U

presentation switcher supports all SD, HD, VESA and Ultra HD/4K video standards with

HDR header information included in a variety of 4K EDID handshakes. In addition to IR,

RS-232, and TCP/IP control, KD-UPS52U can also be controlled via trigger voltage and features status-

monitoring LEDs.

Key Features

›Presentation Switcher Kit: Includes KD-UPS52U and KD-X100MRx. Add KD-X4x1WUTx wall plate

HDBaseT Tx for plug-in on walls, ﬂoor and table boxes

›Presentation Switching: 1 HDBaseT, 2 HDMI, 1 Display Port, 1 USB-C source selection by push

button, IP, RS-232, IR, auto switching, or trigger control.

›Soft-Codec Enabling System: USB Host + Device ports on KD-UPS52U, KD-X4x1WUTx wall plate

transmit (sold separately) and KD-100MRx (included) create connectivity hub for professional

USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with

connected computer

›PTZ USB Camera Integration: Integrates natively with KD-CAMUSB for full PTZ control

via KD-App and more

›Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4

(signals up to 18Gbps bandwidth)

›Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected

source when enabled

›CEC Manager

™

: Power, volume, and muting controls of the connected display/projector without any

additional control wiring. Selection of desired CEC command recipient.

›Audio De-embedding: Audio of the selected source is de-embedded at the unit’s analog L/R

balanced/unbalanced and PCM digital audio connectors

›KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control

UI of video switching, audio and speech enforcement

›HDCP Licensing: Fully licensed and compatible with HDCP 2.2

›HDR10 and Dolby Vision: More life-like images through a greater range of luminance levels

›Power Over HDBaseT:

Rx unit (included) and wall plate Tx unit (sold separately) powered by KD-UPS52U

›Installation: Half-rack width with rack and under-table mounting ears included

›Signal Extension: For resolution and cable quality

»4K/UHD (18G): Up to 100m / 328ft

»1080p: Up to 150m / 492ft

›Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

›Full Buffer System

™

: Manages TMDS re-clocking / signal re-generation, HDCP authentication to

source & display, EDID Control handshake, and Hot Plug Detection Voltage

›EDID Management: Internal library with 15 internal EDID handshakes including 4K with HDR in

addition to native EDID data copied from the Rx display/device

›RS-232: Bi-Directional control to/from Tx and Rx/Presentation Switch unit

›Unit Control Mode: Provides TCP/IP and RS-232 control and status of/from Tx unit

›Lossless compressed digital audio: Support for Dolby

TrueHD, Dolby

Digital Plus, Dolby Atmos

and DTS-HD Master Audio

™

›Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via

open API: Compass Control

Pro, AMX

, Crestron

, KNX

, RTI

, Savant, URC

, Leviton

etc.

›KD-App Ready: Network scan & detect populates pre-built GUI including connected display/projector

controls via CEC Manager

™

CONNECT:

Test for proper operation of the unit and cables in your system before permanently

securing the unit for ﬁnal installation. Ensure that you leave enough ventilation

space to provide sufﬁcient airﬂow and cooling.

Begin with the KD-UPS52U unit, KD-X100MRx, Key Digital wall-plate transmitter (sold

separately), all input/output devices, and audio system powered off.

1. Connect HDMI, Display Port, and USB-C sources to the input ports of KD-UPS52U unit

2. (Optional) Connect HDMI, Display Port, USB-C, VGA sources to wall-plate transmitter (sold separately).

Port connectivity varies by wall plate model.

3. Connect HDMI displays / projectors to KD-UPS52U’s HDMI output and the HDMI output port of

KD-X100MRX unit

4. For USB camera, keyboard, or mouse integration, connect USB devices into desired USB A ports and

USB host computer to desired USB B ports at KD-X100MRx, KD-UPS52U, or KD-X4x1WUTx

5. Connect CAT wire from KD-UPS52U’s HDBaseT outputs to KD-X100MRX HDBaseT input and

(optional) from KD-UPS52U’s HDBaseT input to wall-plate transmitter (sold separately)

6. To send the selected audio source into audio systems, connect from the analog or digital audio de-

embed outputs of KD-UPS52U, KD-X100MRx, or KD-X4x1WUTx.

7. To embed audio into a USB host computer’s soundcard or into the KD-UPS52U connect USB

microphones or audio DSPs to USB Device ports, and connect the Host computer to the USB Host

ports of KD-X100MRx, KD-UPS52U, or KD-X4x1WUTx

8. If utilizing KD-AMP220 integration control mode, connect RS-232 wiring from

KD-UPS52U Tx and Ground into KD-AMP220 Rx and Ground.

See Operation Manual for more info.

9. For unit control, connect control system and/or PC to TCP/IP, RS-232, use provided

handheld remote, or place IR emitter over IR sensor

10. Connected monitors are controlled by CEC Manager

™

on the HDMI connection.

Alternatively, connect IR/RS-232 wiring from control system into pass-thru ports of

KD-UPS52U and IR/RS-232 ports of the KD-X100MRX

11. Screw-in power supply to the KD-UPS52U unit, and then connect power to outlets.

12. Power on HDMI sources and displays, audio systems, connected computers, USB devices and hosts

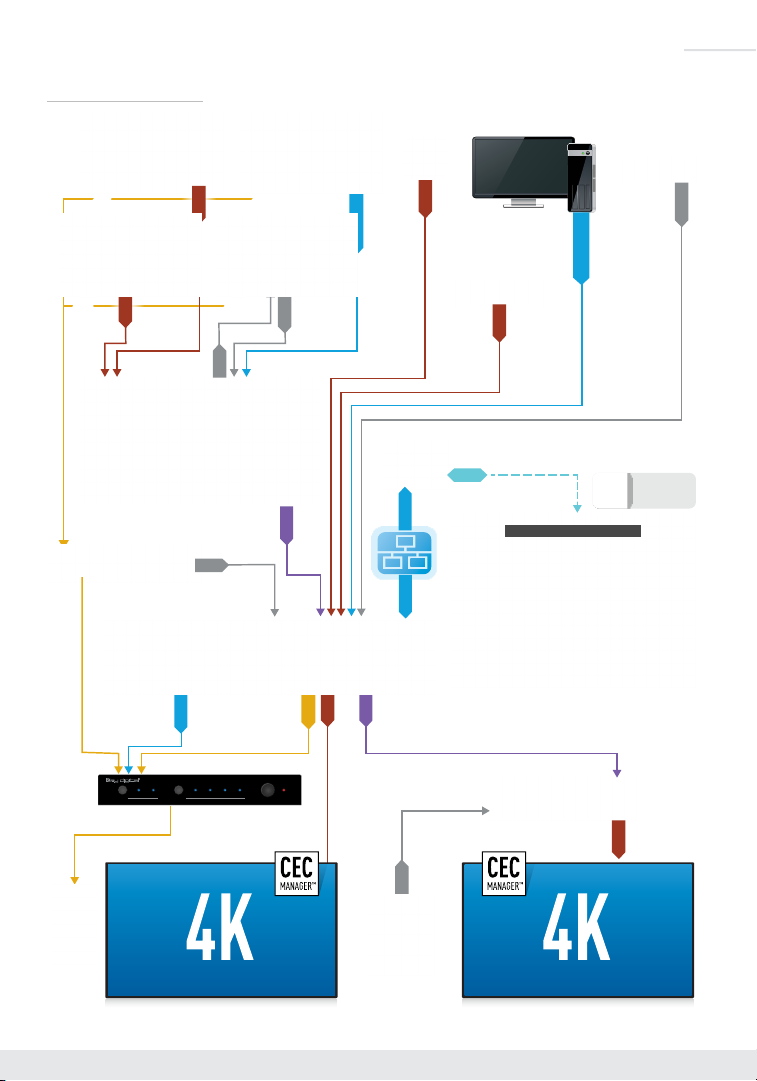

Application Example

USB

AppleTV Signage

(USB-C)

PC (DisplayPort)

KD-X100MRx

KD-X4x1WUTx

Presentation Switcher KD-PS42 with KD-AMP220

DSP/Mixer

Cable/Satellite

USB-C

DisplayPort

HDMI

USB-C

USB

HDMI

WiFi Router

RS-232

WiFi

Audio

KD-AMP220

Input Control Vol

Mic Mute

Line BassL/R PCM

Treble

KD-AMP220

KEY DIGITAL

APP READY

TCP/IP

HDBT

TCP/IP

KD-UPS52U

KD-CAMUSB

DisplayPort

Note: 18Gbps signal extension requires all 18Gbps supported HDMI cables.

CONFIGURE:

Conﬁgure and control KD-UPS52U with Key Digital®Management Software™Pro (KDMS™Pro)

(Download here: https://goo.gl/ZcyHui).

1. Connect to KD-UPS52U from your PC using the USB micro port on the face of the unit

2. Open the

Key Digital®Management Software™Pro

software and

perform a USB scan (ﬁg. 1)

3. Choose the detected device from the Devices window (ﬁg. 2a)

4. Set the desired Device Name in the KD-UPS52U Information window

(ﬁg. 2b)

5. In the Network Settings section of the Properties window, enter the desired IP settings (ﬁg. 2c)

»a. IP Address (default is 192.168.1.239)

»b. Subnet Mask (default is 255.255.255.0)

»c. Gateway (default is 192.168.1.1)

»d. Port (default is 23)

»Note: If using KD-App, please do not change the port number.

6. Save (ﬁg. 2d)

7. Use the EDID rotary on the rear of the unit to choose the desired handshake that you wish to provide

to your connected HDMI source.

8. Set the Auto Sensing slide switch on the face of the unit to the ON position if you wish for your system

to automatically select a newly connected source and/or scan inputs when the current source is

disconnected.

9. Set the Forced HPD to the ON position to ﬁx a high HPD state to connected displays.

10. To return audio from the KD-X100MRX / display from an External Audio Input set to the Right position.

If returning audio from HDMI ARC set the ARC dipswitch to the Left position. Note: returned audio

from KD-X100MRx is not embedded to the USB host. USB audio must be used to embed audio to a

connected USB host computer.

11. If using USB for camera, keyboard, or mouse set the USB Mode slide switch to the correct setting.

Follow the USB Mode Selection Table below.

12. If using KD-App or

Key Digital®Management Software™

(KDMS™) set the desired Input/Output names

by entering the Input/Output Settings section of the properties window, and selecting the Change

Input/Output Name button (ﬁg. 3a), selecting the desired input/output and entering the name (ﬁg. 3b):

13. If utilizing KD-AMP220 integration control mode, choose the KD-AMP220 Control selection box in the

Audio/Video properties section. To control the mix level of KD-AMP220’s microphone input, choose

the selection box for Microphone Control (ﬁg. 4):

14. Additional settings may be adjusted in the KDMS software. Full access to all settings/commands is

achieved via terminal session using Tera Term or PuTTy software.

15. Ensure that CEC is enabled on your displays/projectors. Depending on the manufacturer, HDMI-CEC

may be given a different name. View THIS ARTICLE for a list of CEC names and how to enable CEC

on popular displays.

16. Your unit is now ready to control from the KDMS

™

Control Panel, KD-App, or by professional

control system.

Key Digital®App

on the App Store

KDMS™Pro

Download Page

KDMS™

Download Page

Key Digital®App

on the App Store

KDMS™Pro

Download Page

KDMS™

Download Page

CONTROL

Option 1: Control via Remote Control

Display 1

Controls:

Power

Volume

Mute

AV Mute

Source

Selection:

Wallplate 1

HDMI 1-3

Display 2

Controls:

Power

Volume

Mute

AV Mute

KD-CAMUSB

Controls:

Tilt, Pan,

Zoom, Focus

›Display Control via CEC Manager

™

buttons at top left and top right

›Input selection via buttons at bottom

›Note: Blue buttons at center are for KD-CAMUSB control.

Option 2: Control via KD-App, Key Digital®Management Software™

KD-UPS52U is controllable by Key Digital’s user-friendly iOS App (downloadable in the App Store)

or Key Digital®Management Software™(downloadable here).

›Connect and Conﬁgure your KD-UPS52U as described in this Connect & Conﬁgure sections

›Download and open KD-App and/or KDMS

™

›Ensure the iOS device and/or PC computer are on the same network

with KD-UPS52U

›Perform a network scan in the KD-App/KDMS

™

›Select and control the selected KD-UPS52U

Option 3: Control via professional control system

KD-UPS52U allows control over serial interface for bi-directional communication.

Pin: 1 2 3 4 5 6

›For RS-232 control use pins 4, 5, and 6 of the Main Control port

›For TCP/IP control, the default static IP address is 192.168.1.239, with port 23

Default static IP address:

192.168.1.239, port 23

›For the past 10 years, most Key Digital matrix switches have supported a standard audio+video

switching command. KD-UPS52U is also controllable by this command, so if you have previously

integrated Key Digital matrixes by third-party control systems you may have success using the same

driver/module.

»Switching – Video + Audio together (two commands supported)

»SPO01SIyy yy = input number (01-02)

»SPOSIyy yy = input number (01-02)

Test for proper operation of the unit and cables in your system before permanently

securing the unit for ﬁnal installation. Ensure that you leave enough ventilation

space to provide sufﬁcient airﬂow and cooling.

Contacting Key Digital

Technical Support

For technical questions about using Key Digital®products, please contact us at:

›Phone: 914-667-9700

›E-mail: [email protected]

Repairs and Warranty Service

Should your product require warranty service or repair, please obtain a

Key Digital®Return Material Authorization (RMA) number by contacting us at:

›Phone: 914-667-9700

›E-mail: [email protected]

Other manuals for KD-UPS52U

Other Key Digital Projector Accessories manuals

Key Digital

Key Digital FATCAT Series User manual

Popular Projector Accessories manuals by other brands

Optoma

Optoma BX-AL133B datasheet

PEERLESS

PEERLESS PE 1120 Installation and assembly

Osram

Osram SIRIUS HRI Series Directions for use

Presentation Switchers

Presentation Switchers PS111 quick start

Kramer

Kramer VIA GO user manual

Yamaha

Yamaha PJL-112 Replacement guide

Swedstyle

Swedstyle CL23AA02ZA25E operating manual

Mitsubishi Electric

Mitsubishi Electric 236CB Features

Epson

Epson BrightLink 475Wi user guide

Acer

Acer WP100 quick guide

i3 i3board user manual

CHIEF

CHIEF HB-43E installation instructions

Biamp

Biamp Modena Hub Network administrator's guide

NEC

NEC MP10RX Quick setup guide

Panamorph

Panamorph DCR-S3 installation guide

Exact solutions

Exact solutions FRAME-EVO-P10 manual

CHIEF

CHIEF VCM103S installation instructions

InFocus

InFocus LP70+ Replacement instructions
