Keter MANOR 6x4DD User manual

WWW.KETER.COM

ASSEMBLY INSTRUCTIONS | INSTRUCCIONES DE MONTAJE | MONTAGEANLEITUNG | CONSIGNES

DE MONTAGE | SAMLEVEJLEDNING | MONTAGE-VOORSCHRIFTEN | ISTRUZIONI D’ASSEMBLAGGIO

MANOR 6x4DD

A-1274-1 554745

MANOR 6x4DD

2 easy steps to use a QR-code:

1. Download a FREE QR-Code

reader from your smartphone

application site.

2. Scan the QR-Code.

SKU:

17197127 | 17194152

Thank you for your purchase of the Keter shed,

In order to activate your warranty, please enter

www.keter.com, under storage buildings

category and ﬁll in the sheds warranty

activation form.

WARRANTY

ACTIVATION

WWW.KETER.COM

US: # 1-888-374-4262

Canada: # 1-800-661-6721

UK: # 0121-5060008

Other European Countries:

# 31-1612-28301

BRINGEN SIE IHR PRODUKT NICHT GLEICH ZUM LADEN ZURÜCK, FALLS TEILE FEHLEN ODER DEFEKT SIND.

VAN ONTBREKENDE OF GEBROKEN ONDERDELEN NIET HET PRODUCT NAAR DE WINKEL RETOURNEREN.

DI PARTI MANCANTI O DANNEGGIATE, EVITARE DI RESTITUIRE IL PRODOTTO AL NEGOZIO.

PEÇAS EM FALTA OU PARTIDAS, NÃO DEVOLVA O PRODUTO À LOJA.

IF THERE ARE MISSING OR BROKEN PARTS, PLEASE DO NOT RETURN THE PRODUCT TO THE STORE

Please log onto our website, or contact Customer Service at:

S’IL Y A DES PIÈCES MANQUANTES OU CASSÉES, NE RETOURNEZ PAS LE PRODUIT AU MAGASIN

Veuillez visiter notre site Internet, ou contacter notre Service Clientèle:

BITTE

Bitte loggen Sie in unsere Website ein oder wenden Sie sich an unseren Kundenservice:

SI HUBIERA ALGUNA PARTE FALTANTE O DAÑADA, NO DEVUELVA EL PRODUCTO A LA TIENDA

Inicie sesión en nuestro sitio en Internet o contáctese con nuestro servicio de atención al cliente:

IN GEVAL

Ga naar onze website of neem contact op met de Klantenservice:

IN CASO

Accedere al nostro sito o contattare il Servizio Clienti:

SE HOUVER

Entre na nossa página de Internet ou contacte o Serviço de Clientes:

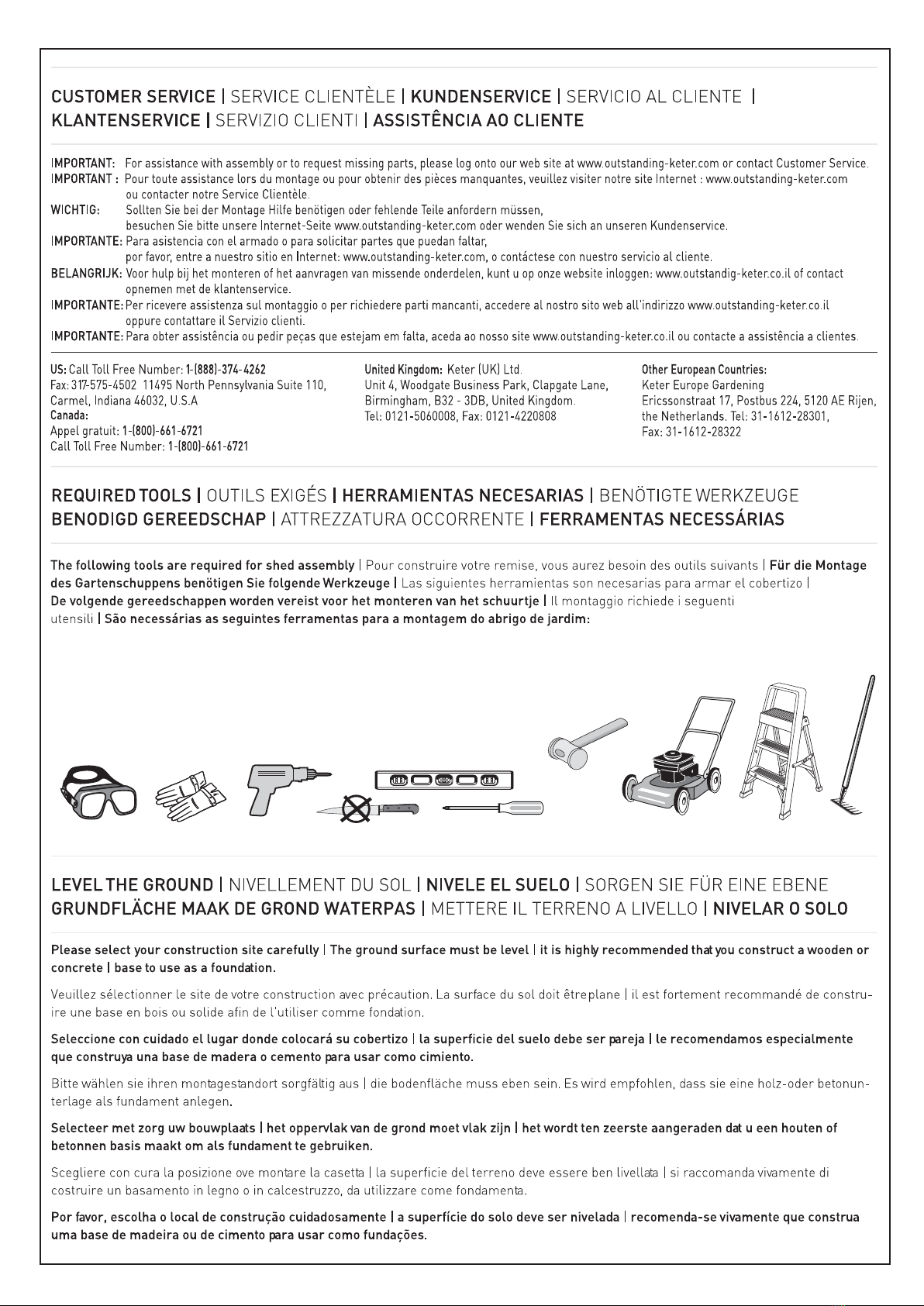

Clear area of stones | Remove all plants, roots and other obstacles | Rake the ground | Make ground level using a long, ﬂat object

(e.g. wood beam)

Retirez toutes les pierres | Arrachez toutes les plantes, racines et autres obstacles | Ratissez le sol | Aplanissez le sol à l'aide d'un

objet long et plat (une planche en bois par exemple)

Beseitigen Sie Steine | Entfernen Sie alle Pﬂanzen, Wurzeln und andere Hindernisse | Pﬂügen Sie den Boden durch | Ebenen Sie den

Boden mit Hilfe eines langen, ﬂachen Objektes (wie z.B. eines Holzbalken) aus.

Saque las piedras del área | Retire todas las plantas, raíces y otros obstáculos | Rastrille la tierra | Nivele el suelo usando un objeto

largo y plano (por ejemplo, una viga de madera).

Verwijder stenen | Verwijder alle planten, wortels en andere obstakels | Hark de grond | Maak de grond met een lang, vlak onderw-

erp (bijv. een houten balk) waterpas

Eliminare le pietre | Rimuovere piante, radici e altri ostacoli | Livellare il terreno | Mettere a livello il terreno utilizzando un oggetto

lungo e piatto (ad es. un asse di legno)

Retire as pedras do local | Retire todas as plantas, raízes e outros obstáculos | Alise o local | Nivele o solo utilizando um objecto

comprido e plano (por exemplo, uma trave de madeira)

LEVEL THE GROUND | NIVELLEMENT DU SOL | NIVELE EL SUELO | SORGEN SIE FÜR EINE EBENE

GRUNDFLÄCHE MAAK DE GROND WATERPAS | METTERE IL TERRENO A LIVELLO | NIVELAR O SOLO

GENERAL PARTS LIST

FLOOR PARTS LIST (go to stage 1)

s26b

26mm (x10)

t (x4)

c1a (x1)

164cm

c1e (x2)

106cm

f1b (x1)

111cm x 169cm

c1a

c1e

c1d

dsl

dsr

c1d

d1a

sc15

16mm (x6)

d1a (x1) 138cm

dsl (x1) dsr (x1)

c1d (x2)

door partswalls parts

roof parts

floor parts

WALL PARTS LIST (stage 8)

DOOR PARTS LIST (stage 29)

ROOF PARTS LIST (stage 23)

e1c (x2) 133mm

e1a (x4) 87mm

rc (x4)

kc (x2)

s26b (x44)

26mm

e1c

e1a

r1b

121cm x 195cm

db1 (x1)

dp1 (x2)

dh (x4)

s13b (x35)

12mm

dpt (x2) dp1

dpt

dp1

dpt

dl1a

dr1a

s26b (x66)

26mm

ds2b (x10)

12mm

s10b (x8)

12mm

bu1a (x1)

c1b (x4 )

186cm

w1b (x2)

111cm x 187cm

fu1a (x1)

dfl (x1) 179cm

dfr (x1) 179cm

v (x2)

fd1b (x2)

17cm x 123cm

bd1a (x1)

169cm x 109cm

h1b (x1)

165cm rm (x1)

lm (x1)

dt (x2)

bu1a

fd1b

bd1a

h1b

fd1b

w1b

dfr

dfl

fu1a

c1b

FLOOR ASSEMBLY

f1b (x1)

111cm x 169cm d1a (x1) 138cm

18 cm

dsr (x1)

dsl (x1)

c1d (x2)

c1d

t (x4)

c1a (x1)

164cm

c1e (x2)

106cm

c1e

c1a

front

Flip the floor upsidedown

s26b (x10)

26mm sc15 (x6)

16mm

s26b

Fully fit the panel

inside the porfile

sc15

s26b sc15

10cm

s26b

175 cm

Flip the floor upside

WALL ASSEMBLY

c1b (x1)

186cm

w1b (x1)

111cm x 187cm

c1b

front

This side up

s26b (x8)

26mm

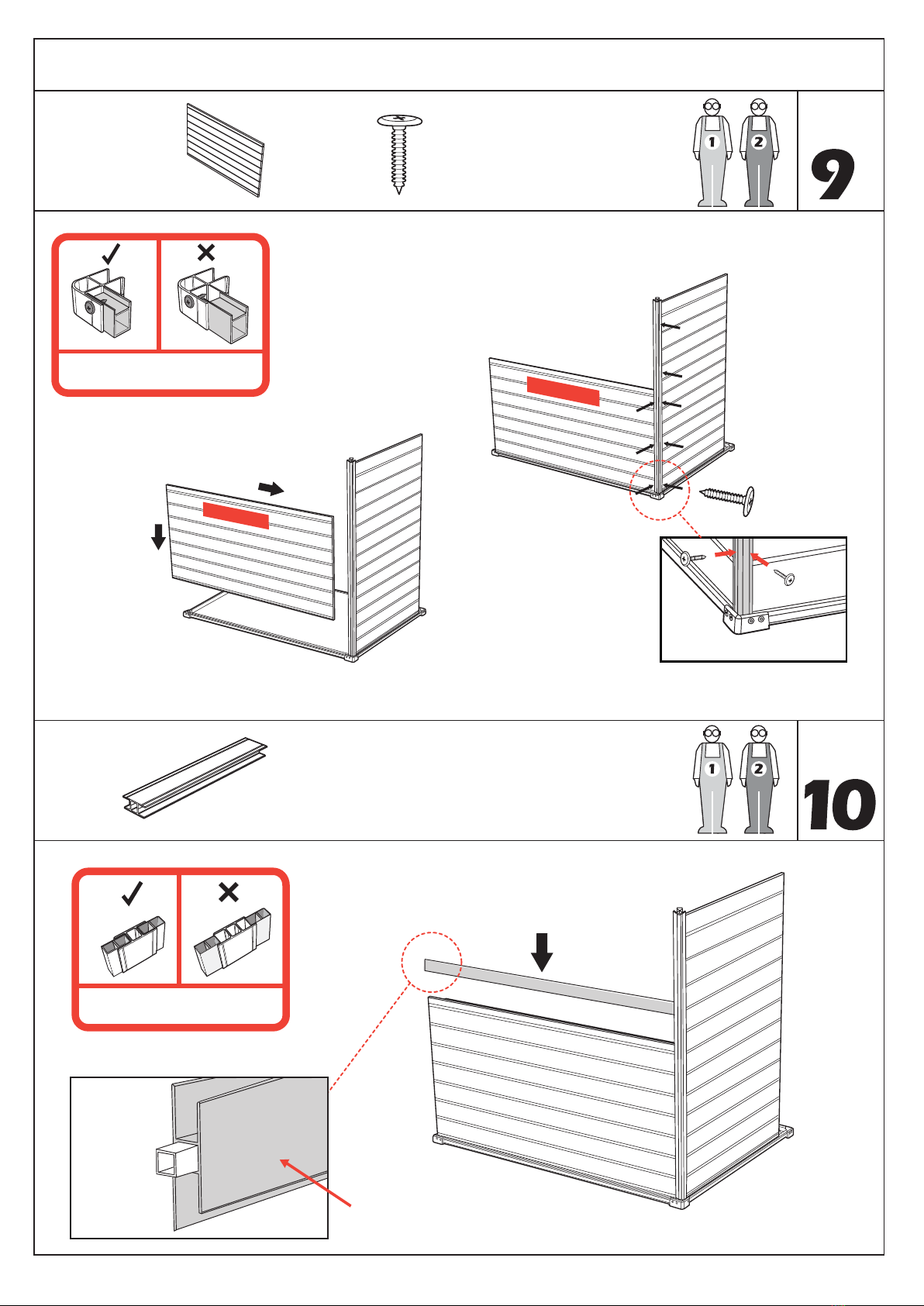

bd1a (x1)

169cm x 105cm

Fully fit the panel

inside the porfile

bd1a

This side up

back

This side up

s26b

h1b (x1)

165cm

h1b

Outside

Fully fit the panel

inside the porfile
