Kenmore Kenmore One-Speed Automatic Washers Original instructions

Owner's Manual and

Installation Instructions

One-Speed

AUTOMATIC WASHERS

with Water Temperature Control

IMPORTANT:

Read and follow all safety

and operating instructions

before first use of this product.

Your washer may look different

from the washer shown.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. www.sears.com

Sears Canada Inc., Toronto, Ontaio, Canada MSB 2B8 www.sears.ca

3953626 PRINTED IN U.S.A. 5/99

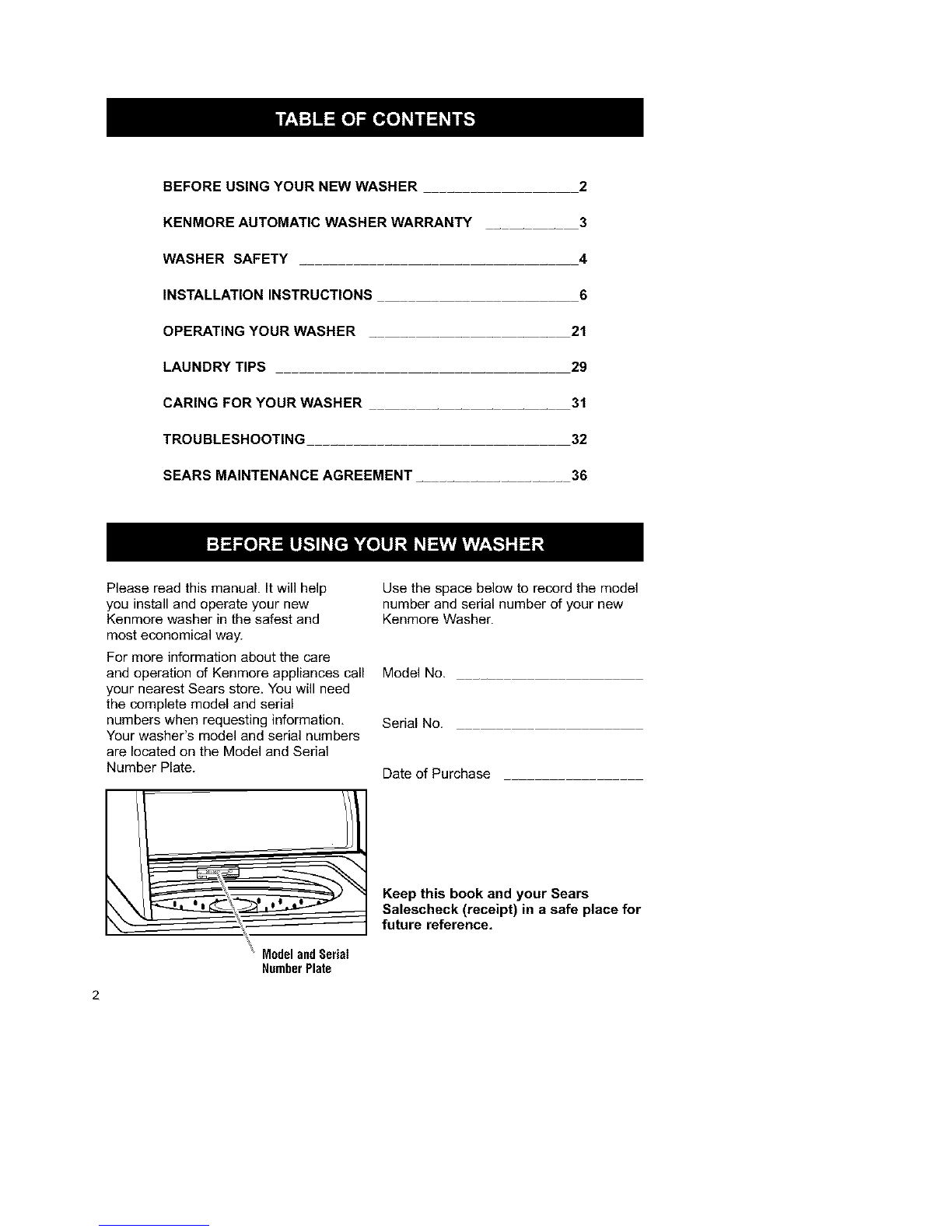

BEFORE USING YOUR NEW WASHER __ _ 2

KENMORE AUTOMATIC WASHER WARRANTY 3

WASHER SAFETY ............ 4

INSTALLATION INSTRUCTIONS 6

OPERATING YOUR WASHER 21

LAUNDRY TIPS .......... 29

CARING FOR YOUR WASHER 31

TROUBLESHOOTING ....... 32

SEARS MAINTENANCE AGREEMENT 36

Please read this manual. Itwill help

you install and operate your new

Kenmore washer in the safest and

most economical way.

For more information about the care

and operation of Kenmore appliances call

your nearest Sears store. You will need

the complete model and serial

numbers when requesting information,

Your washer's model and serial numbers

are located on the Model and Serial

Number Plate.

\ModelandSerial

NumberPlate

Use the space below to record the model

number and serial number of your new

Kenmore Washer.

Model No.

Serial No.

Date of Purchase

Keep this book and your Sears

Salescheck (receipt) in asafe place for

future reference,

Limited Lifetime Warranty on

White Porcelain Basket

For the lifetime of the washer from the

date of purchase, Sears will replace the

white porcelain wash basket if it chips

or rusts due to defective material or

workmanship, After the first year, you

will be charged for labor.

Limited 10-Year Warranty on

Plastic Tub*

For the second through tenth year from

the date of purchase, Sears will replace

the plastic tub if it is defective in

material or workmanship. After the first

year, you will be charged for labon

Limited 5-Year Warranty on

Gearcase Parts*

For the second through fifth year from

the date of purchase, Sears will replace

any gearcase parts that are defective in

material or workmanship. After the first

year, you will be charged for labon

Full 1-Year Warranty on

"Spreckle" Porcelain Basket

For one year from the date of

purchase, when this washer is installed

and operated according to the instruc*

tions that come with it, Sears will

replace the "spreckle" (speckled sur-

face) porcelain wash basket if it chips

or rusts due to defective material or

workmanship.

Full 1-Year Warranty on

Mechanical and Electrical parts

For one year from the date of pur_

chase, if this washer is installed and

operated according to the instructions

that come with it, Sears will repair or

replace any of its mechanical or

electrical parts if they are defective in

material or workmanship.

Warranty Restriction

If this washer is operated for any pur_

pose other than private family use, all

warranty coverage is restricted to 90

days from the date of purchase.

Warranty Service

Warranty service is available by

contacting your nearest Sears Service

Center in the United States or Canada.

This warranty applies only while this

washer is used in the United States or

Canada.

This warranty gives you specific legal

rights and you may also have other

rights that vary from state to state or

province to province.

Sears, Roebuck and Co.,

Dept 817WA,

Hoffman Estates, IL 60179

Sears Canada Inc.,

Toronto, Ontario, Canada

M5B 2B8

*In Canada a different warranty may apply.

In the U.S. for Sears warranty information or

to contact a Sears Service Center, call

1-800-4-MY-HOME sM(1-800-469-4663).

In Canada, call 1-877-533-6937.

Your safety and the safety of others is very important.

We have providedmany importantsafety messages in this manualand on

your appliance.Always readand obey all safety messages.

This is the safety alert symbol. This symbol alerts you to

hazards that can kill or hurt you and others, All safety mes-

sages will be preceded by the safety alert symbol and the

word "DANGER" or "WARNING." These words mean:

You will be killed or seriously

injured if you don't follow

instructions,

You can be killed or seriously

injured if you don't follow

instructions.

All safety messages will identify the hazard, tell you how to reduce the

chance of injury, and tell you what can happen if the instructions are not fol-

lowed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons

when using your washer, follow basic precautions, including the following:

•Read all instructions before using

the washer.

• Do not wash articles that have been

previously cleaned in, washed in,

soaked in, or spotted with gasoline,

dry-cleaning solvents, other

flammable or explosive substances

as they give off vapors that could

ignite or explode.

• Do not add gasoline, dry-cleaning

solvents, or other flammable or

explosive substances to the wash

water. These substances give off

vapors that could ignite or explode.

• Under certain conditions, hydrogen

gas may be produced in a hot water

system that has not been used for 2

weeks or more. HYDROGEN GAS IS

EXPLOSIVE. Ifthe hot water system

has not been used for such a period,

before using a washing machine, turn

on all hot water faucets and let the

water flow from each for several min-

utes. This will retease any accumulat-

ed hydrogen gas. As the gas is flam-

mable, do not smoke or use an open

flame during this time.

• Do not allow children to play on or in

the washer. Close supervision of chil-

dren is necessary when the washer is

used near children.

• Before the washer is removed from

service or discarded, remove the lid.

• Do not reach into the washer if the tub

or agitator is moving.

• Do not install or store this washer where

it wilI be exposed to the weather.

• Do not tamper with controls.

• Do not repair or replace any part of the

washer or attempt any servicing unless

specifically recommended in the

Owner's Manual or in published user-

repair instructions that you understand

and have the skills to carry out.

• See Installation Instructions for

grounding requirements.

SAVE THESEINSTRUCTIONS

IIMPORTANT: Observe all governing codes and ordinances. I

INSTALLATION OVERVIEW

For a complete list of tools and parts

needed, see pages 7-9.

A. SELECT LOCATION

FOR YOUR WASHER (pgs. 11-13)

Recessed Area/

Closet Installation Instructions (p, 11)

Standpipe Drain System (p. 13)

39in

(99=.)

Laundry Tub Drain System (p. 12)

(99 cm)

Floor Drain System (p. 13)

B.REMOVESHIPPINGSTRAP (p. 14)

Tools Needed:

Scissors Flashlight (optional

depending on installation)

C. CONNECT DRAIN HOSE (pgs. 15-16)

uNs_IST

Tools Needed: Parts Needed:

Pliers that open

to 1 9/16in (3.95 cm)

Flashlight (optional

depending on installation)

1 yellow, single-wire

hose clamp (top of

drain hose)

1 silver, double-

wire hose clamp

(bottom of drain

hose)

D, CONNECT INLET HOSES TO WASHER (pgs, 16-17)

Tools Needed: PaNs Needed:

Pliers that open

to 19/16in (3.95_

Flashlight (optional

depending on installation)

2 water inlet hoses

4 fiat water inlet hose washers

E. CONNECT INLET HOSES TO WATER FAUCETS (p, 17)

Tools Needed: PaNs Needed:

Pliers that open to 19h6inches (3.95 cm)

Bucket

(optional Flashlight (optional

depending on depending on installation)

installation)

2 water inlet hoses

F, SECURE DRAIN HOSE (p. 18)

Tools Needed: Parts Needed:

Flashlight (optionaI

depending on installation) Shipping strap with fastener

G. LEVEL WASHER (p, 19)

Tools Needed: Parts Needed:

9/16in (1.43 cm)

open-end wrench

Flashlight (optional

depending on installation) Wood block

2 front leveling iegs with nuts

(supplied with washer)

Selecting the proper location for your

washer will improve its performance

and minimize concerns like washer

walk or noise.

ELECTRICAL REQUIREMENTS

120-Voif, 60-Hz., AC-only, 15- or

20-ampere fused electrical supply is

required. (Time-delay fuse or circuit

breaker is recommended.) Connect

to an individual branch circuit.

Electrical Shock Hazard

Plug into agrounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions

can result in death, fire, or

electrical shock.

This washer is equipped with a power

supply cord having a 3-prong grounding

plug. To minimize possible shock hazard,

you must plug the power supply cord

into a mating 3-prong grounding-type

wall receptacle, grounded in accordance

with National Electrical Code,

ANSI/NFPA 70qatest edition and all local

codes and ordinances.

3 prong

grounding-type

wall receptacle

3 prong

grounding plug

Grounding \ _.= _/

Power supply

cord

• For a grounded, cord-

connected washer:

GROUNDING INSTRUCTIONS

This washer must be grounded, In the

event of malfunction or breakdown,

grounding will reduce the risk of

electrical shock by providing a path of

least resistance for electric current, This

washer is equipped with a cord having

an equipment-grounding conductor and

a grounding plug. The plug must be

plugged into an appropriate outlet that

is properly installed and grounded in

accordance with all local codes and

ordinances.

WARNING: Improper connection

of the equipment grounding conductor

can result in a risk of electric shock.

Check with a qualified electrician or

serviceman if you are in doubt as to

whether the appliance is properly

grounded.

Do not modify the plug provided with

the appliance - if it will not fit the

outlet, have a proper outlet installed by

a qualified electrician.

•For a permanently connected

washer:

GROUNDING INSTRUCTIONS

This washer must be connected to a

grounded metal, permanent wiring

system, or an equipment grounding

conductor must be run with the circuit

conductors and connected to the

equipment-grounding terminal or lead

on the appliance.

Other manuals for Kenmore One-Speed Automatic Washers

This manual suits for next models

Table of contents

Other Kenmore Washer manuals

Kenmore

Kenmore Kenmore One-Speed Automatic Washers Original instructions

Kenmore

Kenmore One-speed automatic washers with water temperature... Operating instructions

Kenmore

Kenmore HE2PLUS 4753 User manual

Kenmore

Kenmore 796.488x2800 User manual

Kenmore

Kenmore 23912 User manual

Kenmore

Kenmore 40412 User manual

Kenmore

Kenmore 2718 - High Efficiency 3.1 cu. Ft. Capacity Coin Op Front Load... Operating manual

Kenmore

Kenmore 20992 User manual

Kenmore

Kenmore 41724182300 User manual

Kenmore

Kenmore 27102 Series User manual

Kenmore

Kenmore 26112 Series User manual

Kenmore

Kenmore W10682744B User manual

Kenmore

Kenmore 796.3143 Series User manual

Kenmore

Kenmore C4906 Series User manual

Kenmore

Kenmore 110.2234 series User manual

Kenmore

Kenmore 40412 User manual

Kenmore

Kenmore 796.4884 Series User manual

Kenmore

Kenmore 131801800 User manual

Kenmore

Kenmore 592-49032 User manual

Kenmore

Kenmore 29522 User manual

Kenmore

Kenmore 43042 User manual

Kenmore

Kenmore 970.C4804 Series User manual

Kenmore

Kenmore 796.4027 Series User manual

Kenmore

Kenmore 27122310, 2992310 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
