Kenmore Kenmore 417.42042100 Manual

REPAIR

PARTS

LIST

417.42042100

To Call Toll Free

For Parts:

1-800-366-PART

(1-800-366-7278)

For Service:

1-800-4-MY-HOME

(1-800-469-4663)

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

FACTORY # 134107100 PUBLICATION # 5995358776

Frontload Washer

When placing a part order, give the complete model number

shown on the serial plate located on the inside of the washer

door.

All repair parts listed are available for immediate purchase or

special order when you visit your nearest Sears Service Cen-

ter. To order parts by phone, call the toll free parts number

listed to the left.

When requesting service or ordering parts, always provide the

following information:

• Product Type • Part Number

• Model Number • Part Description

9/2001 2

417.42042100

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

# = Functional Parts 3 9/2001

* = Non-Illustrated Parts

417.42042100

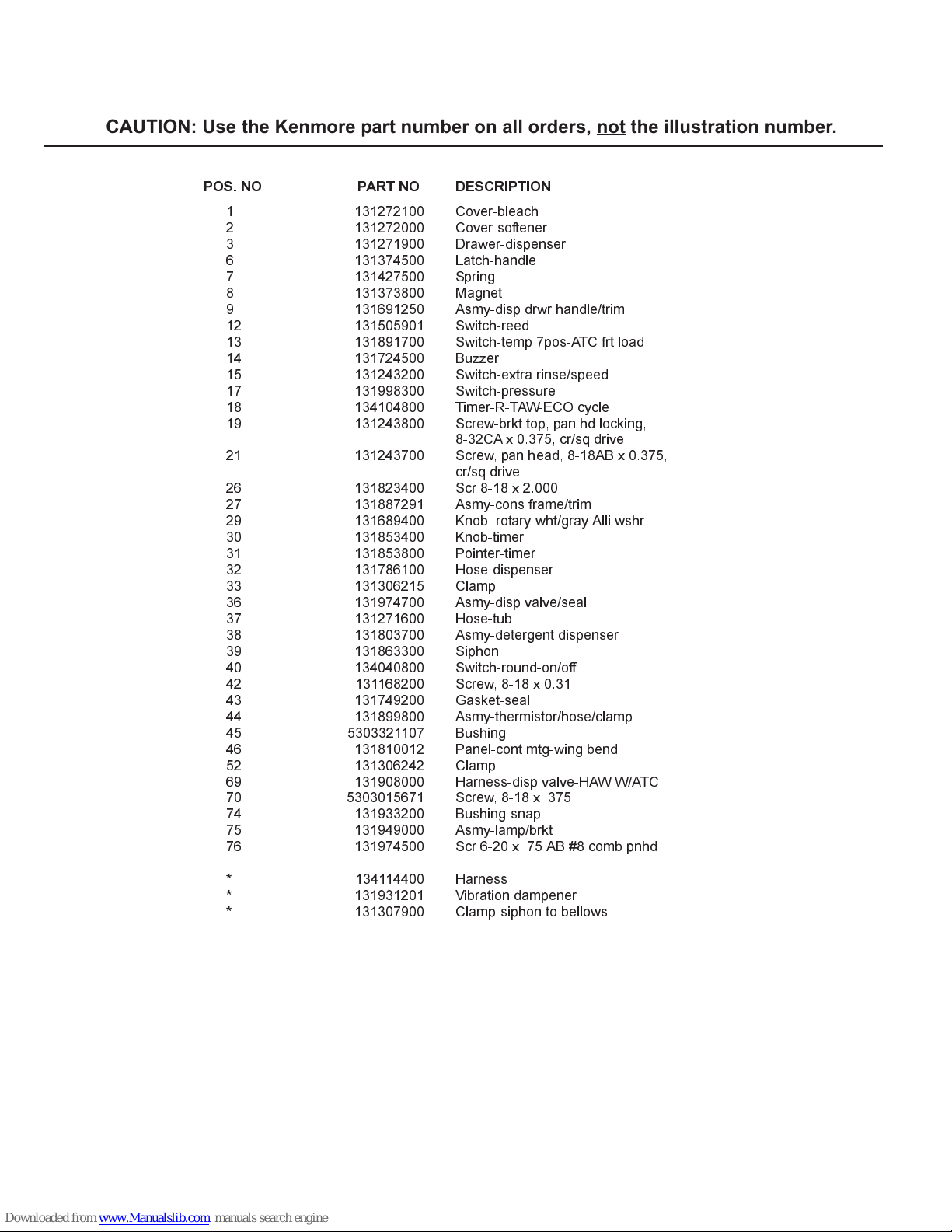

POS. NO PART NO DESCRIPTION

1 131272100 Cover-bleach

2 131272000 Cover-softener

3 131271900 Drawer-dispenser

6 131374500 Latch-handle

7 131427500 Spring

8 131373800 Magnet

9 131691250 Asmy-disp drwr handle/trim

12 131505901 Switch-reed

13 131891700 Switch-temp 7pos-ATC frt load

14 131724500 Buzzer

15 131243200 Switch-extra rinse/speed

17 131998300 Switch-pressure

18 134104800 Timer-R-TAW-ECO cycle

19 131243800 Screw-brkt top, pan hd locking,

8-32CA x 0.375, cr/sq drive

21 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

26 131823400 Scr 8-18 x 2.000

27 131887291 Asmy-cons frame/trim

29 131689400 Knob, rotary-wht/gray Alli wshr

30 131853400 Knob-timer

31 131853800 Pointer-timer

32 131786100 Hose-dispenser

33 131306215 Clamp

36 131974700 Asmy-disp valve/seal

37 131271600 Hose-tub

38 131803700 Asmy-detergent dispenser

39 131863300 Siphon

40 134040800 Switch-round-on/off

42 131168200 Screw, 8-18 x 0.31

43 131749200 Gasket-seal

44 131899800 Asmy-thermistor/hose/clamp

45 5303321107 Bushing

46 131810012 Panel-cont mtg-wing bend

52 131306242 Clamp

69 131908000 Harness-disp valve-HAW W/ATC

70 5303015671 Screw, 8-18 x .375

74 131933200 Bushing-snap

75 131949000 Asmy-lamp/brkt

76 131974500 Scr 6-20 x .75 AB #8 comb pnhd

* 134114400 Harness

* 131931201 Vibration dampener

* 131307900 Clamp-siphon to bellows

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

9/2001 4

417.42042100

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

# = Functional Parts 5 9/2001

* = Non-Illustrated Parts

417.42042100

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

POS. NO PART NO DESCRIPTION

1 131279602 Asmy-Inlet Hose Cold

2 131168200 Screw, 8-18 x 0.31

3 131279603 Asmy-Inlet Hose-Hot

4 131770700 Speed cont-Mallory/Sole motor

7 131205300 Screw, 10-16 x .75

8 131763200 Door lock/switch USCC

9 131303300 Screw-lock, ph ab, 10-16 x .50

10 131278700 Door-outer

11 131278800 Glass-door

12 131278900 Door-inner

13 131302901 Screw, 10-16 x .75

14 131763300 Catch, door/lock sw, intr door frame

15 131269300 Hinge-door

16 131696300 Screw 10-16 x .312 quad pn hd

17 131346400 Pin-locating

18 131279300 Panel-service, white

19 131358400 Screw-panel, hwhd ab, 8-18 x 1.125

20 131460900 Bracket-top front

21 131243700 Screw, pan head, 8-18AB x 0.375,

cr/sq drive

22 131279500 Retainer-spring

23 131243800 Screw-brkt top, pan hd locking,

8-32CA x 0.375, cr/sq drive

24 134086842 Panel-top frt cons All-wht

25 131668200 Bracket-top pnl

26 131311900 Screw, quadrex ph ab, 8-18 x 1/2

28 131978500 Panel-back

30 131859600 Shield-overflow

31 134100800 Cord-service

32 5303209428 Bushing-cord

33 # 5303207418 Valve-water

35 131732901 Reinforcement brkt

36 131003900 Leg, pad/nut

37 131841601 Asmy-foot bolt/pad/nut

44 131707800 Ring-drain hose

45 134049200 Hose-drain

58 131800402 Noise absorber

59 134045000 Noise Barrier

60 131362400 Fastener

64 131944900 Automatic temp cont board

65 131894600 Housing-ATC board

* 131453001 Bushing-top panel

* 131883101 Base-mounting-SCU

9/2001 6

417.42042100

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

# = Functional Parts 7 9/2001

* = Non-Illustrated Parts

417.42042100

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

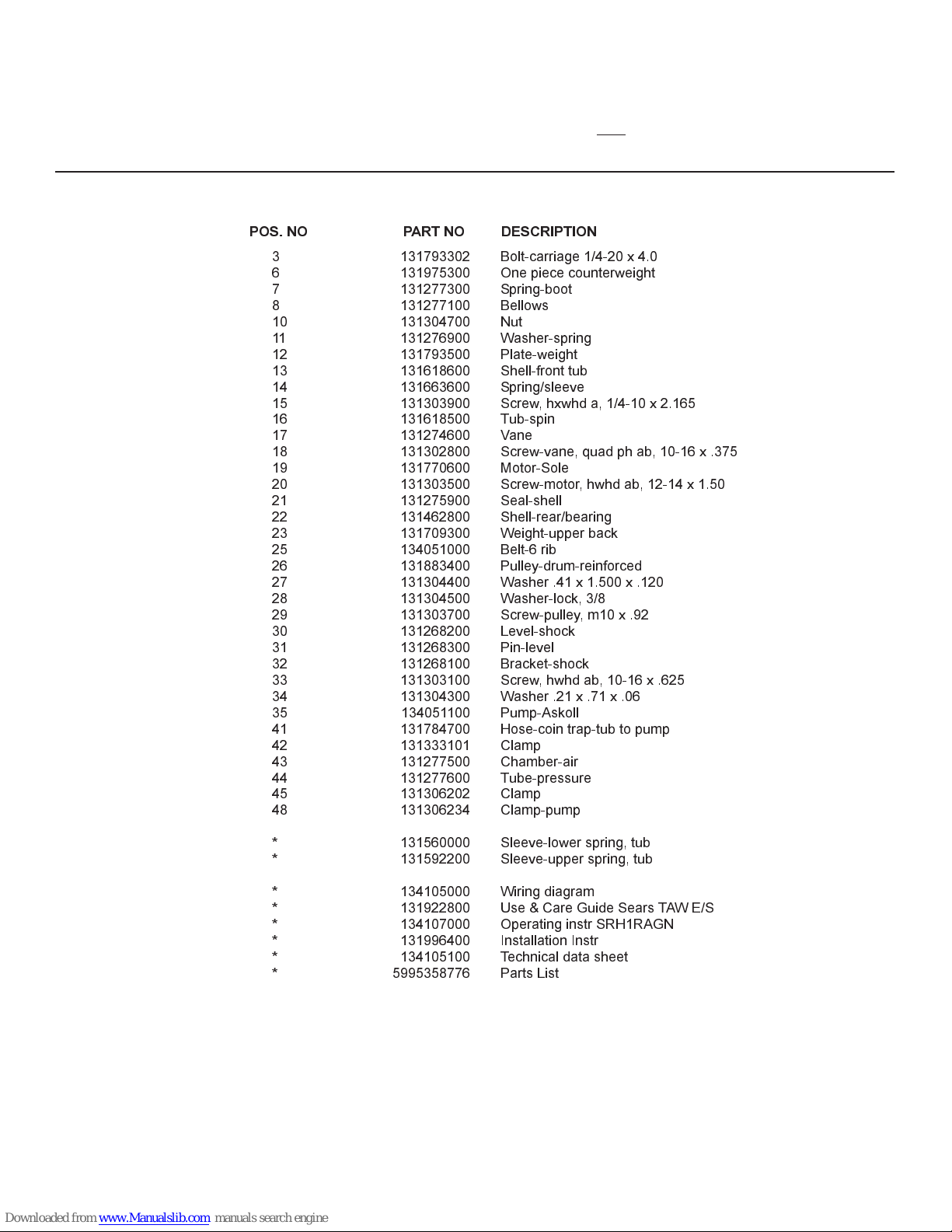

POS. NO PART NO DESCRIPTION

3 131793302 Bolt-carriage 1/4-20 x 4.0

6 131975300 One piece counterweight

7 131277300 Spring-boot

8 131277100 Bellows

10 131304700 Nut

11 131276900 Washer-spring

12 131793500 Plate-weight

13 131618600 Shell-front tub

14 131663600 Spring/sleeve

15 131303900 Screw, hxwhd a, 1/4-10 x 2.165

16 131618500 Tub-spin

17 131274600 Vane

18 131302800 Screw-vane, quad ph ab, 10-16 x .375

19 131770600 Motor-Sole

20 131303500 Screw-motor, hwhd ab, 12-14 x 1.50

21 131275900 Seal-shell

22 131462800 Shell-rear/bearing

23 131709300 Weight-upper back

25 134051000 Belt-6 rib

26 131883400 Pulley-drum-reinforced

27 131304400 Washer .41 x 1.500 x .120

28 131304500 Washer-lock, 3/8

29 131303700 Screw-pulley, m10 x .92

30 131268200 Level-shock

31 131268300 Pin-level

32 131268100 Bracket-shock

33 131303100 Screw, hwhd ab, 10-16 x .625

34 131304300 Washer .21 x .71 x .06

35 134051100 Pump-Askoll

41 131784700 Hose-coin trap-tub to pump

42 131333101 Clamp

43 131277500 Chamber-air

44 131277600 Tube-pressure

45 131306202 Clamp

48 131306234 Clamp-pump

* 131560000 Sleeve-lower spring, tub

* 131592200 Sleeve-upper spring, tub

* 134105000 Wiring diagram

* 131922800 Use & Care Guide Sears TAW E/S

* 134107000 Operating instr SRH1RAGN

* 131996400 Installation Instr

* 134105100 Technical data sheet

* 5995358776 Parts List

9/2001 8

417.42042100

CAUTION: Use the Kenmore part number on all orders, not the illustration number.

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

FACTORY # 134107100 Publication No. 5995358776
