Generation E-760 Installation Instructions

for Auto Deadbolt, Ofﬁce and Storeroom

STEPS FOR AUTO DEADBOLT ASM • MODELS 76016 & 76017

If not already installed at the factory, put the

thumbturn in the vertical position and install all four

(4)parts (M) as shown, on the inside trim assembly.

Turn the thumbturn all the way to the right for a RH

installation (arrow onM2points UP), or all the way

to the left for a LH installation (arrow onM2points

DOWN). The thumbturn should stop in the vertical

position, and the stopper cam (M2) will be in the posi-

tion illustrated.

Place 3 spacers (S) on the door (for recent models

only). Place the inside trim assembly on the door so

that the upper and lower spindles (F) and (G) engage

the thumbturn and the inside lever. Fasten to the

outside housing using the three 1/8” hex head

mounting screws (I).

Apply the privacy thumbturn sticker as shown. If

in doubt as to the direction of the arrow, press the

auxiliary latch (X) to extend the deadbolt, and verify in

which direction to rotate the thumbturn to reach the

horizontal (privacy) position.

M4

M1

M2

M3

Install clip

M1diagonally

on hub

(TOP)

RH

LH

RH/LHR LH/RHR

X

F

I

G

I

S

S

STEPS FOR ASM OFFICE • MODELS 76112 & 76113

DO THE FOLLOWING BEFORE PLACING THE INSIDE

TRIM ASSEMBLY ON THE DOOR:

Install only parts (M3and M4) as shown, on the

inside trim assembly.

STEPS FOR ASM/ESM STOREROOM • MODELS 76112, 76113, 76131

DO THE FOLLOWING BEFORE PLACING THE INSIDE

TRIM ASSEMBLY ON THE DOOR:

M4

M3

Install M3onto M4, then slide both parts

onto the thumbturn.

Install M2onto M4, then slide both parts

onto the thumbturn.

The thumbturn should be locked in the

vertical position.

M4

M1M2

PK2990/08/12 - GENERATION E-760 INSTALLATION INSTRUCTIONS

Call 1-877-468-3555

or 1-514-340-9025

Put the thumbturn in the vertical position and install

only parts (M2 and M4) as shown, on the inside trim

assembly. The notch on the stopper cam (M2) must

engage the tab on the plate (M4), so that the thumbturn

is locked in the vertical position.

Technical Support

This manual suits for next models

6

Table of contents

Other Kaba Lock manuals

Kaba

Kaba SILCA SW- VAG GROUP-L0 User manual

Kaba

Kaba SIMPLEX 7102 Series User manual

Kaba

Kaba Simplex 1000 Series User manual

Kaba

Kaba 7004 Series User manual

Kaba

Kaba SIMPLEX EE1000 Series User manual

Kaba

Kaba E-Plex 5 Series User manual

Kaba

Kaba COMBOGARDPRO User manual

Kaba

Kaba Quantum Series User manual

Kaba

Kaba Simplex 6200 Series User manual

Kaba

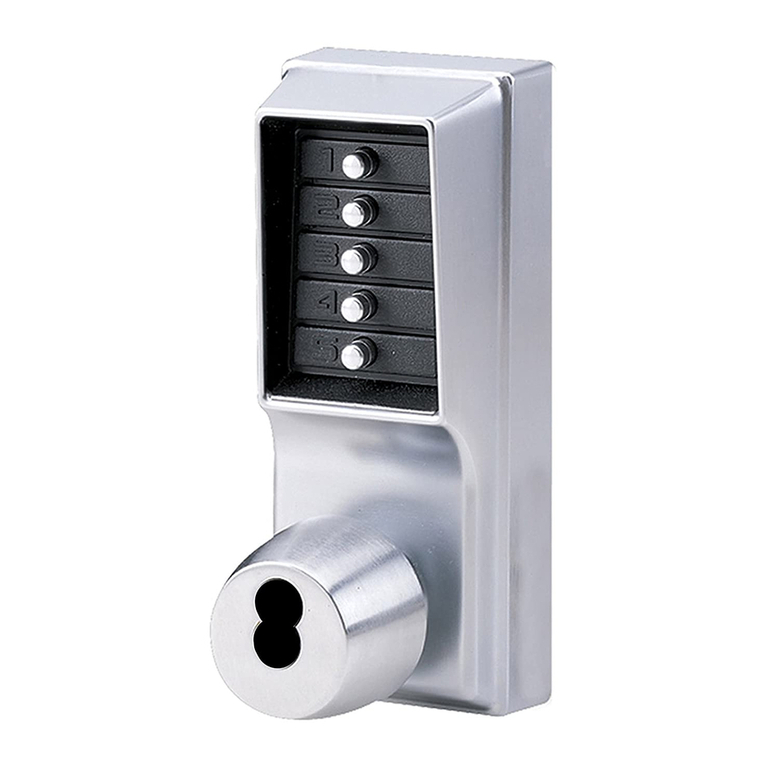

Kaba Simplex Mechanical Pushbutton Locks User manual

Kaba

Kaba Gege User manual

Kaba

Kaba Combi B 30 User manual

Kaba

Kaba SIMPLEX LD470 User manual

Kaba

Kaba E-Plex 1500 Series User manual

Kaba

Kaba SIMPLEX L1000 Series User manual

Kaba

Kaba Simplex 3000 Series User manual

Kaba

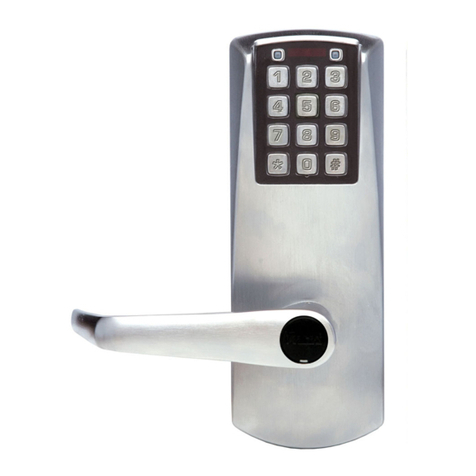

Kaba E-PLEX 2000 User manual

Kaba

Kaba PowerLever PROX 9000 User manual

Kaba

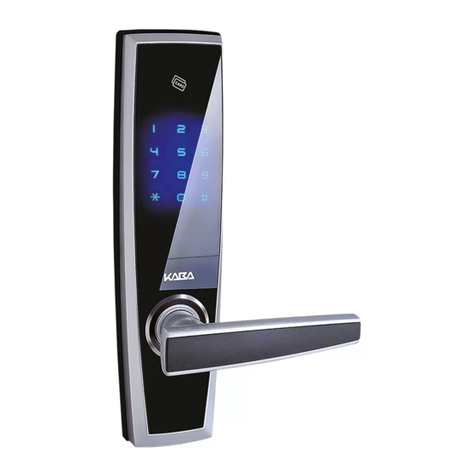

Kaba E-Flash EF680 User manual
