JONATHAN Y JYL2078A User manual

WARNING

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

CARE AND MAINTENANCE

Model# JYL2078A

Product Dimensions: 9"Lx 9"W x 19-3/8"H

Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an appropriate

vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate to

the material. Avoid the use of chemicals and household cleaners as they may damage the finish.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below

for safe use and installation

*The external flexible cable or cord of this lamp cannot be replaced;

If the cord is damaged, the lamp shall be destroyed

**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce

the risk of electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in

the outlet, reverse the plug, if it still does not fit, contact a qualified electrician. Never use with an

extension cord unless the plug can be fully inserted. do not attempt to disregard this safety feature.

Part List and Hardware List

PIECE DESCRIPTION PICTURE QUANTITY PIECE DESCRIPTION PICTURE QUANTITY

A.B.C Lamp base 1X E Shade 1X

B Saddle 1X F Finial 1X

C Socket 1X G Bulb 1X

D Harp 1X 1X

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware

contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 6 minutes.

PLEASE USE ON/OFF TYPE"A" BULB MAX 40-WATT OR CFL BULB MAX 9-WATT OR LED BULB MAX 4-WATT

THERE IS LED 4-WATT BULB IN THE BOX

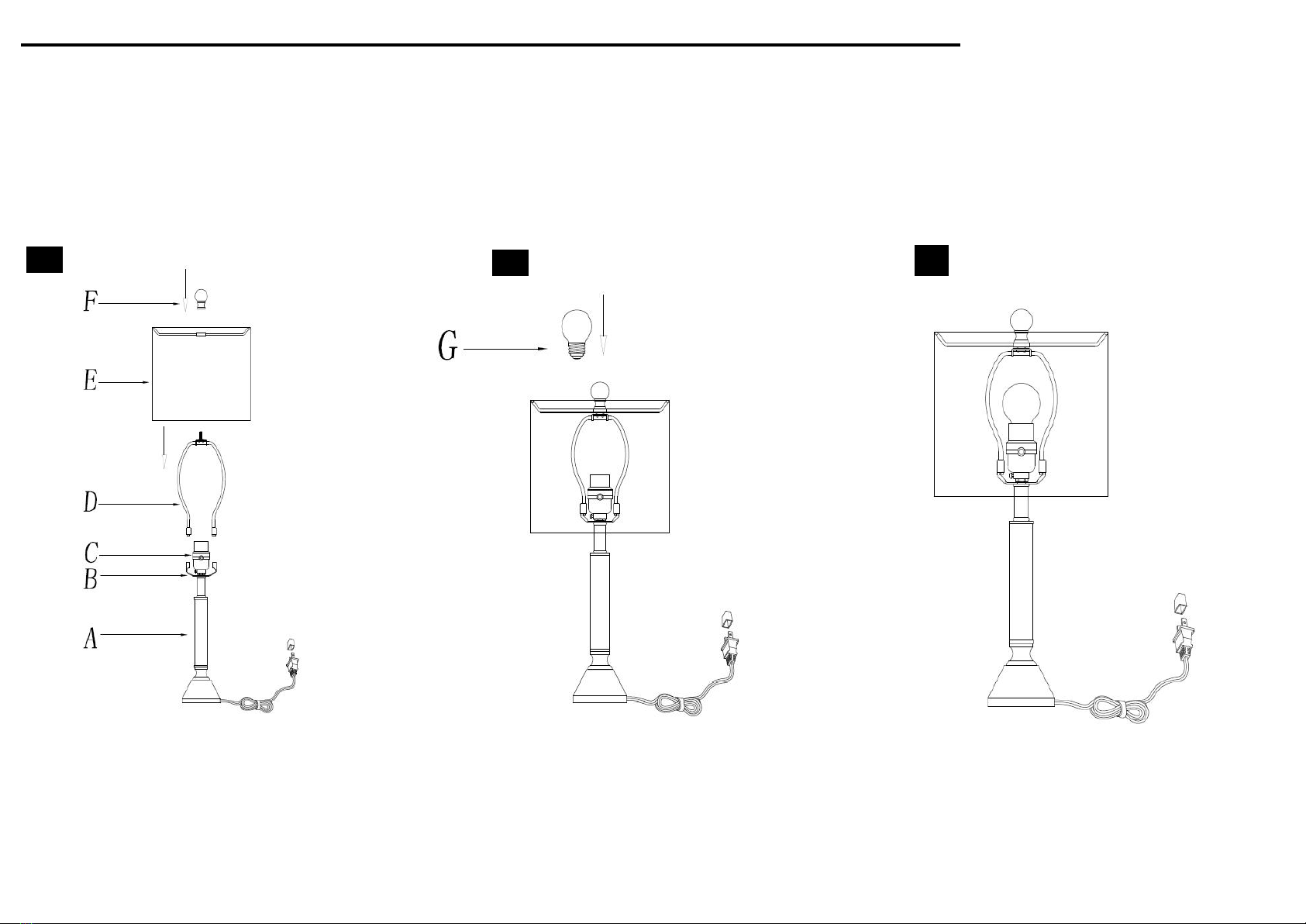

Step 1 Step 2 Step 3

Insert the Harp (D) into the Saddle (B). Insert the bulb(G) into the socket(C). Put the light on a level surface to check

Put the shade(E) on the Harp(D), then if everything is stable.

tighten the Finial (F)into the Harp (D)

ENJOY YOUR LAMP
