JONATHAN Y JYL1050A User manual

WARNING

INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR

OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN

INSTALLED.

CARE AND MAINTENANCE

Model# JYL1050A

Product Dimensions: 16"Lx 11"W x 24"H

CARE

AND

MAINTENANCE

Unplug lamps before using any cleaning solutions. Dust shades with a feather duster or with an

appropriate

vacuum-brush attachment. Wipe with a soft, dry cloth and clean lamp bases with the methods appropriate

to the material. Avoid the use of chemicals and household cleaners as they may damage the finish.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

* Please make sure that you have all parts indicated before you begin assembly of this item

* This item should be assembled on a soft surface to prevent scratching the finish during assembly

* To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline

below for safe use and installation

**This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce

the risk of electric shock. this plug will fit in a polarized outlet only one way. if the plug does not fit fully in

*The external flexible cable or cord of this lamp cannot be replaced;

If the cord is damaged, the lamp shall be destroyed

PIECE

DESCRIPTION


QUANTITY

PIECE

DESCRIPTION


QUANTITY

the outlet, reverse the plug, if it still does not fit, contact a qualified electrician. Never use with an extension

cord unless the plug can be fully inserted. do not attempt to disregard this safety feature.

Part List and Hardware List

PIECE DESCRIPTION PICTURE QUANTIT

A Lamp base 1X E Harp 1X

B Neck 1X F Shade 1X

C Saddle 1X G Finial 1X

D Socket 1X H Bulb 1X

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware

contents list. If any part is missing or damaged, do not attempt to assemble the product.

Estimated Assembly Time: 6 minutes.

PLEASE USE ON/OFF TYPE"A" BULB MAX 60-WATT OR CFL BULB MAX 13-WATT OR LED BULB MAX 9-WATT,

THERE IS LED 9-WATT BULB IN THE BOX .

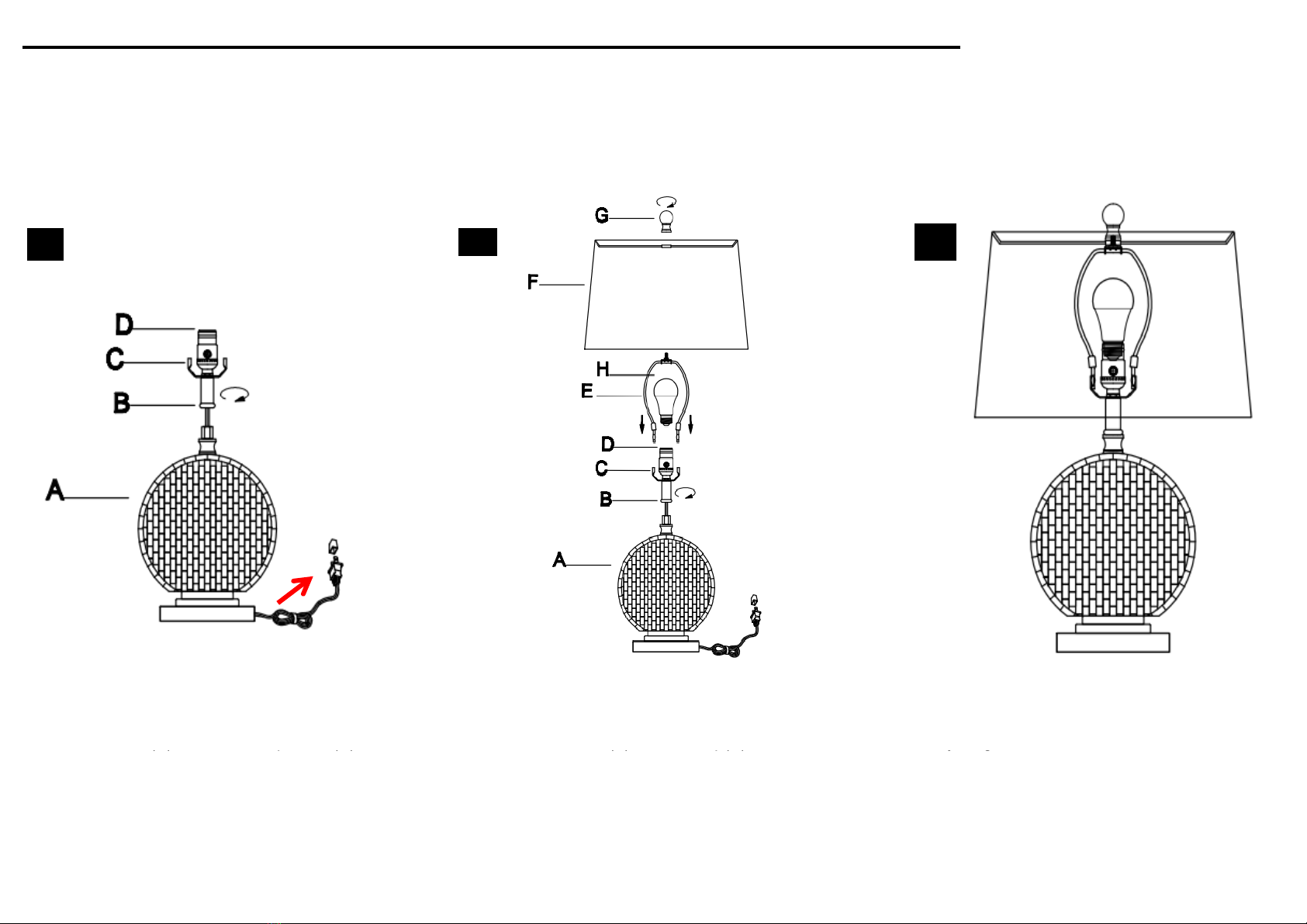

1 2 3

Step 1 Step 2 Step 3

Pull power cord to connect the Neck (B) to the Base (A). Insert the Harp (E) into the Saddle (C). Put the light on a level surface to check

Screw the Neck (B) onto the Lamp base (A) Put the shade(F) on the Harp(E), then if everything is stable.

() p ()

( ) p( )

Be careful not to twist the power cord and tighten securely tighten the Finial (G)into the Harp (E)

Insert the bulb(H) into the socket(D).

ENJOY YOUR LAMP
