Jetson SLATE User manual
1
SLATE
-MANUAL-
2
3
TABLE OF CONTENTS
A. Introduction 4
B. Included in the Box 5
C. Features and Specs 6
D. Unboxing 7
E. Unfolding and Folding the Slate 7
F. Operating the Slate 9
1. Turning the Slate On and Off
2. Turning the Headlight On and Off
3. Battery Display
4. Speed Modes
G. Charging the Battery 11
H. Safe Driving 12
I. Care and Maintenance 12
J. Safety Warnings 14
K. Warranty 16
L. Product Registration 18
4
Congratulations on your new Jetson Slate! The Slate is an innovative
and fun personal transportation device, ready to take on everyday use.
Before your rst ride, check whether the wheels are damaged, or parts
are loose. If there are any abnormalities, please contact Jetson
Customer Support at 1-(888) 976-9904 or email us at
customerservice@jetsonbike.com.
This product manual can help you understand, use, and maintain your
Slate. In order to avoid danger caused by collisions, falls, and loss of
control, please use caution and learn how to ride the Slate safely.
Jetson and authorized dealers cannot be held liable for injury or
damage caused from riding the Slate. Users ride at their own risk.
The rider is responsible for consequences caused by violating warnings
or improper operations.
If you want to return this product for any reason, be sure to rst call or
email us before taking it back to the store so we can assist you.
INTRODUCTION
5
INCLUDED IN THE BOX
1. Rear Tire
2. Rear Foot Brake
3. Loop for Hook
4. Deck
5. Stem
6. Headlight
7. Folding Lever Bolt
8. Front Tire
9. Motor
10. Charging Port
1
234
5
6
7
8
9
10
6
FEATURES AND SPECS
MODEL: SLATE
WHEEL SIZE: (FRONT) 6”
(REAR) 5”
MAX SPEED: 15 MPH
MAX RANGE: 10 MILES
BATTERY TYPE: LITHIUM ION
BATTERY RATED VOLTAGE: 24V, 5.2Ah
PRODUCT DIMS: 37.5” x 17” x 41.25”
(FOLDED) 37.5” x 17” x 14”
MOTOR TYPE: HUB
MOTOR: 250 WATT
CHARGER: 110-240V
CHARGE TIME: UP TO 3 HOURS
PRODUCT WEIGHT: 18.25 LBS
WEIGHT LIMIT: 265 LBS
RECOMMENDED AGE: 13+
1. Handlebars
2. Electronic Brake
3. Thumb Throttle
4. Hook
5. Battery Indicator LED Lights
6. On/ Off Button
11
23
4
5
6
7
Please be careful when removing the Slate from the box, making sure
to not scratch the frame. Please check the carton for loose parts before
discarding.
The Slate comes fully assembled, except for the Handlebars. Please look
at the inside of each Handlebar and see which is labeled R (right) and L
(left). To connect the Handlebars, place L into the Left side and R into the
Right side (left and right directions are as though you are standing on the
deck). Tighten by turning the Handlebars toward the Front Wheel.
UNFOLDING AND FOLDING THE SLATE
To unfold the Slate, rst make sure the Hook is not connected to the
Loop on the Rear Brake. Lift the Handlebar and Stem Up towards the
front tire and open the Folding Lever all the way down. Once the Stem
is fully up right, Push the Folding Lever up until you hear a clicking
sound to lock it.
Folding
Lever
Locked
UNBOXING
8
To fold the Slate, loosen the Folding Lever by sliding the Red Clip up
and lowering the Folding Lever all the way down. Lower the Handle-
bar and Stem down towards the Deck and then connect the Hook to the
Loop on the Rear Brake.
Please Note: If the Folding Lever seems too tight, you can loosen the
Folding Lever Bolt on the front of the Stem near the Front Tire (please
see diagram on page 4).
Slide
Up
9
OPERATING THE SLATE

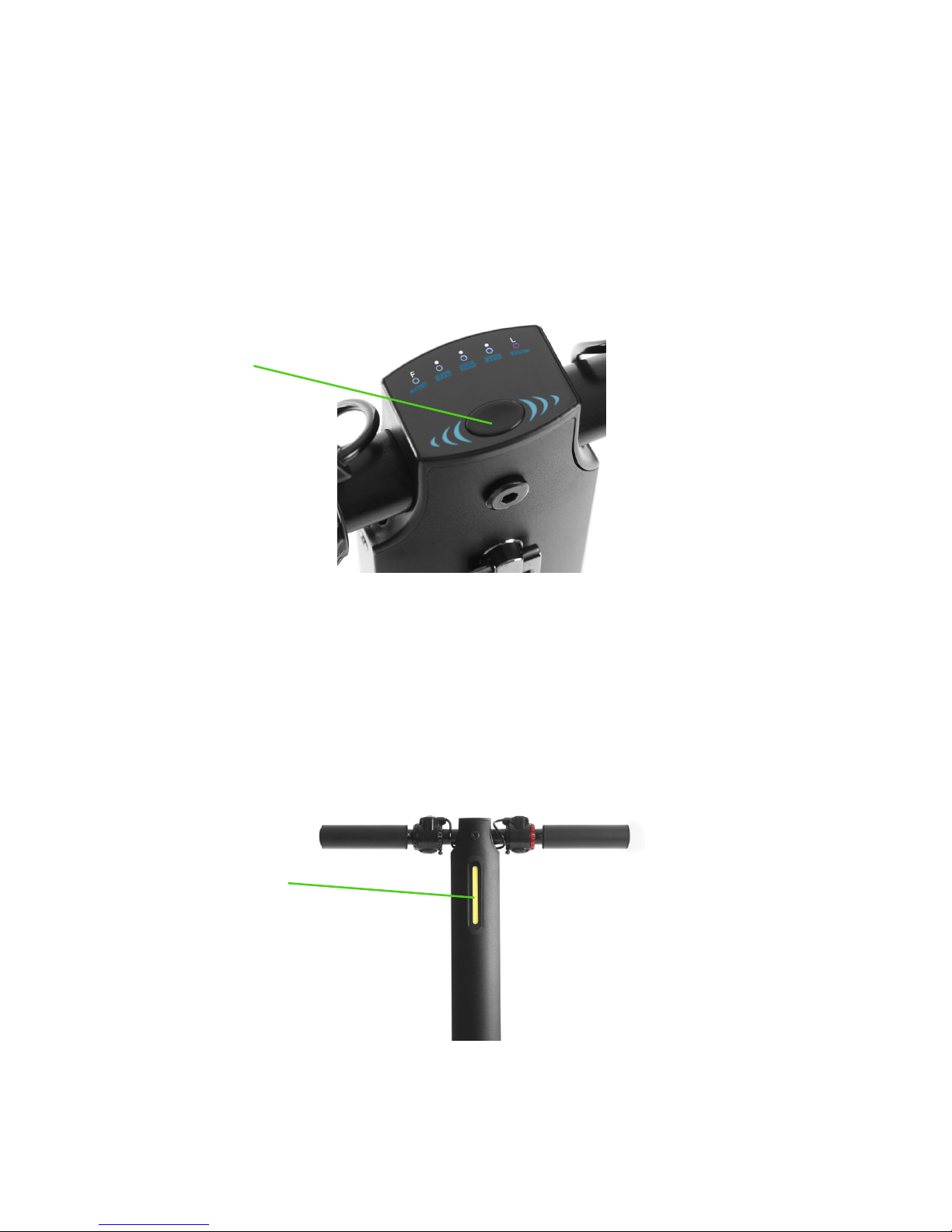

TURNING THE SLATE ON AND OFF
To turn the Slate on, press and hold the On/Off Button for 3 seconds.
To turn the Slate off, rst make sure the Slate is not in motion. Then,
press and hold the On/ Off Button for 3 seconds.
On/ Off
Button
TURNING THE HEADLIGHT ON AND OFF
To turn the Headlight on, click the On/Off Button. One click will turn the
Headlight on. Another click will turn the Headlight off. You can also turn
off the Headlight by turning the Slate off.
Headlight
10
BATTERY DISPLAY
There are 5 battery level indicators with LED Lights. When the ve blue
LED Lights are on, the battery is full. When there is only one blue LED
Light on, the battery is low. Before you ride the Slate, press the Thumb
Throttle down gently to get a more accurate battery reading. Please
charge the Slate once it displays low battery.
Full
Battery
Light
Low
Battery
Light
SPEED MODES
There are two speed modes to choose from for the Slate. To change the
speed mode, double click the Power Button. The Low Battery Light will
either blink red or blue. A red blinking light means it is in High Speed
Mode and a blue blinking light means it is in Low Speed Mode.
Red = High
Speed Mode
Blue = Low
Speed Mode
Double
Click
