Jenn-Air JEC8430BDB10 User manual

COOKTOP PARTS

For Models: JEC8430BDW10, JEC8430BDF10, JEC8430BDB10, JEC8430BDS10

(White) (Frost) (Black) (Stainless)

30" Electric Cooktop

5−08 Litho in U.S.A. (mo) (psw) Part No. W10204468 Rev. B

COOKTOP PARTS

2W10204468

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10204139

Use & Care Guide

W10204140

Install Instruc.

2 Element

74011005 2000W (LR)

74008568 1200W (RR)

74011006 1800W (LF)

74008897 2400W Dual (RF)

3 Top, Main

W10182127

White/Frost

W10184478

Black

W10184478

Stainless

4 Trim, Stainless

W10168876

Front

W10168883

Rear

5 74007885 Grommet

W10204150

Knob, Control (4)

7 74003072 Support, Element

8 Y700502 Screw

For Models: JEC8430BDW10, JEC8430BDF10, JEC8430BDB10, JEC8430BDS10

(White) (Frost) (Black) (Stainless)

BURNER BOX PARTS

W10204468

For Models: JEC8430BDW10, JEC8430BDF10, JEC8430BDB10, JEC8430BDS10

(White) (Frost) (Black) (Stainless)

BURNER BOX PARTS

W10204468

Illus. Part

No. No. DESCRIPTION

W10204473

Box, Burner

W10204163

Baffel, Bottom

3 74007899 Insulation (5)

4 Panel, Light

W10204169

Red

W10204170

Black

W10204171

Orange

W10204172

Blue

W10204173

Yellow

W10204174

Brown

5 74007916 Plate, Switch

6 Switch, Infinite

74007853 Right Front Dual

74007840 Right Rear 1400W

74007841 LF, LR, 2600W

7 71002569 Gasket, Infinte Sw

8 74007917 Cvr, Switch Plate

9 74007844 Grommet, Wire

10 200758 Screw

W10204475

Harness, Main

7101P309−60

Screw

Following Parts Not Illustrated

WIRING HARNESS PARTS

5171P765−60

Hot Light Assy.

74010993 Harness Switch Lt

74010999 Harness Switch Rt

7111P020−60

Clamp, Wire 3/4"

For Models: JEC8430BDW10, JEC8430BDF10, JEC8430BDB10, JEC8430BDS10

(White) (Frost) (Black) (Stainless)

Other manuals for JEC8430BDB10

This manual suits for next models

Table of contents

Other Jenn-Air Cooktop manuals

Jenn-Air

Jenn-Air JED4536W User instructions

Jenn-Air

Jenn-Air JED8345ADB User manual

Jenn-Air

Jenn-Air CCG456 User manual

Jenn-Air

Jenn-Air JGD3536BS00 User manual

Jenn-Air

Jenn-Air JGCP436WP01 User manual

Jenn-Air

Jenn-Air Dual Fuel Cooktop User manual

Jenn-Air

Jenn-Air JGC8430B User manual

Jenn-Air

Jenn-Air JGC8430BDS User manual

Jenn-Air

Jenn-Air JEC9536 User manual

Jenn-Air

Jenn-Air CVEX4100 Series User manual

Jenn-Air

Jenn-Air JGC8430BDB User manual

Jenn-Air

Jenn-Air CCE3400 User manual

Jenn-Air

Jenn-Air EXPRESSIONS CVGX2423B User manual

Jenn-Air

Jenn-Air CCE406 User manual

Jenn-Air

Jenn-Air JEI0430ADS0 User manual

Jenn-Air

Jenn-Air JGD8130 series User manual

Jenn-Air

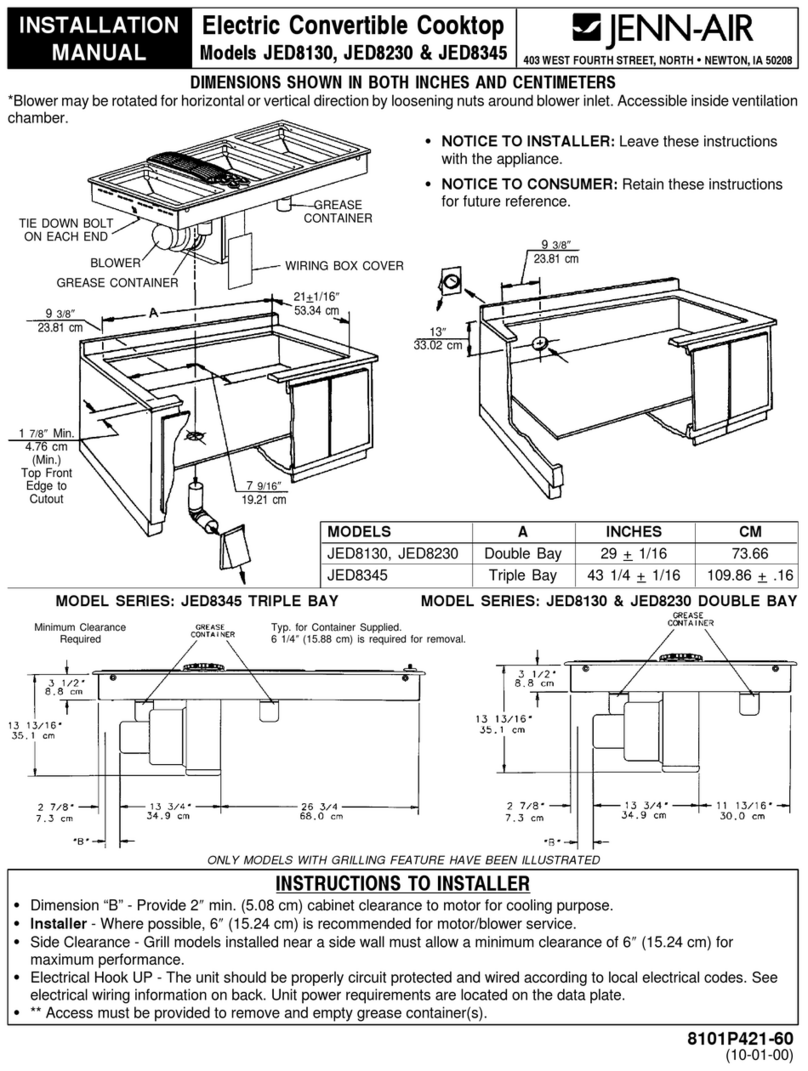

Jenn-Air JED8130 User manual
