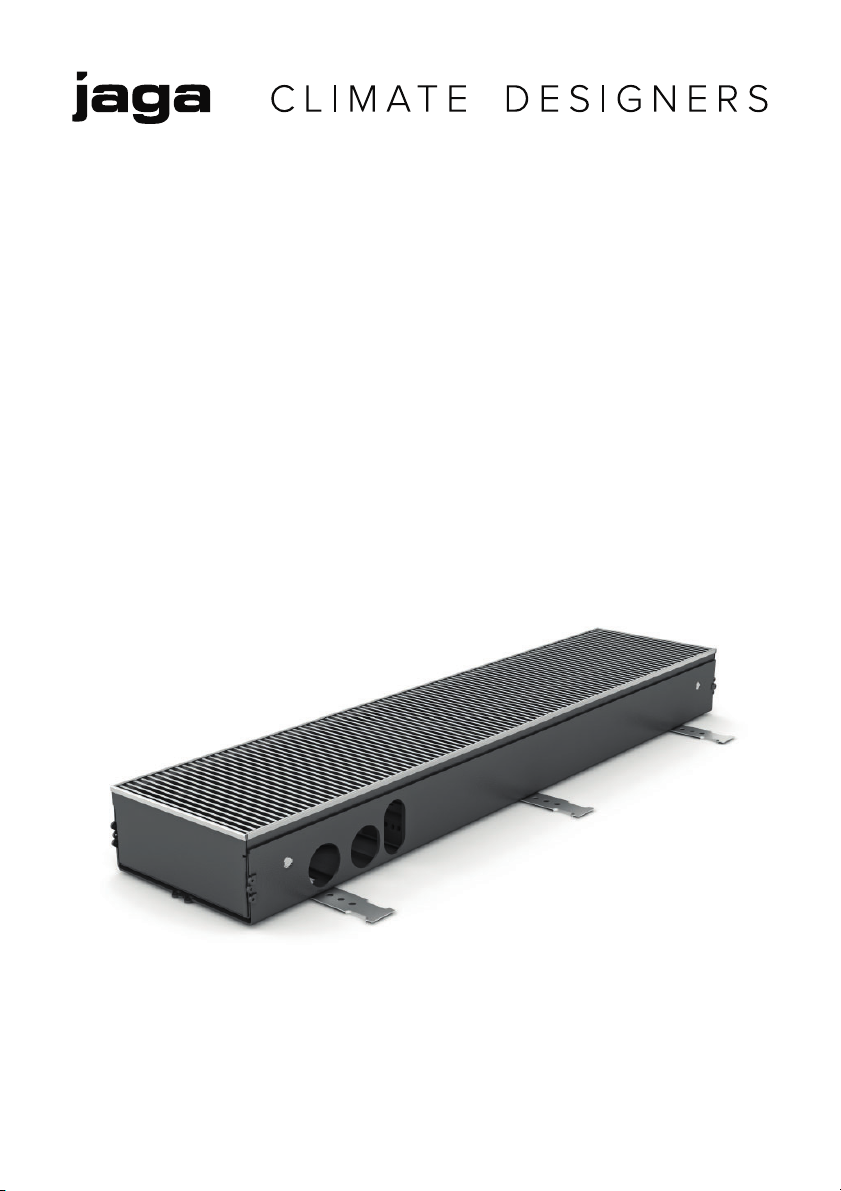

Jaga Micro Canal User manual

INSTALLATION INSTRUCTIONS

Micro Canal

TABLE OF CONTENTS

.USED SYMBOLS........................................................................................................... 

.WARNINGS AND SAFETY.......................................................................................... 

.PACKAGING AND COMPONENTS........................................................................... 

.INSTALLATION .............................................................................................................. 

.GENERAL INFORMATION .......................................................................................... 

.PRODUCT DESCRIPTION .......................................................................................... 

.TECHNICAL DATA........................................................................................................ 

.INSTALLATION .............................................................................................................. 

.INITIAL START .............................................................................................................

.MAINTENANCE ........................................................................................................

.WARRANTY ...............................................................................................................

.DISSASSEMBLY INSTRUCTIONS ........................................................................

Jaga N.V.

As product development is a continuous process, all mentioned data are subject to change.

DECLARATION OF CONFORMITY

JAGA N.V. - Verbindingslaan 16 - B 3590, declares under its sole responsibility that the

product to which this declaration relates:

is in conformity with the following standards or documents provided that these are used in

accordance with our instructions:

Following the provision of Directives as amended:

MICRO CANAL

- Low Voltage 2014/35/EC

- EMC 2014/30/EC

- Machinery 2006/42/EC

NBN EN 60335-1 based on EN 60335-1:2002 + A11:2004 + A1:2004 +

A12:2006 + A2:2006 + A13:2008 + A14:2010 +A15:2011

NBN EN 60335-2-80 based on EN 60335-2-80:2003 + A1:2004 + A2:2009

CEO JAGA N.V.

Jan Kriekels

08/01/2015

+32 (0)11 29 41 11

MICRO CANAL | MANUAL |  MAART , :

Important info

The unit must be installed by a certified installer in accordance with the installati-

on instructions and the local building codes. Please follow this instruction manual

and file it somewhere safe! The unit must always be accessible for maintenance

and inspection.

The warranty is void when:

- the installation, maintenance or operation instructions in this manual are not respected.

- modifications have been made to the product,before, during or after product installation.

- maintenance has been carried out by unauthorized people.

- maintenance has been carried out by someone other thanJaga.

- access to the unit has been restricted due to on-site conditions.

- the initial start-up has been carried out before a general cleaning of both the fan and the coil.

USED SYMBOLS

the DANGER sign warns the operator and maintenance staff about risks that may cause

death, physical injury or illnesses of any kind.

DANGER: ELECTRICAL HAZARD

DANGER: SHARP EDGES

DANGER: HOT SURFACES

DANGER: MOVING PARTS

ATTENTION: IMPORTANT WARNING

the ENVIROMENTAL SAFEGUARD sign provides instructions on how to use the unit in an

ECO-friendly manner.

WARNINGS AND SAFETY

Handling guidelines:

The unit must be handled with care in order to avoid damage to the unit’s interior and exterior parts.

The unit might have sharp edges; use gloves during installation/adjustment.

All the operations listed below must be carried out in accordance with local health and safety regula-

tions.

Storage conditions:

Up to four packaged units may be stacked on top of each other. All units must be stored in a dry area.

Technical spaces and positioning:

Incorrect installation of the unit may cause noise and vibrations issues.

PACKAGING AND COMPONENTS

Follow these instructions when removing the packaging:

–check for any visible damage

–open the packaging

–check if the manual is in the package

–remove the packaging material and put it in the appropriate collection point or recycling facility, in

compliance with the local regulations.

Dispose of the packaging materials in compliance with the national or local regulations.

Do not leave the packaging within reach of children.

INSTALLATION

–installation must be carried out by certified technicians. Incorrect installation could cause product

failure, a reduced performance or an increased noise level.

–the unit must be installed in accordance with the local building codes.

–Always use personal protective equipment.

–the unit must remain accessible for inspection and maintenance, the trench must be removable at

all times.

ACOUSTIC INSULATION

Sound absorption

Sound is reflected by hard materials. Soft, porous materials are best suited for sound absorption. A

combination of different materials can reduce the reflection of sound.

Contact noise insulation

Sound travels very easily through hard materials. Soft rubber material can be used to reduce contact

noise. The effect of this insulation strongly depends on:

–installation method: make sure that vibrations cannot be transferred between different elements,

e.g. between the built-in heaters and other metallic parts, through pipes, along air ducts etc.

–installation of acoustic insulation in hollow acoustic spaces. Avoid cavities between insulation and

pipes.

4.1.

MICRO CANAL | MANUAL |  MAART , :

GENERAL INFORMATION

DANGER!

The unit is not intended for industrial applications.

Do not insert objects into the supply and return air openings.

IMPORTANT!

–the unit will only function correctly if the installation and operation manual is strictly followed.

–all clearances indicated in the manual must be respected in order to guarantee performance, and to

allow installation and maintenance.

–in case valve packages are to be installed, make sure that there is enough room left.

–periodic access to the unit is required for inspection, maintenance and repairs.

–pay attention to the signs and symbols indicated on the fan coil units.

Unit identification:

The serial number is tagged on unit’s right side (on the left if the connections are on the unit’s right

side).

Information regarding unintended use:

The unit has been designed to function as a fan coil for both heating and cooling applications; any

other use is strictly forbidden. Installing the unit in an explosive environment is prohibited.

Decommissioning:

When the unit is not used for long periods of time, it must be disconnected from the mains electrical

connection.

If the unit is not used during the winter period, the water in the system may freeze. A suitable quantity

of anti-freeze liquid should be mixed with the water.

Mixing the water with glycol modifies the unit’s performance. Pay attention to the safety

instructions on the packaging regarding glycol.

Restart after prolonged shutdown:

Before restarting:

–clean or replace the stainless steel fan guard.

–clean the coil.

–clean or unclog the condensate drain.

–bleed the air from the hydronic system.

–it is advisable to run the unit at maximum speed and to check for abnormalities.

Operational limits:

An installation that does not meet the specified operational limits releases Jaga NV from all liability

with respect to damage to objects or people.

–test pressure: PSI

–working pressure: PSI

6. PRODUCT DESCRIPTION

The Micro Canal is only ⁄ inch in height and ⁄ inch in width. It is fitted with small but powerful

dynamic coils and quiet fans with EC-motors. Micro Canal combines minimalistic aesthetics and

architectural freedom with an unprecedented heat output. Micro Canal can be integrated into any

interior. By making use of the latest EC-motors, the Micro canals use % less power.

6.1. OVERVIEW OF THE DIFFERENT PARTS

. Polyethylene protection block

. Stainless steel grille

. Control board

. Water temperature sensor

. Stainless steel flexible hose connectors cm /”

. End cap

. Hydraulic connection ( always on the left hand side)

. Electrical connection (always on the left hand side)

. Tangential fans with EC-motor

. Dynamic coil

. Inner trench with stainless steel grille holder

. Outer trench

. Internal height adjustment

MICRO CANAL | MANUAL |  MAART , :

7. TECHNICAL DATA

7.1. DIMENSIONS OF THE INNER TRENCH

 ⁄

⁄

 ⁄

L =  ⁄ /  ⁄ /  ⁄ /  ⁄ /  ⁄ *

 ⁄

 ⁄

 ⁄

 ⁄

⁄Ø⁄

 ⁄

 ⁄*

 ⁄

 ⁄

 ⁄

⁄

Max. ⁄

2 ⁄

Min. ⁄ / Max. ⁄

Min. 2 ⁄ /

Max. 3 ⁄

Max. ⁄

2 ⁄

Min. 4 ⁄ /

Max. 14 ⁄

Min. 1 ⁄ / Max. 11 ⁄

7.2. DIMENSIONS OF THE OUTER TRENCH

7.3. HEIGHT ADJUSTMENT

*Installation opening: +⁄ inch

*Continuous installation: Do not

assemble the end caps on the sides

where the units need to be connec-

ted to each other. Keep in mind that

the units are ⁄ inch shorter without

the end caps.

7.4. OPTION: ADJUSTABLE RAISED FLOOR PEDESTALS

24V

7.5. LEAVE SOME ROOM

7.6. MAX CABLE LENGTH - 24 VDC ELECTRICAL CONNECTION

When installing the trench fancoil in front of a window, make sure to allow sufficient space for

curtains. The curtain should never cover the grill of the trench fancoil unit.

DISTANCE FROM

POWER SUPPLY IN FT. 30 60 100 130 160 200 230 260 300 330

Ø TYPE 1 (1.3W) NUMBER OF MICRO CANALS

 AWG          

 AWG          

 AWG          

Ø TYPE 2 (1.7W) NUMBER OF MICRO CANALS

AWG 

 AWG          

 AWG          

Ø TYPE 3 (2W) NUMBER OF MICRO CANALS

 AWG        

AWG 

 AWG          

Ø TYPE 4 (3.4W) NUMBER OF MICRO CANALS

 AWG  

AWG 

 AWG         

Ø TYPE 5 (3.7W) NUMBER OF MICRO CANALS

 AWG       

AWG  

AWG 

Min.  ⁄ inch

MICRO CANAL | MANUAL |  MAART , :

Place the mounting strips on the unit’s outer trench.

Mark the drill holes. Drill the holes (drill dia.⁄inch)

and insert the plugs

Make sure to use the correct type of plug for your floor type!

Bend the mounting strips (max.⁄ inch).

Multiple Micro Canals: make sure that the unit is correctly posi-

tioned and that the grille holders are tightly connected. Use the

provided connectors to connect the different units to each other.

Position the units correctly, with the coil towards the wall.

Position the unit at a distance of at least  ⁄ inch from a

window wall.

Secure the unit to the floor with mounting strips.

8. INSTALLATION

ALWAYS SWITCH OFF THE MAINS SUPPLY BEFORE INSTALLATION!

03 04

Min.  ⁄ inch

Secure the inner trench.

Fill the cavities underneath the trench with a solid mass.

Cover the unit with the protection block.

Place both the supply and return hoses as well as the power cable.

Make sure that there is at least  ⁄ inch of both hose and cable

inside the trench.

Use the adjustment-screws to adjust the unit’s height. Make sure

that the top is level with the finished floor.

Remove the protection block. Assemble the end cap and place the

inner trench in the outer trench.

07 08

11 12

⁄ inch
