Jacuzzi SWIM SPA Series User manual

SWIM SPA

COLLECTION

data di validità: gennaio 2019 (sostituisce le precedenti)

All installations must follow local electrical and building codes. Please consult your local business and

planning division for your codes in your area.

JACUZZI®WILL NOT BE RESPONSIBLE FOR ANY ERRORS IN INSTALLATIONS

OR CODE INFRACTIONS.

J-4000™ PERFORMANCE

(4,72 m / 16 ft. - 5,64 m / 19 ft.)

2019 SWIM SPA

installation guide

technical data

- Type of installation: inground

J-3000™ 4,72m/16ft. - plain view/section

Full inground (cross section)

Partial inground (cross section)

Side view/cross section

J-3000™ 5,64m/19ft. - plain view/section

Full inground (cross section)

Partial inground (cross section)

Side view/cross section

6. Filling and Draining

6.1 General considerations

6.2 Indoor installations

6.3 Outdoor Installations

7. Auxiliary Heating Options

8. Humidity-Ventilation

Other Indoor Considerations

9. Hard Cover Storage

10. By Laws and Disclaimers

10.1 Building Code

10.2 Excavation

10.3 Professionals

10.5 Sunlight

TABLE OF CONTENTS

pag. 4

pag. 5

pag. 6

pag. 7

pag. 8

pag. 9

pag. 10

pag. 11

pag. 12

pag. 13

pag. 14

pag. 15

pag. 16

pag. 17

pag. 18

pag. 19

pag. 20-21

pag. 22

pag. 23

pag. 24-25

pag. 26

pag. 27

1. Types of installations

1.1 “Free Standing”

1.2 Partial-in grade

1.3 Below-grade (outdoor or indoor)

1SHIP7IVMIW7TIGM½GEXMSR 

and Electrical

2.1 J-3000™ 4,72m/16ft.

2.2 J-3000™ 5,64m/19ft.

)PIGXVMGEP7TIGM½GEXMSRW

2.4 Wiring size

2.5 Typical Swim Spa Wiring Diagrams

3. Delivery and Handling

Considerations

4. Base Of Support

¯0SEH7TIGM½GEXMSRW

4.1 Preparation

4.2 Concrete

4.3 Second Level / Balcony Installation

4.4 IMPORTANT: Swim Spa Frame Shim

Installation (Applies to All Installations)

- Type of installation:“free-standing”

J-3000™ 4,72m/16ft. - side view

J-3000™ 5,64m/19ft. - side view

J-3000™ 4,72m/16ft. - plain view

J-3000™ 5,64m/19ft.- plain view

5. Below-grade or partial in-grade

installations

5.1 Characteristics

5.2 Base of support

5.3 Crawl space

5.4 Ground water

5.5 Service access

5.6 Water test

5.7 Overall support

5.8 Insulation

5.9 Set up and assembly

5.10 Serviceability

5.11 Equipment Protection

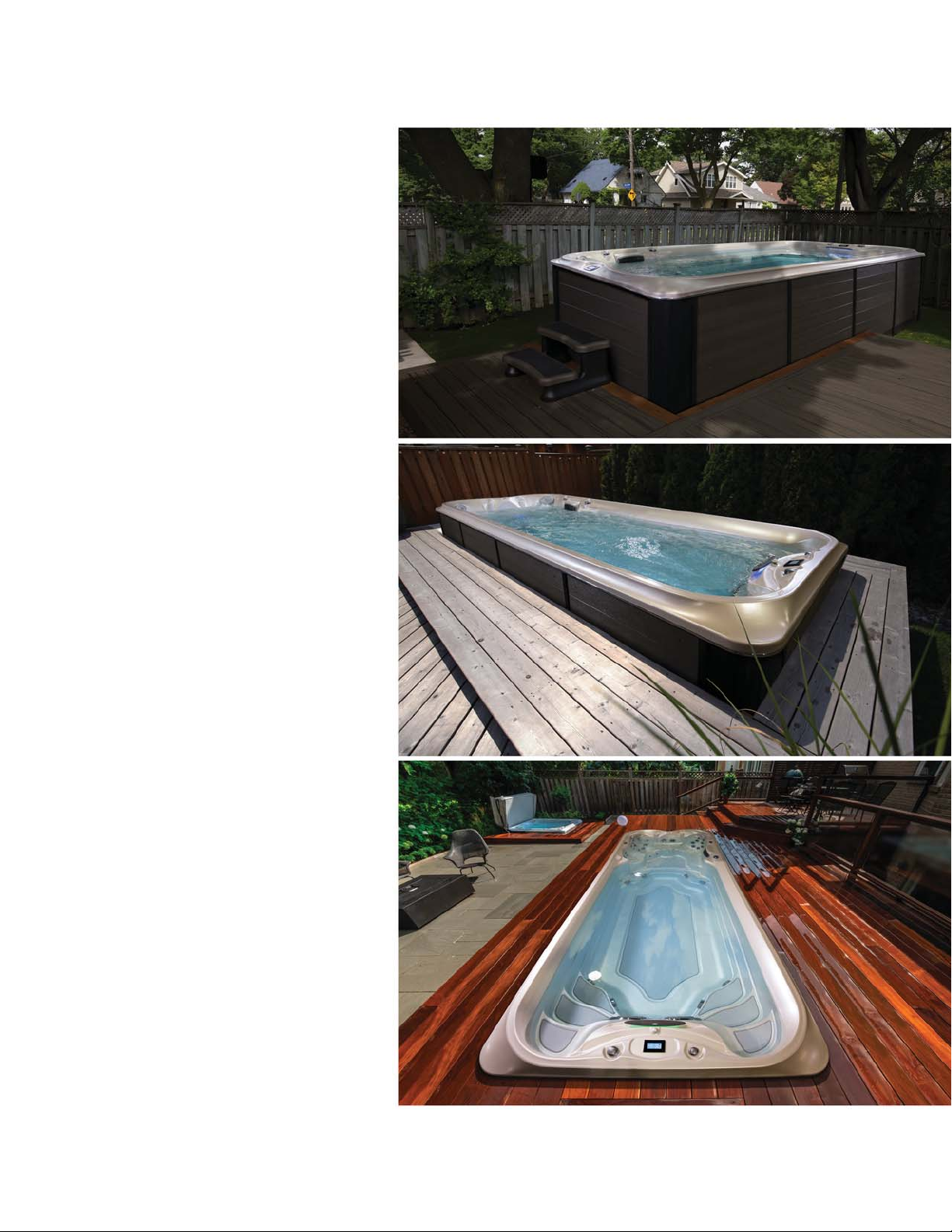

1. Types

of installations:

1.1 “Free Standing”

This installation refers to a swim spa that is

placed on a concrete pad, above ground and

with a Jacuzzi Cabinet. Can be adjacent to a

deck or butted up to a deck.

1.2 Partial-in grade

This installation refers to a swim spa that is

partially recessed in the ground.

1.3 Below-grade

(outdoor or indoor)

Also this type of installation let you partially

SVJYPP]VIGIWWXLI7[MQ7TEMRXLI¾SSV

Position the swim spa away from

KPEWWERHSVVI¾IGXMZIWYVJEGIWMR

SVHIVXSEZSMHTSWWMFPIHEQEKIXS

the panelling.

Regardless the type of installation,

XLI7[MQ7TEQYWXFITPEGIHSRE

GSRGVIXITEHGETEFPISJWYTTSVXMRK

its whole max weight (please refer to

XLIJSPPS[MRKGLETXIVWEPWS

DIMENSIONS:

472 cm. x 236 cm. x 135 cm.

USABLE SWIM AREA

284 cm.

DRY WEIGHT

1162 k g.

TOTAL FILLED WEIGHT.

8800 kg.

AVERAGE SPA VOLUME

7638 L

PUMPS

No° 4 pumps (2-speed type), 3 Hp

CURRENT DRAW.

1 x 32A: when pumps are ON, heaters are OFF

3 x 16A: when pumps are ON, heaters are OFF

0RGHO6HULHV6SHFL¼FDWLRQDQG(OHFWULFDO

2.1

4.72m (16 ft.)

J-4000™

SWIM SPA

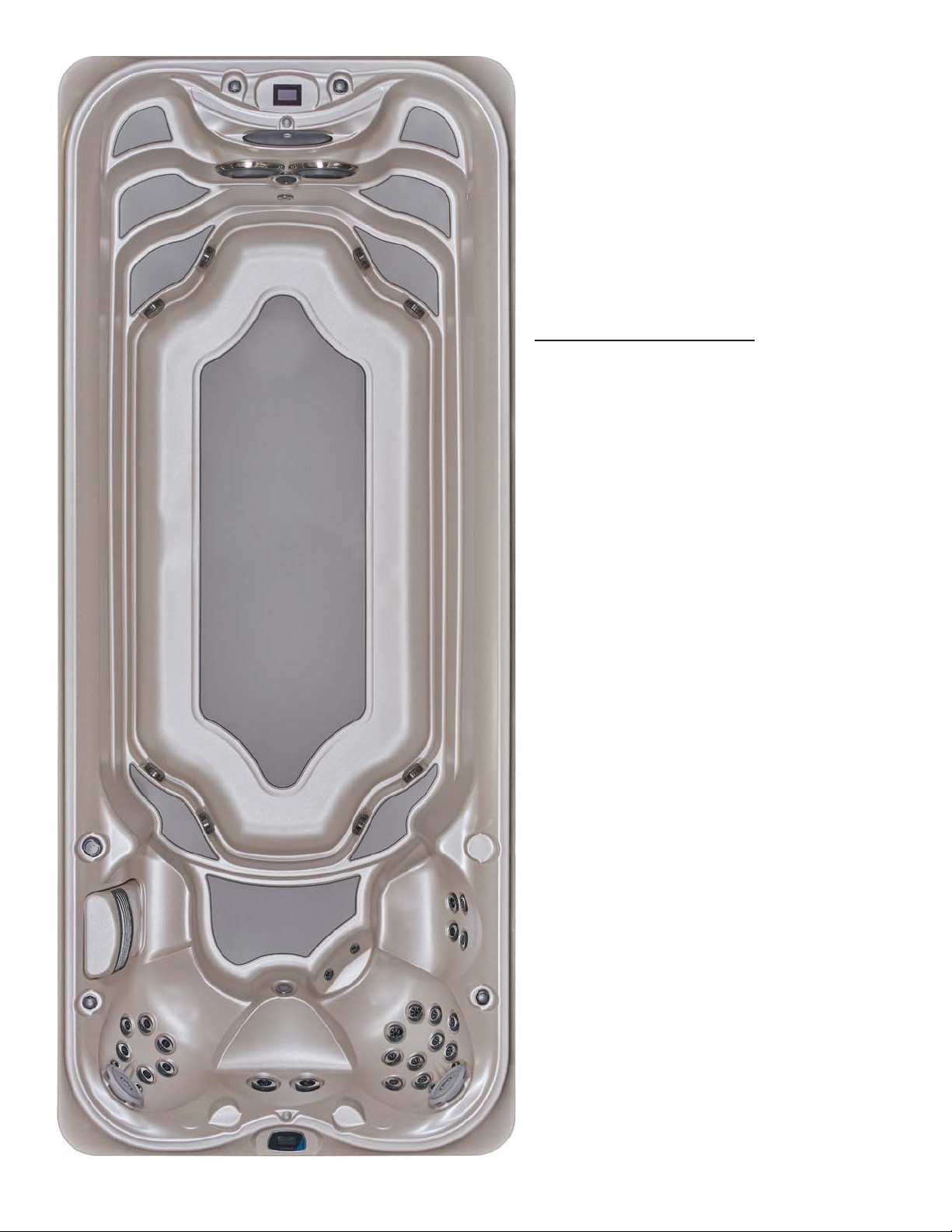

DIMENSIONS

564 cm. x 236 cm. x 135 cm.

USABLE SWIM AREA

376 cm.

DRY WEIGHT

1374 kg.

TOTAL FILLED WEIGHT

10412 kg.

AVERAGE SPA VOLUME

9038 L

PUMPS

No° 4 pumps (2-speed type), 3 Hp

CURRENT DRAW

1 x 32A: when pumps are ON, heaters are OFF

3 x 16A: when pumps are ON, heaters are OFF

2.2

5.64m (19 ft.)

J-4000™

SWIM SPA

(OHFWULFDO6SHFL¼FDWLRQV

SAFETY COMES FIRST. WHEN INSTALLING & USING ELECTRICAL

EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED!

1. READ AND FOLLOW ALL INSTRUCTIONS

2.)PIGXVMGEPMRWXEPPEXMSRQYWXFIGSQTPIXIHF]EUYEPM½IHIPIGXVMGMERMREGGSVHERGI[MXLEPP2EXMSREP6IKMSREPERH0SGEP

Codes and Regulations in effect at the time of installation. It is the installer’s responsibility to select the materials ac-

cording to use, carry out the installation correctly, and verify the condition of the network to which the appliance will

be connected, as well as its suitability in ensuring usage safety during maintenance and inspection operations.

3. 8LIFYMPHMRK´WIPIGXVMGEPW]WXIQQYWXFIIUYMTTIH[MXLE%VIWMHYEPGYVVIRXHIZMGIERHERIJ½GMIRXIEVXLMRK

circuit. Make sure that the residual current device is in good working order by pressing the TEST button, which must

trip.When connecting to the mains, we advise installing a multi-pole circuit breaker, which completely disconnects the

appliance in the event of a category III overvoltage; these devices must be positioned in an area that complies with the

safety regulations.

4. Use copper conductors only!

5. The installation of electrical devices and equipment (sockets, switches, etc.) near the Swim Spa must comply with the

legal standards and regulations in the country where the Swimspa is installed.

6. A green colored terminal or a terminal marked “G”,“GR”,“Ground”, or “Grounding” is located inside the supply ter-

minal box or compartment.To reduce the risk of electric shock, this terminal must be connected to the grounding

7. At least two lugs marked “BONDING LUGS” are provided on the external surface or on the inside of the supply

terminal box or compartment.; in particular, ensure that all the metal masses surrounding the hot tub, such as water

pipes, gas pipes, metal boards around the edge, etc., are equipotential.

2.4 Wiring Size

The cable cross-section measurements must be chosen according to the system consumption, as well as the cable routes

ERHHMWXERGIWXLIGLSWIRTVSXIGXMZIW]WXIQWERHXLIWTIGM½GWXERHEVHWJSV½\IHIPIGXVMGEPW]WXIQWMRJSVGIMRXLI

country where the Swim Spa is installed.

IMPORTANT NOTE:

This Guide is for standard installations where the wire run is 15 m (50 ft. ) or less. For longer wire runs, consult a

UYEPM½IHIPIGXVMGMER

Power Requirements

.EGY^^MW[MQWTEWEVIHIWMKRIHXSTVSZMHISTXMQYQTIVJSVQERGIERH¾I\MFMPMX]SJYWI[LIRGSRRIGXIHXSXLIMVQE\M-

QYQIPIGXVMGEPWIVZMGI8LI]EVIGSR½KYVIHEXXLIJEGXSV]8LIQSWXGSQQSRIPIGXVMGEPGSRRIGXMSRWEVIPMWXIHFIPS[

Terminal Block Connections

1. Neutral wire connection (blue)

2. Hot wire connection (brown)

3. Bonding Lug / Grounding Terminal

4. 4S[IV[MVIWIRXVERGI)PIGXVMGEP½XXMRK

and conduit must be installed - IPX5 / Ø

34,42 mm)

2.5 Typical Swim Spa Wiring Diagrams

-RWXEPPEXMSRQYWXFIGEVVMIHSYXF]UYEPM½IHTIVWSRRIP[LSEVIEYXLSVMWIHXSMRWXEPPXLITVSHYGXMRGSQTPMERGI[MXLXLI

national regulations in force. It is the installer’s responsibility to select the materials according to use, carry out the instal-

lation correctly, and verify the condition of the network to which the appliance will be connected, as well as its suitability

in ensuring usage safety during maintenance and inspection operations.

230 VOLT 50 HZ SINGLE PHASE WIRING

230 VOLT 50 HZ THREE PHASE WIRING

Main electrical box

Residual Current Device

terminal board

Please also refer to the diagrams

printed on the cover of the electrical cbox

Please also refer to the diagrams

printed on the cover of the electrical cbox

remove jumper wires: J51 - J58 and J52-J36;

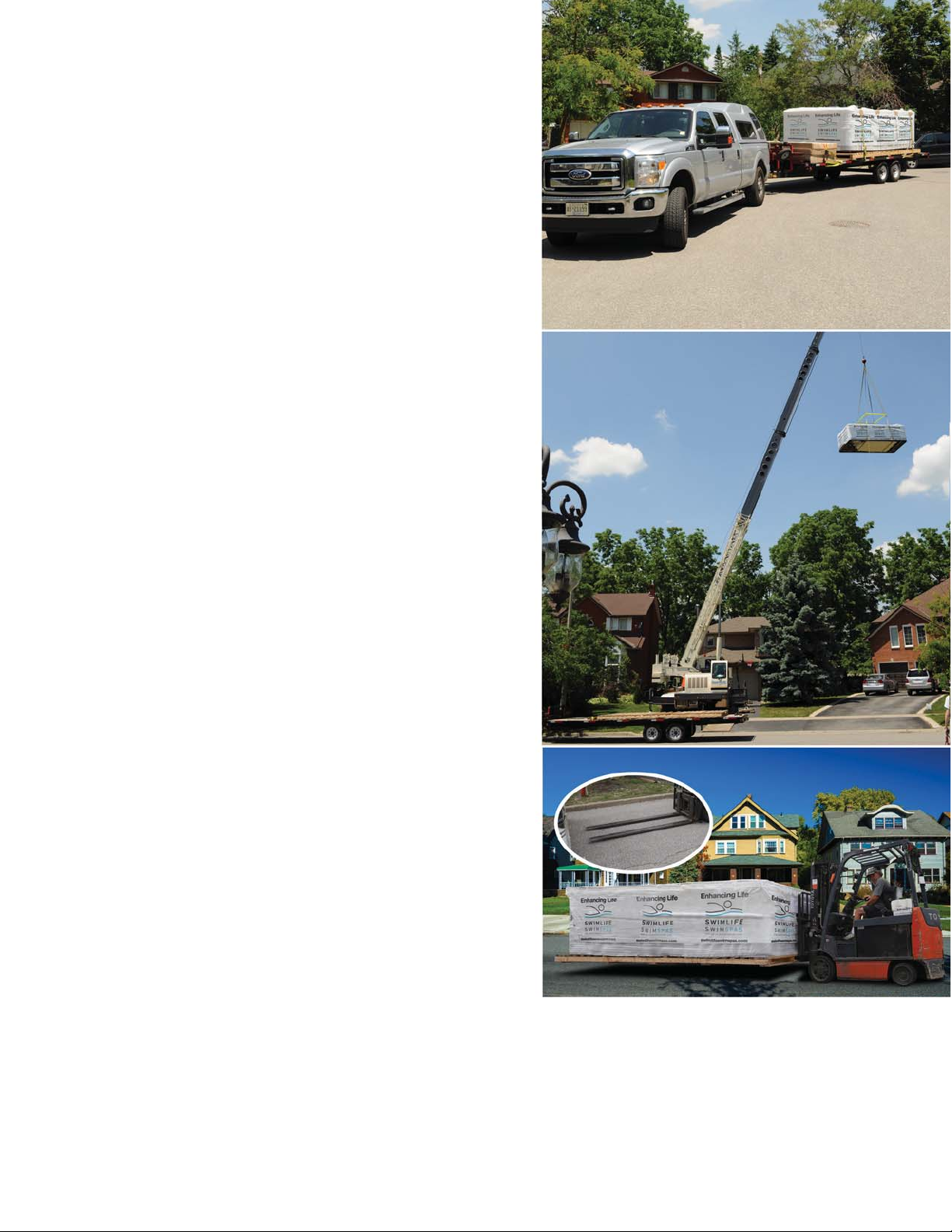

3 Delivery and Handling

Considerations

All Jacuzzi Swim Spas are shipped with a layer of protective foam

[VETTPEWXMG½PQERHGEVHFSEVHJSVEHHIHTVSXIGXMSR

Each Swim Spa is shipped from the factory strapped onto a wood

skid.

The swim spa can then be lifted by a crane into place.

Most installations require the use of a crane.When a crane is

used for lifting, place the straps under the swim spa, ensuring

XLEXXLITPYQFMRKPMRIWERH½XXMRKWEVIRSXWXVIWWIHERHSV

damaged and a spreader is used. The straps should be secured so

that they will not slip in any direction and strap spreaders utilized

to prevent undue structural side load on the swim spa shell.

If you are removing the swim spa using a forklift, please make

sure to use 2.5-3 m (8 – 10 ft.) extended forks and pick up swim

spa at the equipment end.

Warnings!

• Do not move or place the Swimspa on its side.

• Never lift or handle the Swimspa by its plumbing.

4PIEWIIRWYVIPMJXMRKIUYMTQIRXMWWYJ½GMIRXJSVXLINSF1ERYEPP]

lifting of the swim spa should be done with the proper manpow-

er.

• We strongly recommend the installation to be done by a Jacuzzi

Swim Spa Retailer.
