Jacuzzi Finestra EW05 User manual

Finestra™ 6030

WALK-IN

SALON™ SPA BATH

MODEL NUMBER:

EW05 (14" seat–LH)

EW10 (14" seat–RH)

EY30 (17" seat–LH)

EY35 (17" seat–RH)

EXTERIOR DIMENSIONS:

60" long x 30" wide x

37½" high

# OF JETS/TYPE OF JETS:

8 AccuPro®Jets

2 TheraPro® Jets

OPERATING GALLONS:

55-75 gallons

Designed with easy access and comfortable bathing in mind, the Finestra™

gives new meaning to independent living. Equipped with Jacuzzi®technology

and a variety of safety features, everyone can now enjoy the Jacuzzi®Home

Spa Experience.™

FEATURES:

• The ﬁrst and only air tight magnetic door seal

• Integral seat available in 2 heights – 14" or ADA compliant 17"

• Skirt with panels for easy installation and access

• 2 fully adjustable TheraPro®Jets

• 8 directionally adjustable AccuPro®Jets

• RapidHeat™ inline heater

• 900 watt variable speed heated air blower

• Air channels on ﬂoor and seat areas for maximum massage

• Chromatherapy lighting system featuring 256 colors

• Safety features include a grab bar and slip resistant ﬂooring

• PrO3

™ Ozone Sanitation System standard

Finestra™ 6030 |WALK-IN SALON™ SPA BATH

Finestra™6030

WALK-IN SALON™ SPA BATH

Technical Speciﬁcations

DIMENSIONS

60” L x 30” W x 37-1/2” H

(1524 mm) L x (762 mm) W x (952.5 mm) H

DRAIN/OVERFLOW

A: 31-1/2” (800 mm) B: 6-5/8” (168 mm)

CUTOUT

TOTAL WEIGHT

EW05, EW10: 360 lb. (163.5 kg)

EY30, EY35: 360 lb. (163.5 kg)

OPERATING GALLONAGE

Max: 75 U.S. Gal. (284 liters)

Min: 55 U.S. Gal. (208 liters)

PRODUCT WEIGHT

EW05, EW10: 310 lb. (141 kg)

EY30, EY35: 310 lb. (141 kg)

SKIRT MOUNTING

ELECTRICAL SPECIFICATIONS

Motor/Pump and RapidHeat™: 240 VAC, 20 AMP, 60 Hz.

Blower: 120 VAC, 20 AMP, 60 Hz.

Requires two seperate GFCI protected circuits.

HEATER (STANDARD)

RapidHeat™: P/N BN60000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

Finestra™ 6030 Walk-In 14" Seat Salon™ Spa

Bath Left Hand (EW05) shown.

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum service access dimensions given.

#EZ89000 10/07

EW05 Finestra™ 6030 Walk-In 14" Seat Salon™ Spa Bath,

Left Hand

EW10 Finestra™ 6030 Walk-In 14" Seat Salon™ Spa Bath,

Right Hand

EY30 Finestra™ 6030 Walk-In 17" Seat Salon™ Spa Bath,

Left Hand

EY35 Finestra™ 6030 Walk-In 17" Seat Salon™ Spa Bath,

Right Hand

• Left and Right Hand drain locations

• Accessories / Hardware:

Drain Kit: #FB48000

Remote Drain Kit: #FC30000

Pillow: #EK91959

• Trim Kit Finishes Available:

(827) – Chrome

(829) – Bright Brass

(959) – White

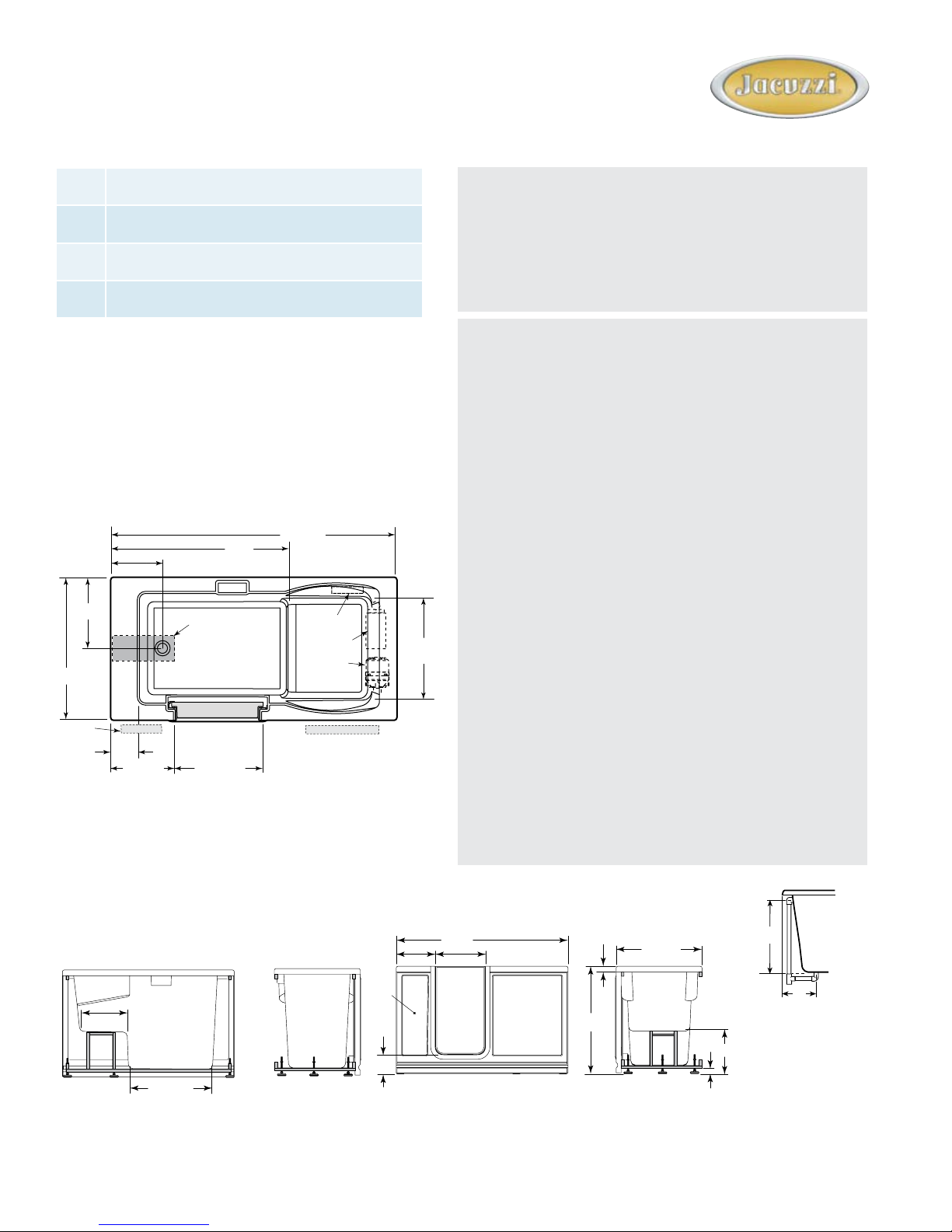

DRAIN/OVERFLOW

60"

30"

17-1/2"

15"

6-5/8”

37"

13-3/4"

20"

4" x 16"

Motor

SeatFloor

FINESTRA™ 6030

Blower

Heater

27" H x 24" L

Service Access

27" H x 9" L

Service Access

Door

BACK FRONTLEFT END RIGHT END

14" or 17"

1-1/2"

6-1/2"

29-1/2"

16-3/4"

17-1/2"

13-3/4"

Service Access

Service

Access
