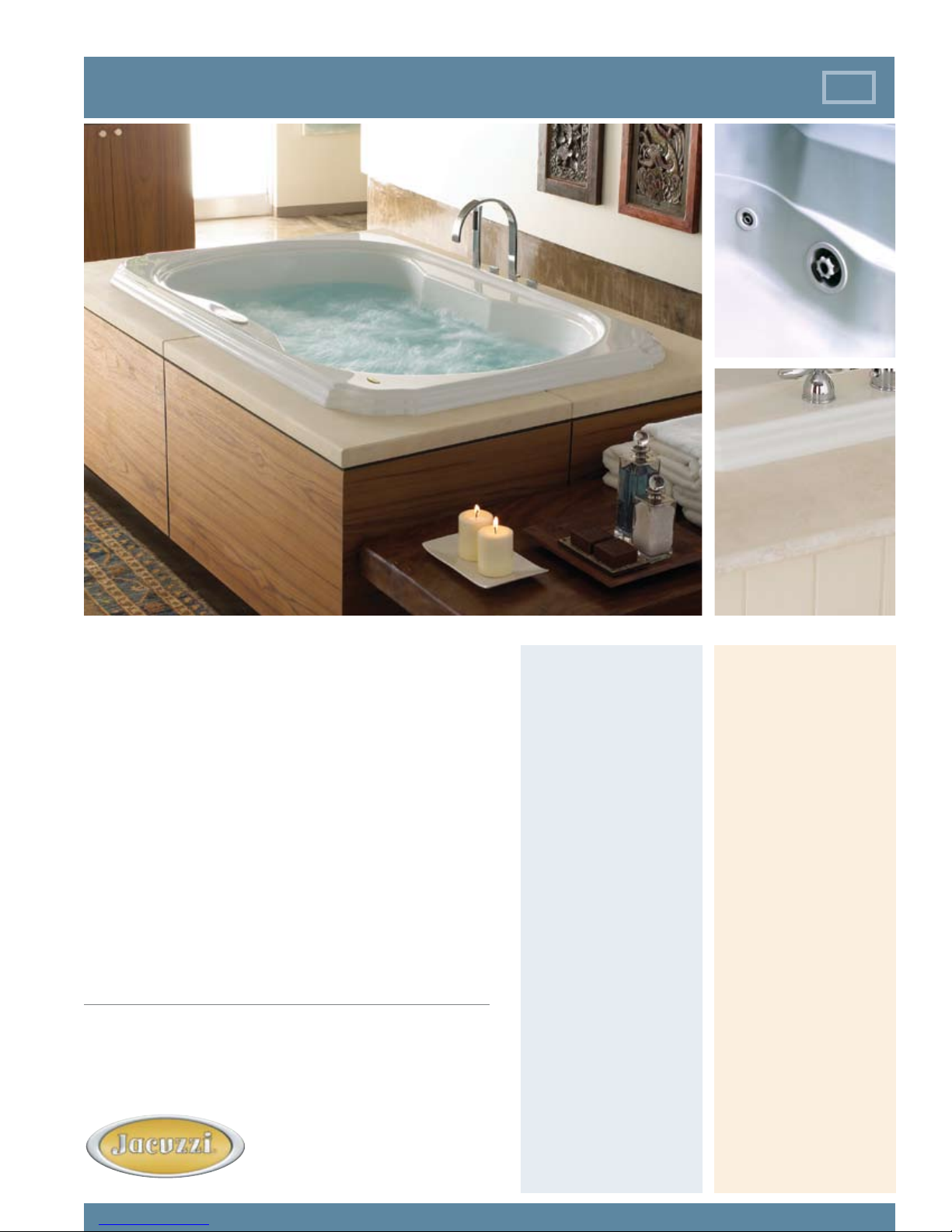

Jacuzzi BELLAVISTA 5.5 User manual

Bellavista™5.5

SOAKING BATH

MODEL NUMBER:

Y890

EXTERIOR DIMENSIONS:

66" long x 42" wide x

26" high

INTERIOR DIMENSIONS:

46" long x 24" wide

Bellavista™5.5

WHIRLPOOL BATH

MODEL NUMBER:

EE15

EXTERIOR DIMENSIONS:

66" long x 42" wide x

26" high

INTERIOR DIMENSIONS:

46" long x 24" wide

# OF JETS/TYPE OF JETS:

4 PowerPro®Jets

4 Spinning Neck Jets

2 AccuPro™ Foot Jets

OPERATING GALLONS:

85 gallons

In Italy, it means beautiful view. To you, a wonderful place

to regain relaxed, revitalized perspective.

WHIRLPOOL BATH FEATURES:

• 4 fully adjustable PowerPro®jets

• 4 spinning neck jets

• 2 directionally adjustable AccuPro™ foot jets

• Sculpted armrest and contoured backrest

• Multi-speed motor

• Chromatherapy™ lighting system capable of 256

colors

• Wave Pulse™ system

• All-in-one electronic control panel

• Water-level sensor

• PrO3

™ Ozone Sanitation System standard

Bellavista™5.5 |WHIRLPOOL BATH and SOAKING BATH

Detail:

The Bellavista™ whirlpool bath’s perfectly placed PowerPro®and

AccuPro™ jets work in concert with a deeply contoured backrest to offer

the ultimate in hydrotherapy.

Bellavista™5.5

WHIRLPOOL BATH

Technical Speciﬁcations

DIMENSIONS

66” L x 42” W x 26” H

(1676 mm) L x (1067 mm) W x (660 mm) H

DRAIN/OVERFLOW

A: 20” (508 mm) B: 11-3/4” (298 mm)

CUTOUT

Template Provided P/N P187000

TOTAL WEIGHT

EE15: 1078 lb (489 kg) / 56 lb/sq. ft. (273 kg/m2)

Y890: 1078 lb (489 kg) / 56 lb/sq. ft. (273 kg/m2)

OPERATING GALLONAGE

85 U.S. Gal. (322 Liters)

PRODUCT WEIGHT

EE15: 120 lb (56 kg)

Y890: 120 lb (56 kg)

SKIRT MOUNTING

Not Available

ELECTRICAL SPECIFICATIONS — Model EE15 only

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 20 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

HEATER (STANDARD) — Model EE15 only

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

INSTALLATION NOTES

Refer to installation instructions included with ﬁxture before

beginning installation. Please conﬁrm product availability and

speciﬁcations before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT

TO CHANGE WITHOUT NOTICE.

#FQ84000 10/07

EE15 Bellavista™5.5 Whirlpool Bath, Right Hand

Y890 Bellavista™5.5 Bath

• Center Drain Location

• Accessories / Hardware:

AccuPro™ Ring Kit: #M952

AccuPro™ Ring Kit: #J869

2 x Neck Jet Ring Trim Kit: #P556

Oval Trim Kit: #N557

Rotary Drain Kit, 30” Cable: #K606

• Trim Kit Finishes Available:

(827) – Chrome

(898) – Brushed Chrome

(815) – Satin Nickel

(829) – Bright Brass

(805) – Platinum

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

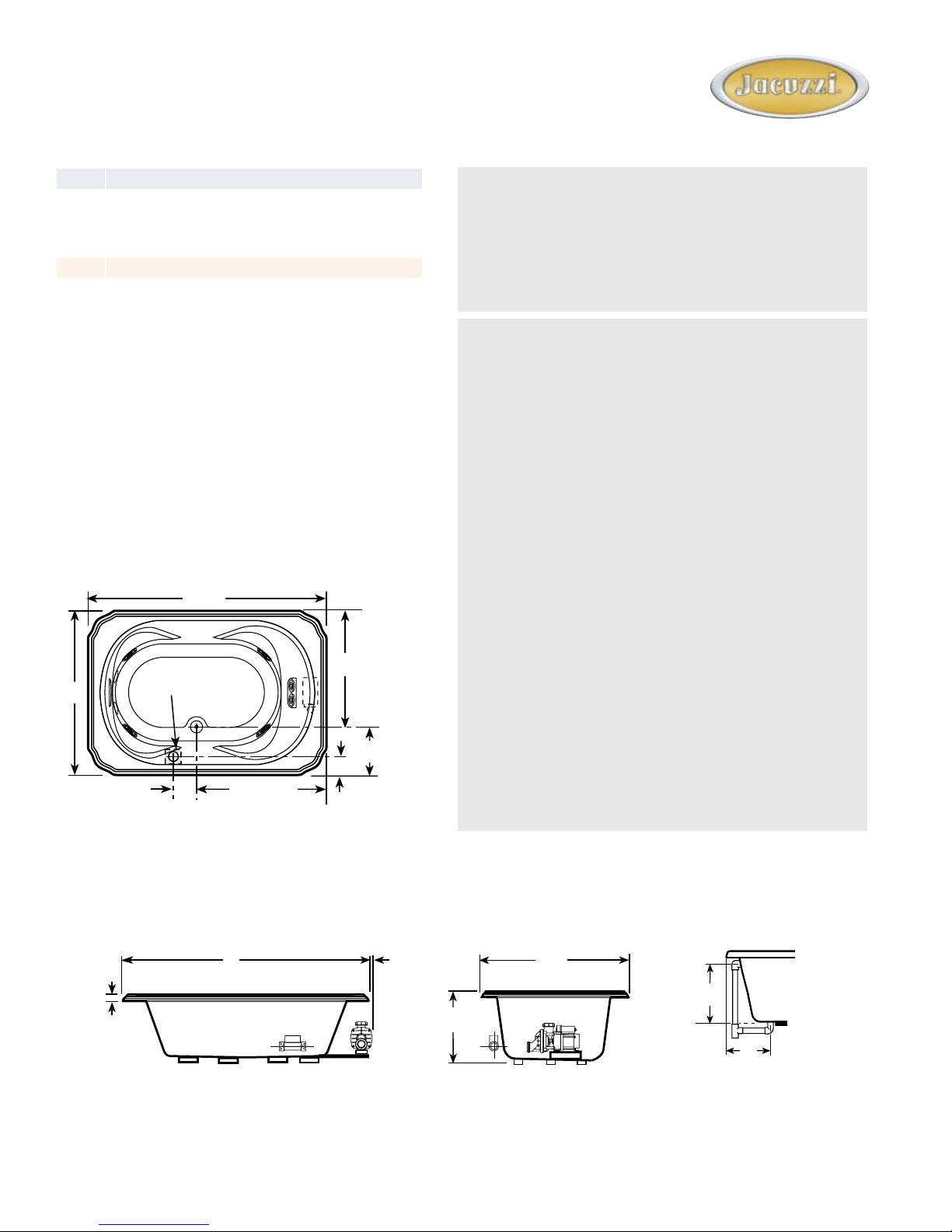

Bellavista™5.5

SOAKER BATH

10" 35-1/2"

11-3/4"

30-1/8"

42"

66"

4" x 4"*

DRAIN/OVERFLOW

END VIEW

SIDE VIEW

L W

(Heater)

(Motor)

(51 mm)

MAX. 1/2"**

Product Shown: Bellavista™ 5.5 Bath

Right Hand Shown, Model: EE15

* Measurements inside unit represent cutout in

ﬂoor to allow for drain/overﬂow.

Minimum Service Access dimensions given.
