Jabra REVO User manual
jabra.com/revowireless
User Manual
JABRA REVO WIRELESS
2
jabra revo wireless
1. WELCOME........................................3
2. OVERVIEW ...................................... 4
3. HOW TO WEAR................................5
3.1 HEIGHT ADJUSTMENT
3.2 FOLDABLE HINGES
4. HOW TO CHARGE............................7
4.1 BATTERY STATUS
5. HOW TO CONNECT......................... 8
5.1 CONNECT TO A BLUETOOTH DEVICE
5.2 CONNECT TO AN NFC DEVICE
5.3 CONNECT TO 3.5 MM JACK CONNECTOR
5.4 CONNECT TO USB
6. HOW TO USE ................................12
6.1 TURN HEADSET ON/OFF
6.2 MULTIPLE CALL HANDLING
6.3 VOICE GUIDANCE
7. SUPPORT.......................................17
7.1 FAQ
7.2 HOW TO CARE FOR YOUR HEADSET
8. TECHNICAL SPECIFICATIONS ........19
3
jabra revo wireless
1. WELCOME
Thank you for purchasing the Jabra Revo Wireless.
We hope you will enjoy it!
JABRA REVO WIRELESS FEATURES
High definition Dolby®Digital Plus enhanced
sound via exclusive Jabra Sound App.
Optimized sound excellence with portable
devices.
Turntable Touch Control for easy music and call
management.
Life proof - tough, shatterproof and constructed
for ultimate portability.
Premium comfort for extended wear: memory
foam ear cups and padded headband.
Foldable design for quick and compact storage.
Superior call quality – Noise Blackout™ with dual
mic technology.
NFC for easy pairing.
Detachable corded option for when you need to
be wired.
Connects with all Bluetooth®ready devices –
phones, computers, tablets and more.
4
jabra revo wireless
2. OVERVIEW
OFF
Adjustable
Headband
Jabra Sound APP
button
3.5mm Jack
Connector
3.5mm audio cable Micro-USB cable
Foldable Hinges
On/Off/Pairing
switch
Turntable Touch
Controls
Multi-function
button
Battery and
Connection status
lights
Multi-function
button
NFC zone
Micro-USB Port
5
jabra revo wireless
3. HOW TO WEAR
3.1 HEIGHT ADJUSTMENT
Get the perfect fit by adjusting the headband, as
illustrated.
6
jabra revo wireless

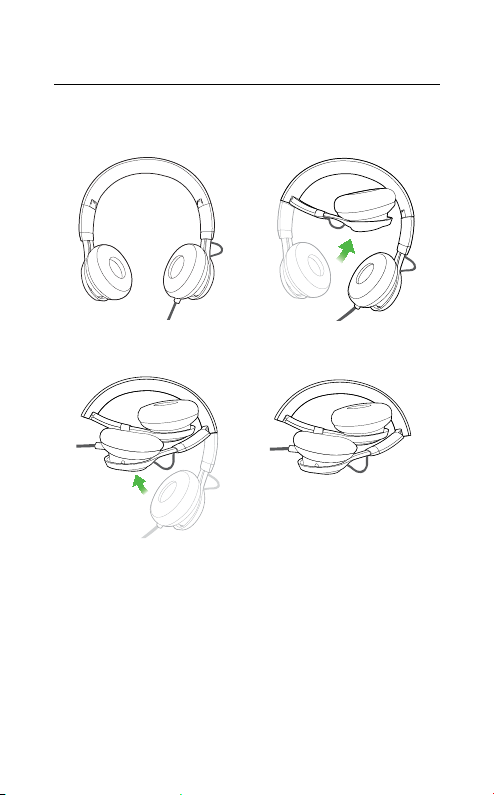

3.2 FOLDABLE HINGES
The headset can be folded when not in use.
7
jabra revo wireless
4. HOW TO CHARGE
Plug the headset into any available USB port on
your PC using the micro-USB cable.
4.1 BATTERY STATUS
Tap the Multi-function button when not on a call to
see the battery status. It takes 2-4 hours to fully
charge the headset.
LED COLOR BATTERY LEVEL
Green Medium/High
Red Low
Flashing red Critically low
8
jabra revo wireless
5. HOW TO CONNECT
5.1 CONNECT TO A BLUETOOTH DEVICE
1. Hold the On/Off/Pairing switch in the Pairing
position for 3 secs.
2. Pairing mode will be announced in the
headphones, and the Bluetooth light will flash
blue.
3. Follow the voice-guided pairing instructions to
pair to your Bluetooth device.
9
jabra revo wireless
5.2 CONNECT TO AN NFC DEVICE
1. Turn the Revo Wireless on (set the On/Off/
Pairing switch to the On position).
2. Hold an NFC device against the NFC zone of the
headphones (left earcup).
NFC zone
NOTE: Different NFC devices have NFC implemented in
different ways. The size and sensitivity of the NFC zone
may vary between devices.
10
jabra revo wireless
5.3 CONNECT TO 3.5 MM JACK CONNECTOR
Connect the headset to a 3.5 mm jack connector on
your mobile device or PC using the supplied music
cable.
NOTE: Bluetooth and headset connections are disabled
when connected to the 3.5 mm Jack Connector.
